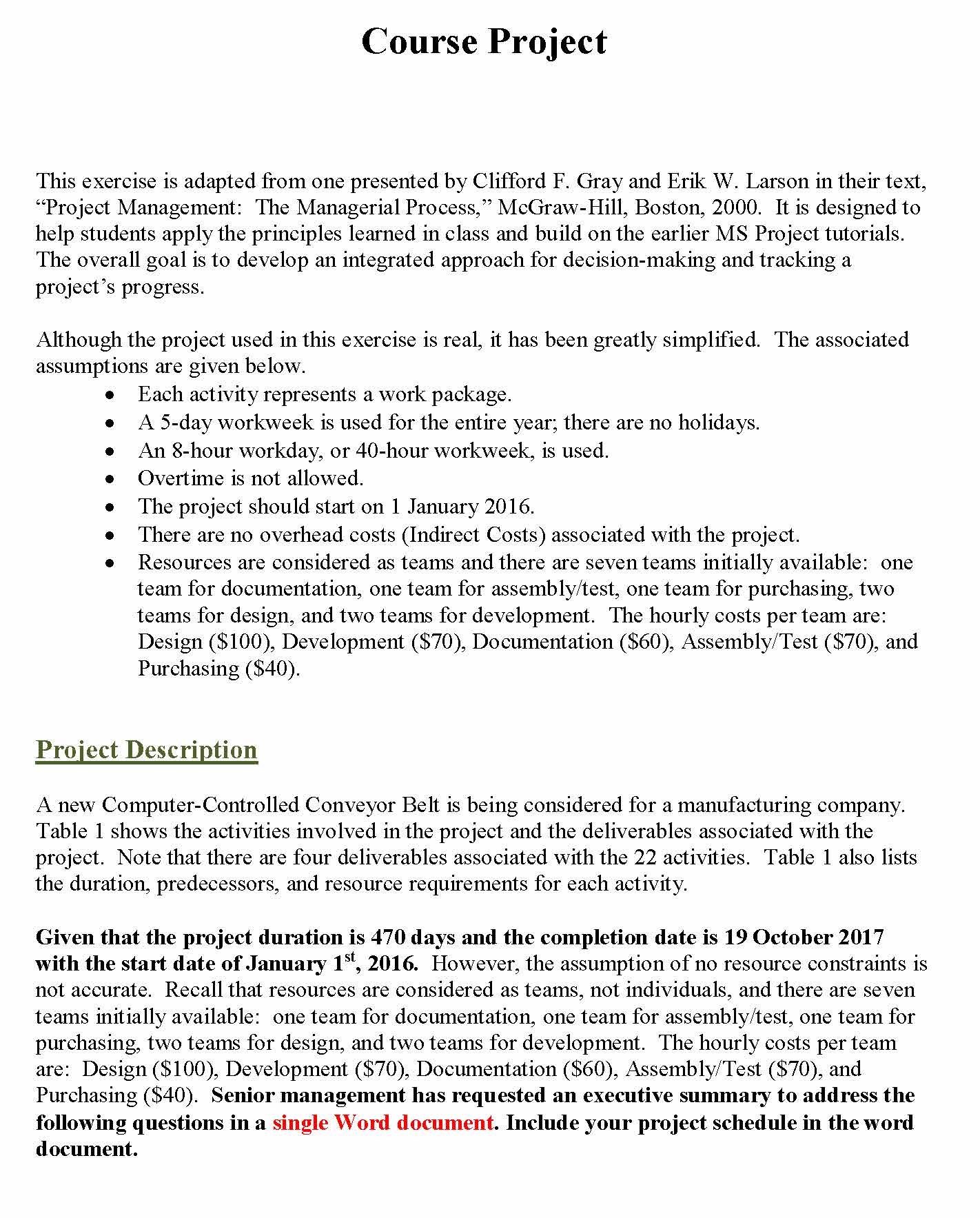

This exercise is adapted from one presented by Clifford F Gray and Erik W. Larson in their text,
"Project Management: The Managerial Process,' McGraw-Hill, Boston, 2000. It is designed to
help students apply the principles learned in class and build on the earlier MS Project tutorials.
The overall goal is to develop an integrated approach for decision- making and tracking a
Although the project used in this exercise is real, it has been greatly simplified. The associated
assumptions are given below.
Each activity represents work package
A 5-day workweek used for the entire year; there are no holidays
An -hour workday, or 40 -hour workweek, is used.
Overtime s not allowed.
The project should start on January 2016.
There are no overhead costs (Indirect Costs) associated with the project.
Resources are considered as teams and there are seven teams in itially available: one
team for documentation, one team for assembly/test. one team for purchasing, two
teams for design, and two teams for development. The hourly costs per team are:
Design $100), Development ($70), Documentation ($60), Assembly/ Cest ($70), and
A new Computer-Controlled Conveyor Belt being considered for manufacturing company
Table shows the activities involved in the project and the deliverables associated with the
project. Note that there are four deliverables associated with the 22 activities. Table also
the duration, predecessors, and resource requirements for each activity.
Given that the project duration is 470 days and the completion date is 19 October 2017
with the start date of January 1st. 2016. However, the assumption of no resource constraints is
not accurate. Recall that resources are considered as teams, not individuals, and there are seven
teams initially available: one team for documentation, one team for assembly/test, one team for
purchasing, two teams for design, and two teams for development The hourly costs per team
are: Design ($100). Development $70), Documentation ($60), Assembly/Test ($70) and
Purchasing ($40). Senior management has requested an executive summars to address the
following questions in single Word document. Include your project schedule in the word

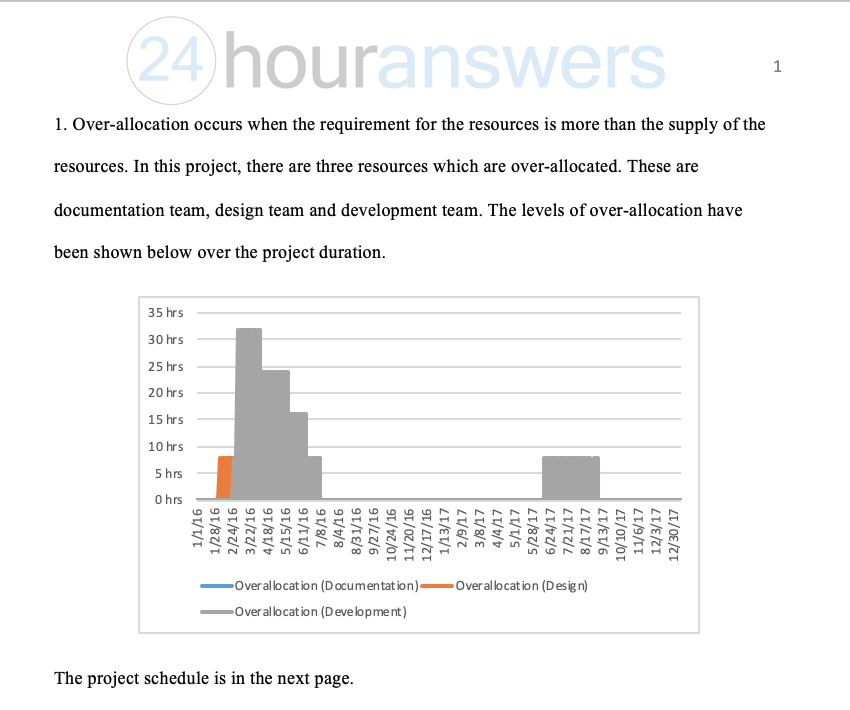

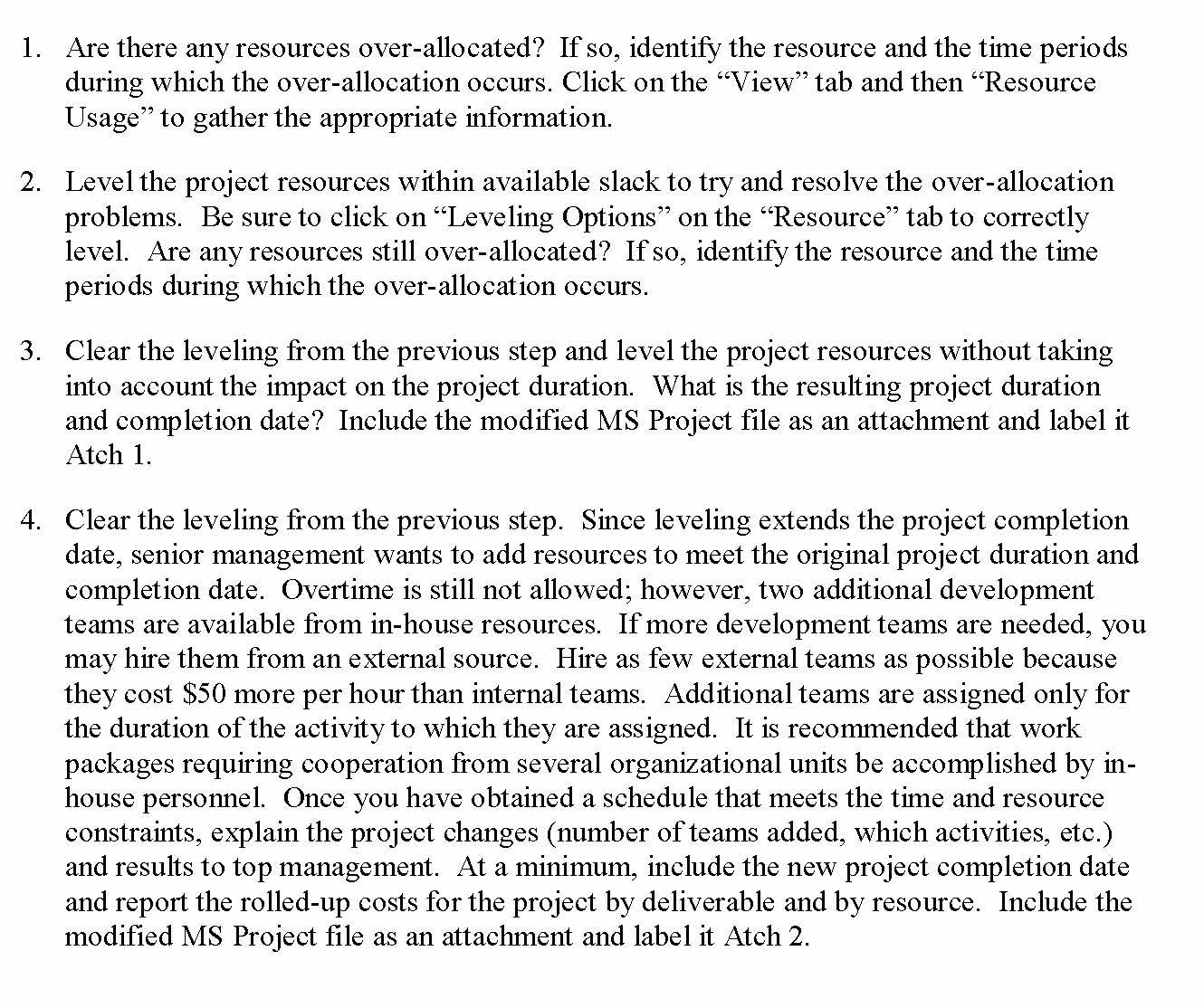

1. Are there any resources over-allocated? If so. identify the resource and the time periods
during which the over- -allocation occurs. Click on the "View' tab and 1then "Resource
Usage' to gather the appropriate information.
2. Level the project resources within available slack totry and resolve the over -allocation
problems. Be sure to click on "Leveling Options" on the *Resource" tab to correctly
level. Are any resources still over -allocated? If so. identify the resource and the time
periods during which the over-allocation occurs
3. Clear the leveling from the previous step and level the project resources without taking
into account the impact on the project duration. What is the resulting project duration
and completion date? Include the modified MS Project file as an attachment and label it
4. Clear the leveling from the previous step. Since leveling extends the project completion
date. senior management wants to add resources to meet the original project duration and
completion date. Overtime still not allowed; however two additional development
teams are available from in- -house resources. If more development teams are needed you
may hire them from an external source. Hire as few external teams as possible because
they cost $50 more per hour than internal teams. Additional teams are assigned only for
the duration of the activity to which they are assigned. It recommended that work
packages requiring cooperation from several organizational units be accomplished by in
house personnel. Once you have obtained schedule that meets the time and resource
constraints, explain the project changes (number of teams added, which activities, etc.)
and results to top management. At minimum, include the new project completion date
and report the rolled-up costs for the project by deliverable and by resource. Include the
modified MS Project file as an attachment and label it Atch 2.

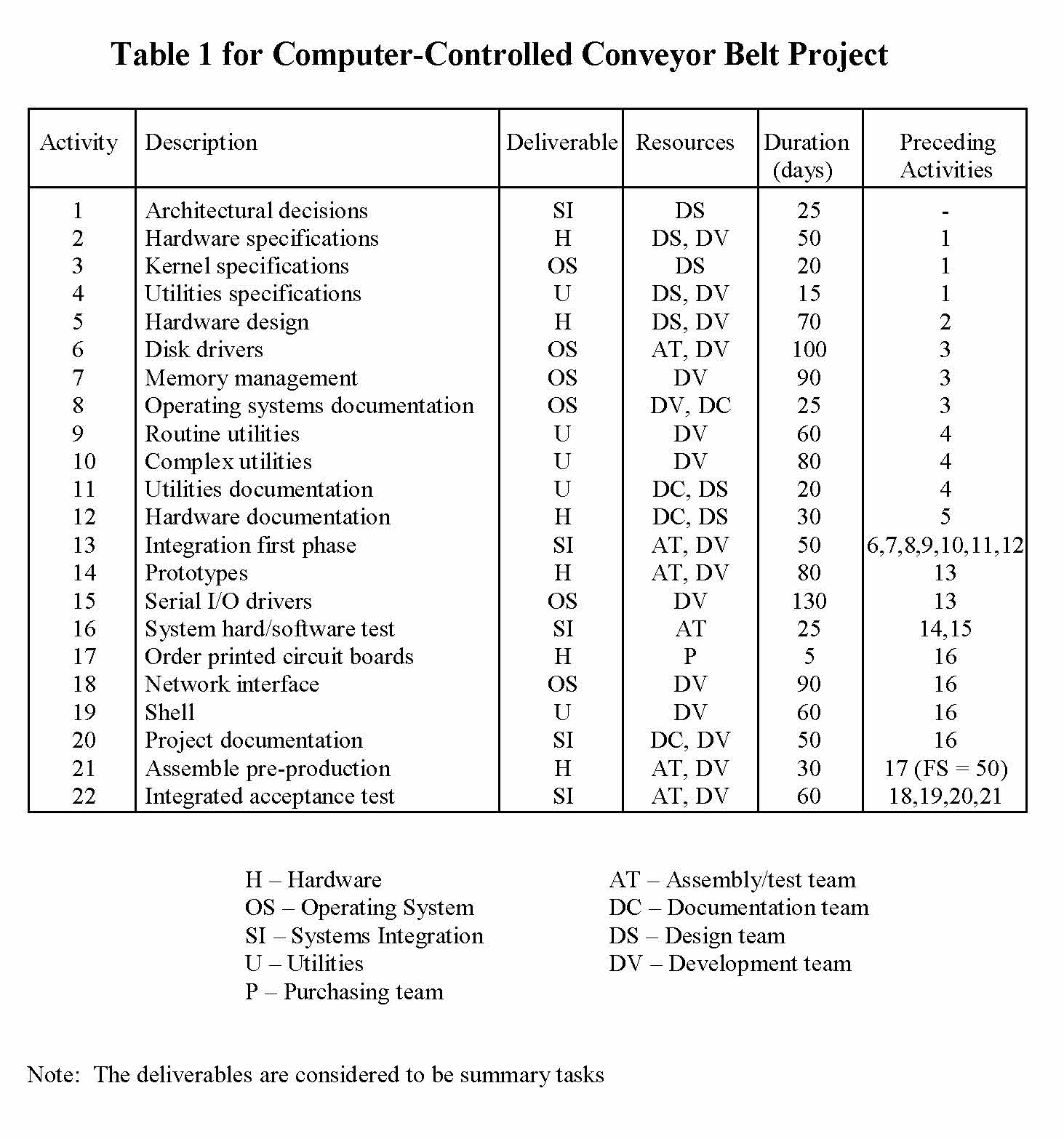

Table 1 for Computer-Controlled Conveyor Belt Project
Operating systems documentation
Integration first phase
System hard/software test
Order printed circuit boards
Assemble pre -production
17 (FS = 50)
Integrated acceptance test
AT Assembly/test team
DC Documentation team
SI Systems Integration
DS Design team
DV Development team
Note: The deliverables are considered to be summary tasks
