Question

Optimize the design of a column to process a feed stream containing 35% acetone at 30°C, to produce a distillate product with an acetone mole fraction of 0.75 and a bottoms acetone fraction of 0.0010. For this case, determine the following:

a. Minimum number of ideal stages
b. Minimum reflux ratio (pinch point may occur close to xD)
c. Number of ideal stages for a reflux ratio of 2 times the minimum
d. Number of actual trays for a reflux ratio of 2 times minimum with a Murphree efficiency of 75%
e. Column diameter to operate at 80% of the flooding velocity, with 18 inch tray spacing
f. Reboiler and condenser duties and approximate heat transfer areas (list assumptions about available steam and cooling water conditions).

Prepare plots showing the effect of reflux ratio on the number of trays and on reboiler and condenser duties for a range of 1.2 to 2.0 times the minimum reflux ratio. Recommend a particular design from these results. Further enhancements to reduce energy consumption are encouraged.

For your spreadsheet analysis you will need to obtain an equilibrium model for the acetone-methanol. Using the data given in the text, you can correlate the relative volatility as a polynomial in x and in y to get a reasonably good fit. A linear model works well enough for relative volatility vs x, while a quadratic will be needed for relative volatility vs y. You will also need to deal with how to switch from the stripping to the enriching section material balance at the appropriate point.

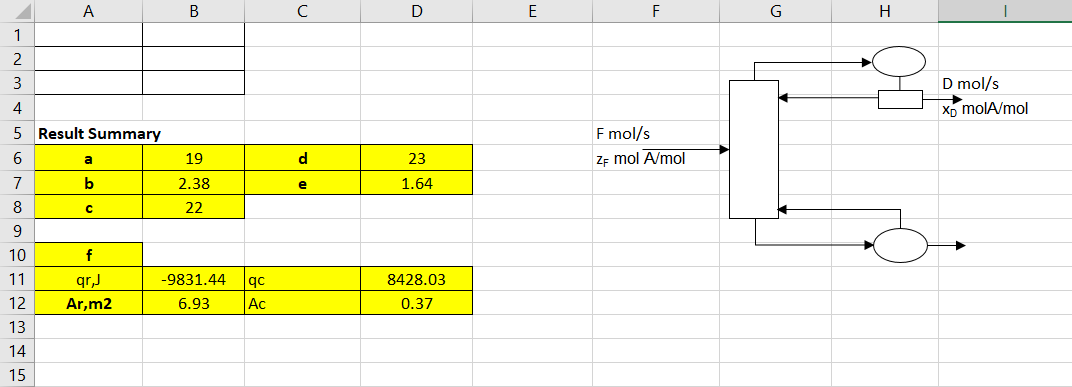

Solution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

Distillation Design Questions

This is only a preview of the solution. Please use the purchase button to see the entire solution
