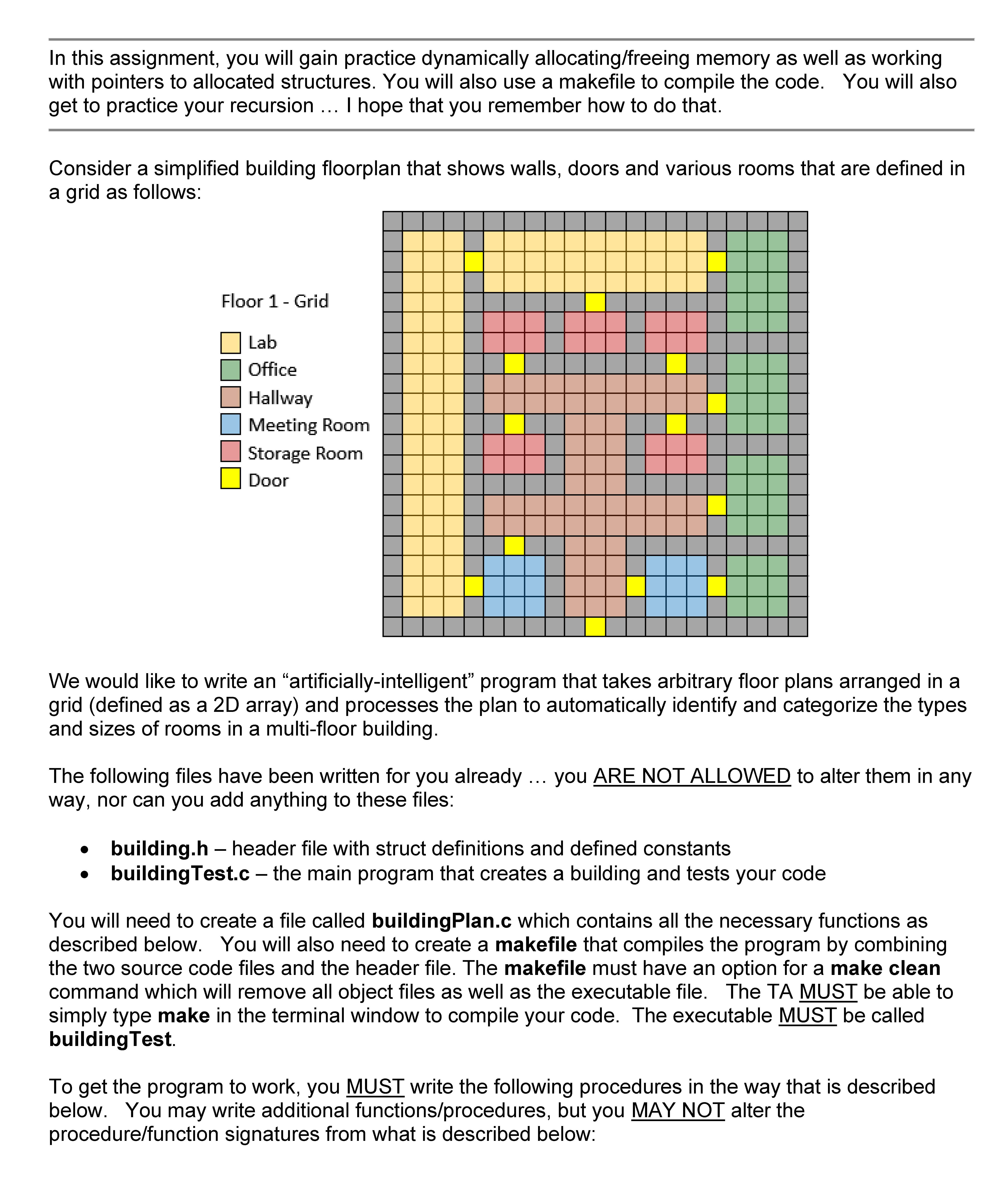

In this assignment, you will gain practice dynamically allocating/freeing memory as well as working with pointers to allocated structures. You will also use a makefile to compile the code. You will also get to practice your recursion … I hope that you remember how to do that. Consider a simplified building floorplan that shows walls, doors and various rooms that are defined in a grid as follows: We would like to write an “artificially-intelligent” program that takes arbitrary floor plans arranged in a grid (defined as a 2D array) and processes the plan to automatically identify and categorize the types and sizes of rooms in a multi-floor building. The following files have been written for you already … you ARE NOT ALLOWED to alter them in any way, nor can you add anything to these files: • building.h – header file with struct definitions and defined constants • buildingTest.c – the main program that creates a building and tests your code You will need to create a file called buildingPlan.c which contains all the necessary functions as described below. You will also need to create a makefile that compiles the program by combining the two source code files and the header file. The makefile must have an option for a make clean command which will remove all object files as well as the executable file. The TA MUST be able to simply type make in the terminal window to compile your code. The executable MUST be called buildingTest. To get the program to work, you MUST write the following procedures in the way that is described below. You may write additional functions/procedures, but you MAY NOT alter the procedure/function signatures from what is described below: • findDoors(FloorPlan *fplan) o This procedure takes a pointer to a FloorPlan structure as a parameter and finds all the doors for that floor. It should first iterate through the grid and count the number of doors, then store the numDoors total in the floor plan. (Hint: if you look at the grids defined in the main program, you will notice that walls are marked with a ‘1’ char, doors with a ‘2’ char and open space with a ‘0’ char). Once the doors have been counted, you MUST allocate memory for an array that will store exactly that many doors. The array should be stored in the floor plan’s doors pointer. You should then go through the grid again and fill in this array by setting the row & col of the door in the grid. • findRooms(Building *build, int floorNum) o This procedure assumes that all the doors have been found previously. It takes a building pointer and a floor number as parameters. It must then go through the floorPlan’s grid for that floor number to identify its rooms. You MUST go through the grid from left to right (starting at the top row) … to search for a grid location that is ‘0’. This will be a starting point for tracing out a room. When you find a ‘0’, you should dynamically-allocate a new room with 0 size and 0 numDoors. You should add this room to the floor plan’s linked-list of rooms (i.e., roomList). You MUST then call a recursive procedure (of your own creation) that will trace out the remainder of the room. To trace out a room recursively, start at some (row, col) location (i.e., the one that you found the ‘0’ at). Then recursively traverse the grid up, down, left and right. The recursion stopping case is when you are at a non-‘0’ location. Make sure to mark visited locations with a character that is not ‘0’, ‘1’ or ‘2’. As you trace out the room, increase the counter for the room size and so that upon completion, the recursive function has set the room size to the correct value. Also, when you encounter a door, you should: ▪ increase the door count for the room, and ▪ find the door in the building at this location and set this room as one of its two rooms. That is, each door keeps track of the two rooms that it joins (i.e., openFromRoom and openToRoom). You should find out which of those two values is NULL (both may be at first) and then set that to be this room. It makes sense to use a FOR loop here to check ALL of the doors in the building to determine which one matches the location you are at while tracing. When the tracing procedure has completed, all doors on that floor should have their openFromRoom and openToRoom set accordingly. It does not matter which room is the openToRoom or openFromRoom … the order is unimportant. Note that there may be some doors that are on the edge of the building. These doors will have only one of these set … it doesn’t matter which one you set. You MUST NOT allocated any memory while tracing out the rooms nor can you define any new arrays in the recursive function. • sortRooms(Building *build) o This procedure assumes that all the doors and rooms have been found. It takes a building pointer as a parameter. It then goes through all pre-computed rooms on all floors and sorts the rooms as being an office, meeting room, lab, storage room or hallway. It MUST go through the roomList lists of each floor plan and build up the 5 linked lists (initially each NULL) of the building (i.e., the offices, meetingRooms, labs, storageRooms and hallways linked-lists of the building structure). The idea is to go through each of the floor plan roomLists and move the room into one of the five room type lists for the building. You should follow these rules to decide which list to add to: ▪ If the room has size <=6, it is a storage room. ▪ If the room has exactly 1 door (and size > 6), it is an office. ▪ If the room has > 1 door but < 4, and has size >= 30, it is a Lab. ▪ If the room has > 1 door but < 4, and has size < 30, it is a Meeting Room. ▪ If the room has >= 4 doors, it is a hallway. When the procedure completes, the 5 linked lists of the building should be filled up with all rooms in the building and each floor plan’s linked list of rooms should be NULL. • printRoomList(Room *roomList, char *roomType) o This procedure should take a linked list of rooms and a string indicating a room type (e.g., “Office”) and then display all the rooms in that list … one room at a time showing the room type, floor number, square footage (i.e., 4 times the size) and number of doors … in this format: Meeting Room (on floor 0) with 60 square feet and 2 doors Meeting Room (on floor 0) with 100 square feet and 2 doors Meeting Room (on floor 1) with 36 square feet and 2 doors Meeting Room (on floor 1) with 36 square feet and 2 doors Meeting Room (on floor 3) with 36 square feet and 2 doors … etc … • freeEverything(Building *build) o You guessed it … this procedure should free up all dynamically-allocated memory so that valgrind shows no memory leaks nor errors. Here are the floors being used in the test program: Floor 0 Floor 1 Floor 2 Floor 3 Floor 4 Here is the result that you should get from the program if you followed the directions properly: Office (on floor 0) with 52 square feet and 1 doors Office (on floor 0) with 52 square feet and 1 doors Office (on floor 0) with 84 square feet and 1 doors Office (on floor 0) with 48 square feet and 1 doors Office (on floor 0) with 52 square feet and 1 doors Office (on floor 0) with 48 square feet and 1 doors Office (on floor 0) with 60 square feet and 1 doors Office (on floor 0) with 100 square feet and 1 doors Office (on floor 1) with 48 square feet and 1 doors Office (on floor 1) with 48 square feet and 1 doors Office (on floor 1) with 36 square feet and 1 doors Office (on floor 4) with 84 square feet and 1 doors Office (on floor 4) with 52 square feet and 1 doors Office (on floor 4) with 52 square feet and 1 doors Office (on floor 4) with 72 square feet and 1 doors Office (on floor 4) with 80 square feet and 1 doors Office (on floor 4) with 80 square feet and 1 doors Meeting Room (on floor 0) with 60 square feet and 2 doors Meeting Room (on floor 0) with 100 square feet and 2 doors Meeting Room (on floor 1) with 36 square feet and 2 doors Meeting Room (on floor 1) with 36 square feet and 2 doors Meeting Room (on floor 3) with 36 square feet and 2 doors Meeting Room (on floor 3) with 60 square feet and 3 doors Meeting Room (on floor 3) with 60 square feet and 3 doors Meeting Room (on floor 3) with 36 square feet and 2 doors Meeting Room (on floor 3) with 36 square feet and 2 doors Meeting Room (on floor 3) with 36 square feet and 2 doors Meeting Room (on floor 3) with 36 square feet and 2 doors Meeting Room (on floor 3) with 36 square feet and 2 doors Meeting Room (on floor 3) with 100 square feet and 2 doors Meeting Room (on floor 3) with 100 square feet and 2 doors Meeting Room (on floor 3) with 36 square feet and 2 doors Meeting Room (on floor 3) with 36 square feet and 2 doors Meeting Room (on floor 3) with 36 square feet and 2 doors Meeting Room (on floor 3) with 36 square feet and 2 doors Meeting Room (on floor 3) with 88 square feet and 3 doors Meeting Room (on floor 4) with 84 square feet and 2 doors Meeting Room (on floor 4) with 72 square feet and 3 doors Meeting Room (on floor 4) with 72 square feet and 2 doors Lab (on floor 1) with 228 square feet and 2 doors Lab (on floor 1) with 132 square feet and 3 doors Lab (on floor 3) with 120 square feet and 2 doors Lab (on floor 3) with 120 square feet and 2 doors Storage Room (on floor 0) with 8 square feet and 1 doors Storage Room (on floor 0) with 16 square feet and 1 doors Storage Room (on floor 1) with 24 square feet and 2 doors Storage Room (on floor 1) with 24 square feet and 1 doors Storage Room (on floor 1) with 24 square feet and 1 doors Storage Room (on floor 1) with 24 square feet and 1 doors Storage Room (on floor 1) with 24 square feet and 1 doors Storage Room (on floor 1) with 24 square feet and 1 doors Storage Room (on floor 1) with 24 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 20 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 16 square feet and 1 doors Storage Room (on floor 2) with 16 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 16 square feet and 1 doors Storage Room (on floor 2) with 16 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 16 square feet and 1 doors Storage Room (on floor 2) with 16 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 16 square feet and 1 doors Storage Room (on floor 2) with 16 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 2) with 24 square feet and 1 doors Storage Room (on floor 4) with 24 square feet and 1 doors Hallway (on floor 0) with 328 square feet and 16 doors Hallway (on floor 1) with 272 square feet and 9 doors Hallway (on floor 2) with 448 square feet and 24 doors Hallway (on floor 4) with 384 square feet and 11 doors ___________________________________________________

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

#include "building.h"
#include <stdlib.h>
#include <stdio.h>
#include <wchar.h>


#define WALL '1'
#define DOOR '2'
#define SPACE '0'
#define VISITED '3'

void freeRoom(Room * room){
    Room * next;
    while (room != NULL) {
       next = room->nextRoom;
       free(room);
       room = next;
    }
}

/**

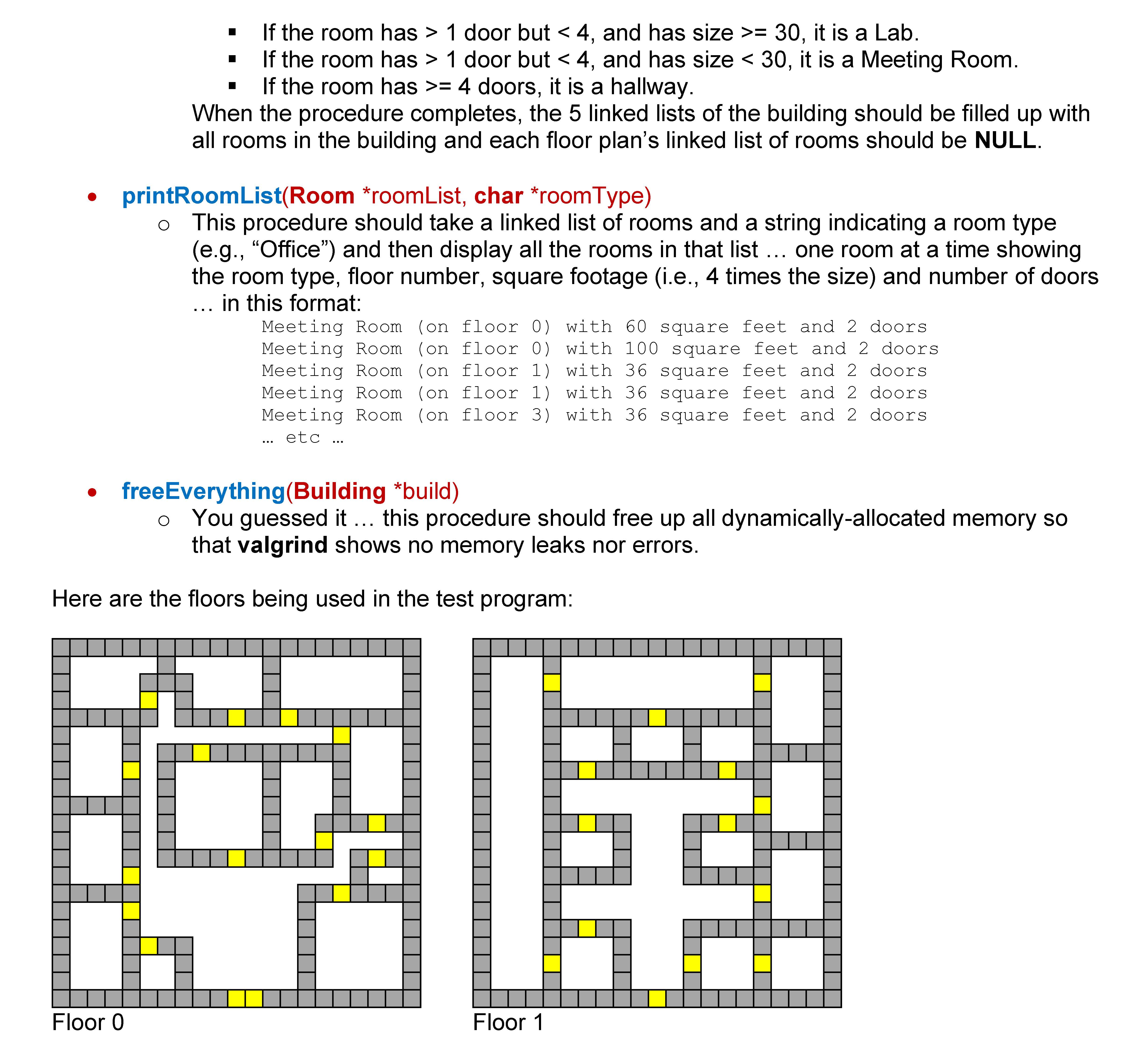

* You guessed it … this procedure should free up all
* dynamically-allocated memory so that valgrind shows no memory leaks nor errors.
* @param bld
*/
void freeEverything(Building * bld) {
    int i;
    for (i = 0; i < NUM_FLOORS; i++) {
       free(bld->floors[i].doors);
    }
    freeRoom(bld->hallways);
    freeRoom(bld->labs);
    freeRoom(bld->meetingRooms);
    freeRoom(bld->offices);
    freeRoom(bld->storageRooms);

};

void traceRoom(Room * room, char grid[HEIGHT][HEIGHT],
       int row, int col, FloorPlan * plan) {
    // out of bound
    if (row < 0 || row >= HEIGHT
            || col < 0 || col >= HEIGHT) {
       return;
    }

    Door * doors = plan->doors;
    switch (grid[row][col]) {
       case SPACE:
       {
            /**
             * As you trace out the room, increase the counter for the room
             * size and so that upon completion, the recursive
             * function has set the room size to the correct value.
             */
            room->size++;
            grid[row][col] = VISITED;
            /**
             * To trace out a room recursively, start at some (row, col) location
             * (i.e., the one that you
             * found the ‘0’ at). Then recursively traverse the grid up,
             * down, left and right.
             */
            traceRoom(room, grid, row + 1, col, plan);
            traceRoom(room, grid, row - 1, col, plan);
            traceRoom(room, grid, row, col + 1, plan);
            traceRoom(room, grid, row, col - 1, plan);
       }
            break;
       case DOOR:
       {
            /**
             * Also, when you encounter a door, you should:
             */
            // increase the door count for the room, and
            room->numDoors++;
            /**
             * find the door in the building at this location and set
             * this room as one of its two rooms.
             */
            /**
             * It makes sense to use a FOR loop here to check ALL of
             * the doors in the building to determine which one matches the
             * location you are at while tracing. When the tracing procedure
             * has completed, all doors on that floor should have their
             * openFromRoom and openToRoom set accordingly. It does not
             * matter which room is the openToRoom or openFromRoom …
             * the order is unimportant.Note that there may be some doors
             * that are on the edge of the building. These doors will have
             * only one of these set … it doesn’t matter which one you set.
             */
            int i;
            for (i = 0; i < (int) plan->numDoors; i++) {
                if (doors[i].col == (unsigned char) col
                        && doors[i].row == (unsigned char) row) {
                   if (doors[i].openFromRoom == NULL) {
                        doors[i].openFromRoom = room;
                   } else {
                        doors[i].openToRoom = room;
                   }
                   break;
                }
            }
       }
            break;
       default:
            /**
             * The recursion stopping case is when you are at a non-‘0’ location.
             */
            break;
    }
}

/**

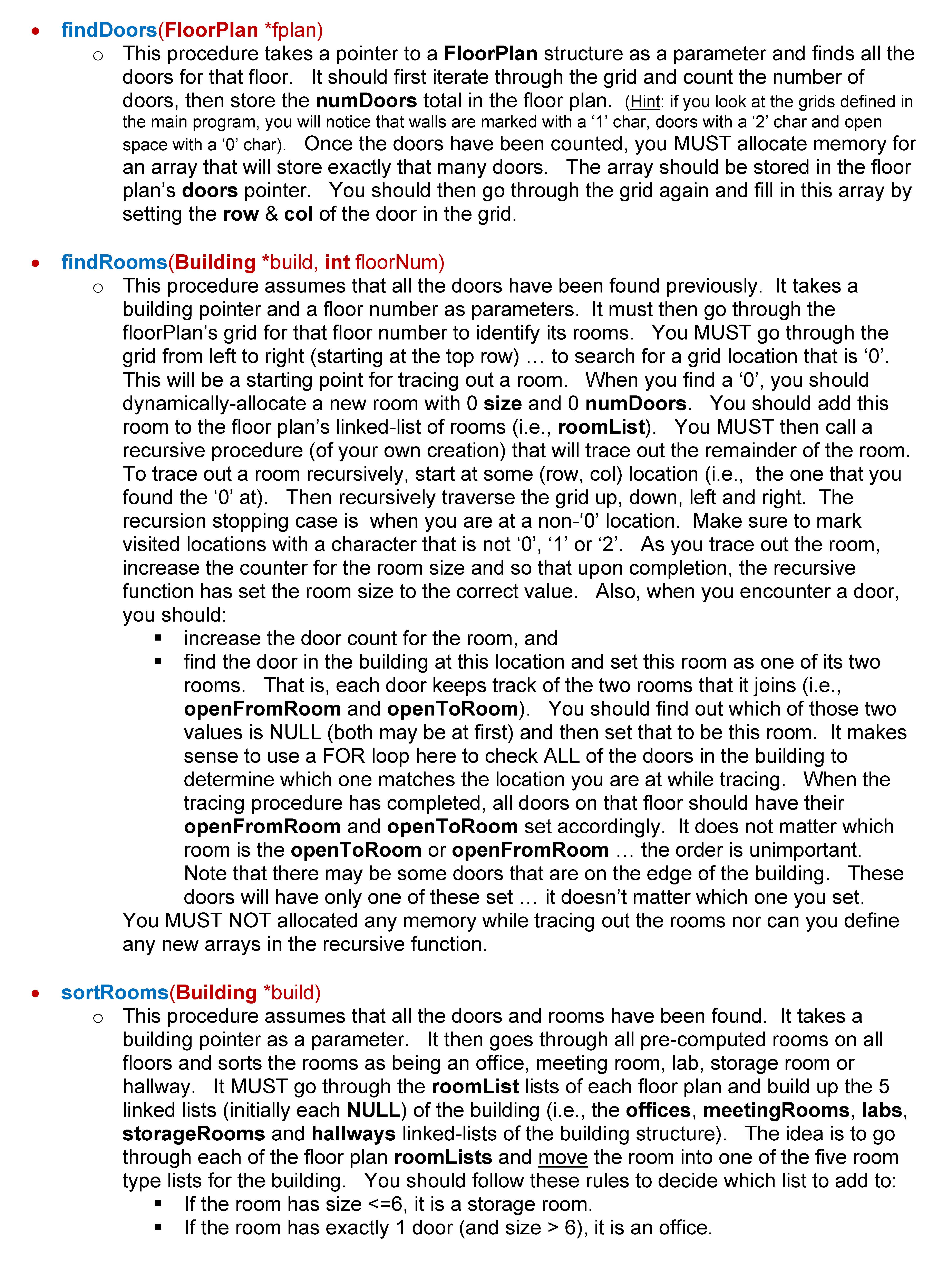

* This procedure assumes that all the doors have been found previously.
* It takes a building pointer and a floor number as parameters. It must
* then go through the floorPlan’s grid for that floor number to identify
* its rooms. You MUST go through the grid from left to right (starting at
* the top row) … to search for a grid location that is ‘0’. This will be a
* starting point for tracing out a room. When you find a ‘0’, you should
* dynamically-allocate a new room with 0 size and 0 numDoors. You should
* add this room to the floor plan’s linked-list of rooms (i.e., roomList).
* You MUST then call a recursive procedure (of your own creation) that
* will trace out the remainder of the room. To trace out a room recursively,
* start at some (row, col) location (i.e., the one that you found the ‘0’ at).
* Then recursively traverse the grid up, down, left and right. The recursion
* stopping case is when you are at a non-‘0’ location. Make sure to mark
* visited locations with a character that is not ‘0’, ‘1’ or ‘2’.
* As you trace out the room, increase the counter for the room size and
* so that upon completion, the recursive function has set the room size
* to the correct value. Also, when you encounter a door, you should:
* ▪ increase the door count for the room, and
* ▪ find the door in the building at this location and set this room as one
* of its two rooms. That is, each door keeps track of the two rooms that
* it joins (i.e., openFromRoom and openToRoom). You should find out
* which of those two values is NULL (both may be at first)
* and then set that to be this room. It makes sense to use a FOR
* loop here to check ALL of the doors in the building to determine which
* one matches the location you are at while tracing. When the tracing
* procedure has completed, all doors on that floor should have their...
