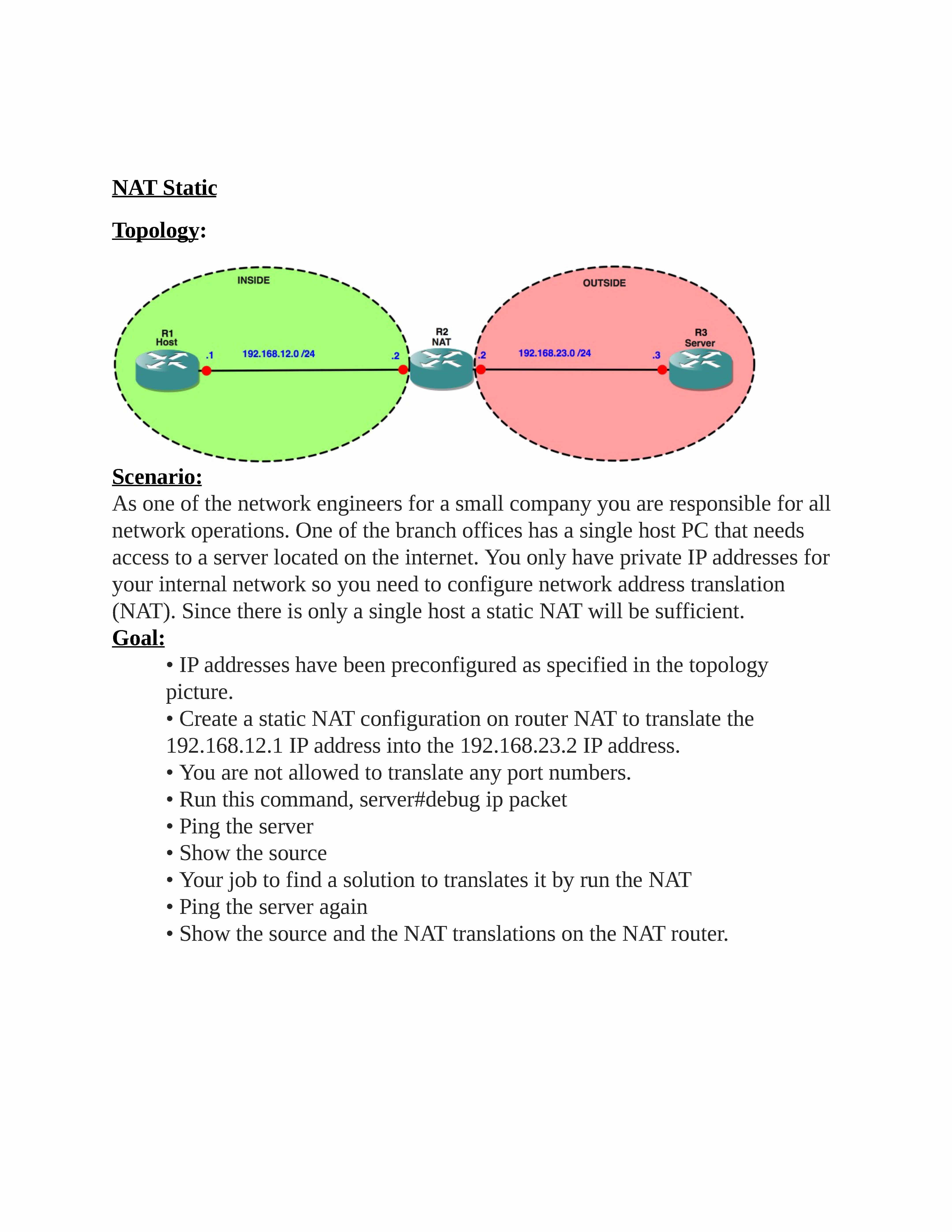

NAT Static Topology: Scenario: As one of the network engineers for a small company you are responsible for all network operations. One of the branch offices has a single host PC that needs access to a server located on the internet. You only have private IP addresses for your internal network so you need to configure network address translation (NAT). Since there is only a single host a static NAT will be sufficient. Goal: • IP addresses have been preconfigured as specified in the topology picture. • Create a static NAT configuration on router NAT to translate the 192.168.12.1 IP address into the 192.168.23.2 IP address. • You are not allowed to translate any port numbers. • Run this command, server#debug ip packet • Ping the server • Show the source • Your job to find a solution to translates it by run the NAT • Ping the server again • Show the source and the NAT translations on the NAT router.
