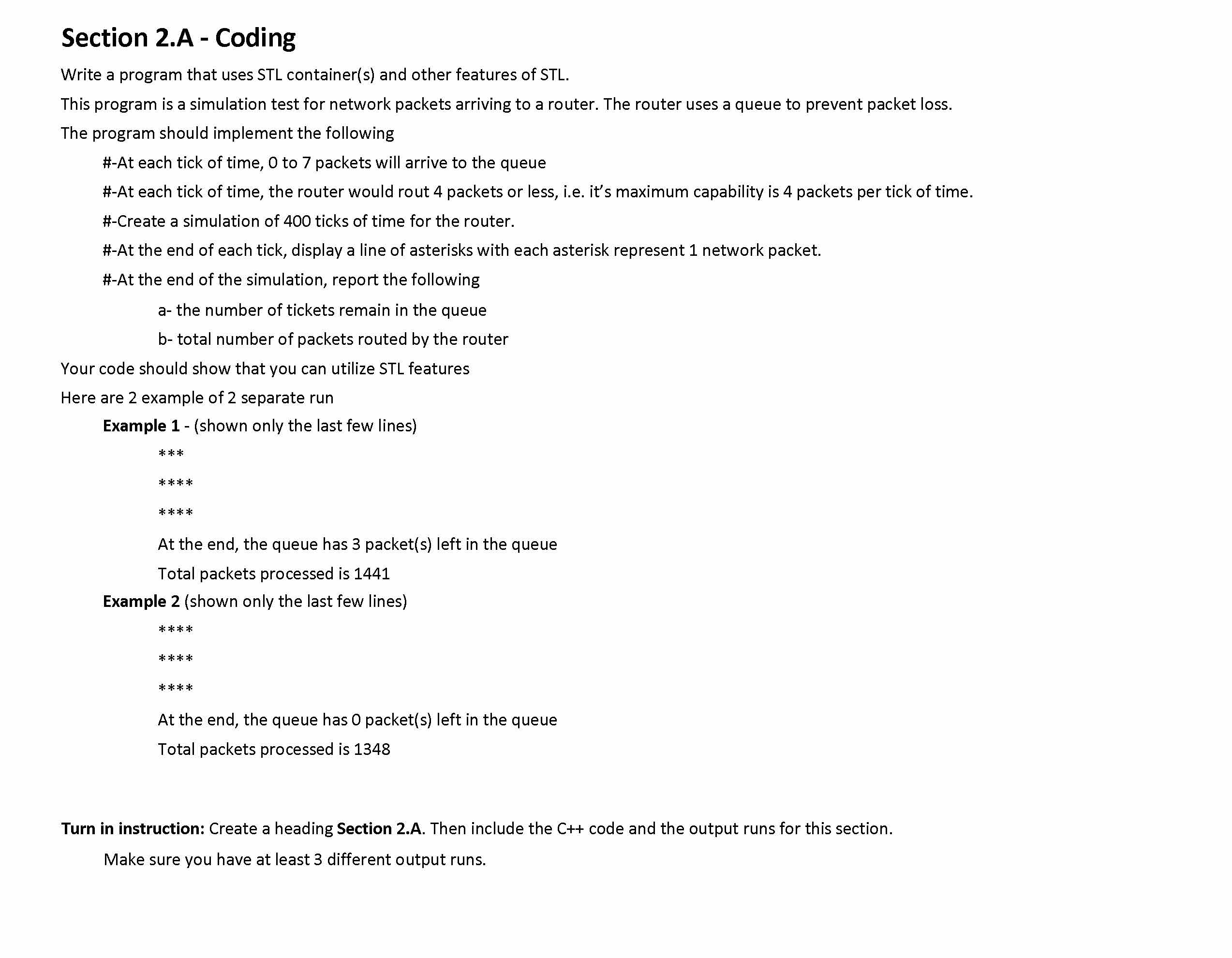

Section 2.A - Coding Write a program that uses STL container(s) and other features of STL. This program is a simulation test for network packets arriving to a router. The router uses a queue to prevent packet loss. The program should implement the following #-At each tick of time, 0 to 7 packets will arrive to the queue #-At each tick of time, the router would rout 4 packets or less, i.e. it’s maximum capability is 4 packets per tick of time. #-Create a simulation of 400 ticks of time for the router. #-At the end of each tick, display a line of asterisks with each asterisk represent 1 network packet. #-At the end of the simulation, report the following a- the number of tickets remain in the queue b- total number of packets routed by the router Your code should show that you can utilize STL features Here are 2 example of 2 separate run Example 1 - (shown only the last few lines) *** **** **** At the end, the queue has 3 packet(s) left in the queue Total packets processed is 1441 Example 2 (shown only the last few lines) **** **** **** At the end, the queue has 0 packet(s) left in the queue Total packets processed is 1348 Turn in instruction: Create a heading Section 2.A. Then include the C++ code and the output runs for this section. Make sure you have at least 3 different output runs. Section 2.B - Coding Revise the code so that the simulation will run 600 times. At the end of the simulation it will display as follows: Also, it will have additional report, (besides packets left, and total packets processed) it will display a- the number of time ticks the router was idle, b- the idle ratio and c- the maximum size of the queue happened in the simulation Below is 2 examples of the output run Example 2 (shown only the last few lines) **** **** ** **** At the end, the queue has 1 packets left in the queue Total packets processed is 2059 Number of time the router is idle: 31 idle ratio is : 0.0516667 Maximum size of the queue: 27 Example 2 (shown only the last few lines) **** **** **** **** At the end, the queue has 8 packet(s) left in the queue Total packets process is 2155 Number of time the router is idle: 15 idle ratio is : 0.025 Maximum size of the queue: 27 Turn in instruction: Create a heading Section 2.B. Then include the C++ code and the output runs for this section. Make sure you have at least 3 different output runs.

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

#include <iostream>
#include <cstdlib>
#include <ctime>
#include <queue>

using namespace std;


int main(int argc, char** argv) {

    queue<char> q;                         // queue for packets
    int totalPackets = 0;                   // counter for total packets
    srand((unsigned)time(0));               // seed the random number generator
    for (int tick = 0; tick < 400; tick++) // loop to simulate ticks
    {
       int arrived = rand() % 8;          // random number [0, 7] of arriving packets
       while (arrived > 0)                // loop to push arrived packets to queue
       {
            q.push('*');
            arrived--;
       }...
