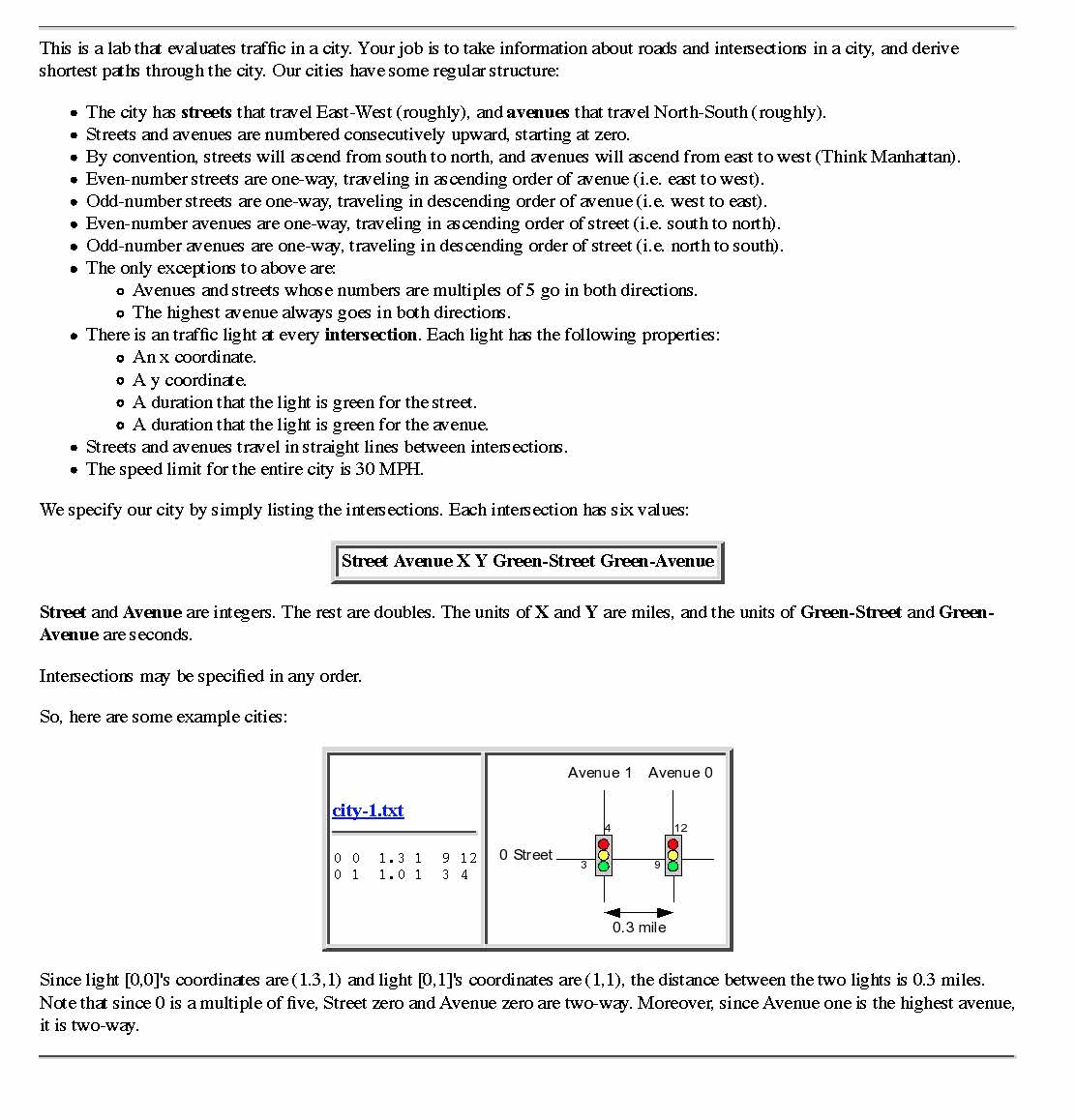

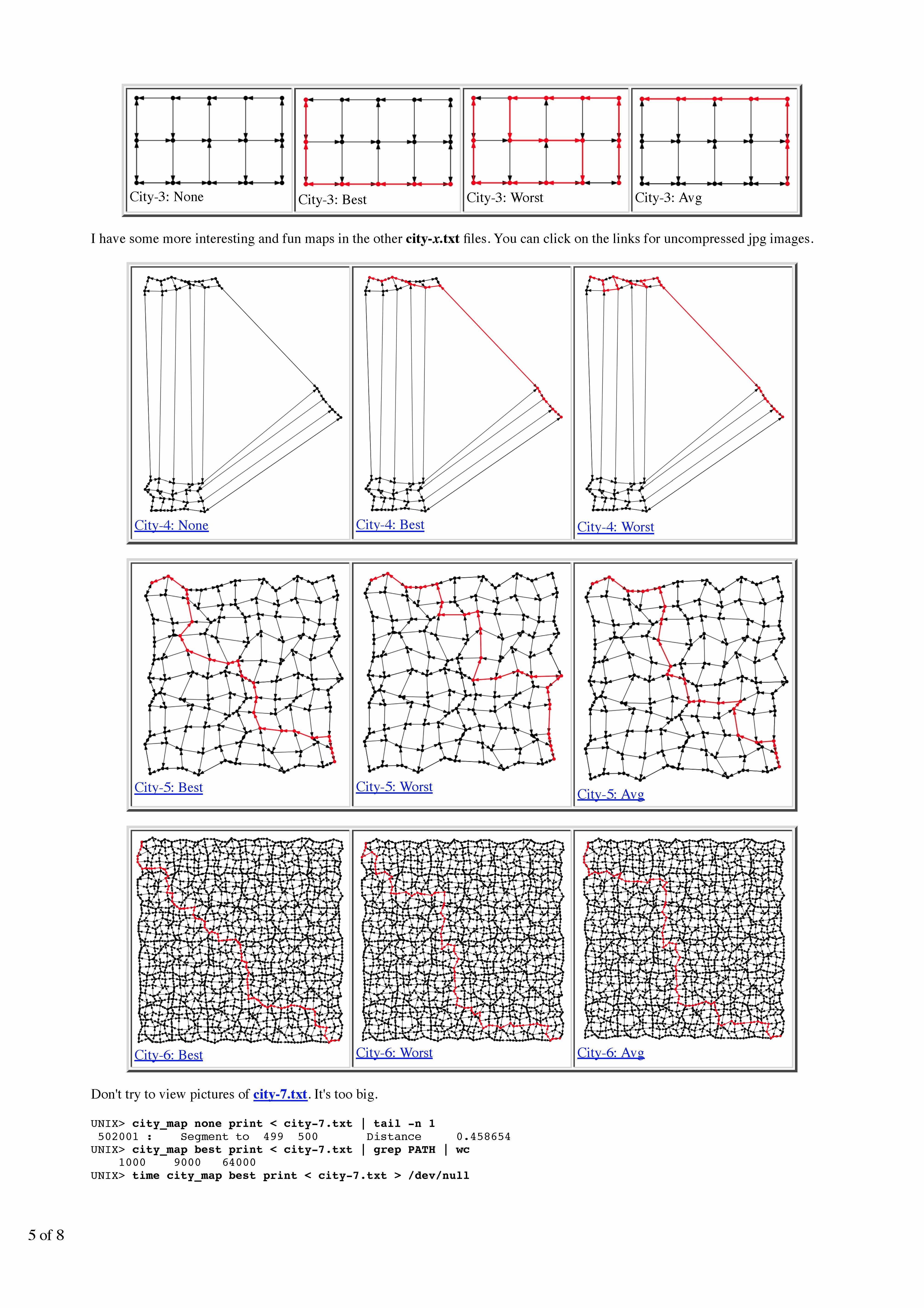

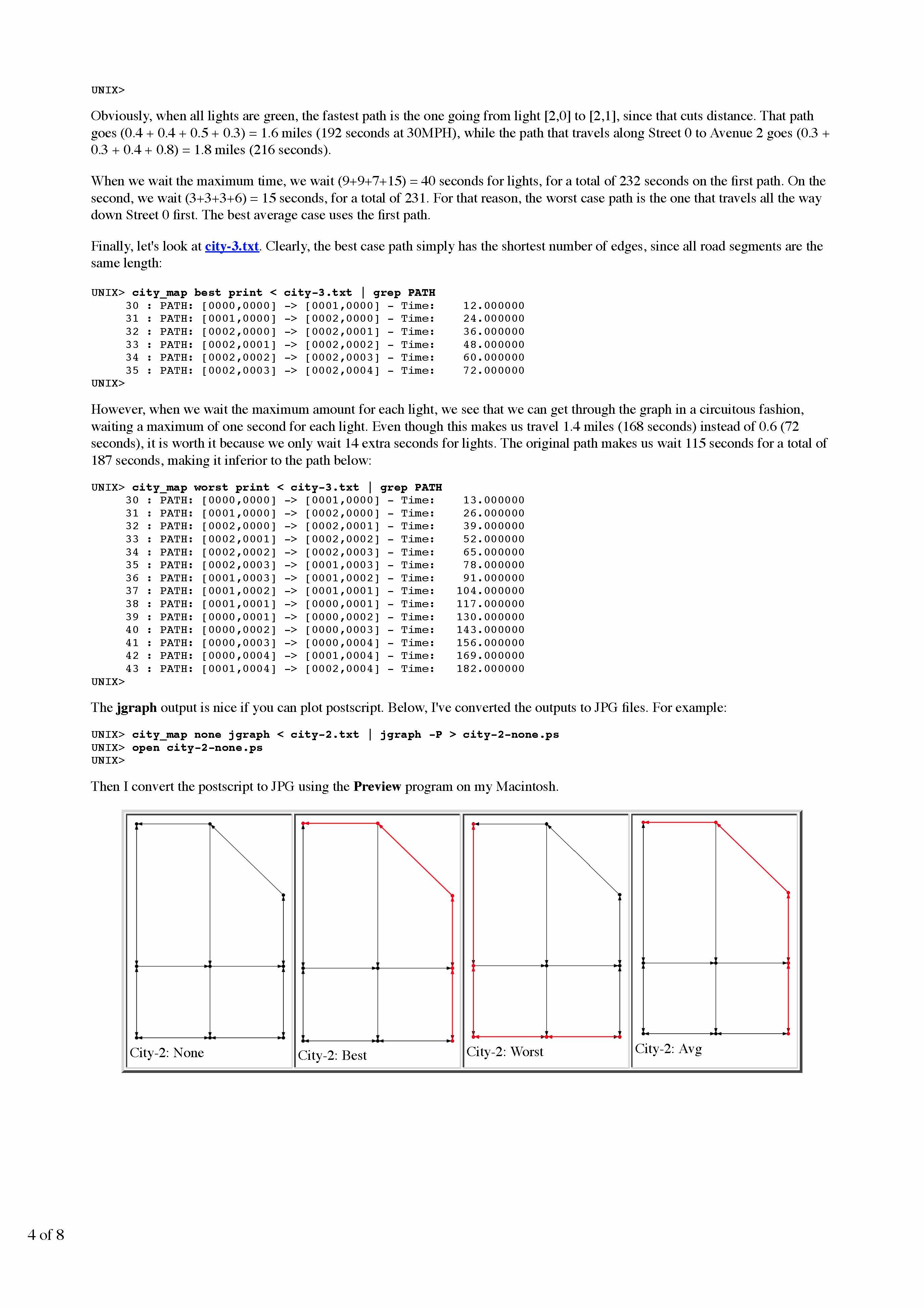

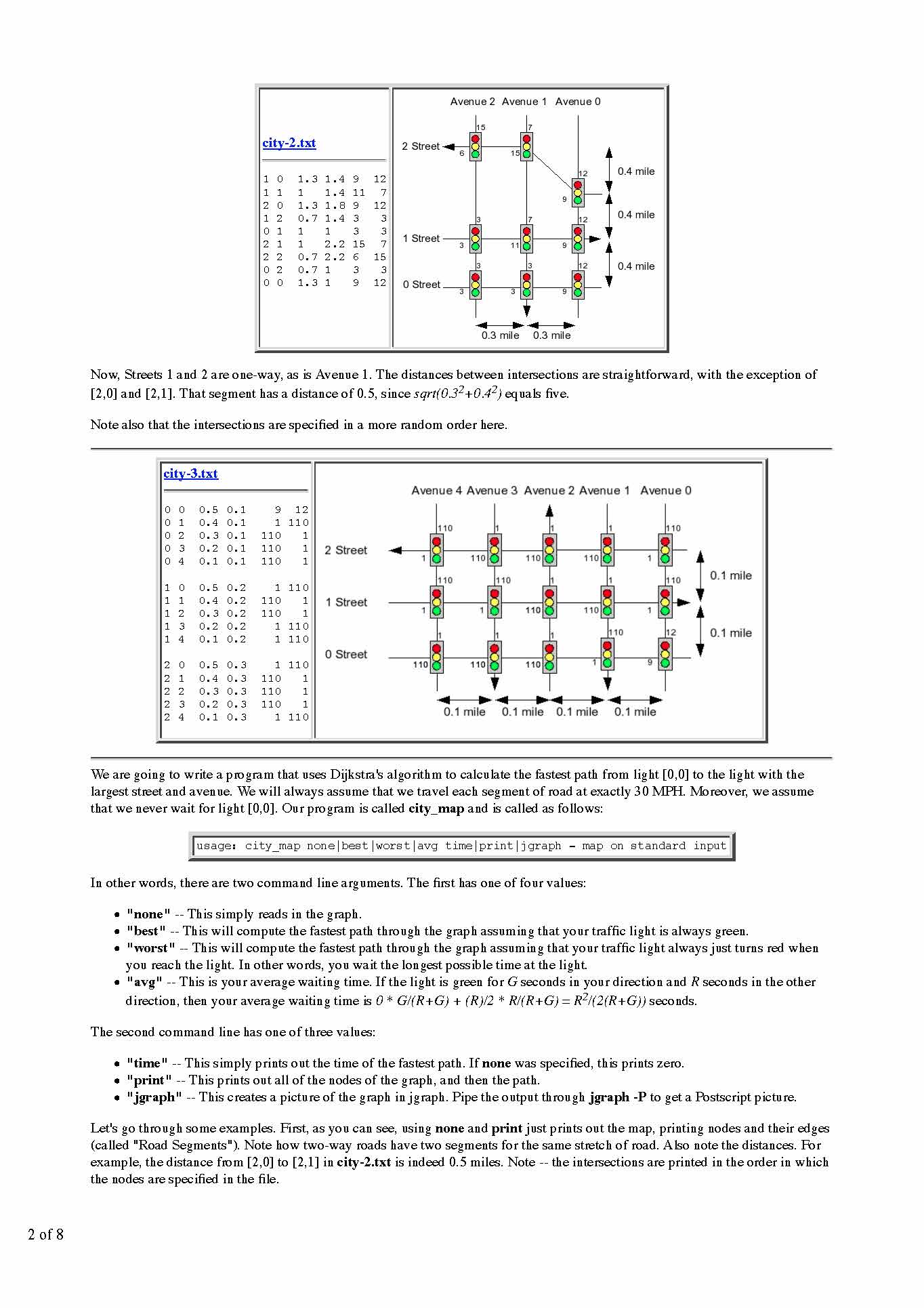

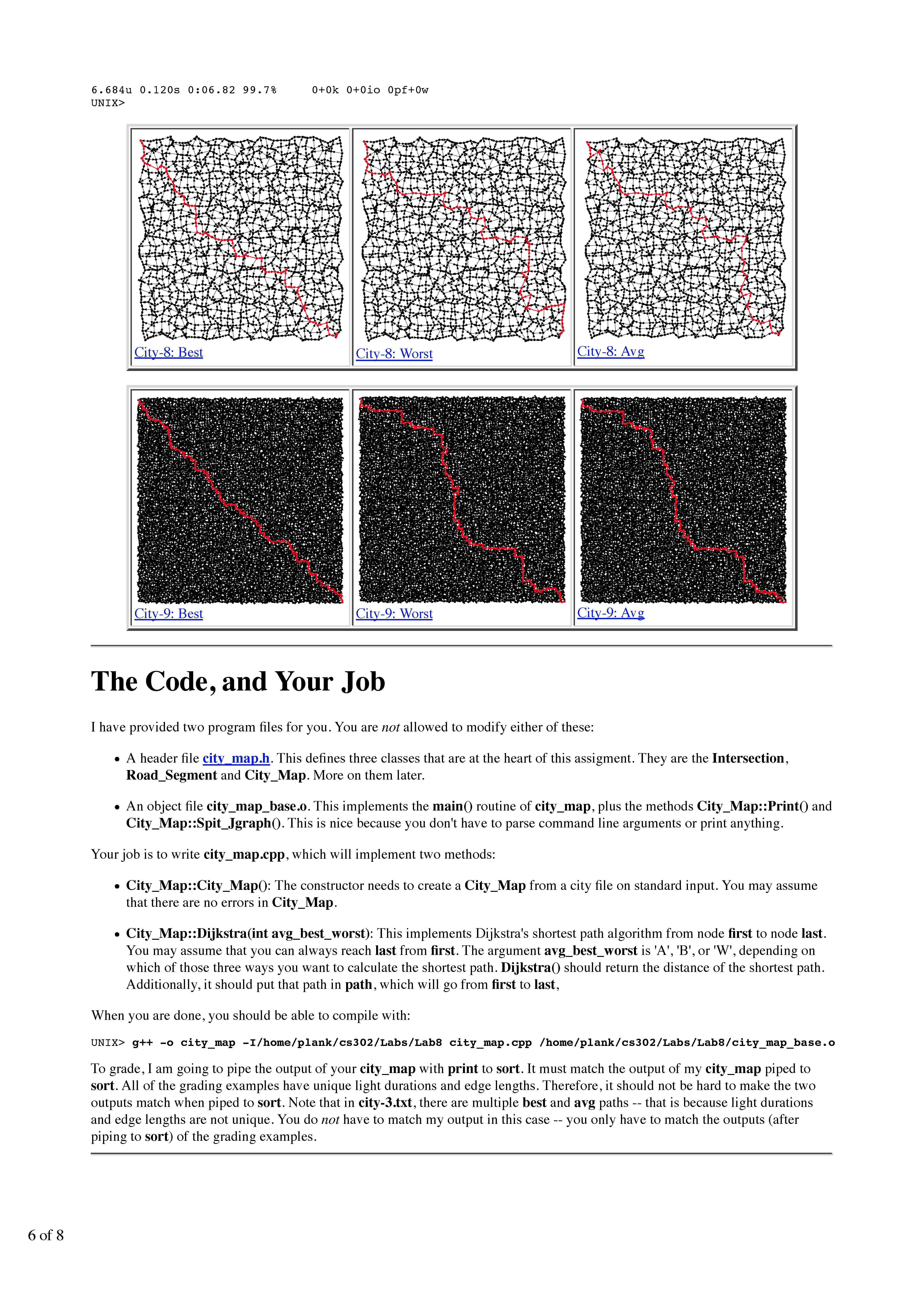

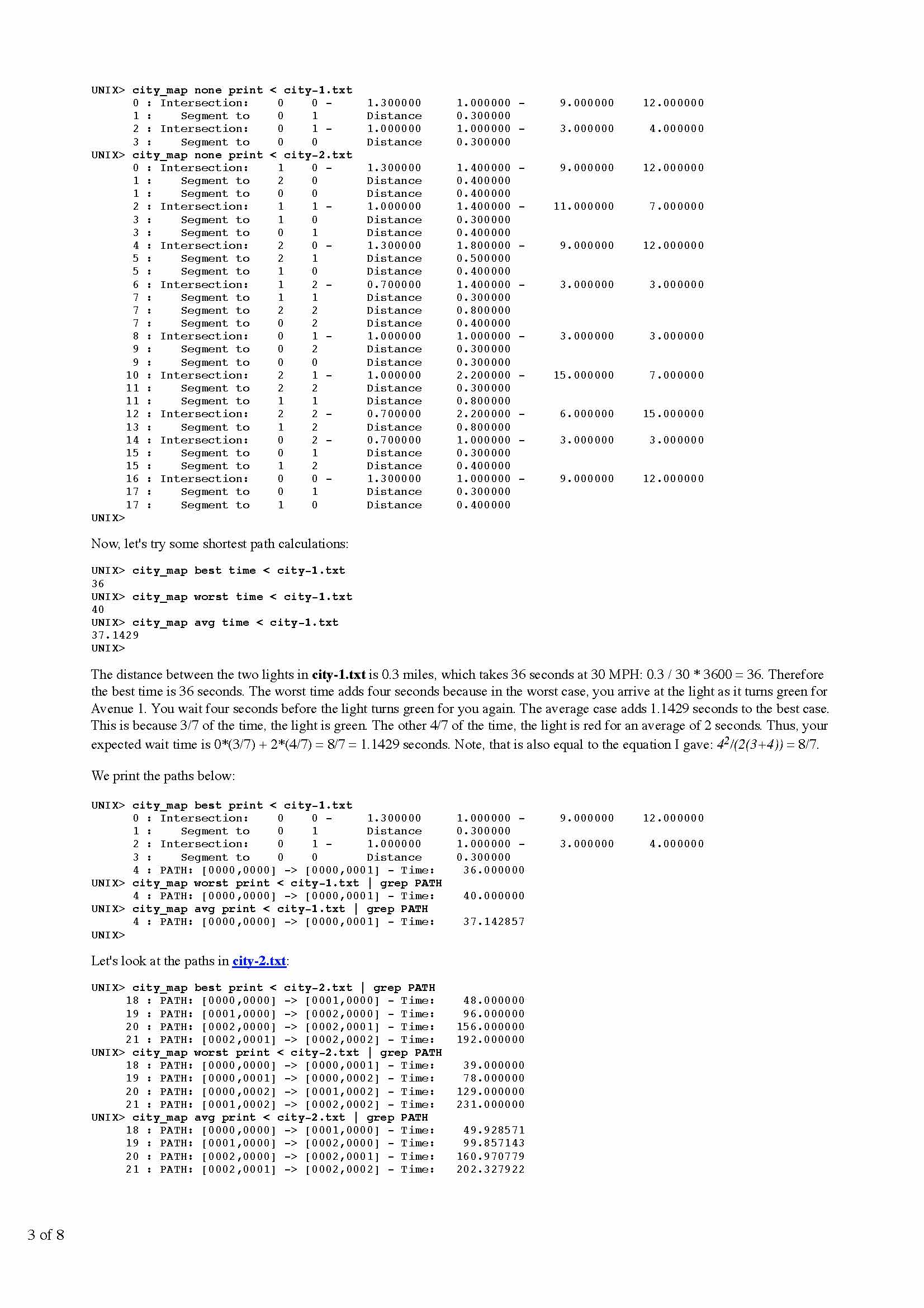

This is a lab that evaluates traffic in a city. Your job is to take information about roads and intersections in a city, and derive shortest paths through the city. Our cities have some regular structure: The city has streets that travel East-West (roughly), and avenues that travel North-South (roughly). Streets and avenues are numbered consecutively upward, starting at zero. By convention, streets will ascend from south to north, and avenues will ascend from east to west (Think Manhattan). Even-number streets are one-way, traveling in ascending order of avenue (i.e. east to west). Odd-number streets are one-way, traveling in descending order of avenue (i.e. west to east). Even-number avenues are one-way, traveling in ascending order of street (i.e. south to north). Odd-number avenues are one-way, traveling in descending order of street (i.e. north to south). The only exceptions to above are: Avenues and streets whose numbers are multiples of 5 go in both directions. The highest avenue always goes in both directions. There is an traffic light at every intersection. Each light has the following properties: An x coordinate. A y coordinate. A duration that the light is green for the street. A duration that the light is green for the avenue. Streets and avenues travel in straight lines between intersections. The speed limit for the entire city is 30 MPH. We specify our city by simply listing the intersections. Each intersection has six values: Street Avenue X Y Green-Street Green-Avenue Street and Avenue are integers. The rest are doubles. The units of X and Y are miles, and the units of Green-Street and GreenAvenue are seconds. Intersections may be specified in any order. So, here are some example cities: city-1.txt 0 0 1.3 1 9 12 0 1 1.0 1 3 4 Since light [0,0]'s coordinates are (1.3,1) and light [0,1]'s coordinates are (1,1), the distance between the two lights is 0.3 miles. Note that since 0 is a multiple of five, Street zero and Avenue zero are two-way. Moreover, since Avenue one is the highest avenue, it is two-way. 1 of 8 city-2.txt 1 0 1.3 1.4 9 12 1 1 1 1.4 11 7 2 0 1.3 1.8 9 12 1 2 0.7 1.4 3 3 0 1 1 1 3 3 2 1 1 2.2 15 7 2 2 0.7 2.2 6 15 0 2 0.7 1 3 3 0 0 1.3 1 9 12 Now, Streets 1 and 2 are one-way, as is Avenue 1. The distances between intersections are straightforward, with the exception of [2,0] and [2,1]. That segment has a distance of 0.5, since sqrt(0.32+0.42) equals five. Note also that the intersections are specified in a more random order here. city-3.txt 0 0 0.5 0.1 9 12 0 1 0.4 0.1 1 110 0 2 0.3 0.1 110 1 0 3 0.2 0.1 110 1 0 4 0.1 0.1 110 1 1 0 0.5 0.2 1 110 1 1 0.4 0.2 110 1 1 2 0.3 0.2 110 1 1 3 0.2 0.2 1 110 1 4 0.1 0.2 1 110 2 0 0.5 0.3 1 110 2 1 0.4 0.3 110 1 2 2 0.3 0.3 110 1 2 3 0.2 0.3 110 1 2 4 0.1 0.3 1 110 We are going to write a program that uses Dijkstra's algorithm to calculate the fastest path from light [0,0] to the light with the largest street and avenue. We will always assume that we travel each segment of road at exactly 30 MPH. Moreover, we assume that we never wait for light [0,0]. Our program is called city_map and is called as follows: usage: city_map none|best|worst|avg time|print|jgraph - map on standard input In other words, there are two command line arguments. The first has one of four values: "none" -- This simply reads in the graph. "best" -- This will compute the fastest path through the graph assuming that your traffic light is always green. "worst" -- This will compute the fastest path through the graph assuming that your traffic light always just turns red when you reach the light. In other words, you wait the longest possible time at the light. "avg" -- This is your average waiting time. If the light is green for G seconds in your direction and R seconds in the other direction, then your average waiting time is 0 * G/(R+G) + (R)/2 * R/(R+G) = R2/(2(R+G)) seconds. The second command line has one of three values: "time" -- This simply prints out the time of the fastest path. If none was specified, this prints zero. "print" -- This prints out all of the nodes of the graph, and then the path. "jgraph" -- This creates a picture of the graph in jgraph. Pipe the output through jgraph -P to get a Postscript picture. Let's go through some examples. First, as you can see, using none and print just prints out the map, printing nodes and their edges (called "Road Segments"). Note how two-way roads have two segments for the same stretch of road. Also note the distances. For example, the distance from [2,0] to [2,1] in city-2.txt is indeed 0.5 miles. Note -- the intersections are printed in the order in which the nodes are specified in the file. 2 of 8 UNIX> city_map none print < city-1.txt 0 : Intersection: 0 0 - 1.300000 1.000000 - 9.000000 12.000000 1 : Segment to 0 1 Distance 0.300000 2 : Intersection: 0 1 - 1.000000 1.000000 - 3.000000 4.000000 3 : Segment to 0 0 Distance 0.300000 UNIX> city_map none print < city-2.txt 0 : Intersection: 1 0 - 1.300000 1.400000 - 9.000000 12.000000 1 : Segment to 2 0 Distance 0.400000 1 : Segment to 0 0 Distance 0.400000 2 : Intersection: 1 1 - 1.000000 1.400000 - 11.000000 7.000000 3 : Segment to 1 0 Distance 0.300000 3 : Segment to 0 1 Distance 0.400000 4 : Intersection: 2 0 - 1.300000 1.800000 - 9.000000 12.000000 5 : Segment to 2 1 Distance 0.500000 5 : Segment to 1 0 Distance 0.400000 6 : Intersection: 1 2 - 0.700000 1.400000 - 3.000000 3.000000 7 : Segment to 1 1 Distance 0.300000 7 : Segment to 2 2 Distance 0.800000 7 : Segment to 0 2 Distance 0.400000 8 : Intersection: 0 1 - 1.000000 1.000000 - 3.000000 3.000000 9 : Segment to 0 2 Distance 0.300000 9 : Segment to 0 0 Distance 0.300000 10 : Intersection: 2 1 - 1.000000 2.200000 - 15.000000 7.000000 11 : Segment to 2 2 Distance 0.300000 11 : Segment to 1 1 Distance 0.800000 12 : Intersection: 2 2 - 0.700000 2.200000 - 6.000000 15.000000 13 : Segment to 1 2 Distance 0.800000 14 : Intersection: 0 2 - 0.700000 1.000000 - 3.000000 3.000000 15 : Segment to 0 1 Distance 0.300000 15 : Segment to 1 2 Distance 0.400000 16 : Intersection: 0 0 - 1.300000 1.000000 - 9.000000 12.000000 17 : Segment to 0 1 Distance 0.300000 17 : Segment to 1 0 Distance 0.400000 UNIX> Now, let's try some shortest path calculations: UNIX> city_map best time < city-1.txt 36 UNIX> city_map worst time < city-1.txt 40 UNIX> city_map avg time < city-1.txt 37.1429 UNIX> The distance between the two lights in city-1.txt is 0.3 miles, which takes 36 seconds at 30 MPH: 0.3 / 30 * 3600 = 36. Therefore the best time is 36 seconds. The worst time adds four seconds because in the worst case, you arrive at the light as it turns green for Avenue 1. You wait four seconds before the light turns green for you again. The average case adds 1.1429 seconds to the best case. This is because 3/7 of the time, the light is green. The other 4/7 of the time, the light is red for an average of 2 seconds. Thus, your expected wait time is 0*(3/7) + 2*(4/7) = 8/7 = 1.1429 seconds. Note, that is also equal to the equation I gave: 42/(2(3+4)) = 8/7. We print the paths below: UNIX> city_map best print < city-1.txt 0 : Intersection: 0 0 - 1.300000 1.000000 - 9.000000 12.000000 1 : Segment to 0 1 Distance 0.300000 2 : Intersection: 0 1 - 1.000000 1.000000 - 3.000000 4.000000 3 : Segment to 0 0 Distance 0.300000 4 : PATH: [0000,0000] -> [0000,0001] - Time: 36.000000 UNIX> city_map worst print < city-1.txt | grep PATH 4 : PATH: [0000,0000] -> [0000,0001] - Time: 40.000000 UNIX> city_map avg print < city-1.txt | grep PATH 4 : PATH: [0000,0000] -> [0000,0001] - Time: 37.142857 UNIX> Let's look at the paths in city-2.txt: UNIX> city_map best print < city-2.txt | grep PATH 18 : PATH: [0000,0000] -> [0001,0000] - Time: 48.000000 19 : PATH: [0001,0000] -> [0002,0000] - Time: 96.000000 20 : PATH: [0002,0000] -> [0002,0001] - Time: 156.000000 21 : PATH: [0002,0001] -> [0002,0002] - Time: 192.000000 UNIX> city_map worst print < city-2.txt | grep PATH 18 : PATH: [0000,0000] -> [0000,0001] - Time: 39.000000 19 : PATH: [0000,0001] -> [0000,0002] - Time: 78.000000 20 : PATH: [0000,0002] -> [0001,0002] - Time: 129.000000 21 : PATH: [0001,0002] -> [0002,0002] - Time: 231.000000 UNIX> city_map avg print < city-2.txt | grep PATH 18 : PATH: [0000,0000] -> [0001,0000] - Time: 49.928571 19 : PATH: [0001,0000] -> [0002,0000] - Time: 99.857143 20 : PATH: [0002,0000] -> [0002,0001] - Time: 160.970779 21 : PATH: [0002,0001] -> [0002,0002] - Time: 202.327922 3 of 8 UNIX> Obviously, when all lights are green, the fastest path is the one going from light [2,0] to [2,1], since that cuts distance. That path goes (0.4 + 0.4 + 0.5 + 0.3) = 1.6 miles (192 seconds at 30MPH), while the path that travels along Street 0 to Avenue 2 goes (0.3 + 0.3 + 0.4 + 0.8) = 1.8 miles (216 seconds). When we wait the maximum time, we wait (9+9+7+15) = 40 seconds for lights, for a total of 232 seconds on the first path. On the second, we wait (3+3+3+6) = 15 seconds, for a total of 231. For that reason, the worst case path is the one that travels all the way down Street 0 first. The best average case uses the first path. Finally, let's look at city-3.txt. Clearly, the best case path simply has the shortest number of edges, since all road segments are the same length: UNIX> city_map best print < city-3.txt | grep PATH 30 : PATH: [0000,0000] -> [0001,0000] - Time: 12.000000 31 : PATH: [0001,0000] -> [0002,0000] - Time: 24.000000 32 : PATH: [0002,0000] -> [0002,0001] - Time: 36.000000 33 : PATH: [0002,0001] -> [0002,0002] - Time: 48.000000 34 : PATH: [0002,0002] -> [0002,0003] - Time: 60.000000 35 : PATH: [0002,0003] -> [0002,0004] - Time: 72.000000 UNIX> However, when we wait the maximum amount for each light, we see that we can get through the graph in a circuitous fashion, waiting a maximum of one second for each light. Even though this makes us travel 1.4 miles (168 seconds) instead of 0.6 (72 seconds), it is worth it because we only wait 14 extra seconds for lights. The original path makes us wait 115 seconds for a total of 187 seconds, making it inferior to the path below: UNIX> city_map worst print < city-3.txt | grep PATH 30 : PATH: [0000,0000] -> [0001,0000] - Time: 13.000000 31 : PATH: [0001,0000] -> [0002,0000] - Time: 26.000000 32 : PATH: [0002,0000] -> [0002,0001] - Time: 39.000000 33 : PATH: [0002,0001] -> [0002,0002] - Time: 52.000000 34 : PATH: [0002,0002] -> [0002,0003] - Time: 65.000000 35 : PATH: [0002,0003] -> [0001,0003] - Time: 78.000000 36 : PATH: [0001,0003] -> [0001,0002] - Time: 91.000000 37 : PATH: [0001,0002] -> [0001,0001] - Time: 104.000000 38 : PATH: [0001,0001] -> [0000,0001] - Time: 117.000000 39 : PATH: [0000,0001] -> [0000,0002] - Time: 130.000000 40 : PATH: [0000,0002] -> [0000,0003] - Time: 143.000000 41 : PATH: [0000,0003] -> [0000,0004] - Time: 156.000000 42 : PATH: [0000,0004] -> [0001,0004] - Time: 169.000000 43 : PATH: [0001,0004] -> [0002,0004] - Time: 182.000000 UNIX> The jgraph output is nice if you can plot postscript. Below, I've converted the outputs to JPG files. For example: UNIX> city_map none jgraph < city-2.txt | jgraph -P > city-2-none.ps UNIX> open city-2-none.ps UNIX> Then I convert the postscript to JPG using the Preview program on my Macintosh. City-2: None City-2: Best City-2: Worst City-2: Avg 4 of 8 City-3: None City-3: Best City-3: Worst City-3: Avg I have some more interesting and fun maps in the other city-x.txt files. You can click on the links for uncompressed jpg images. City-4: None City-4: Best City-4: Worst City-5: Best City-5: Worst City-5: Avg City-6: Best City-6: Worst City-6: Avg Don't try to view pictures of city-7.txt. It's too big. UNIX> city_map none print < city-7.txt | tail -n 1 502001 : Segment to 499 500 Distance 0.458654 UNIX> city_map best print < city-7.txt | grep PATH | wc 1000 9000 64000 UNIX> time city_map best print < city-7.txt > /dev/null 5 of 8 6.684u 0.120s 0:06.82 99.7% 0+0k 0+0io 0pf+0w UNIX> City-8: Best City-8: Worst City-8: Avg City-9: Best City-9: Worst City-9: Avg The Code, and Your Job I have provided two program files for you. You are not allowed to modify either of these: A header file city_map.h. This defines three classes that are at the heart of this assigment. They are the Intersection, Road_Segment and City_Map. More on them later. An object file city_map_base.o. This implements the main() routine of city_map, plus the methods City_Map::Print() and City_Map::Spit_Jgraph(). This is nice because you don't have to parse command line arguments or print anything. Your job is to write city_map.cpp, which will implement two methods: City_Map::City_Map(): The constructor needs to create a City_Map from a city file on standard input. You may assume that there are no errors in City_Map. City_Map::Dijkstra(int avg_best_worst): This implements Dijkstra's shortest path algorithm from node first to node last. You may assume that you can always reach last from first. The argument avg_best_worst is 'A', 'B', or 'W', depending on which of those three ways you want to calculate the shortest path. Dijkstra() should return the distance of the shortest path. Additionally, it should put that path in path, which will go from first to last, When you are done, you should be able to compile with: UNIX> g++ -o city_map -I/home/plank/cs302/Labs/Lab8 city_map.cpp /home/plank/cs302/Labs/Lab8/city_map_base.o To grade, I am going to pipe the output of your city_map with print to sort. It must match the output of my city_map piped to sort. All of the grading examples have unique light durations and edge lengths. Therefore, it should not be hard to make the two outputs match when piped to sort. Note that in city-3.txt, there are multiple best and avg paths -- that is because light durations and edge lengths are not unique. You do not have to match my output in this case -- you only have to match the outputs (after piping to sort) of the grading examples. 6 of 8 Detail on the header file Here is city_map.h, in three parts: typedef enum { STREET, AVENUE } Road_Type; class Intersection { public: int street; int avenue; double x; double y; double green[2]; // Light green times for STREET & AVENUE list <class Road_Segment *> adj; double best_time; class Road_Segment *backedge; multimap <double, Intersection *>::iterator bfsq_ptr; }; The first five fields of an Intersection are the input values -- street number, avenue number, x coordinate, y coordinate, and green durations, indexed by Road_Type. Next is an adjacency list. For example, in city-2.txt, the adjacency list for [1,1] contains road segments to [1,0] and [0,1]. This is because street 1 and avenue 1 are both one-way. On the other hand, the adjacency list for [1,2] contains road segments to [0,2], [1,2] and [1,1]. I don't care about the order of your adjacency lists. They do not have to match mine. This is why I pipe the output of city_map to sort . The best_time, backedge and bfsq_ptr fields are for you to use when you implement Dijkstra. class Road_Segment { public: Road_Type type; int number; double distance; Intersection *from; Intersection *to; }; Road_Segment instances represent edges. They should be completely straightforward. For example, in city-2.txt the Road_Segment values for the segment from [2,0] to [2,1] will have: type = STREET. number = 2. (Since the segment is part of Street 2). distance = 0.5. from is a pointer to light [2,0]. to is a pointer to light [2,1]. class City_Map { public: City_Map(); void Print(); void Spit_Jgraph(); double Dijkstra(int avg_best_worst); // 'A' for avg, 'B' for best, 'W' for worst Intersection *first; Intersection *last; list <Intersection *> all; multimap <double, Intersection *> bfsq; list <Road_Segment *> path; }; Finally, the City_Map class has four methods -- the constructor and Dijkstra(), which you implement, and Print()/Spit_Jgraph(), which I have implemented. Additionally, it has five variables. The first three you have to set up with your constructor: first is a pointer to light [0,0]. last is a pointer to the light of the largest street and avenue. all is list of lights, in the order in which they appear in the input file. bfsq is is for you to use when you implement Dijkstra(). path should be set by Dijstra() to be the shortest path from first to last. 7 of 8 Help Getting Started Start off by implementing Dijkstra() to do nothing by return 0. That lets you work on the constructor. Work incrementally on the constructor. First, write a pass that reads all of the lights, creates their Intersection classes and puts them onto all, without worrying about adjacency lists. You should then be able to run the program and have it print out the graph without edges. Next, work on adding the edges and again print. This is a pain. I used a temporary two-dimensional vector of Intersections, which made it easy for me to get from one intersection to another, and set up the adjacencly lists. When I was done, I discarded the vector (actually, that was done automatically for me).. When you're done with this, none and print should work. Then get busy on Dijkstra(). Frankly, I think writing Dijkstra() is easier than getting the adjacency lists set up.

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

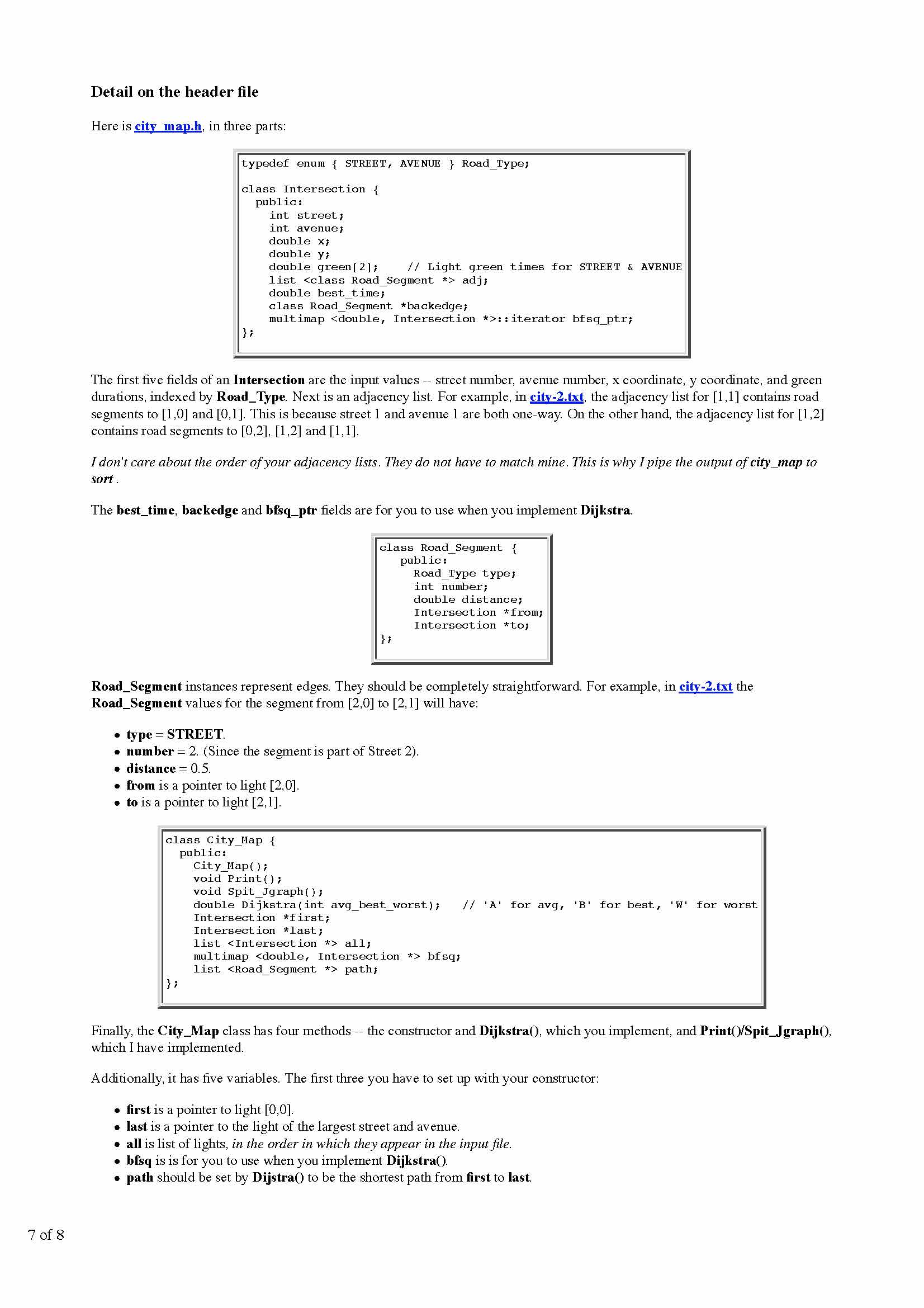

#include "city_map.h"
#include <iostream>
#include <string>
#include <sstream>
#include <map>
#include <list>
#include <math.h>
#include <vector>

using namespace std;

// return square of a number
double sqr(double x)
{
return x * x;
}
//constructor

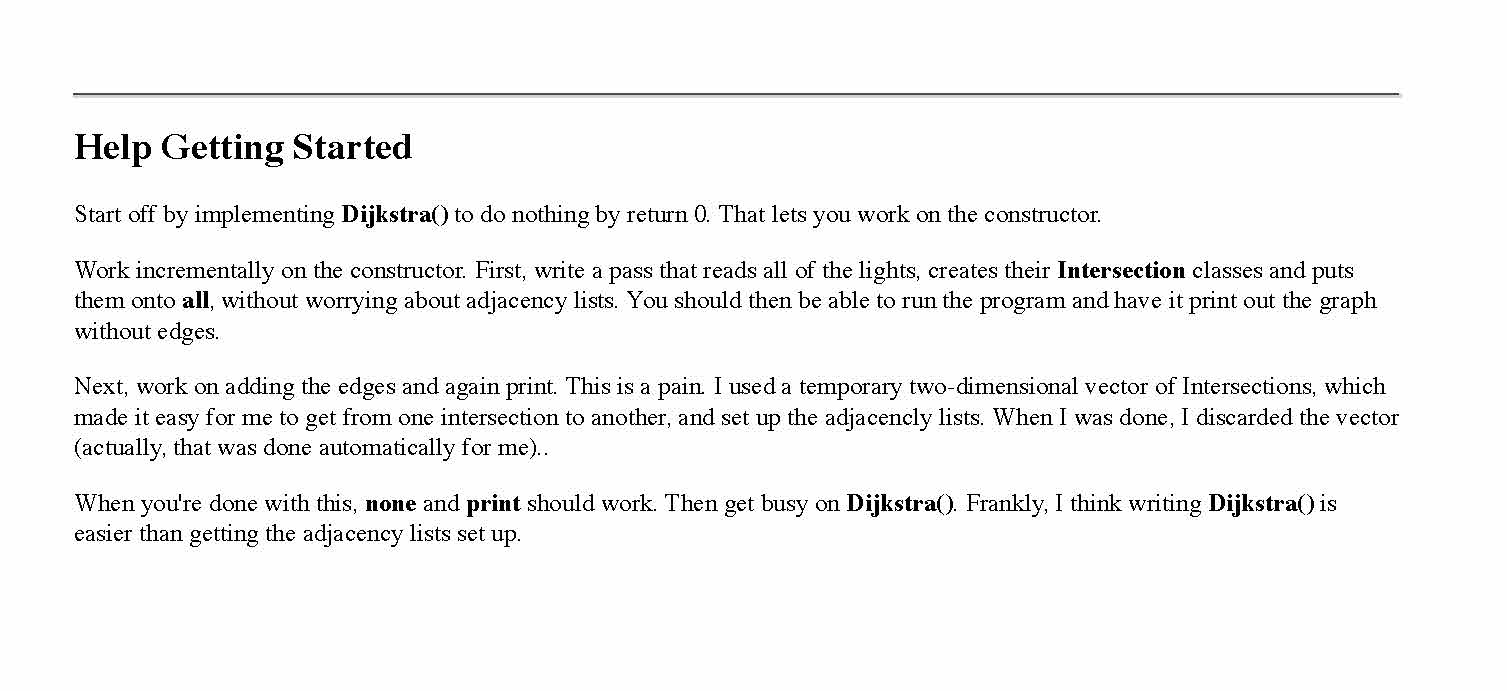

City_Map::City_Map()
{
string str;
int maxAvenue = 0; //max number of avenues
int maxStreet = 0; // max number of streets


while (getline(cin, str)) // read a line from standard input
{
stringstream s;
s << str;
// parse the string into intersection
Intersection *is = new Intersection;
s >> is->street;
s >> is->avenue;
s >> is->x;
s >> is->y;
s >> is->green[0];
s >> is->green[1];
all.push_back(is); // add intersection to the list
if ((is->avenue == 0) && (is->street == 0)) // check if it is the start point
{
first = is;
}
if ((is->avenue > maxAvenue) || ((is->avenue == maxAvenue) && (is->street > maxStreet))) // check if it is the last point
{
maxAvenue = is->avenue;
maxStreet = is->street;
last = is;
}
}
vector<vector<Intersection*>> iv; // create a matrix of intersections, to easily reach the neighbour nodes
iv.resize(maxStreet + 1);
for (int i = 0; i <= maxStreet; i++)
{...
