Question
Transcribed Text

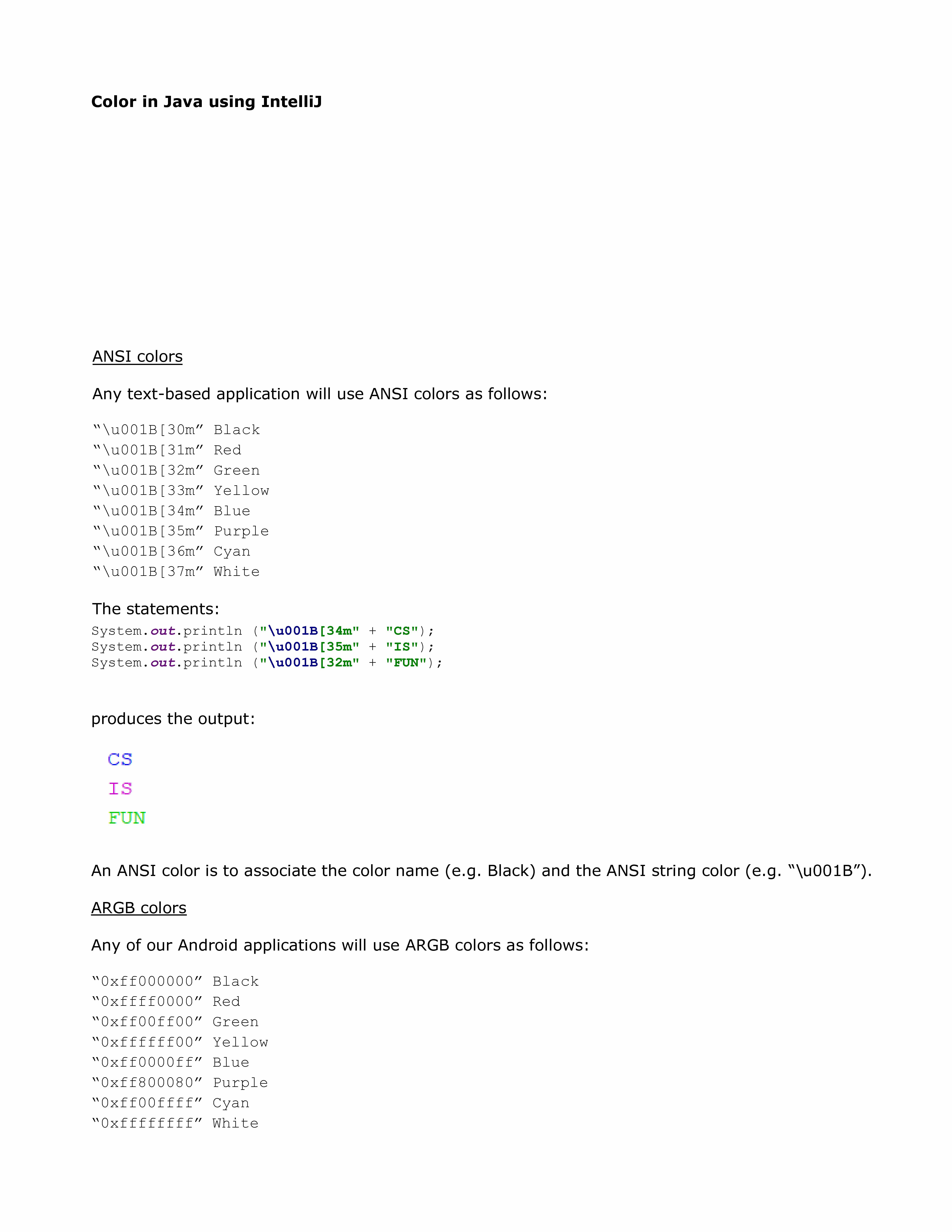

Color in Java using IntelliJ
ANSI colors
Any text-based application will use ANSI colors as follows:
“\u001B[30m” Black
“\u001B[31m” Red
“\u001B[32m” Green
“\u001B[33m” Yellow
“\u001B[34m” Blue
“\u001B[35m” Purple
“\u001B[36m” Cyan
“\u001B[37m” White
The statements:
System.out.println ("\u001B[34m" + "CS");
System.out.println ("\u001B[35m" + "IS");
System.out.println ("\u001B[32m" + "FUN");
produces the output:
An ANSI color is to associate the color name (e.g. Black) and the ANSI string color (e.g. “\u001B”).
ARGB colors
Any of our Android applications will use ARGB colors as follows:
“0xff000000” Black
“0xffff0000” Red
“0xff00ff00” Green
“0xffffff00” Yellow
“0xff0000ff” Blue
“0xff800080” Purple
“0xff00ffff” Cyan
“0xffffffff” White

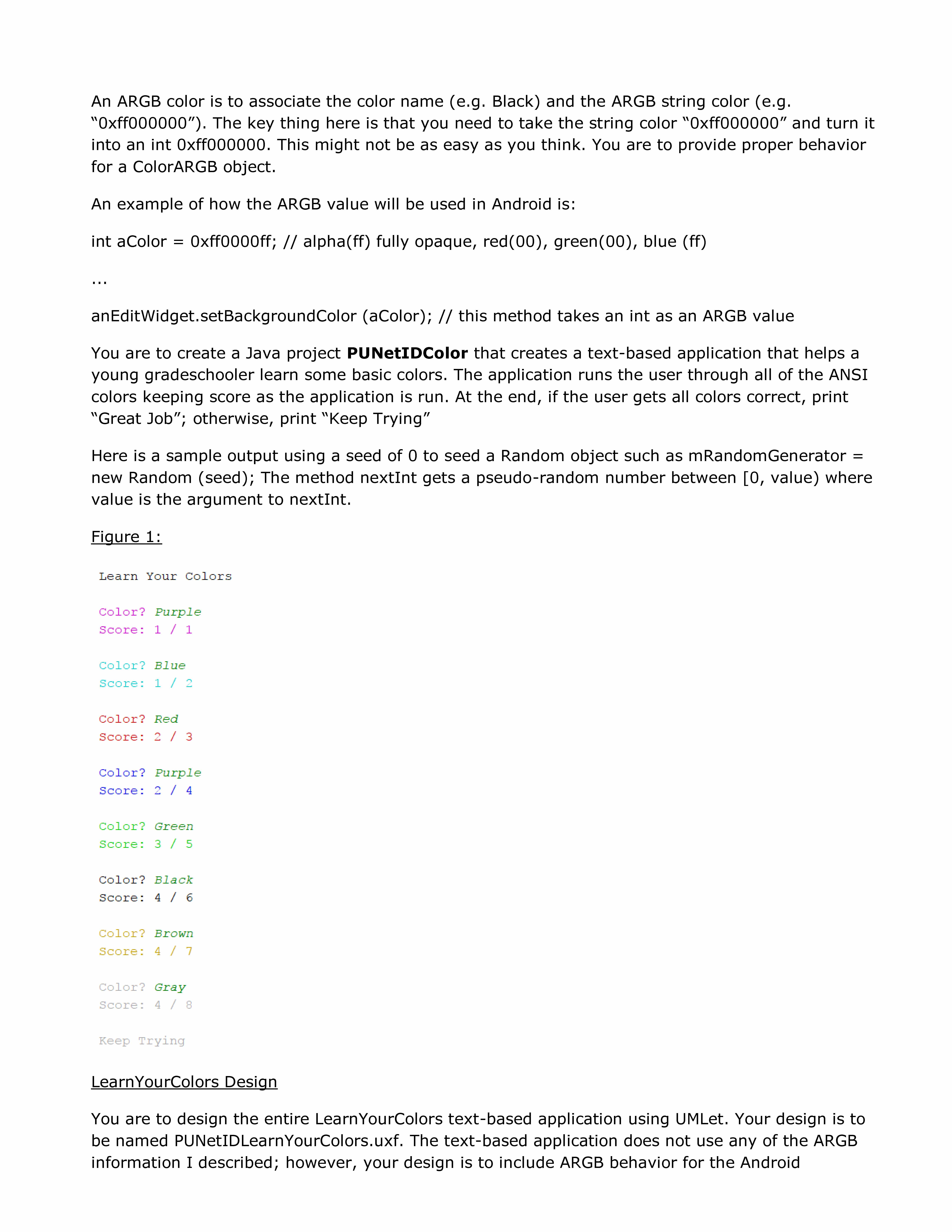

An ARGB color is to associate the color name (e.g. Black) and the ARGB string color (e.g.
“0xff000000”). The key thing here is that you need to take the string color “0xff000000” and turn it
into an int 0xff000000. This might not be as easy as you think. You are to provide proper behavior
for a ColorARGB object.
An example of how the ARGB value will be used in Android is:
int aColor = 0xff0000ff; // alpha(ff) fully opaque, red(00), green(00), blue (ff)
...
anEditWidget.setBackgroundColor (aColor); // this method takes an int as an ARGB value
You are to create a Java project PUNetIDColor that creates a text-based application that helps a
young gradeschooler learn some basic colors. The application runs the user through all of the ANSI
colors keeping score as the application is run. At the end, if the user gets all colors correct, print
“Great Job”; otherwise, print “Keep Trying”
Here is a sample output using a seed of 0 to seed a Random object such as mRandomGenerator =
new Random (seed); The method nextInt gets a pseudo-random number between [0, value) where
value is the argument to nextInt.
Figure 1:
LearnYourColors Design
You are to design the entire LearnYourColors text-based application using UMLet. Your design is to
be named PUNetIDLearnYourColors.uxf. The text-based application does not use any of the ARGB
information I described; however, your design is to include ARGB behavior for the Android
application. The main difference between ANSI and ARGB colors is that ANSI colors will only use
<name, value> pairs as Java Strings. ARGB colors will also have <name, value> pairs as Java
Strings but will have additional behavior to be able to return the String value as an int. All I/O is to
happen in the method main. None of the other classes are to have any I/O.
On the due date, print and turn in a one-page copy of your design identifiable to you. Also, drop the
specified file into the CS260-01Drop folder on grace.
LearnYourColors Text Implementation
This is the Java text-based implementation of your design to run the application as shown in Figure
1 above. As you are implementing your Color class, I want you to write a ColorTest JUnit3 test
class. You do not have to write any other test classes although you are advised to do so. In a
perfect world with unlimited time, each class would have a test class, but we are on limited time, so
I just want to make sure you know how to do this.
On the due date, print and turn in each class starting with the class containing main. Print a
superclass before any class that inherits from said superclass. Also, drop the entire project into the
CS260-01Drop folder on grace.

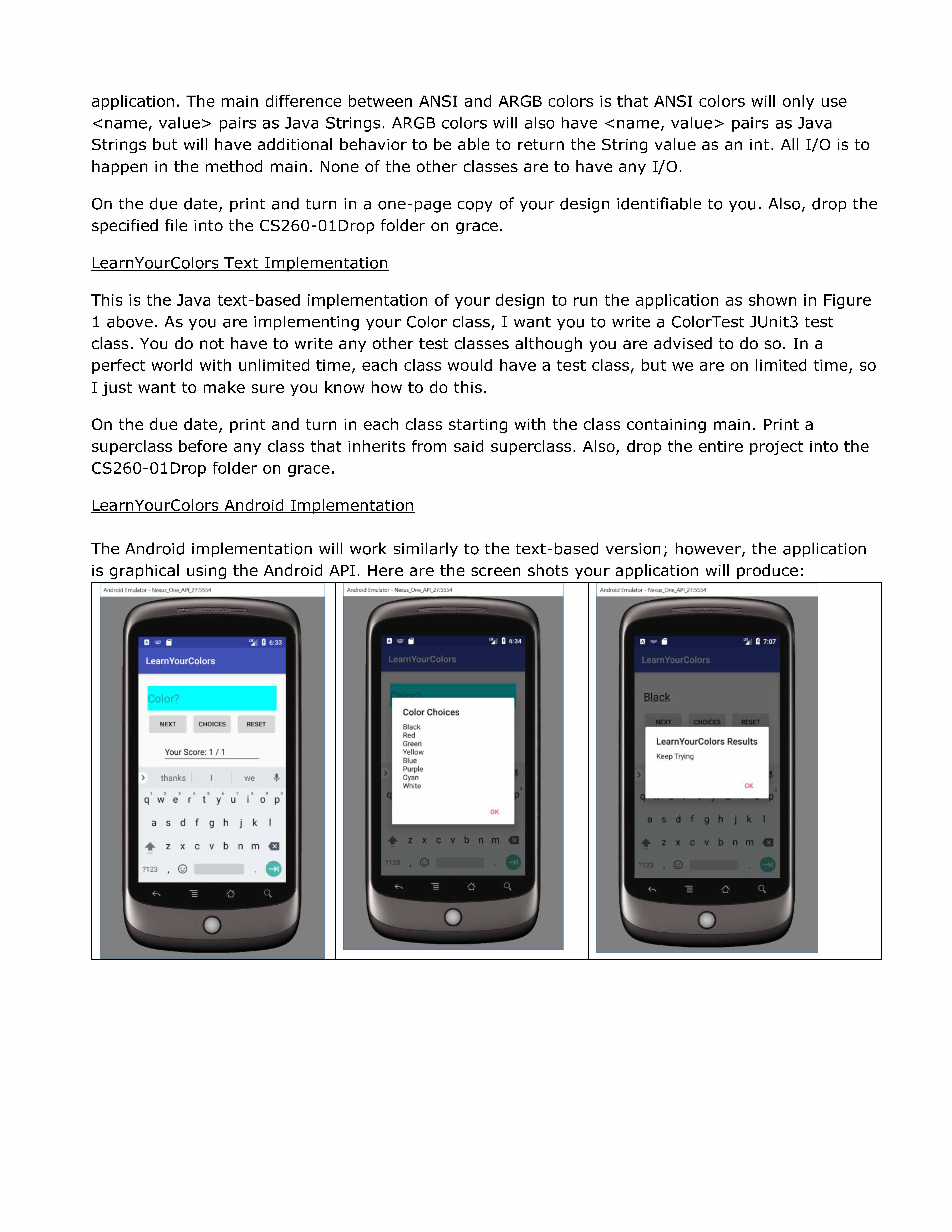

LearnYourColors Android Implementation
The Android implementation will work similarly to the text-based version; however, the application
is graphical using the Android API. Here are the screen shots your application will produce:

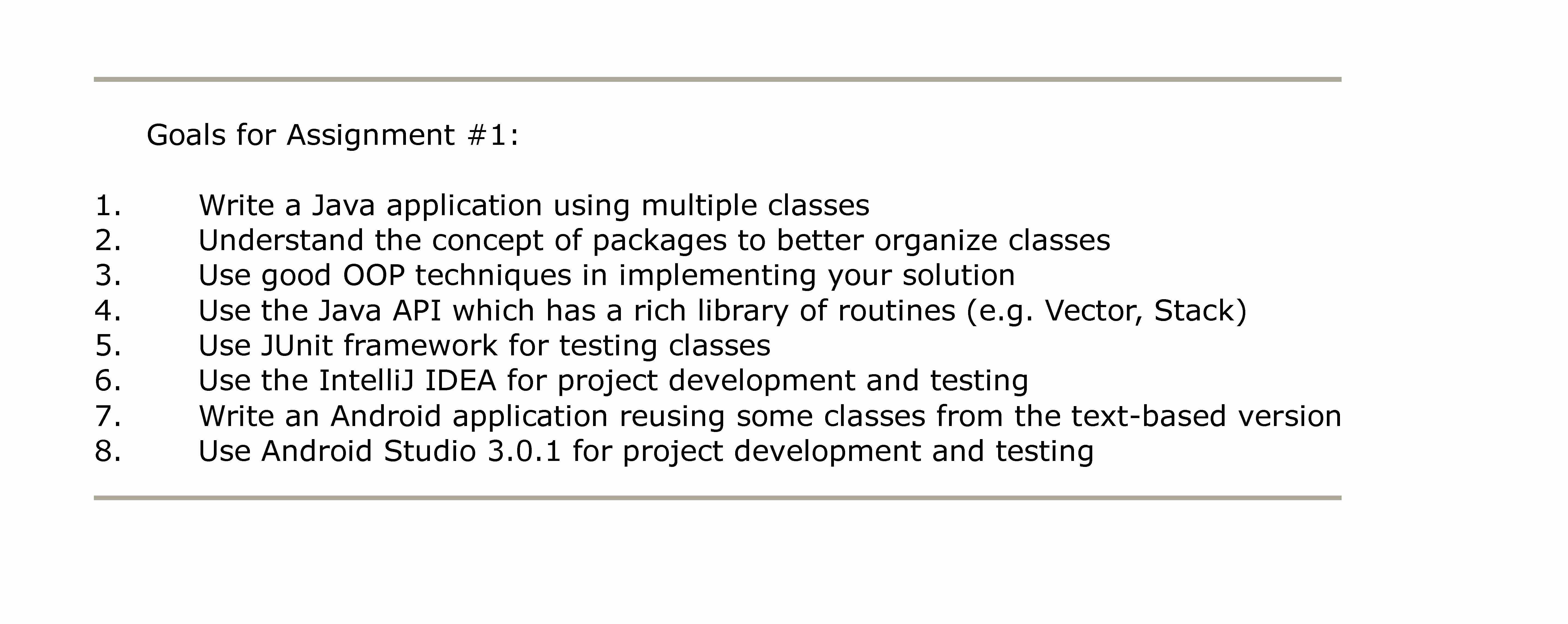

Goals for Assignment #1:
1. Write a Java application using multiple classes
2. Understand the concept of packages to better organize classes
3. Use good OOP techniques in implementing your solution
4. Use the Java API which has a rich library of routines (e.g. Vector, Stack)
5. Use JUnit framework for testing classes
6. Use the IntelliJ IDEA for project development and testing
7. Write an Android application reusing some classes from the text-based version
8. Use Android Studio 3.0.1 for project development and testing
Solution Preview
These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.
public class PUNetIDColor {// Method to play game
public static void playGame() {
// Construct Scanner for console input
Scanner s = new Scanner(System.in);
// int to store score
int score = 0;
// Construct ColorGenerator object
ColorGenerator generator = new ColorGenerator(0);
System.out.println("Learn Your Colors" + "\n");
// Play 8 rounds of color guessing
for (int round = 1; round <= 8; round++) {
Color c = generator.getColor();
// Query color guess from user
System.out.print(c.getANSI() + "Color? ");
String guess = s.nextLine();
// Update score
if (guess.equals(c.getName())) {
score += 1;
}
// Print score
System.out.println("Score: " + score + " / " + round + "\n");
}
// If the score is 8, notify the user "Great Job"
if (score == 8)
System.out.println("Great Job");
// Else, at least one guess was incorrect; notify the user "Keep Trying"
else
System.out.println("Keep Trying");
}
public static void main(String[] args) {
playGame();
}
}...
By purchasing this solution you'll be able to access the following files:
Solution.zip.
