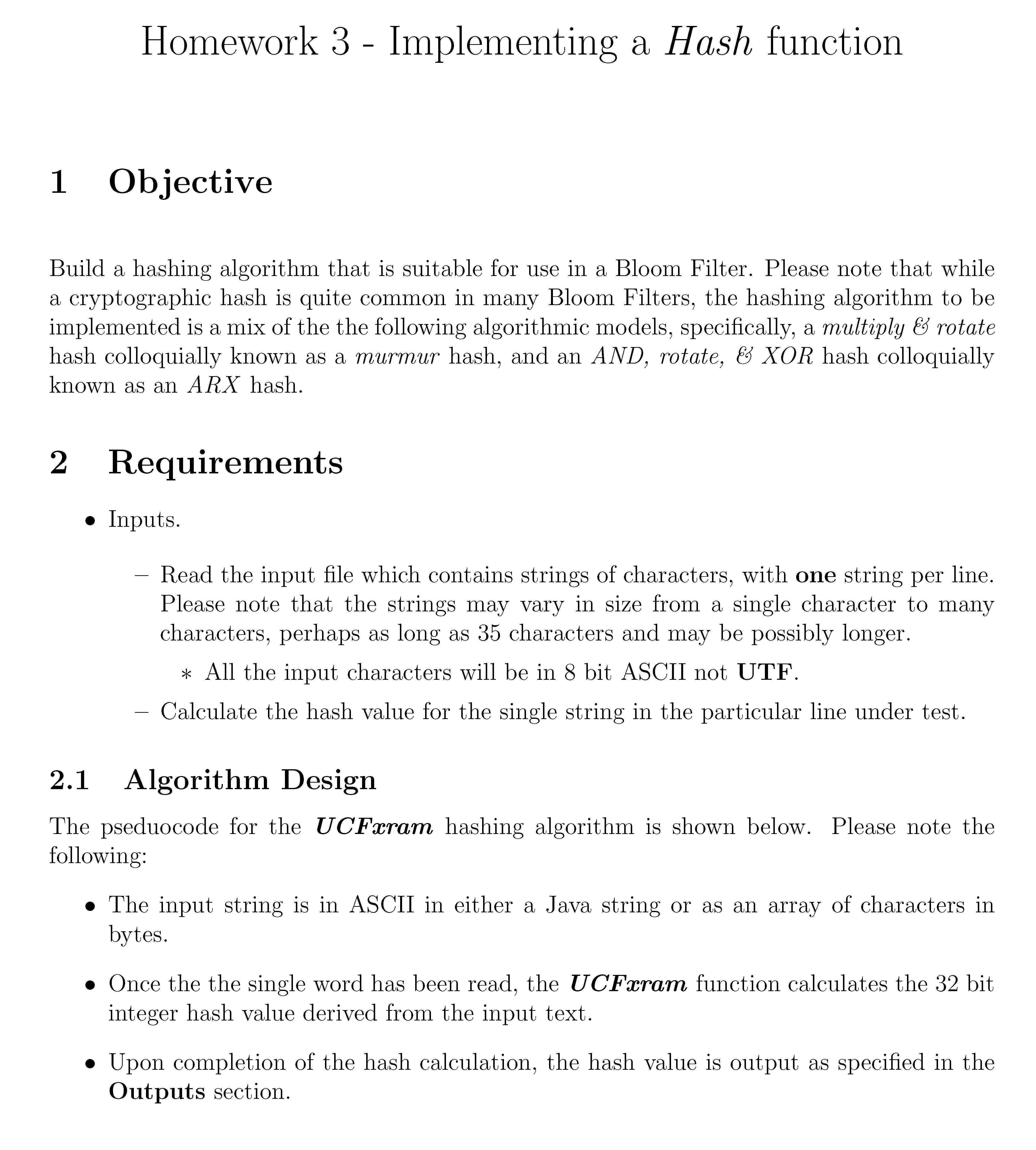

Homework 3 - Implementing a Hash function 1 Objective Build a hashing algorithm that is suitable for use in a Bloom Filter. Please note that while a cryptographic hash is quite common in many Bloom Filters, the hashing algorithm to be implemented is a mix of the the following algorithmic models, specifically, a multiply & rotate hash colloquially known as a murmur hash, and an AND, rotate, & XOR hash colloquially known as an ARX hash. 2 Requirements • Inputs. – Read the input file which contains strings of characters, with one string per line. Please note that the strings may vary in size from a single character to many characters, perhaps as long as 35 characters and may be possibly longer. ∗ All the input characters will be in 8 bit ASCII not UTF. – Calculate the hash value for the single string in the particular line under test. 2.1 Algorithm Design The pseduocode for the UCFxram hashing algorithm is shown below. Please note the following: • The input string is in ASCII in either a Java string or as an array of characters in bytes. • Once the the single word has been read, the UCFxram function calculates the 32 bit integer hash value derived from the input text. • Upon completion of the hash calculation, the hash value is output as specified in the Outputs section. Algorithm 1 UCFxram(String input, int len) 1: randV al1 ← 0xbcde98ef // aribtrary value 2: randV al2 ← 0x7890f ace 3: hashV al ← 0xf a01bc96 // start seed value 4: roundedEnd ← len & 0xfffffff c // Array d gets 4 byte blocks 5: for i = 0; i < roundedEnd;i + 4 do 6: tempData ← (d[i] & 0xff) | ((d[i + 1] & 0xff) << 8) | ((data[i + 2] & 0xff) << 16) | (d[i + 3] << 24 7: tempdata ← tempData ∗ randV al1 // Mulitiply 8: ROT L(tempData, 12) // Rotate left 12 bits 9: tempdata ← tempData ∗ randV al2 // Another Multiply 10: hashV alue ← hashV alue ⊕ tempData 11: ROT L(hashV alue, 13) // Rotate left 13 bits 12: hashV alue ← hashV alue ∗ 5 + 0x46b6456e // Now collect orphan input characters 13: tempData ← 0 14: if (len & 0x03) == 3) then 15: tempData ← (data[roundedEnd + 2] & 0xff) << 16 16: len ← len − 1 17: if (len & 0x03) == 2) then 18: tempData | = (data[roundedEnd + 1] & 0xff) << 8 19: len ← len − 1 20: if (len & 0x03) == 1) then 21: tempData | = (data[roundedEnd] & 0xff) 22: tempData ← tempData ∗ randV al1 // Mulitiply 23: ROT L(tempData, 14) // Rotate left 14 bits 24: tempData ← tempData ∗ randV al2 // Another Multiply 25: hashV alue ← hashV alue ⊕ tempData 26: hashV alue ← hashV alue ⊕ len // XOR 27: hashV alue ← hashV alue & 0xb6acbe58 // AND 28: hashV alue ← hashV alue ⊕ hashV alue >>> 13 29: hashV alue ← hashV alue ∗ 0x53ea2b2c // Another arbitrary value 30: hashV alue ← hashV alue ⊕ hashV alue >>> 16 31: RETURN hashValue // Return the 32 bit int hash 2.1.1 Outputs The output of the UCFxram hashing algorithm is deceptively simple and shown below. Hash Value System.out.format("%10x:%s\n",hashValue, input ); Completion System.out.println("Input file processed"); 2.1.2 Functions complexityIndicator Prints to STDERR the following: 2 NID A difficulty rating of difficult you found this assignment on a scale of 1.0 (easy-peasy) through 5.0 (knuckle busting degree of difficulty). Duration, in hours, of the time you spent on this assignment. Sample output: ff210377@eustis:~/COP3503$ ff210377;3.5;18.5 3 Testing Make sure to test your code on Eustis even if it works perfectly on your machine. If your code does not compile on Eustis you will receive a 0 for the assignment. There will be 10 input files and 9 output files provided for testing your code, they are respectively shown in Table 1 and in Table 2. Filename Description oneA.txt A single upper case A twoAs.txt Two upper case As threeAs.txt Three upper case As fourAs.txt Four upper case As 5words.txt 5 words 100words.txt 100 words 500words.txt 500 words 1000words.txt 1000 words 2500words.txt 2500 words Table 1: Input files The expected output for these test cases will also be provided as defined in Table 2. To compare your output to the expected output you will first need to redirect STDOUT to a text file. Run your code with the following command (substitute the actual names of the input and output file appropriately): java Hw03 inputFile > output.txt The run the following command (substitute the actual name of the expected output file): diff output.txt expectedOutputFile If there are any differences the relevant lines will be displayed (note that even a single extra space will cause a difference to be detected). If nothing is displayed, then congratulations - the outputs match! For each of the five (5) test cases, your code will need to output to STDOUT text that is identical to the corresponding expectedOutputFile. If your code crashes for a particular test case, you will not get credit for that case. 3 5 Sample output ff210377@eustis:~/cop3503/hw3 $ java Hw03 5words.txt ff210377;3.5;18.5 25e69846:aaaa c3bef462:bbbbbbbbb c6e29ee2:ccccccccddddddeeeeffff d633fb53:bananas 7a8fa153:syzygy Input file processed ff210377@eustis:~/cop3503/hw3 $java Hw03 5words.txt >5wordsSt.txt ff210377;3.5;18.5 ff210377@eustis:~/cop3503/hw3 $ diff 5wordsSt.txt 5wordsValid.txt ff210377@eustis:~/cop3503/hw3 $ Note: This is based on an actual UCFxram output using the inputs specified in the commands shown above. Note The ff210377;3.5;18.5 output shown above is the output from the complexityIndicator function to STDERR. Command Validly formatted output files java Hw03 oneA.txt > oneASt.txt oneAValid.txt java Hw03 twoAs.txt > twoAsSt.txt twoAsValid.txt java Hw03 threeAs.txt > threeAsSt.txt threeAsValid.txt java Hw03 fourAs.txt > fourAsSt.txt fourAsValid.txt java Hw03 5words.txt > 5wordsSt.txt 5wordsValid.txt java Hw03 100words.txt > 100wordsSt.txt 100wordsValid.txt java Hw03 500words.txt > 500wordsSt.txt 500wordsValid.txt java Hw03 1000words.txt > 1000wordsSt.txt 1000wordsValid.txt java Hw03 2500words.txt > 2500wordsSt.txt 2500wordsValid.txt Table 2: Commands with input files and corresponding output files.

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

import java.io.File;
import java.io.IOException;
import java.util.Scanner;

/**
*
* @author
*/
public class Hw03 {

    public static int UCFxram(String input, int len) {
       // 1: randV al1 = 0xbcde98ef // aribtrary value
       int randVal1 = 0xbcde98ef;
       //2 : randV al2 = 0x7890f ace
       int randVal2 = 0x7890face;
       // 3: hashV al = 0xf a01bc96 // start seed value
       int hashVal = 0xfa01bc96;
       // 4: roundedEnd = len & 0xfffffff c
       int roundedEnd = len & 0xfffffffc;
       // Array d gets 4 byte blocks

       char[] d = input.toCharArray();
       // 5:
       int tempData;
       for (int i = 0; i < roundedEnd; i += 4) {
            tempData = (d[i] & 0xff) | ((d[i + 1] & 0xff) << 8)
                   | ((d[i + 2] & 0xff) << 16) | (d[i + 3] << 24);
            tempData = tempData * randVal1; // Mulitiply
            tempData = Integer.rotateLeft(tempData, 12); // Rotate left 12 bits
            tempData = tempData * randVal2; // Another Multiply
            hashVal = hashVal ^ tempData;
            hashVal = Integer.rotateLeft(hashVal, 13); // Rotate left 13 bits
            hashVal = hashVal * 5 + 0x46b6456e;
       }...
