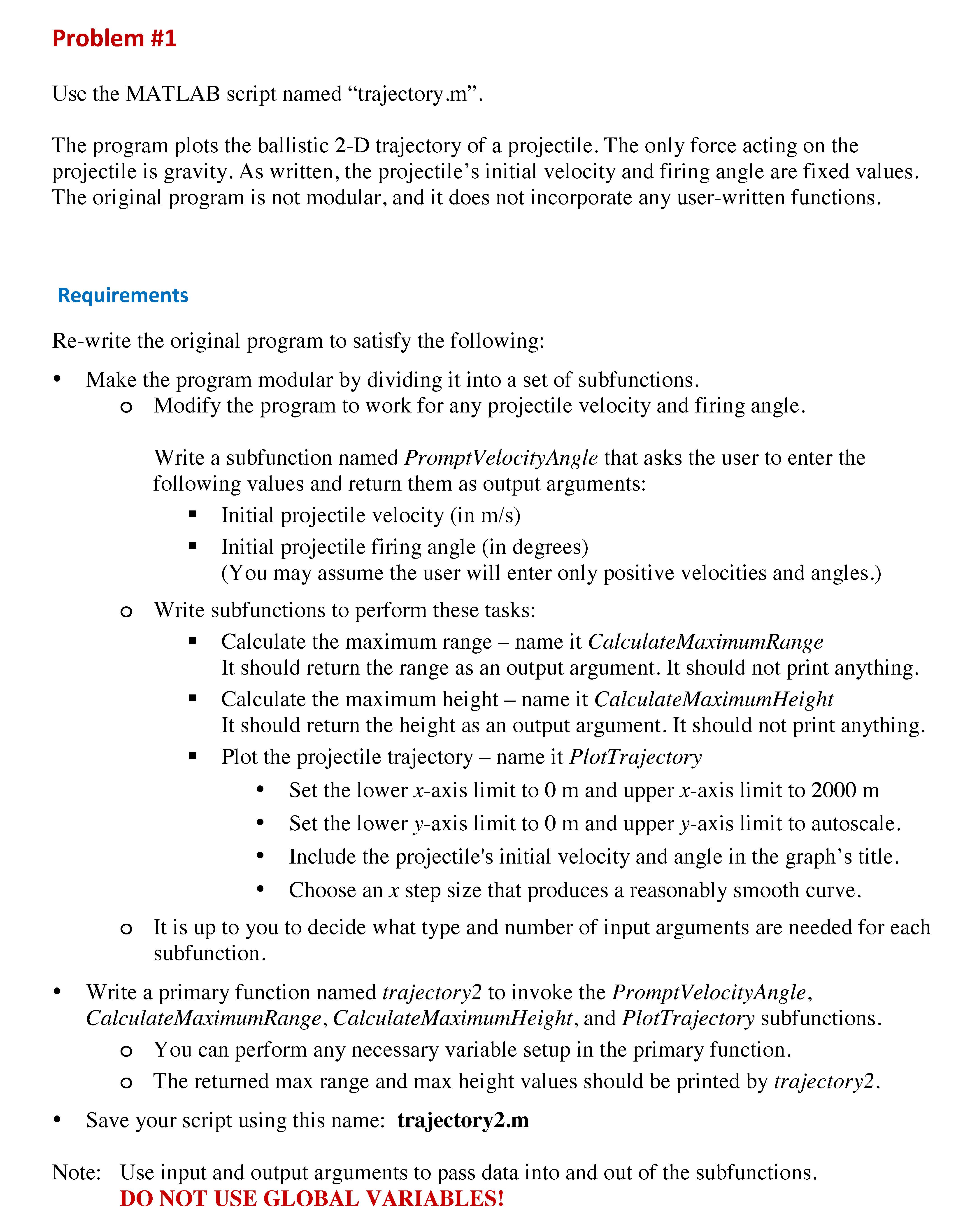

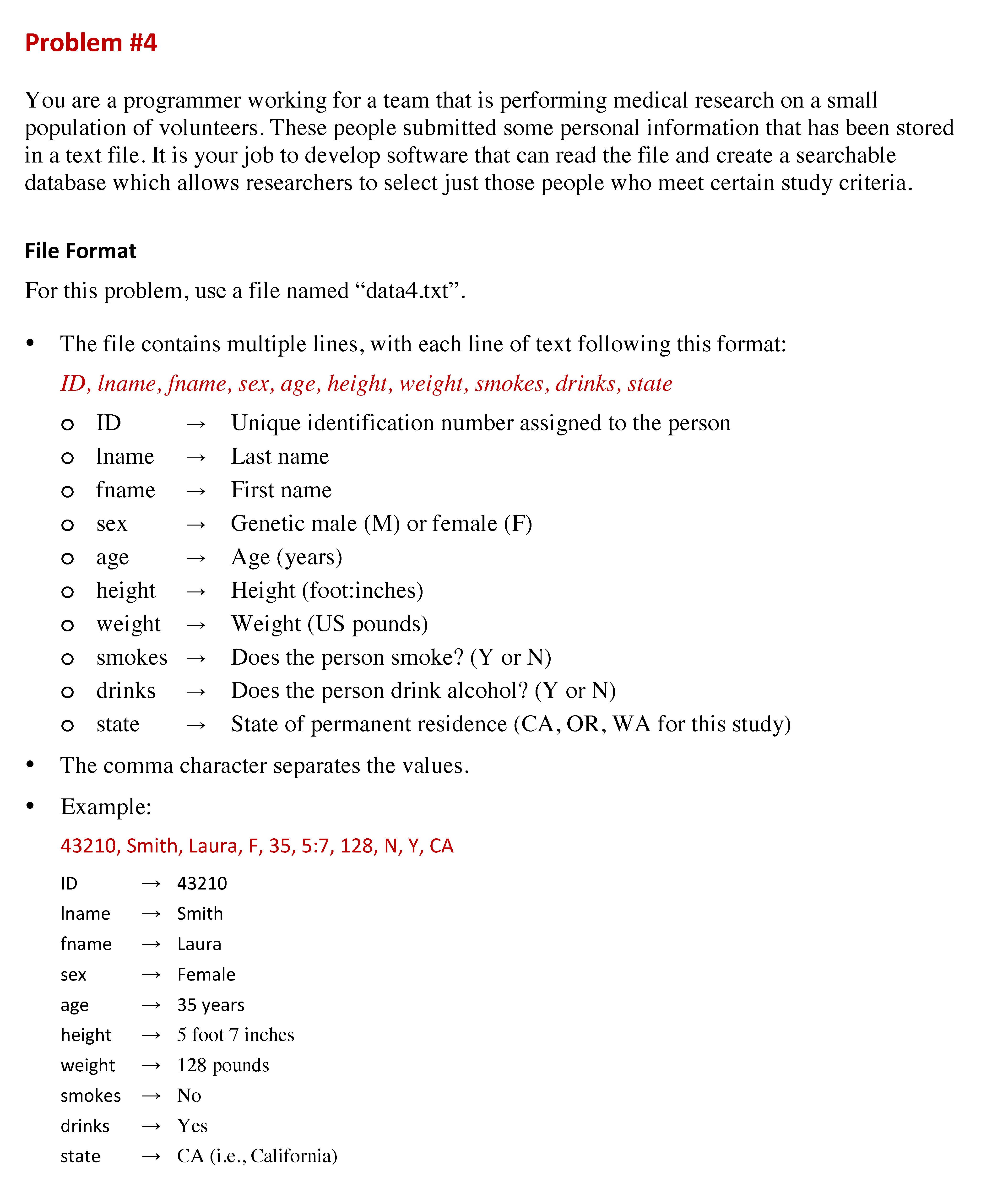

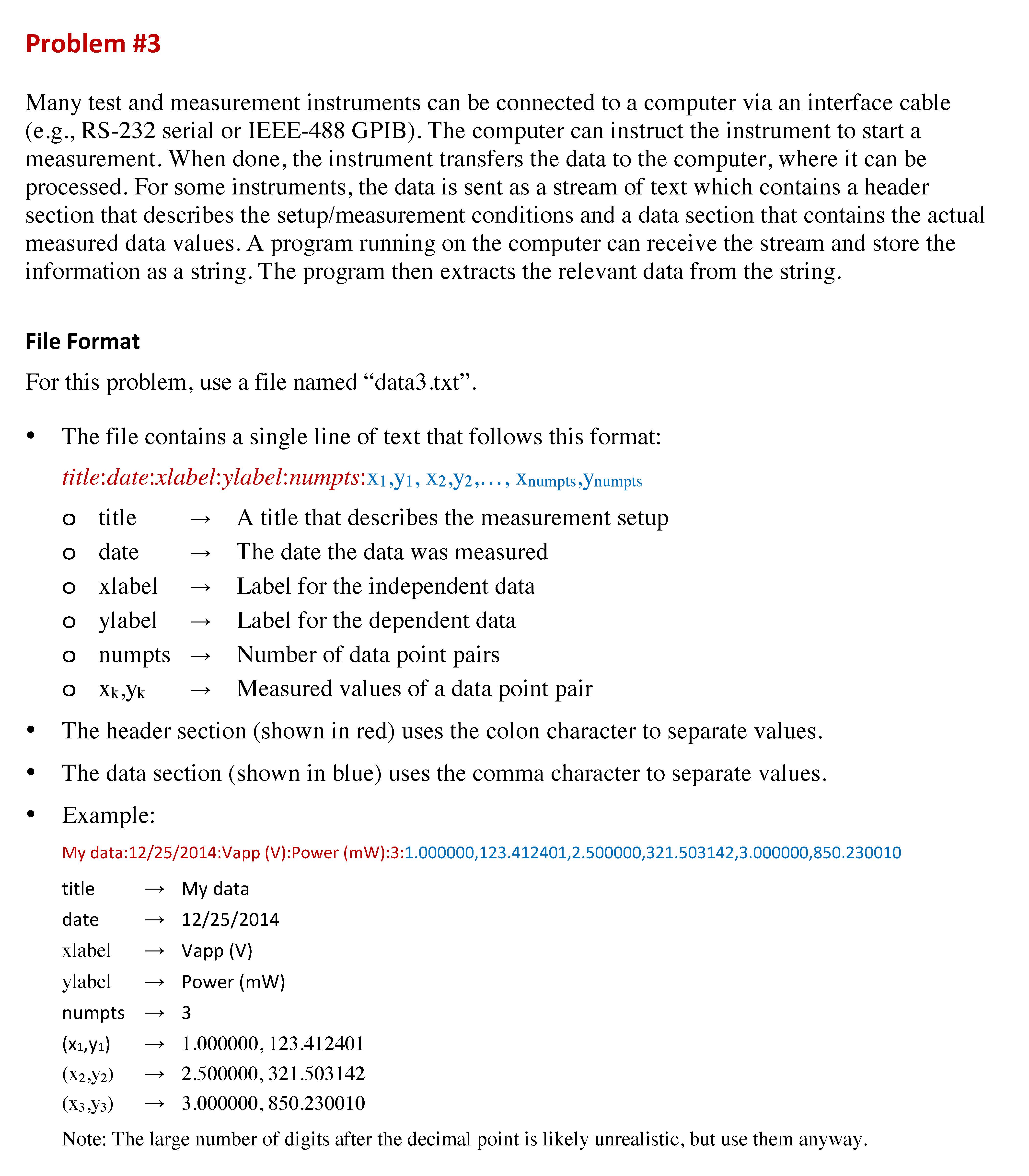

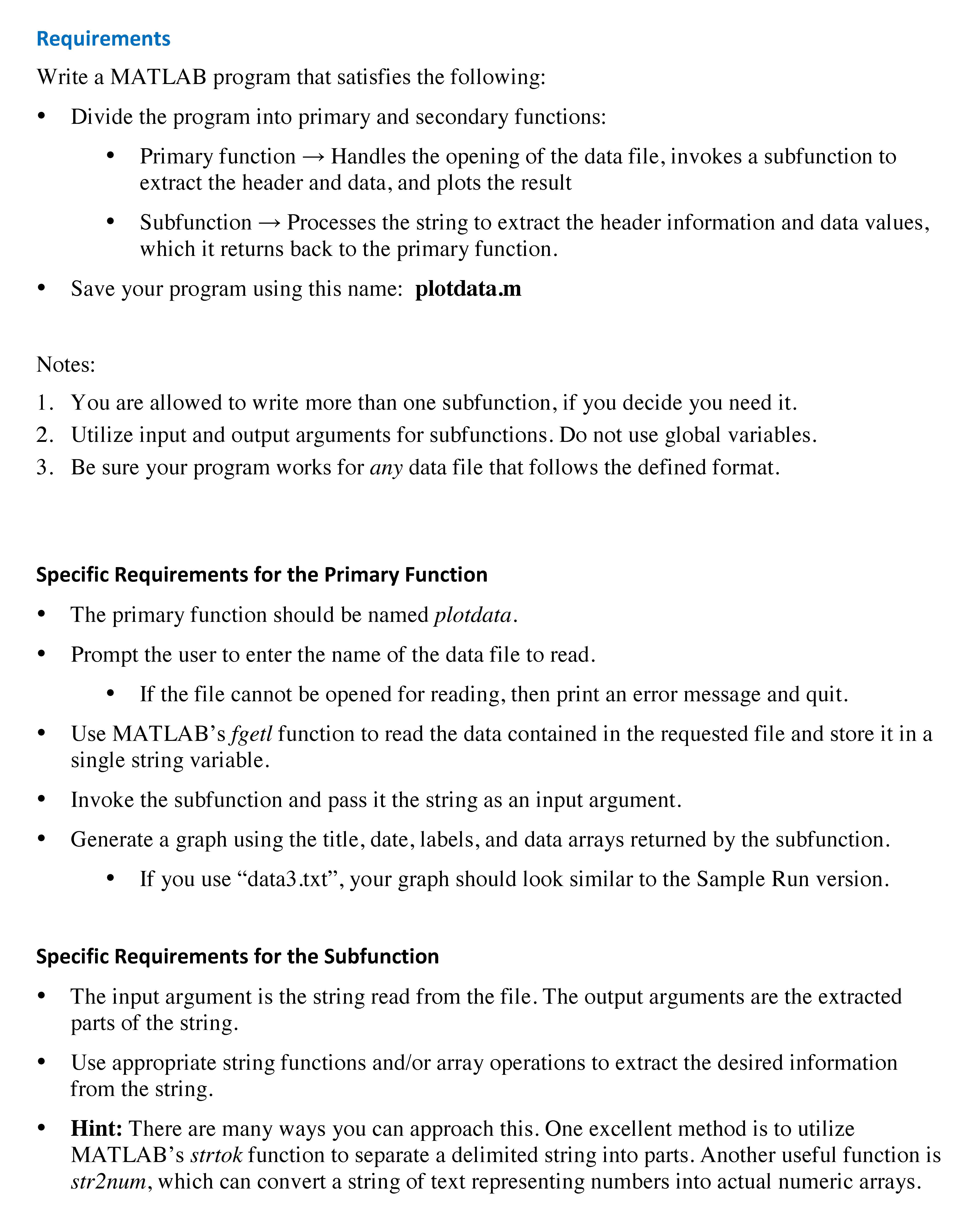

Problem #1 Use the MATLAB script named “trajectory.m”. The program plots the ballistic 2-D trajectory of a projectile. The only force acting on the projectile is gravity. As written, the projectile’s initial velocity and firing angle are fixed values. The original program is not modular, and it does not incorporate any user-written functions. Requirements Re-write the original program to satisfy the following: • Make the program modular by dividing it into a set of subfunctions. o Modify the program to work for any projectile velocity and firing angle. Write a subfunction named PromptVelocityAngle that asks the user to enter the following values and return them as output arguments: ! Initial projectile velocity (in m/s) ! Initial projectile firing angle (in degrees) (You may assume the user will enter only positive velocities and angles.) o Write subfunctions to perform these tasks: ! Calculate the maximum range – name it CalculateMaximumRange It should return the range as an output argument. It should not print anything. ! Calculate the maximum height – name it CalculateMaximumHeight It should return the height as an output argument. It should not print anything. ! Plot the projectile trajectory – name it PlotTrajectory • Set the lower x-axis limit to 0 m and upper x-axis limit to 2000 m • Set the lower y-axis limit to 0 m and upper y-axis limit to autoscale. • Include the projectile's initial velocity and angle in the graph’s title. • Choose an x step size that produces a reasonably smooth curve. o It is up to you to decide what type and number of input arguments are needed for each subfunction. • Write a primary function named trajectory2 to invoke the PromptVelocityAngle, CalculateMaximumRange, CalculateMaximumHeight, and PlotTrajectory subfunctions. o You can perform any necessary variable setup in the primary function. o The returned max range and max height values should be printed by trajectory2. • Save your script using this name: trajectory2.m Note: Use input and output arguments to pass data into and out of the subfunctions. DO NOT USE GLOBAL VARIABLES! Sample Run (at the Command Window) >> trajectory2 Enter projectile's initial velocity v0 (m/s): 125 Enter projectile's angle theta (degrees) : 60 Maximum range = 1379.37 m Maximum height = 597.29 m Problem #2 Equation of a general polynomial of degree N: N N N N N xay xa xa +++++= axa − − − 1 2 2 1 0 1 K Example: Third-order polynomial (i.e., degree = 3, so cubic) 5732 ,2 ,3 ,7 5 0 1 2 3 23 = − + xxxy − ⇒ == − aaaa == − File Format For this problem, use a file named “data2.txt”. • The file contains multiple lines, with each line of text following this format: volt,temp o volt → Independent column – Measured applied voltage (in volts) o temp → Dependent column – Measured system temperature (in °C) • The comma character separates the values. Requirements Write a MATLAB program that satisfies the following: • Use MATLAB’s dlmread function to read the data contained in the “data2.txt” file. • Fit a fourth-order (degree = 4) polynomial to the data. Hint: There is a MATLAB function that does this very efficiently. • For the fitted polynomial, determine the values of Vapp at which the temperaure is zero (i.e., the roots of the polynomial). Hint: There is another MATLAB function that does this easily. • Display the coefficients of the fitted polynomial and the Vapp crossing values. • Plot both the measured data and the fitted polynomial on the same graph. • Make your graph look similar to the Sample Run version. • Follow the standard rules for making a good graph. • Save your program using this name: pfit.m Sample Run (at the Command Window) >>> pfit Polynomial coefficients are: xxxxx xxxxx xxxxx xxxxx xxxxx xxxxx T crosses zero at: V_app = xxxxx V V_app = xxxxx V NOTE: The polynomial coefficients and zero-crossing values are purposely hidden here. Your program should output your actual calculated numeric values. Problem #3 Many test and measurement instruments can be connected to a computer via an interface cable (e.g., RS-232 serial or IEEE-488 GPIB). The computer can instruct the instrument to start a measurement. When done, the instrument transfers the data to the computer, where it can be processed. For some instruments, the data is sent as a stream of text which contains a header section that describes the setup/measurement conditions and a data section that contains the actual measured data values. A program running on the computer can receive the stream and store the information as a string. The program then extracts the relevant data from the string. File Format For this problem, use a file named “data3.txt”. • The file contains a single line of text that follows this format: title:date:xlabel:ylabel:numpts:x1,y1, x2,y2,…, xnumpts,ynumpts o title → A title that describes the measurement setup o date → The date the data was measured o xlabel → Label for the independent data o ylabel → Label for the dependent data o numpts → Number of data point pairs o xk,yk → Measured values of a data point pair • The header section (shown in red) uses the colon character to separate values. • The data section (shown in blue) uses the comma character to separate values. • Example: My data:12/25/2014:Vapp (V):Power (mW):3:1.000000,123.412401,2.500000,321.503142,3.000000,850.230010 title → My data date → 12/25/2014 xlabel → Vapp (V) ylabel → Power (mW) numpts → 3 (x1,y1) → 1.000000, 123.412401 (x2,y2) → 2.500000, 321.503142 (x3,y3) → 3.000000, 850.230010 Note: The large number of digits after the decimal point is likely unrealistic, but use them anyway. Requirements Write a MATLAB program that satisfies the following: • Divide the program into primary and secondary functions: • Primary function → Handles the opening of the data file, invokes a subfunction to extract the header and data, and plots the result • Subfunction → Processes the string to extract the header information and data values, which it returns back to the primary function. • Save your program using this name: plotdata.m Notes: 1. You are allowed to write more than one subfunction, if you decide you need it. 2. Utilize input and output arguments for subfunctions. Do not use global variables. 3. Be sure your program works for any data file that follows the defined format. Specific Requirements for the Primary Function • The primary function should be named plotdata. • Prompt the user to enter the name of the data file to read. • If the file cannot be opened for reading, then print an error message and quit. • Use MATLAB’s fgetl function to read the data contained in the requested file and store it in a single string variable. • Invoke the subfunction and pass it the string as an input argument. • Generate a graph using the title, date, labels, and data arrays returned by the subfunction. • If you use “data3.txt”, your graph should look similar to the Sample Run version. Specific Requirements for the Subfunction • The input argument is the string read from the file. The output arguments are the extracted parts of the string. • Use appropriate string functions and/or array operations to extract the desired information from the string. • Hint: There are many ways you can approach this. One excellent method is to utilize MATLAB’s strtok function to separate a delimited string into parts. Another useful function is str2num, which can convert a string of text representing numbers into actual numeric arrays. Sample Run (at the Command Window) >>> plotdata Enter the name of the data file: data3.txt Problem #4 You are a programmer working for a team that is performing medical research on a small population of volunteers. These people submitted some personal information that has been stored in a text file. It is your job to develop software that can read the file and create a searchable database which allows researchers to select just those people who meet certain study criteria. File Format For this problem, use a file named “data4.txt”. • The file contains multiple lines, with each line of text following this format: ID, lname, fname, sex, age, height, weight, smokes, drinks, state o ID → Unique identification number assigned to the person o lname → Last name o fname → First name o sex → Genetic male (M) or female (F) o age → Age (years) o height → Height (foot:inches) o weight → Weight (US pounds) o smokes → Does the person smoke? (Y or N) o drinks → Does the person drink alcohol? (Y or N) o state → State of permanent residence (CA, OR, WA for this study) • The comma character separates the values. • Example: 43210, Smith, Laura, F, 35, 5:7, 128, N, Y, CA ID → 43210 lname → Smith fname → Laura sex → Female age → 35 years height → 5 foot 7 inches weight → 128 pounds smokes → No drinks → Yes state → CA (i.e., California) Requirements Write a MATLAB program that satisfies the following: • Read the data from the “data4.txt” file and store it in an array of structures. • Hint: The strtok function is very useful here to break up each string. • Each structure in the array should contain information for one person only. • Use the labels described in the file format section for the structure’s field names. • Decide for yourself the best data type (e.g., string or number) to use for each field. • Prompt the user to enter values for the following search criteria: • Sex (Valid responses: ‘M’ or ‘m’ for male, ‘F’ or ‘f’ for female) • Age lower limit (integer number) • Age upper limit (integer number) • Does the person smoke? (Valid responses: ‘Y’ or ‘y’ for yes, ‘N’ or ‘n’ for no) • Does the person drink alcohol? (Valid responses: ‘Y’ or ‘y’ for yes, ‘N’ or ‘n’ for no) • Loop through the array of structures and display only those people whose data matches the search criteria. Show the full information of each selected person in a nicely formatted way. • Example: Search criteria: Sex=‘M’, AgeLL=20, AgeUL=42, Smoke=’Y’, Drink=’N’ This means that only those people who are male AND with 20 ≤ age ≤ 42 AND who do smoke AND who do not drink should be displayed. • Make your program reasonably modular. • Save your program using this name: dbase.m Sample Data 31241, Jones, Martha, F, 26, 5.3, 125, Y, N, CA 34242, Shepard, Julia, F, 35, 5.5, 145, N, N, CA 46235, Metcalf, Robert, M, 18, 5.11, 145, N, N, OR 29001, Pine, Devon, M, 24, 5.4, 155, N, Y, WA 10244, Archer, Rachel, F, 30, 5.4, 125, N, N, OR 15932, Louis, Mark, M, 56, 6.1, 175, N, Y, OR 22911, Francis, Carl, M, 22, 5.8, 150, N, Y, OR 53221, Packard, Joseph, M, 42, 5.10, 170, N, Y, WA 19732, Scott, Presley, M, 29, 6.1, 225, N, Y, WA 22511, Spears, Jenny, F, 16, 5.2, 130, N, N, CA 11291, Alvarez, James, M, 38, 5.7, 162, Y, N, OR 83212, Cannon, Sean, M, 45, 5.10, 285, N, N, OR 58192, Ruiz, Sandra, F, 25, 5.8, 130, Y, N, CA 58199, Chan, David, M, 24, 5.3, 140, N, N, WA 75431, Hogan, Grace, F, 60, 5.3, 110, N, N, CA 89673, Prentiss, Mary, F, 26, 5.5, 126, Y, Y, OR 97863, Lopez, Christina, F, 19, 5.4, 120, N, N, WA 97243, Cooper, Candice, F, 47, 5.9, 132, N, Y, OR 68423, McClure, Niki, F, 30, 5.2, 126, N, N, OR 89011, Lawson, Carter, M, 65, 6.2, 210, N, Y, OR 80721, Lawrence, Michael, M, 58, 5.9, 170, Y, Y, CA Sample Run (at the Command Window) >> dbase Enter search criteria: Sex (M/F): m Age lower limit: 20 Age upper limit: 35 Smokes (Y/N)? y Drinks (Y/N)? n No person fits that search criteria. >> dbase Enter search criteria: Sex (M/F): m Age lower limit: 30 Age upper limit: 50 Smokes (Y/N)? y Drinks (Y/N)? n ID# 11291 Name: Alvarez, James Sex : Male Age : 38 yrs Height: 5' 7" Weight: 162 lbs Smokes: Yes Drinks: No State : OR >> dbase Enter search criteria: Sex (M/F): m Age lower limit: 20 Age upper limit: 50 Smokes (Y/N)? n Drinks (Y/N)? y ID# 29001 Name: Pine, Devon Sex : Male Age : 24 yrs Height: 5' 4" Weight: 155 lbs Smokes: No Drinks: Yes State : WA ID# 22911 Name: Francis, Carl Sex : Male Age : 22 yrs Height: 5' 8" Weight: 150 lbs Smokes: No Drinks: Yes State : OR ID# 53221 Name: Packard, Joseph Sex : Male Age : 42 yrs Height: 5' 10" Weight: 170 lbs Smokes: No Drinks: Yes State : WA ID# 19732 Name: Scott, Presley Sex : Male Age : 29 yrs Height: 6' 1" Weight: 225 lbs Smokes: No Drinks: Yes State : WA >> dbase Enter search criteria: Sex (M/F): F Age lower limit: 15 Age upper limit: 40 Smokes (Y/N)? N Drinks (Y/N)? N ID# 34242 Name: Shepard, Julia Sex : Female Age : 35 yrs Height: 5' 5" Weight: 145 lbs Smokes: No Drinks: No State : CA ID# 10244 Name: Archer, Rachel Sex : Female Age : 30 yrs Height: 5' 4" Weight: 125 lbs Smokes: No Drinks: No State : OR ID# 22511 Name: Spears, Jenny Sex : Female Age : 16 yrs Height: 5' 2" Weight: 130 lbs Smokes: No Drinks: No State : CA ID# 97863 Name: Lopez, Christina Sex : Female Age : 19 yrs Height: 5' 4" Weight: 120 lbs Smokes: No Drinks: No State : WA ID# 68423 Name: McClure, Niki Sex : Female Age : 30 yrs Height: 5' 2" Weight: 126 lbs Smokes: No Drinks: No State : OR

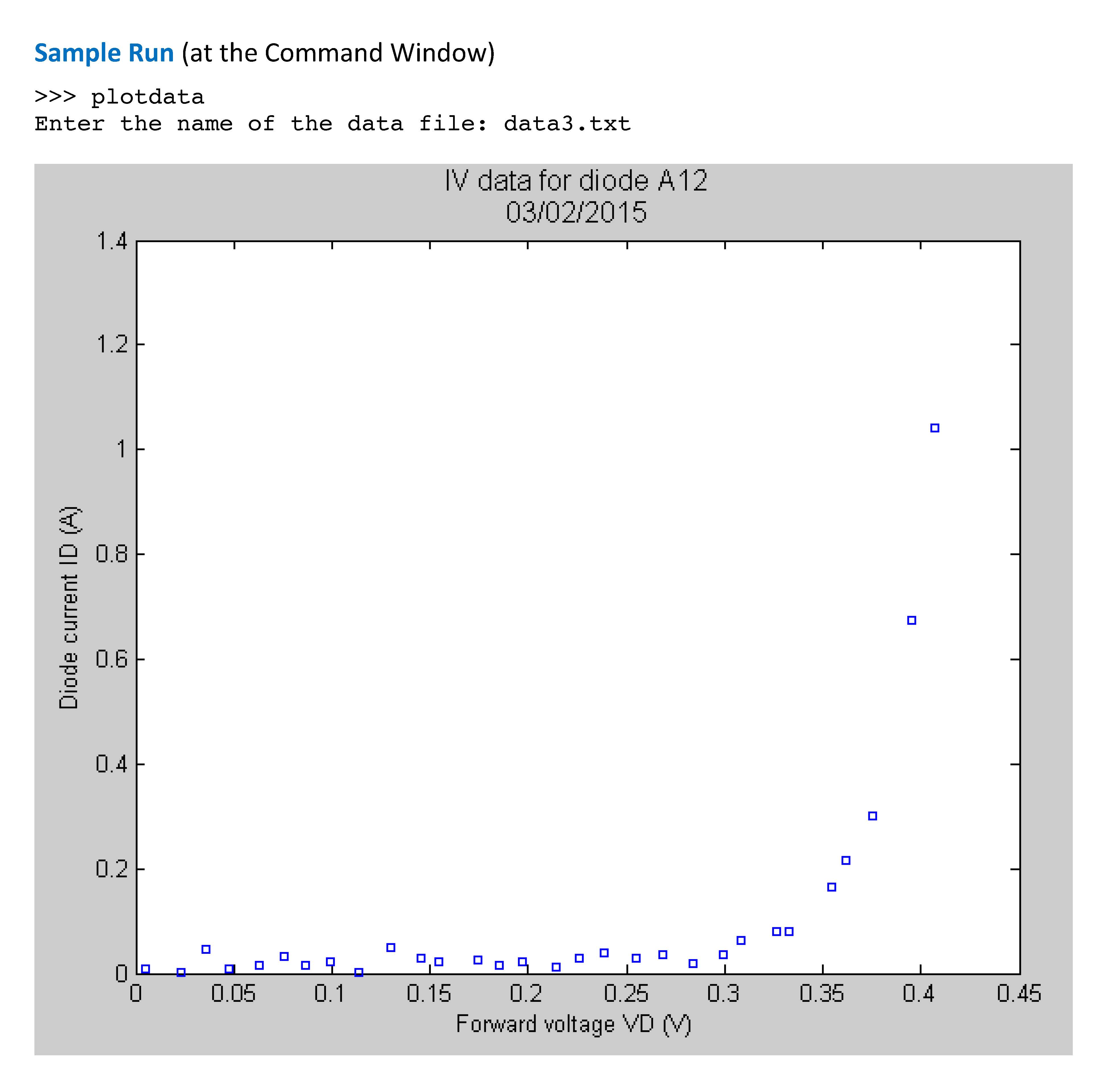

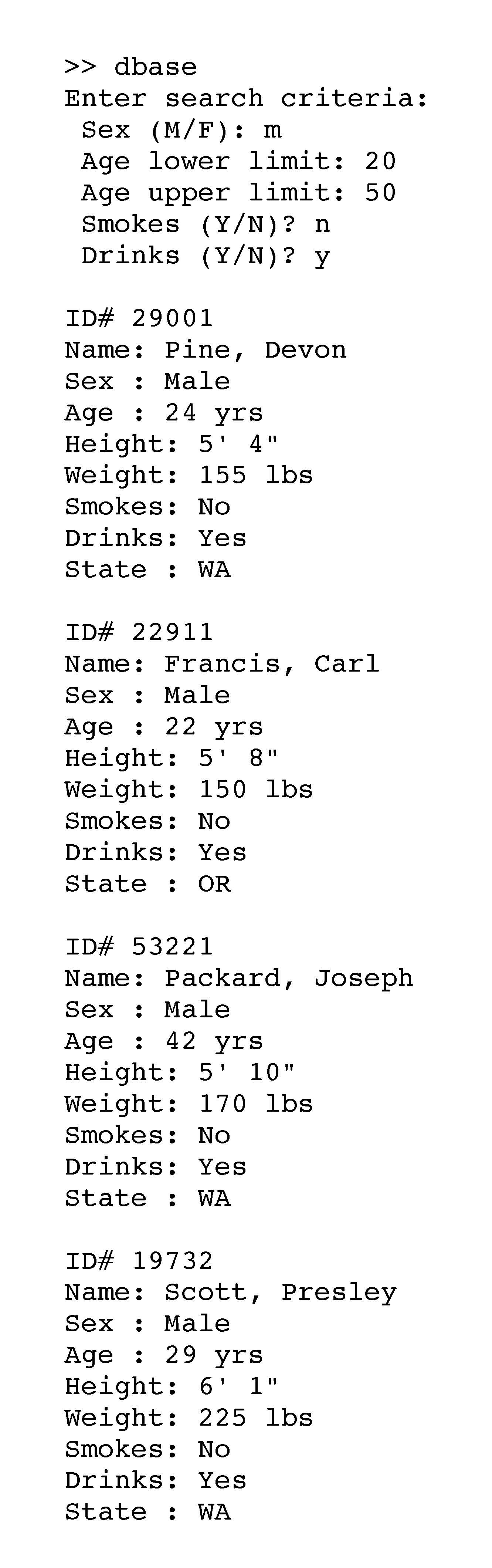

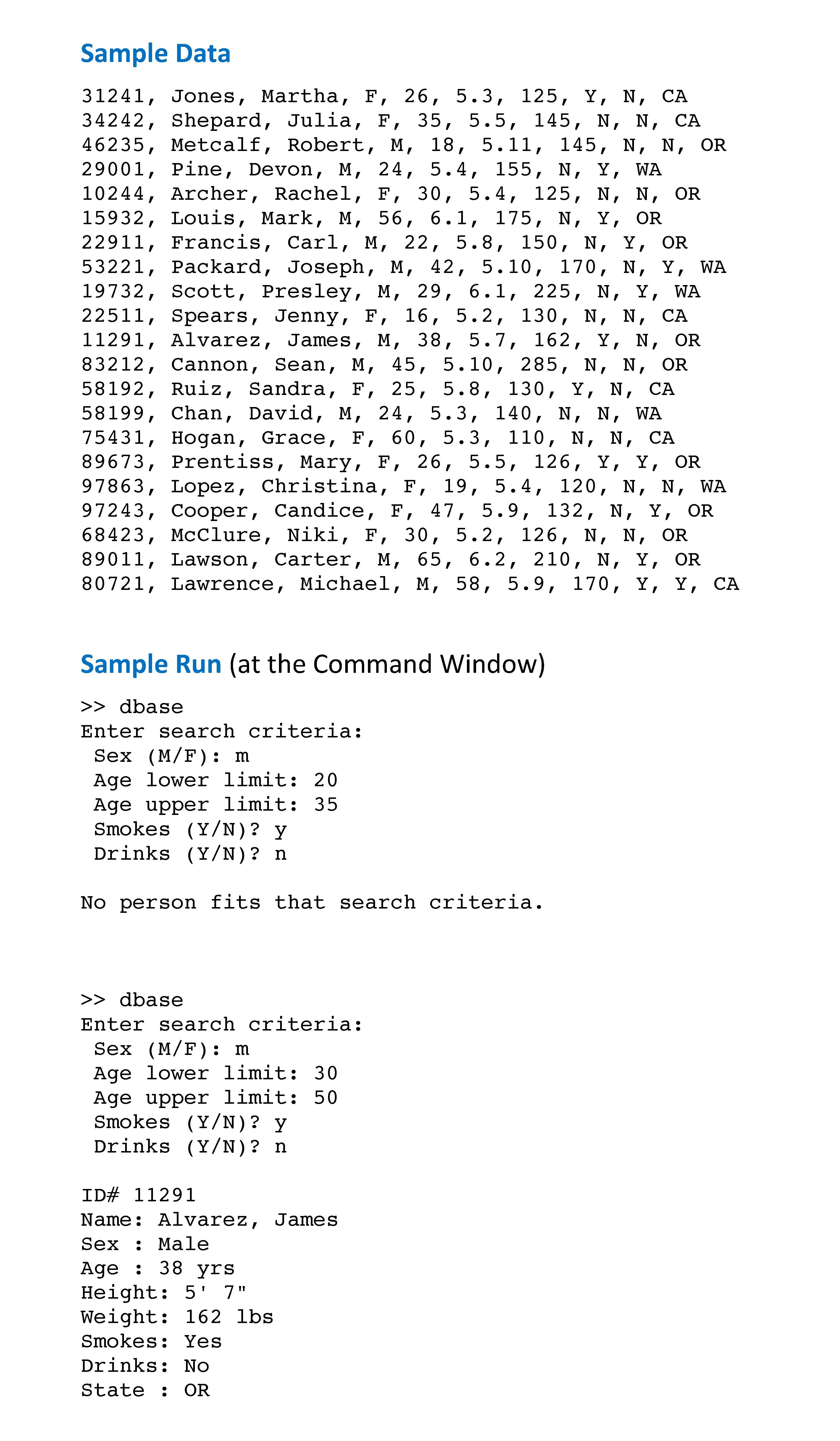

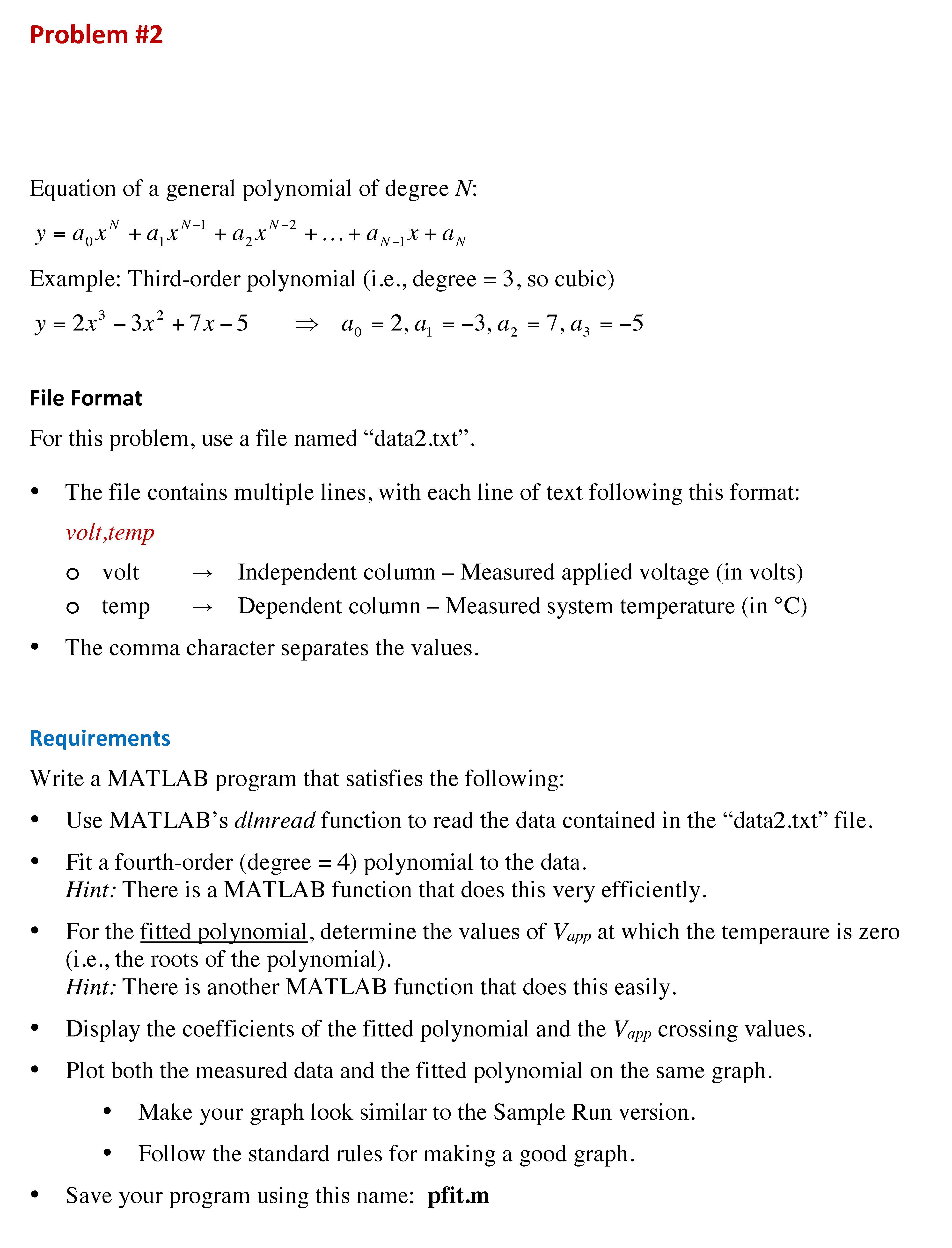

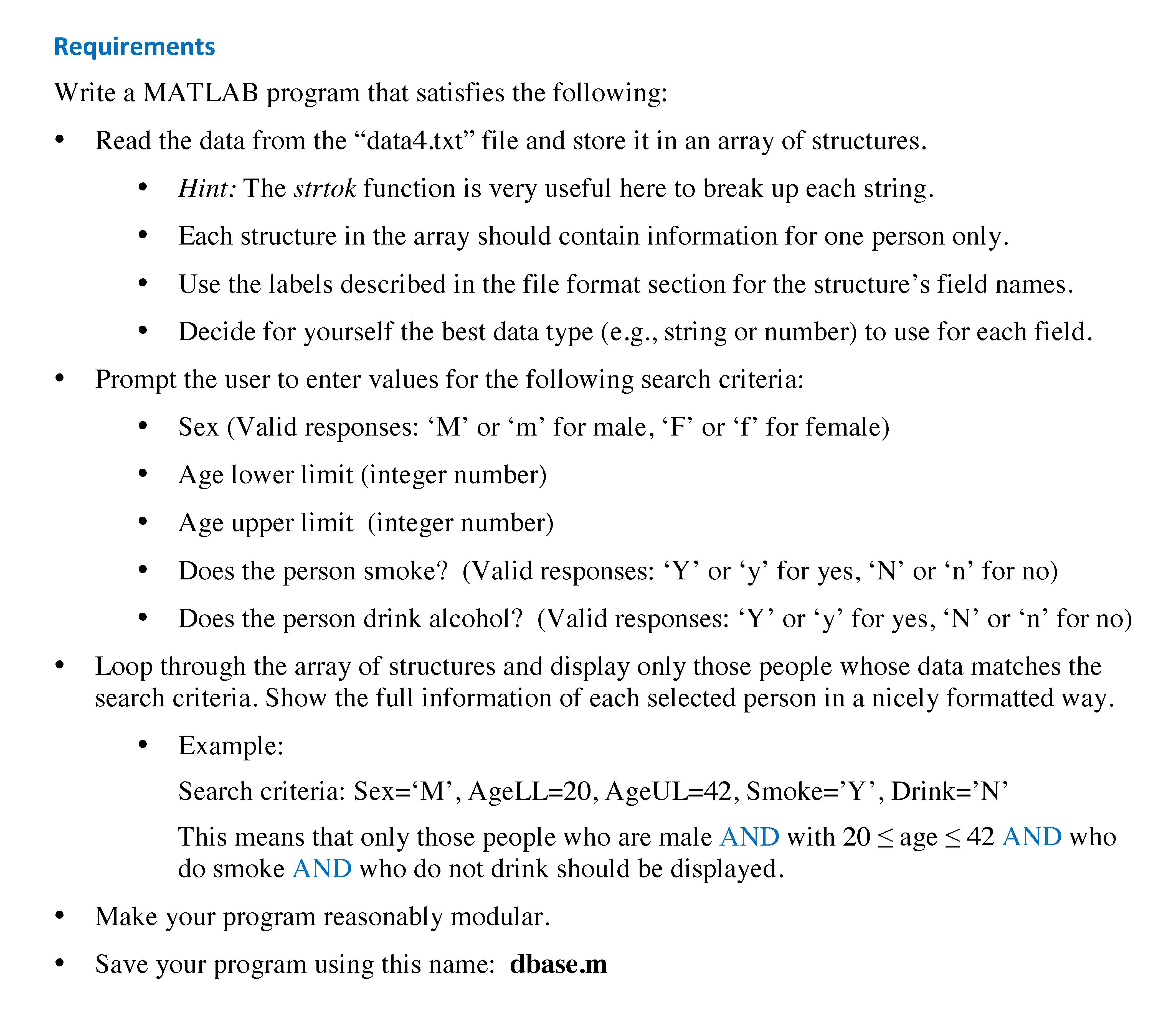

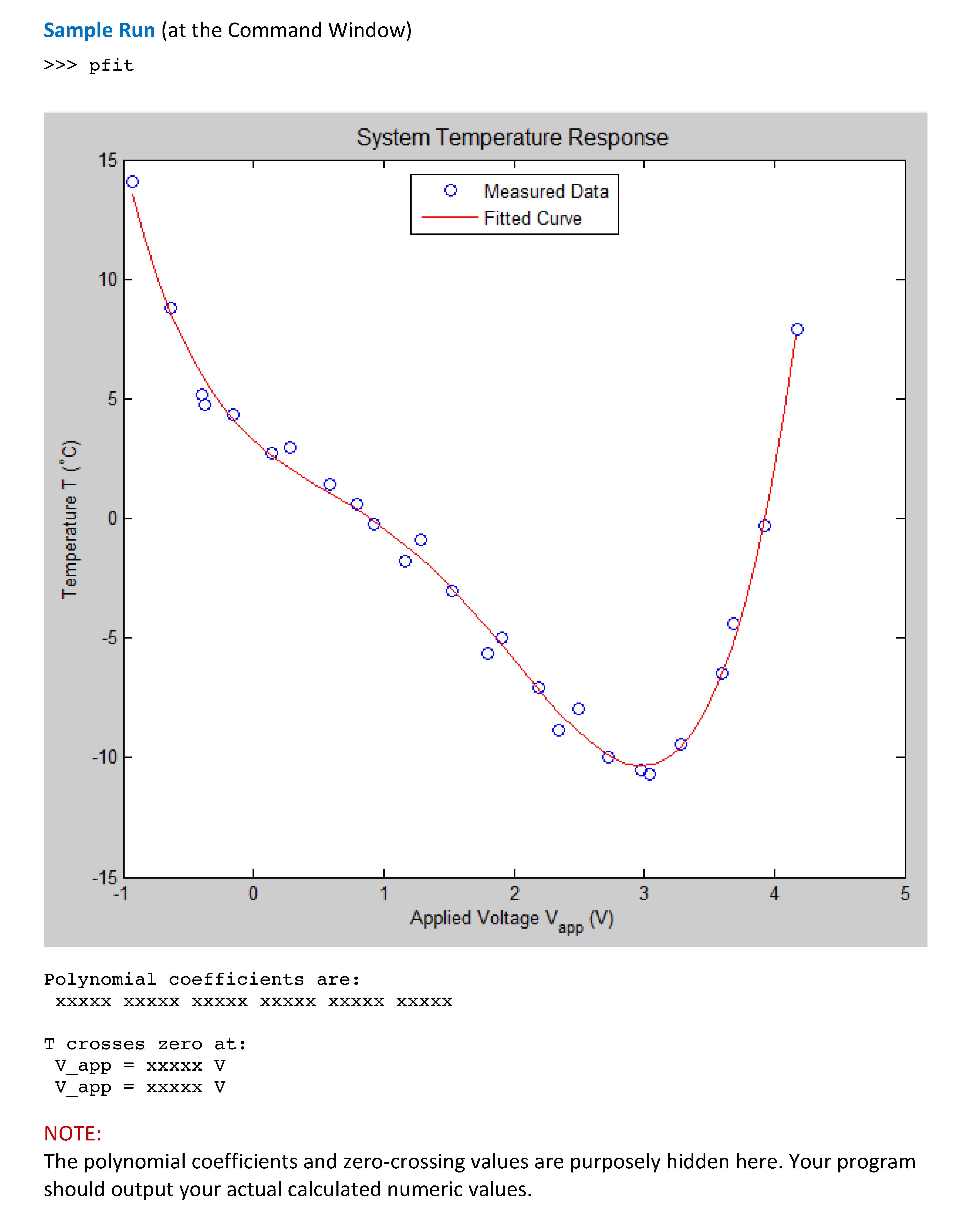

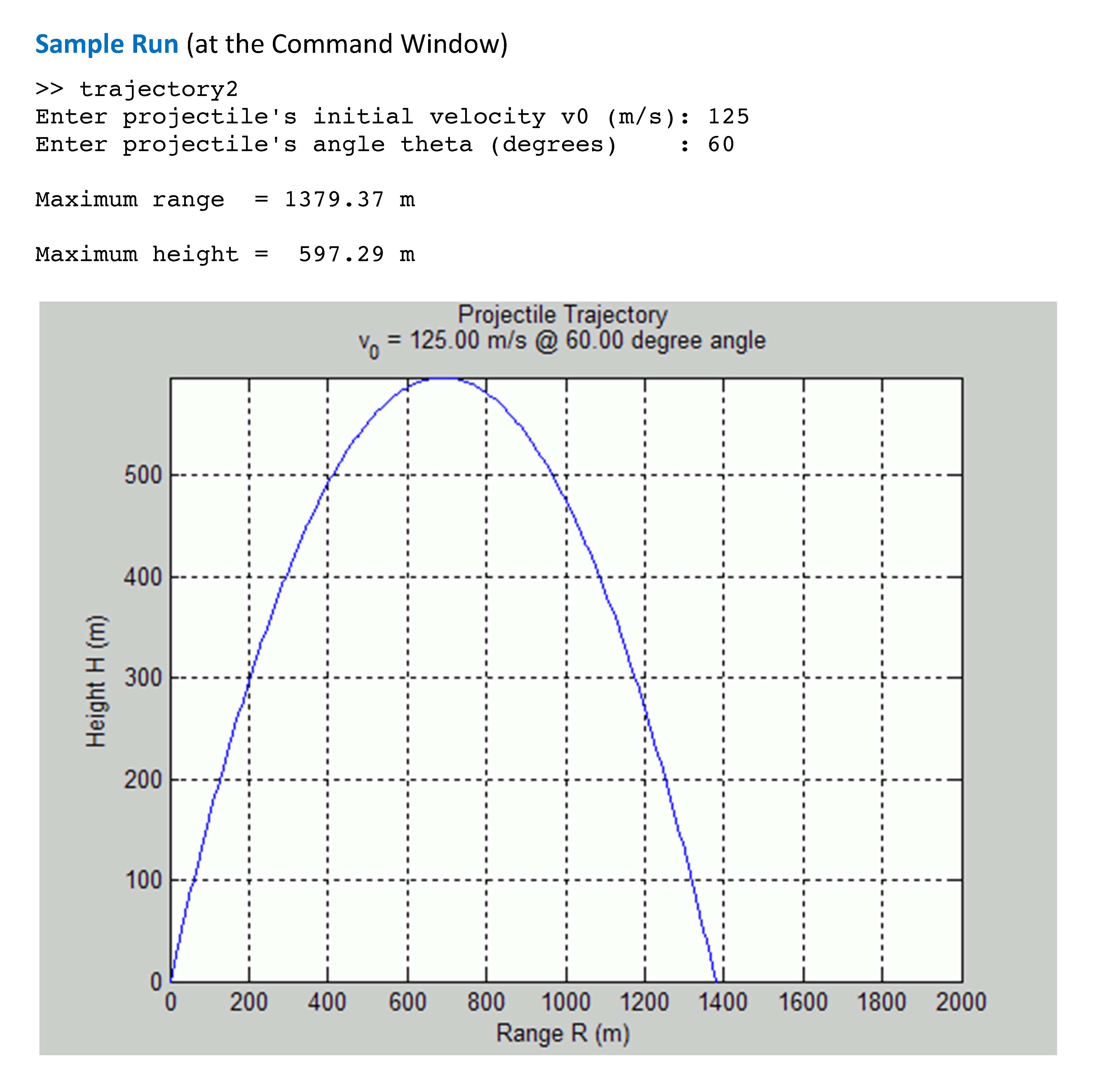

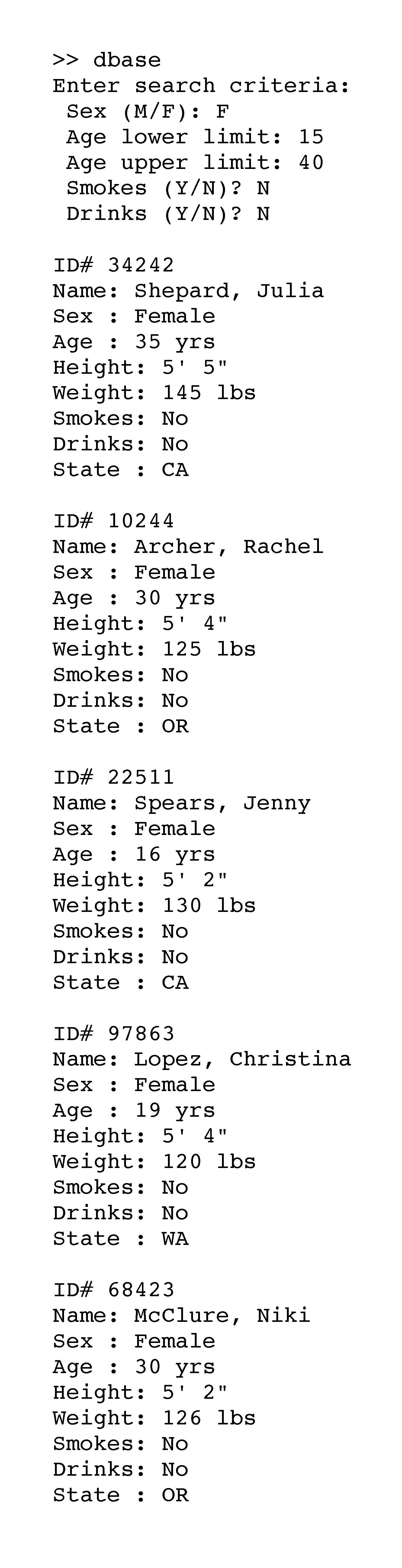

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

% This script calculates the trajectory of a ballistic projectile.
% Assumptions:
%   Projectile starts at location (0,0) in the x-y plane
%   Initial velocity is 125 m/s at a 60 degree angle to the horizontal
%   No air resistance
%   Flat surface

clc

% Ballistic projectile equations:
%   x(t) = 1/2*ax*t^2 + vx*t + x0
%   y(t) = 1/2*ay*t^2 + vy*t + y0

% Initialize variables with physical values
g = 9.81;    % m/s^2 (gravitational constant)
theta = 60; % degrees (projectile launch angle)
v0 = 125;    % m/s (projectile launch speed)

ax = 0;      % m/s^2 (assume no acceleration in x direction)
ay = -g;    % m/s^2 (assume only gravity affects projectile)

vx = v0 * cosd(theta); % m/s (component of velocity in x direction)
vy = v0 * sind(theta); % m/s (component of velocity in y direction)

x0 = 0;      % m (initial projectile x coordinate)
y0 = 0;      % m (initial projectile y coordinate)

% ***** Determine maximum projectile range *****

% Find t at which y(t) is zero.
%   0 = 1/2*ay*t^2 + vy*t + y0
%   0 = t*(1/2*ay*t+vy)...
