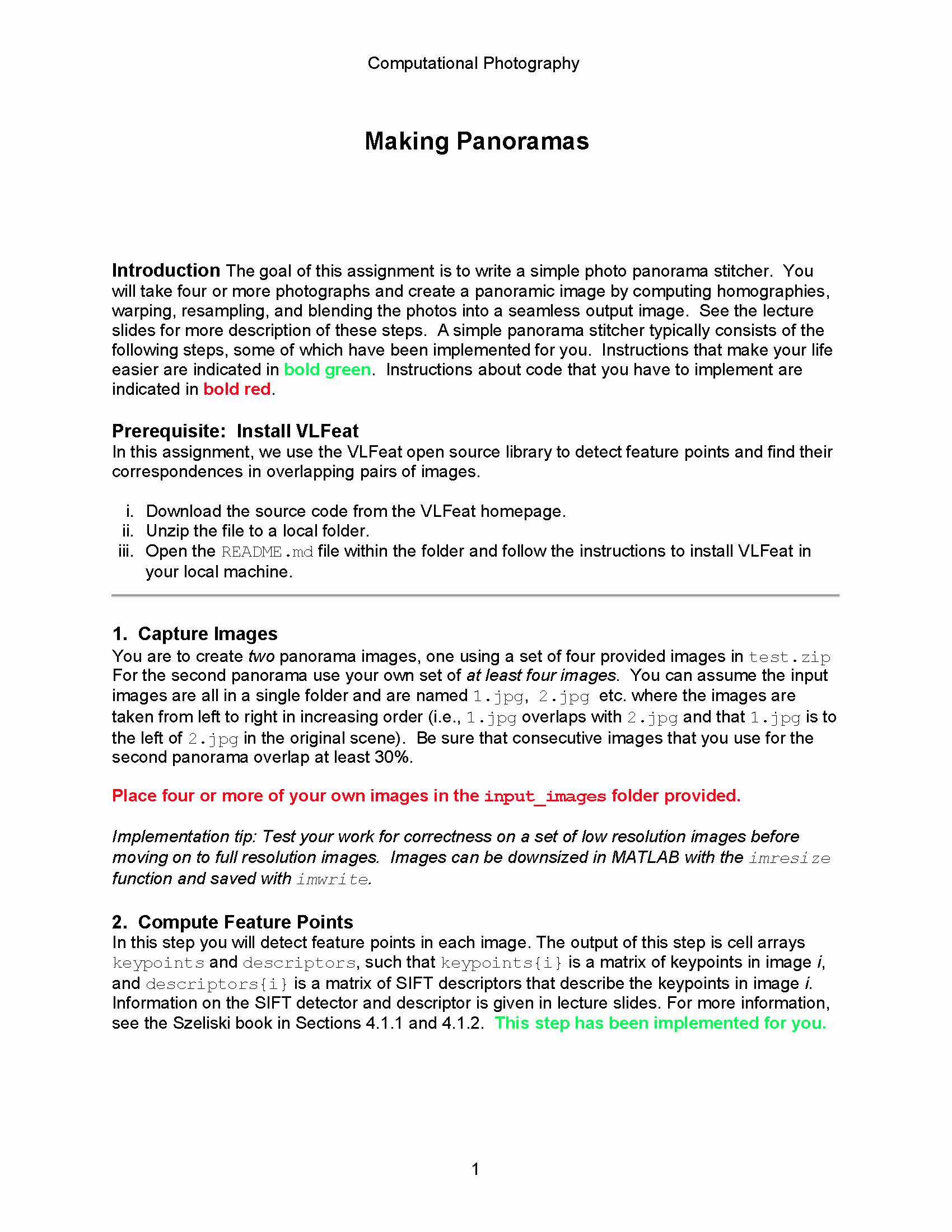

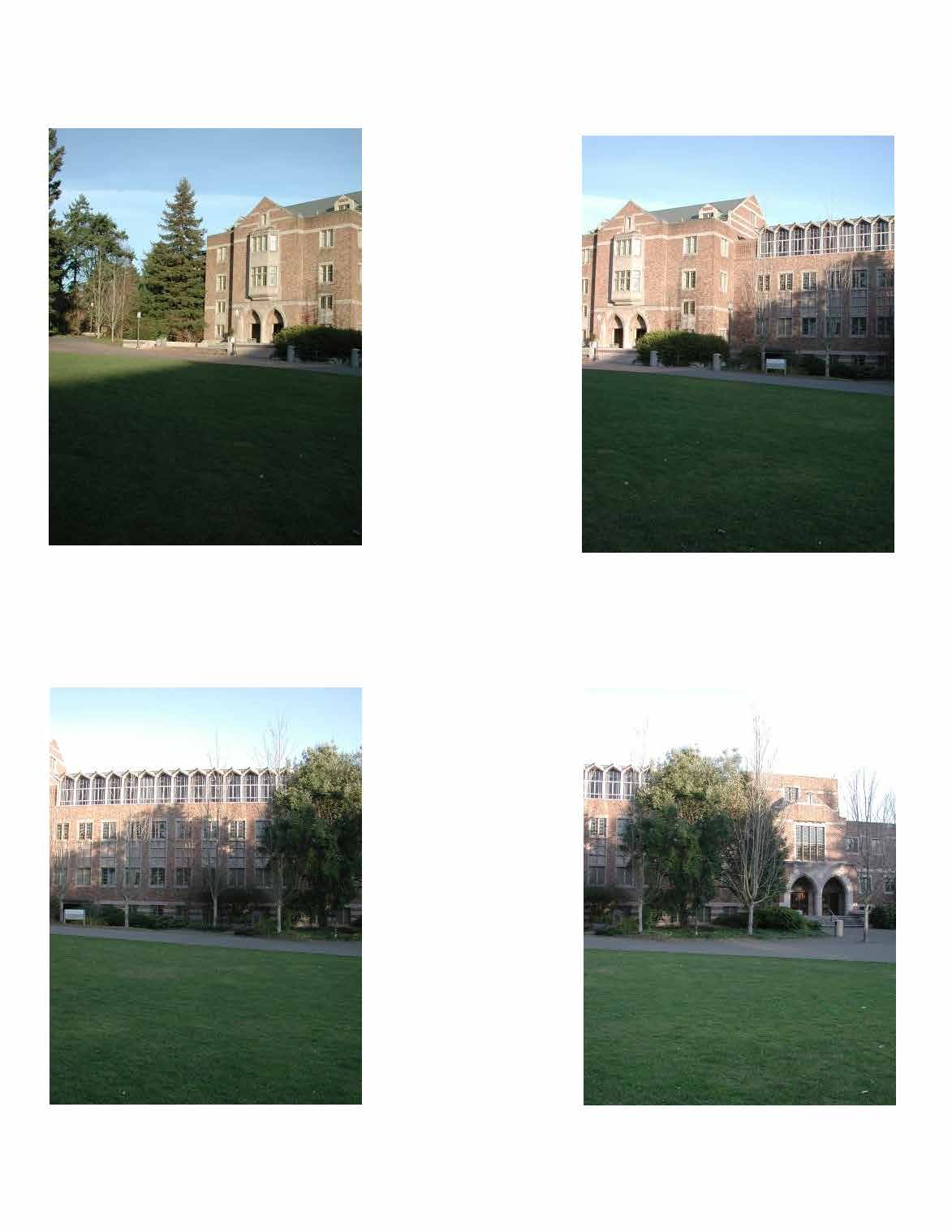

Computational Photography Making Panoramas Introduction The goal of this assignment is to write a simple photo panorama stitcher. You will take four or more photographs and create a panoramic image by computing homographies, warping, resampling, and blending the photos into a seamless output image. See the lecture slides for more description of these steps. A simple panorama stitcher typically consists of the following steps, some of which have been implemented for you. Instructions that make your life easier are indicated in bold green. Instructions about code that you have to implement are indicated in bold red. Prerequisite: Install VLFeat In this assignment, we use the VLFeat open source library to detect feature points and find their correspondences in overlapping pairs of images. i. DownloadthesourcecodefromtheVLFeathomepage. ii. Unzipthefiletoalocalfolder. iii. OpentheREADME.mdfilewithinthefolderandfollowtheinstructionstoinstallVLFeatin your local machine. 1. Capture Images You are to create two panorama images, one using a set of four provided images in test.zip For the second panorama use your own set of at least four images. You can assume the input images are all in a single folder and are named 1.jpg, 2.jpg etc. where the images are taken from left to right in increasing order (i.e., 1.jpg overlaps with 2.jpg and that 1.jpg is to the left of 2.jpg in the original scene). Be sure that consecutive images that you use for the second panorama overlap at least 30%. Place four or more of your own images in the input_images folder provided. Implementation tip: Test your work for correctness on a set of low resolution images before moving on to full resolution images. Images can be downsized in MATLAB with the imresize function and saved with imwrite. 2. Compute Feature Points In this step you will detect feature points in each image. The output of this step is cell arrays keypoints and descriptors, such that keypoints{i} is a matrix of keypoints in image i, and descriptors{i} is a matrix of SIFT descriptors that describe the keypoints in image i. Information on the SIFT detector and descriptor is given in lecture slides. For more information, see the Szeliski book in Sections 4.1.1 and 4.1.2. This step has been implemented for you. 1 Computational Photography 3. Match Feature Points and Compute Homographies [8 points] In this step, you will find the spatial relationship between each pair of overlapping images. This spatial relationship is represented by a transformation known as a homography, H, where H is a 3 x 3 matrix. To apply homography H to a point p, simply compute p' = Hp, where p and p' are (3-dimensional) homogeneous coordinates. p' is then the transformed point. In this step however, we want to compute the homography given a set of (p′, p) pairs of corresponding feature points. In the previous step, we computed a descriptor for every keypoint in every image. Each SIFT descriptor is a 128-dimesional vector, while each SIFT keypoint is an x-y-orientation-scale 4- tuple. Computing the homography between an image i and an image i+1 can then be done in the following steps: i. Find the correspondences between keypoints, using only descriptor information. ii. Remove the correspondence outliers (incorrect matches) found in the previous step, using RANSAC and x-y positional information only. iii. Calculate the homography, using the inliers found in the previous step. Part (i) has been implemented for you. You must implement parts (ii) and (iii) by completing the calcHWithRANSAC function. The main script will call this function to define a cell arrayH_list.H = {H , H ,H , . . . ,H } whereH is the homography that maps list 21 32 43 (m )(m −1) ij points in image i into points in image j. Compute Homographies without RANSAC Given point-to-point correspondences, the following function called calcH should compute H: H = calcH(im1_ftr_pts, im2_ftr_pts) where im1_ftr_pts and im2_ftr_pts are n x 2 matrices storing the (x, y) locations of n feature point correspondences between the two images. calcH returns H, the recovered 3 x 3 homography matrix. Function calcH has been implemented for you. Once H is computed, multiplying H times the homogeneous coordinates of a point in image 2 will return the homogeneous coordinates of that point projected into image 1. In order to compute matrix H, you need to set up a linear system of n equations (i.e., a matrix equation of the form Ah = b where h is a column vector holding the unknown values of H). If n = 4, the system can be solved using a standard technique. However, with only four points, homography recovery is very unstable and prone to noise. Therefore more than 4 correspondences should be used to produce an overdetermined system, which can be solved using least-squares. In MATLAB, this can be performed using the MATLAB “\” operator (see mldivide for details). Compute Homographies with RANSAC Unfortunately, not all the corresponding points found by SIFT will be correct matches. To eliminate “outliers,” i.e., incorrect matches, you need to modify calcHWithRANSAC so that it includes the RANSAC algorithm as part of the procedure for computing the best homography. To do this, add a loop that runs numIter times, computing a homography at each iteration, and keeping the best homography found. In each iteration, select four pairs of points randomly from those computed by SIFT, compute H from these four pairs of points, and then count how many of the other pairs of points agree, i.e., a point projects very near its corresponding point in the pair. Use a constant threshold value of maxDist pixels to decide whether two points are close enough to be considered “inliers.” For example, if pi′ = (xi′, yi′) is a point in image 1 corresponding to point pi = (xi, yi) in image 2, first convert pi to homogeneous coordinates, say (xi, yi, 1); then multiply H by the 3 x 1 vector corresponding to the homogeneous coordinates of pi to obtain qi = Hpi ; then compute the Euclidean distance 2 Computational Photography between point pi′ and qi after first converting qi to its real-valued Cartesian coordinates; finally, check if the distance is less than maxDist, and, if it is, increment the count of the number of other pairs of points that agree with this H. Repeat the above process of randomly selecting four pairs of points numIter times, computing their associated H, and counting the number of inliers for each. Keep the homography H* with the most agreement, i.e., greatest number of inliers. Finally, compute the final homography using all the points that agree with H*. Use numIter = 100 and maxDist = 3 in your implementation of calcHWithRANSAC. Recommendation: Implement RANSAC only after you have a working version of your code that does not use RANSAC. Implementation tip: The RANSAC loop can be implemented in nine lines of MATLAB, including the 'for' and 'end' lines. You may find the following snippets helpful, though it's not necessary to use them to receive full credit for this homework. ● A=H*B; %AandBare3xnmatricesandHisa3x3matrix ● dist=sqrt(sum((A-B).^2)); %AandBarenx3matricesanddistisa1xnmatrix ● inds = randperm(n, 4); % inds is a vector of 4 random unique integers in [1, n] 4. Warp Images [4 points] The next step is to warp all the input images into the output panorama image. We will warp all the images onto a plane defined by one of the input images, which we’ll call the reference image. For simplicity, use image 1 as your reference image. This step can be broken down into the following parts: i. Compute the homography of every image with respect to the reference image. ii. Compute the size of the output panorama image, using forward warping. Parts (ii) and (iii) have been implemented for you. iii. Warp every input image on to the panorama, using inverse warping. You will implement part (i). That is, modify the main script to compute the cell array H_map of lengthm,suchthat𝐻𝐻 ={𝐻𝐻 ,𝐻𝐻 ,𝐻𝐻 ,...,𝐻𝐻 }forminputimages.𝐻𝐻 istheidentitymatrix. 𝑚𝑚𝑚𝑚𝑚𝑚 11 21 31 𝑚𝑚1 11 We describe each of these parts in detail below. You must first compute a new set of homography matrices so as to warp each image directly to the reference image, image 1. As stated above, the homography 𝐻𝐻 is such that 𝑝𝑝 = 𝐻𝐻 𝑝𝑝 𝑙𝑙𝑖𝑖 𝑖𝑖𝑙𝑙𝑖𝑖𝑙𝑙 where pi and pj are points in images i and j respectively. Now we want to find Hi1 for all images i, expressed in terms of the homographies that we computed in the previous step. Then we have: Therefore, the homography 𝐻𝐻𝑙𝑙1 that warps points in image i into points in image 1 is given by 𝐻𝐻𝑙𝑙1𝑝𝑝𝑙𝑙 = 𝑝𝑝1 = 𝐻𝐻21𝑝𝑝2 = 𝐻𝐻21(𝐻𝐻32𝑝𝑝3) = 𝐻𝐻21(𝐻𝐻32(𝐻𝐻43𝑝𝑝4)) = 𝐻𝐻21𝐻𝐻32. . . 𝐻𝐻(𝑙𝑙)(𝑙𝑙−1)𝑝𝑝𝑙𝑙 𝐻𝐻𝑙𝑙1 = 𝐻𝐻21𝐻𝐻32. . . 𝐻𝐻(𝑙𝑙)(𝑙𝑙−1). For example, 𝐻𝐻31 = 𝐻𝐻21𝐻𝐻32 and 𝐻𝐻41 = 𝐻𝐻21𝐻𝐻32𝐻𝐻43. Next, before warping each of the images, the size of the output panorama image must be computed and initialized from the range of warped image coordinates for each input image. 3 Computational Photography This is done for you in the provided code by mapping the coordinates of the four corners (i.e., top-left, top-right, etc.) from each source image using forward warping to determine itscoordinatesintheoutputimage. Itcomputesthemin_row,min_col,max_row,and max_col coordinates to determine the size of the output image, defined by panorama_height and panorama_width. Finally, row_offset and col_offset values are computed that specify the offset of the origin of the reference image relative to the upper-left corner coordinates of the output panorama image. The output image array, called panorama_image, is created and initialized to all black pixels (i.e., value 0). Determining the size of the panorama used forward warping. However, if you use forward warping to map every pixel from each source image, there will be holes (i.e., some pixels in the output image will not be assigned an RGB value from any source image, and remain black) in the final output image. Therefore, we need to use inverse warping to map each pixel in the output image into the planes defined by the source images. The provided code uses bilinear interpolation to compute the color values in the warped image by calling the MATLAB function interp2 (with argument ‘linear’ to do bilinear interpolation). The provided code uses the MATLAB meshgrid function to do this efficiently. Type ‘help interp2’ and ‘help meshgrid’ to view the help documents for more details on these two functions. Two issues must be dealt with when performing inverse warping: First, some pixels in the output image will not map to a pixel in a given source image because the output pixel’s coordinates map outside the domain of the source image. In this case a value of zero will be returned for the given output image pixel by setting an extrapolation value of zero in the call to interp2. Second, some pixels in the output image will have more than one input image overlapping it; in this case, the provided code simply takes the sum of these source image’s pixel values to the output image. While this will produce an output image for initial debugging, you must replace this with a better method of blending, as described in the next step below. 5. Blend Images [6 points] Now that the images are transformed to the same coordinate frame, the final step is to blend overlapping pixel color values in such a way as to hide seams. One simple way to do this, called feathering, is to use weighted averaging of the color values to blend overlapping pixels (see lecture notes; also, Section 9.3.2 in the Szeliski book for more details). To do this, use an `alpha channel’ where the value of alpha for each input image is 1 at its center pixel and decreases linearly to 0 or a very small positive value at all the border pixels. Think of the alpha channel as pixel-wise weights. You can use the MATLAB function bwdist with argument ‘euclidean’ and applied to a binary image that has 1s beyond the edges of the warped image and 0s within the warped image, then normalize the distances to be in the interval (0, 1]. Compute an alpha channel for each input image. See below for an illustration of the above steps. 4 Computational Photography Illustration of computing the alpha channel of an input image. (a) Input image before warping. (b) Input image after warping. (c) Binarization of input - 1s outside the boundary of the warped image and 0s inside. (d) Distance transform of (c). The alpha channel should be the distance transform normalized to the interval (0, 1]. Use these alpha values as follows to compute the color at a pixel where at least two images overlap in the output image. For example, suppose there are two warped images I1 and I2 that overlap in the output image. Let their red channels be IR1 and IR2 and their alpha channels α1 and α2 respectively. Then the output red channel IRout is given by: 𝐼𝐼 = 𝛼𝛼1𝐼𝐼𝑅𝑅1 + 𝛼𝛼2𝐼𝐼𝑅𝑅2 𝑅𝑅𝑅𝑅𝑅𝑅𝑙𝑙 𝛼𝛼1 + 𝛼𝛼2 Do the same for the output blue and green channels, IBout and IGout. Note that both alpha channels have to have non-zero values, otherwise you'll encounter a division-by-zero error in the above equation. The final panorama image is then simply all your warped images blended togethersequentially. Youwillimplementblendingbycompletingtheblendfunction. You will blend the warped images into a panorama by calling blend in the main script. Program Instructions In addition to code provided for computing and matching feature points using the SIFT algorithm, skeleton code is also provided in three files: main.m which is a script file that contains the basic parts for creating your panorama, calcHWithRANSAC.m which is a function that calculates a homography matrix from a given pair of images’ feature points, and blend.m which is a function that blends two color images. Read the comments at the top of these files to 5 Computational Photography learn more about what they do. Both files have sections marked “YOUR CODE STARTS HERE” indicating places where code needs to be added. Be sure to save your output panorama as a .jpg image file (see below for naming information). You can also write any other supporting functions and scripts as needed. Impementation tip: The main script is divided into several code sections delimited by the double percentage sign '%%'. Click 'Editor > Run Section' in MATLAB to run your current code section. This saves you from running the entire script when you only made changes to a single code section. Hand-In Instructions Hand in the following files and folders: ● main.m – the script file that computes the panorama ● calcHWithRANSAC.m – the function that computes the projective transformation between two sets of points and includes the RANSAC algorithm ● blend.m – the function file that blends two RGB images. ● input_images–afoldercontainingyourowninputimagesusedtocreateyour second panorama. There must be at least four images, named 1.jpg, 2.jpg, 3.jpg, etc. ● output_images – a folder containing the two output panorama images, one named test.jpg (created from the four given test images) and the second panorama named <NetID username>.jpg (created from your own set of images) ● README.txt file that contains comments on any relevant implementation notes including parameter values used, and any extra work beyond the basic requirements, if you did any. ● Any additional scripts or functions that you wrote. 6
