QuestionQuestion

This lab work is based on the trace file provided with the textbook Computer Networking: A Top-Down Approach, 6th ed., by J.F. Kurose and K.W. Ross

1) What is the IP address of your host? What is the IP address of the destination host?
2).Why is it that an ICMP packet does not have source and destination port numbers?

3).Examine one of the ping request packets sent by your host. What are the ICMP type and code numbers? What other fields does this ICMP packet have? How many bytes are the checksum, sequence number and identifier fields?

4).Examine the corresponding ping reply packet. What are the ICMP type and code numbers? What other fields does this ICMP packet have? How many bytes are the checksum, sequence number and identifier fields?

5) What is the IP address of your host? What is the IP address of the target destination host?

6).If ICMP sent UDP packets instead (as in Unix/Linux), would the IP protocol number still be 01 for the probe packets? If not, what would it be?

7).Examine the ICMP echo packet in your screenshot. Is this different from the ICMP ping query packets in the first half of this lab? If yes, how so?

8).Examine the ICMP error packet in your screenshot. It has more fields than the ICMP echo packet. What is included in those fields?

9).Examine the last three ICMP packets received by the source host. How are these packets different from the ICMP error packets? Why are they different?

10).Within the tracert measurements, is there a link whose delay is significantly longer than others? Refer to the screenshot in Figure 4, is there a link whose delay is significantly longer than others? On the basis of the router names, can you guess the location of the two routers on the end of this link?

Extra Credit
For one of the programming assignments you created a UDP client ping program. This ping program, unlike the standard ping program, sends UDP probe packets rather than ICMP probe packets. Use the client program to send a UDP packet with an unusual destination port number to some live host. At the same time, use Wireshark to capture any response from the target host. Provide a Wireshark screenshot for the response as well as an analysis of the response.

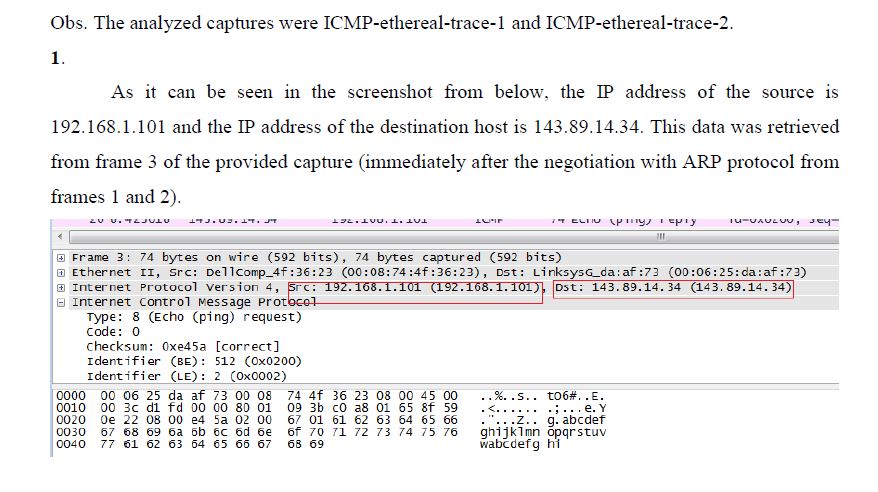

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.docx.

    $17.50
    for this solution

    or FREE if you
    register a new account!

    PayPal, G Pay, ApplePay, Amazon Pay, and all major credit cards accepted.
