QuestionQuestion

This lab work is based on the trace file provided with the textbook Computer Networking: A Top-Down Approach, 6th ed., by J.F. Kurose and K.W. Ross
.
1) What is the 48-bit Ethernet address of your computer?

2).What is the 48-bit destination address in the Ethernet frame? Is this the Ethernet address of gaia.cs.umass.edu? (Hint: the answer is no). What device has this as its Ethernet address?

3).Give the hexadecimal value for the two-byte Frame type field. What upper layer protocol does this correspond to?

4).How many bytes from the very start of the Ethernet frame does the ASCII “G” in “GET” appear in the Ethernet frame?

5) What is the value of the Ethernet source address? Is this the address of your computer, or of gaia.cs.umass.edu (Hint: the answer is no).   What device has this as its Ethernet address?

6).What is the destination address in the Ethernet frame? Is this the Ethernet address of your computer?

7).Give the hexadecimal value for the two-byte Frame type field. What upper layer protocol does this correspond to?

8).How many bytes from the very start of the Ethernet frame does the ASCII “O” in “OK” (i.e., the HTTP response code) appear in the Ethernet frame?

9) Write down the contents of your computer’s ARP cache. What is the meaning of each column value?

10) What are the hexadecimal values for the source and destination addresses in the Ethernet frame containing the ARP request message?

11).Give the hexadecimal value for the two-byte Ethernet Frame type field. What upper layer protocol does this correspond to?

12).Download the ARP specification fromftp://ftp.rfc-editor.org/in-notes/std/std37.txt. A readable, detailed discussion of ARP is also at http://www.erg.abdn.ac.uk/users/gorry/course/inet-pages/arp.html.
a)How many bytes from the very beginning of the Ethernet frame does the ARP opcode field begin?

b)What is the value of the opcode field within the ARP-payload part of the Ethernet frame in which an ARP request is made?

c)Does the ARP message contain the IP address of the sender?

d) Where in the ARP request does the “question” appear –the Ethernet address of the machine whose corresponding IP address is being queried?

13).Now find the ARP reply that was sent in response to the ARP request.
a)How many bytes from the very beginning of the Ethernet frame does the ARP opcode field begin?

b)What is the value of the opcode field within the ARP-payload part of the Ethernet frame in which an ARP response is made?

c)Where in the ARP message does the “answer” to the earlier ARP request appear –the IP address of the machine having the Ethernet address whose corresponding IP address is being queried?

14).What are the hexadecimal values for the source and destination addresses in the Ethernet frame containing the ARP reply message?

15).Open the ethernet-ethereal-trace-1trace file in http://gaia.cs.umass.edu/wireshark-labs/wireshark-traces.zip. The first and second ARP packets in this trace correspond to an ARP request sent by the computer running Wireshark, and the ARP reply sent to the computer running Wireshark by the computer with the ARP-requested Ethernet address. But there is yet another computer on this network, as indicated by packet 6 –another ARP request. Why is there no ARP reply (sent in response to the ARP request in packet 6) in the packet trace?

Extra Credit
EX-1. The arp command: arp -s InetAddr EtherAddr allows you to manually add an entry to the ARP cache that resolves the IP address InetAddr to the physical address EtherAddr. What would happen if, when you manually added an entry, you entered the correct IP address, but the wrong Ethernet address for that remote interface?

EX-2. What is the default amount of time that an entry remains in your ARP cache before being removed. You can determine this empirically (by monitoring the cache contents) or by looking this up in your operation system documentation. Indicate how/where you determined this value.

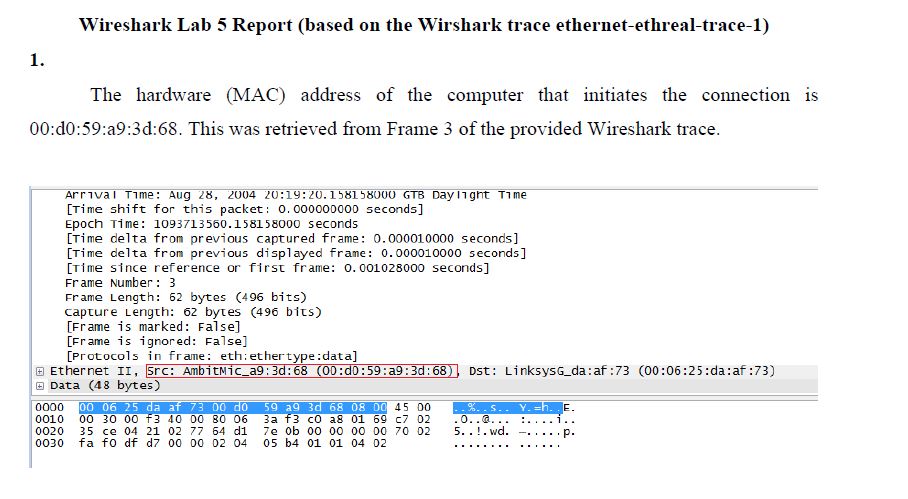

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.docx.

    $40.50
    for this solution
