The Internet Protocol (IP), the main protocol in the Internet layer of the TCP/IP protocol suite, is used to route datagrams from source to destination based on the logical (IP) addresses. Like UDP, IP is a connectionless protocol. This means that we cannot find any frame with the source or sink at the network layer. An IP header can be captured only when an upper-layer protocol uses IP.

The Internet Control Message Protocol (ICMP) is an auxiliary protocol at the network layer. It is designed for two purposes. It reports errors (unexpected conditions) about IP, UDP, and TCP. It can also be used to check the liveliness of the hosts or routers or finds the route followed by an IP datagram.

Start your web browser and clear the browser's cache memory, but do not access any site yet.
Open Wireshark and start capturing.
Go back to your web browser and retrieve any file from a site. Wireshark startscapturing packets.
After enough packets have been captured, stop Wireshark and save the capturedfile.
In the packet list pane, select any packet. In the packet detail pane, select the Internet Protocol. The hexdump of the IP header will be highlighted in the packet byte lane.


Part 1. IP

1. Using the hexdump and consulting Figure 19.2 in the textbook, create a word processing document that demonstrates completion of the following tasks. (Include the questions and supporting screenshots in your document.)

a. IP version.

b. header length and number of bytes in the header.

c. service type.

d. total length.

e. identification.

f. set flags.

g. fragmentation offset.

h. TTL value.

i. upper-layer protocol.

j. checksum.

k. source IP address.

l. destination IP address.

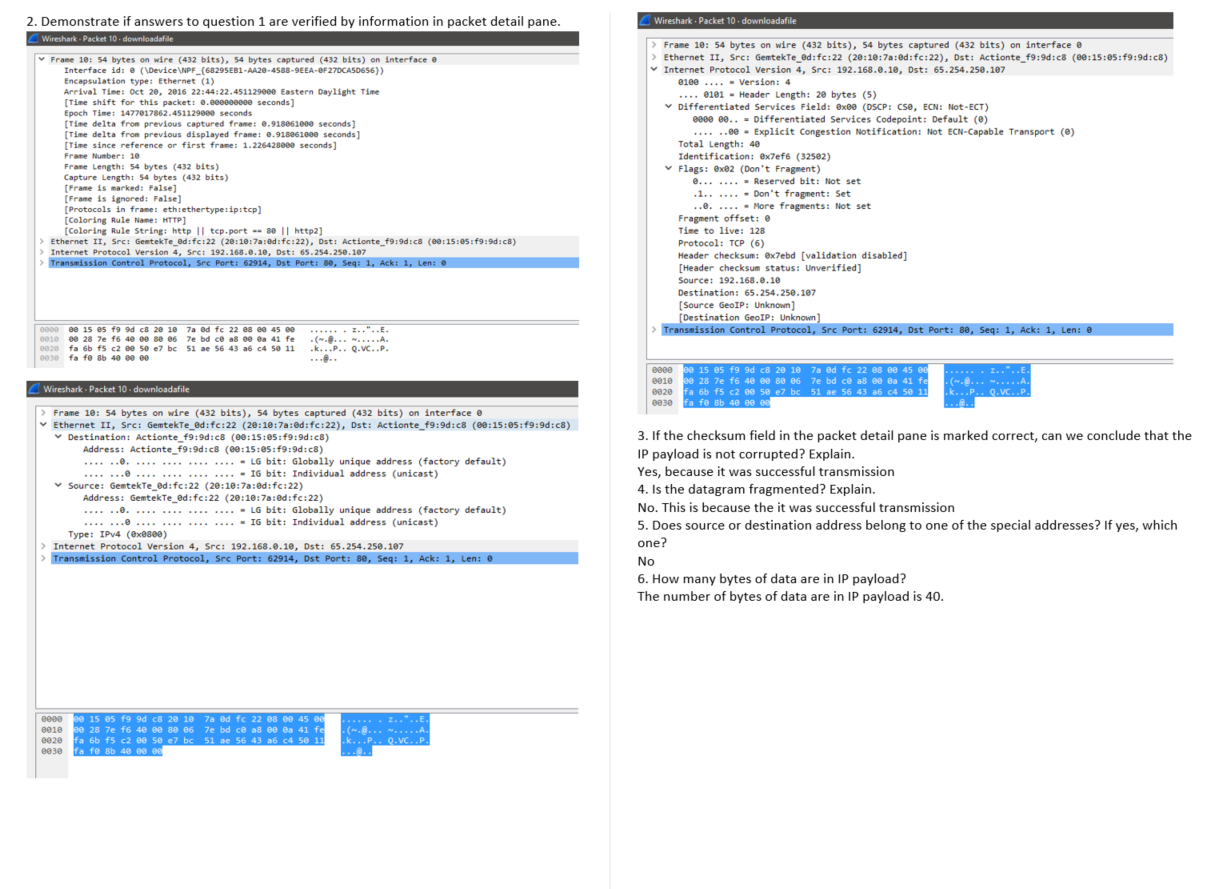

2. Demonstrate if answers to question 1 are verified by information in packet detail pane.

3. If the checksum field in the packet detail pane is marked correct, can we conclude that the IP payload is not corrupted? Explain.

4. Is the datagram fragmented? Explain.

5. Does source or destination address belong to one of the special addresses? If yes, which one?

6. How many bytes of data are in IP payload?

Part 2. ICMP

Open Wireshark and start capturing.
Open Command Prompt and type ping hostname. The hostname can be the domain name or the IP address of a site you know (be sure that there is no firewall to filter out the packets).
Return to the Wireshark window, stop packet capturing, and save the captured file.

1. What is the destination IP address?

2. How many ping messages are sends?

3. How many bytes of data are in each ping message?

4. What is the round-trip time for each packet?

5. Filter for icmp. What is the destination IP address of Echo request ICMP messages? Does the result agree with question 1?

6. How many Echo request ICMP packet are in the packet list pane? How many Echoreply ICMP packets are in the packet list pane? Does the result agree with the information with question 2?

7. How many bytes of data are carried by each ICMP packet? Does the result agree with question 3?

8. Evaluate the difference between the time the first Echo message was sent and the time the first reply message was received. Does the result agree with question 4?

5. Comparing Echo request ICMP messages with Echo reply ICMP message, determine

a. What fields are the same? Explain the reason.

b. What fields are different? Explain the reason.

9. Comparing all Echo request ICMP messages, determine

a. What fields are the same? Explain the reason.

b. What fields are different? Explain the reason.

10. In one paragraph, explain what you have learned by performing this project.
