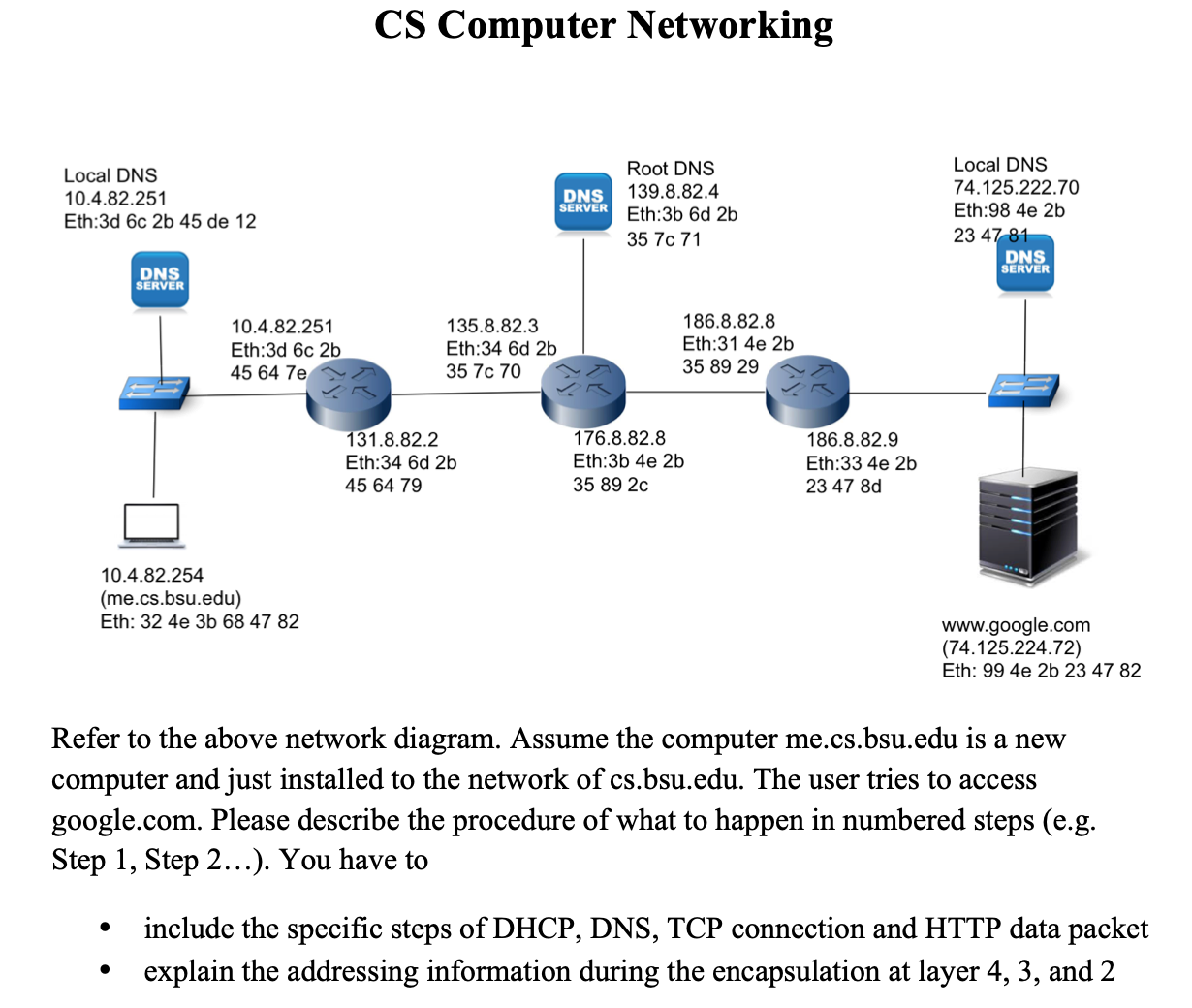

CS Computer Networking Local DNS Root DNS Local DNS 10.4.82.251 DNS. 139.8.82.4 74. 125.222.70 Eth:3d 6c 2b 45 de 12 Eth:3b 6d 2b Eth:98 4e 2b 35 71 23 DNS DNS. 10.4.82.251 135.8.82.3 186.8.82.8 Eth:3d 6c 2b Eth:34 6d 2b Eth:31 4e 2b 45 64 7e 35 7c 70 35 89 29 131.8.82.2 176.8.82.8 186.8.82.9 Eth:34 6d 2b Eth:3b 4e 2b Eth:33 4e 2b 45 64 79 35 89 2c 23 47 8d 10.4.82.254 (me. os bsu. .edu) Eth: 32 4e 3b 68 47 82 www.google.com (74.125.224.72) Eth: 99 4e 2b 23 47 82 Refer to the above network diagram. Assume the computer me.cs .bsu.edu is a new computer and just installed to the network of cs.bsu.edu. The user tries to access google.com. Please describe the procedure of what to happen in numbered steps (e.g. Step 1, Step 2...). You have to include the specific steps of DHCP, DNS, TCP connection and HTTP data packet explain the addressing information during the encapsulation at layer 4, 3, and 2

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

1) The PC transmits a query to the local DNS server (IP= 10.4.82.251) in order to find out the IP address of the target address www.google.com
2) The local DNS server searches among its record if it knows the IP address of the target address www.google.com (It is very likely to have it from requests originated from other clients from the network). If it already has it, then it replies back to the PC with the IP address of the website www.google.com.

If it doesn’t have it, then
2.1) it queries further the root DNS server (139.8.82.4).
2.2) The root DNS server will query the local DNS residing in the same network with www.google.com...
