Assignment DFD – Fitness Club

Overview
Let us create a DFD diagram to model the files and fields for an iphone app. This app will be used for a fitness club. Members will be able to download the app and use it to track their individual progress. The fitness club is paying the developers to create the app and it will be free to members.

Part 1: (4)
Create a DFD that models the entities and the flow of information. Ensure that you note all external entities.

Hand in a level zero and 3 level one DFD diagrams for the system. Use the DFD drawing app Visio or Draw IO. Hand drawn or MSword submissions are not acceptable.

Part 2:
Create a data table schema for 3 of the tables. Use the interface specs (these are screens) below to deduce the required tables and fields.

Program Launch
Display Description
Gyms Name Loading Screen - Powered by Mohawk College

Main Menu
Display Description
Workout User Tracking Input, User Defined Programme, Progression Charts (Btn)
Nutrition User Tracking Input, User Defined Programme, Progression Charts (Btn)
Tools Personal Body Stats, User Defined Goals, Glossaries, Progression Charts (Btn)
About Documentation and Information (Btn)
Programme User Defined Nutrition and Workout (Btn)
Progression Visual Output of Progression (Btn)

Workout
Display Description
Cardio User Tracking Input (Btn)
Resistance User Tracking Input (Btn)
Programme User Define Routine (Btn)
Progression Visual Output of Progression (Btn)


Nutrition
Display Description
Day Modify the Current Input Day
Meal Modify Meal and Time of Meal
Food User Input (Glossary Support)
Drink User Input (Glossary Support)
Supplements User Input (Glossary Support)
Track Add or Update (Btn)
Progression Visual Output of Progression (Btn)

Tools
Display Description
Stopwatch Standard, User Defined Intervals (Menu)
Glossary Food and Drink, Cardio and Resistance Routines (Menu)
Goal Settings User Defined Goals (Menu)
Progression Visual Output of Progression
Body Stats User Personal Body Stats (Menu)

Progression
Display Description
Workout Displays completed Resistance and/or Cardio routines
Nutrition Displays food and/or drink intake
Goals Displays users defined goals
Body Stats Displays users current body stats
Time Interval Changes output to Day/Week/Month/ Year

Programme
Display Description
Today’s Shows or Updates current Nutrition or Workout
Weekly Shows or Updates Current Week
New Day Creates a new Programme for a Day
New Weekly Creates a new Programme for a Week

Resistance
Display Description
Back Muscle Group Input (Menu)
Chest Muscle Group Input (Menu)
Arms Muscle Group Input (Menu)
Legs Muscle Group Input (Menu)

Muscle Group
Display Description
Activity User Input (Glossary Support)
Reps User Input (Preset Support)
Weight User Input (Preset Support)

Cardio
Display Description
Activity User Input (Glossary Support)
Time User Input (Preset Support)
Distance User Input (Preset Support)
Incline/Decline User Input (Preset Support)
Cal Burn Auto Calculated (User Input Optional)

Stopwatch
Display Description
Standard User Input
Intervals User Input “Set” and Wait Times (Preset Support)

Glossary
Display Description
Food A List of Food and properties (protein, vitamins, etc.) (User Input Optional)
Drink A List of Drinks and properties (protein, vitamins, etc.) (User Input Optional)
Supplements A List of Supplements and properties
Cardio A List of Cardio Routines (User Input Optional)
Resistance A List of Resistance Routines (User Input Optional)

Body Stats
Display Description
Height User Input (Preset Support)
Weight User Input (Preset Support)
Body Fat User Input (Preset Support)

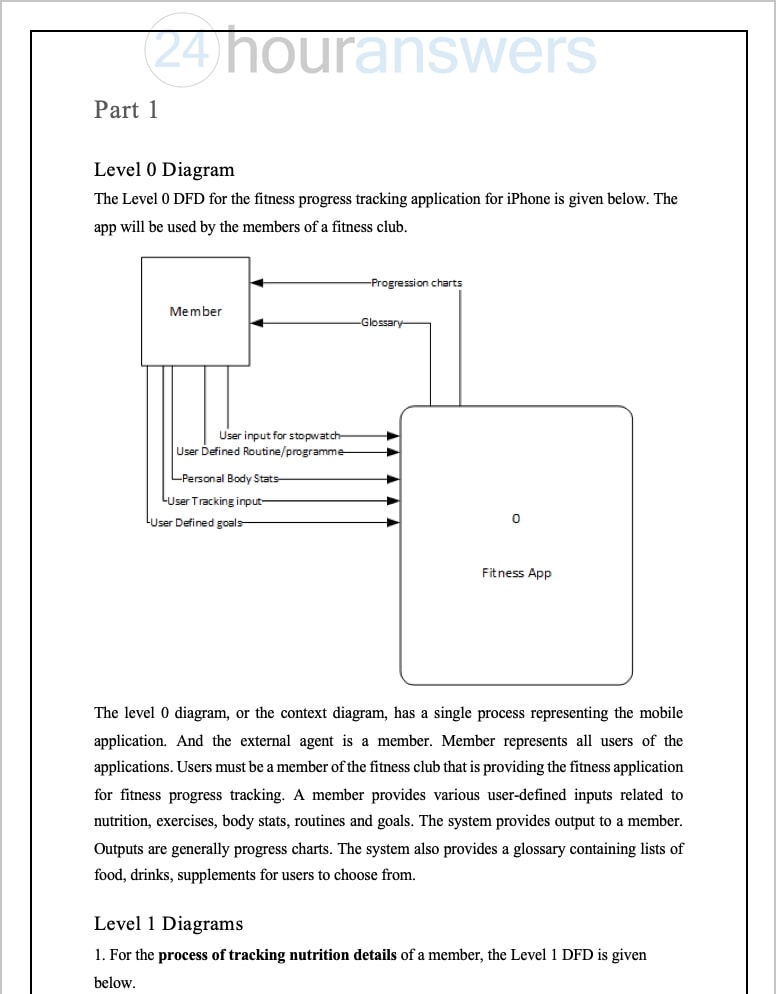

Solution PreviewSolution Preview
