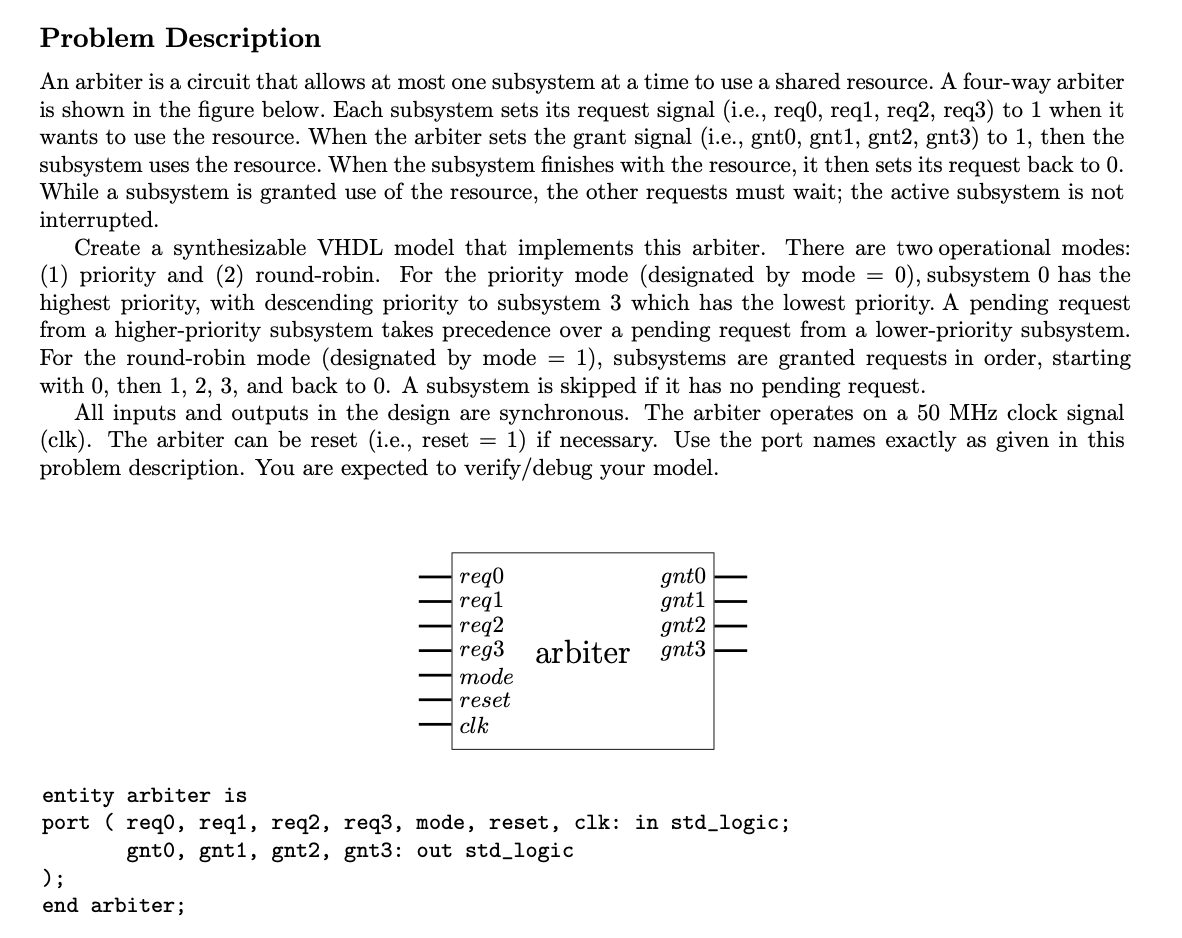

Problem Description An arbiter is a circuit that allows at moest one subsystem at a time to use a shared resource. A four-way arbiter is shown in the figure below. Each subsystem sets its request signal (i.e., req0, req1, req2, req3) to 1 when it wants to use the resource. When the arbiter sets the grant signal (i.e., gnt0, gnt1, gnt2, gnt3) to 1, then the subsystem uses the resource. When the subsystem finishes with the resource, it then sets its request back to 0. While a subsystem is granted use of the resource, the other requests must wait; the active subsystem is not interrupted. Create a synthesizable VHDL model that implements this arbiter. There are twooperational modes: (1) priority and (2) round-robin. For the priority mode (designated by mode = 0), subsystem 0 has the highest priority, with descending priority to subsystem 3 which has the lowest priority. A pending request from a higher-priority subsystem takes precedence over a pending request from a lower-priority subsystem. For the round-robin mode (designated by mode = 1), subsystems are granted requests in order, starting with 0, then 1, 2, 3, and back to 0. A subsystem is skipped if it has no pending request. All inputs and outputs in the design are synchronous. The arbiter operates on a 50 MHz clock signal (clk). The arbiter can be reset (i.e., reset = 1) if necessary. Use the port names exactly as given in this problem description. You are expected to erify/debug your model. req0 gntO regl gnil req2 gnt2 reg3 arbiter gnt3 mode reset elk entity arbiter is port ( rego, req1, req2, req3, mode, reset, clk: in std_logic; gnt0, gnti, gnt2, gnt3: out std_logic ): end arbiter; 1

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

begin
    clk_p: process(reset,clk) is
    begin
       if(reset = '1') then
            state <= idle;
       elsif(rising_edge(clk)) then
            state <= next_state;
       end if;
    end process clk_p;

    comb_p: process(state,req0,req1,req2,req3,mode)
    begin
    --default values:-----
       gnt0 <= '0';
       gnt1 <= '0';
       gnt2 <= '0';
       gnt3 <= '0';
       next_state <= idle;
    ----------------------

       if(mode = '1') then
            case state is
                when idle =>
                   if(req0 = '1') then
                        next_state <= grant0;
                   elsif (req1 = '1') then
                        next_state <= grant1;
                   elsif (req2 = '1') then
                        next_state <= grant2;
                   elsif (req3 = '1') then
                        next_state <= grant3;
                   end if;
                when grant0 =>...

By purchasing this solution you'll be able to access the following files:
Solution.vhd.
