//// 16-bit version of ALU Design
//// Language : Verilog.
//// Simulation: ICARUS verilog

////////////////////// Main Module /////////////////////

`timescale 1ns / 1ps

module ALU(Y,C,N,A, B, Op);
output [15:0] Y; // Result.
output C; // Carry.
output N; // Negative.
input [15:0] A; // Operand.
input [15:0] B; // Operand.
input [2:0] Op; // Operation.

wire [15:0] AS, And, Or;
wire Cas,slt1,s;

// The operations
carry_select_adder_subtractor addsub(AS, Cas, A, B, Op[0]);
// Op == 3'b000, 3'b001
andop aluand(And, A, B);
// Op == 3'b010
orop aluor(Or, A, B);
// Op == 3'b011
SLT slt2(slt1, A,B);
// Op == 3'b100

nor #1 (s, Op[1], Op[2]); // s == 0 => a logical operation, otherwise and arithmetic operation.
and #1(C, Cas, s);
and #1(N, Y[15], s); // Most significant bit is the sign bit in 2's complement.

multiplexer_8_1 muxy(Y, AS, AS, And, Or, {15'b0,slt1}, 16'b0, 16'b0, 16'b0, Op); // Select the result.
endmodule // alu

module andop(Y, A, B);
output [15:0] Y; // Result.
input [15:0] A; // Operand.
input [15:0] B; // Operand.

and #1(Y[0], A[0], B[0]);
and #1(Y[1], A[1], B[1]);
and #1(Y[2], A[2], B[2]);
and #1(Y[3], A[3], B[3]);
and #1(Y[4], A[4], B[4]);
and #1(Y[5], A[5], B[5]);
and #1(Y[6], A[6], B[6]);
and #1(Y[7], A[7], B[7]);
and #1(Y[8], A[8], B[8]);
and #1(Y[9], A[9], B[9]);
and #1(Y[10], A[10], B[10]);
and #1(Y[11], A[11], B[11]);
and #1(Y[12], A[12], B[12]);
and #1(Y[13], A[13], B[13]);
and #1(Y[14], A[14], B[14]);
and #1(Y[15], A[15], B[15]);
endmodule // andop

module orop(Y, A, B);
output [15:0] Y; // Result.
input [15:0] A; // Operand.
input [15:0] B; // Operand.

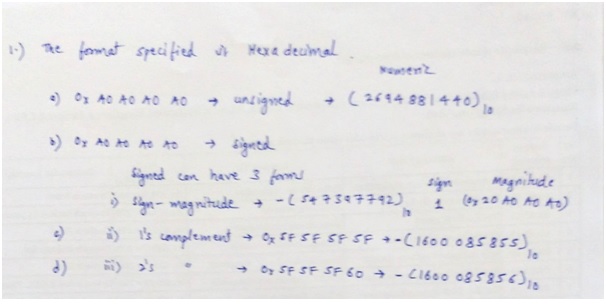

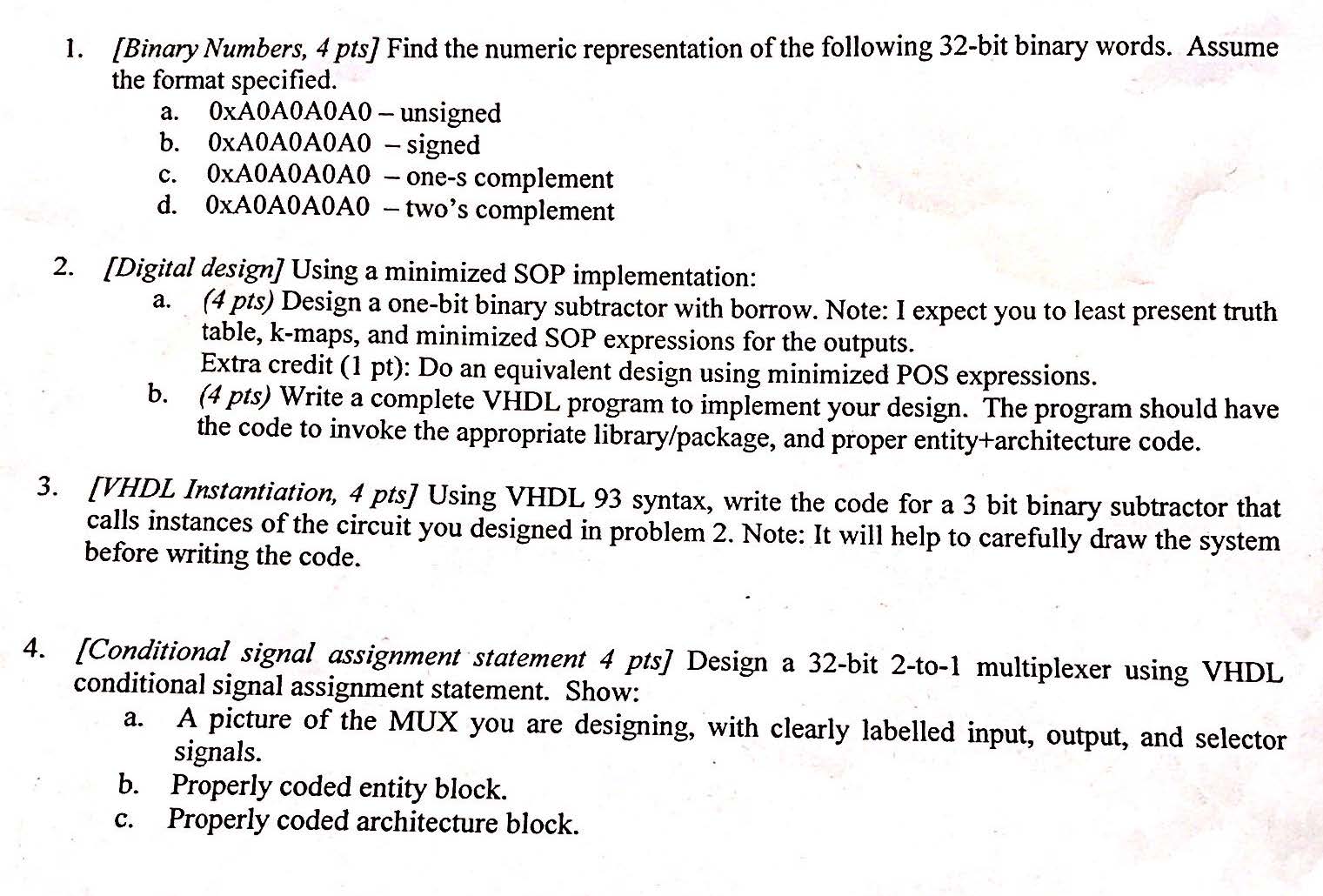

1. [Binary Numbers, 4 pts] Find the numeric representation of the f...
