`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date:
// Design Name:
// Module Name: datapath
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////

module datapath(
input clk, reset,
input reg_dst, reg_write,
input alu_src,
input mem_read, mem_write,
input mem_to_reg,
input [3:0] ALU_Control,
input branch, jump,
output [31:0] datapath_result,
output [5:0] inst_31_26,
output [5:0] inst_5_0
);

/*
reg [9:0] pc;
wire [9:0] pc_plus4;// = 6'b000000;
wire [31:0] instr;
wire [4:0] write_reg_addr;
wire [31:0] write_back_data;
wire [31:0] reg1, reg2;
wire [31:0] imm_value;
wire [31:0] alu_in2;
wire zero;
wire [31:0] alu_result;
wire [31:0] mem_read_data;
*/

/*
always @(posedge clk or posedge reset)
begin
   if(reset)
      pc <= 10'b0000000000;
   else
      pc <= pc_plus4;
end

assign pc_plus4 = pc + 10'b0000000100;
*/

/* instruction_mem inst_mem (
   .read_addr(pc),
   .data(instr));
*/

/*
assign inst_31_26 = instr[31:26];
assign inst_5_0 = instr[5:0];
*/

/*
mux #(.mux_width(5)) reg_mux
( .a(instr[20:16]),
   .b(instr[15:11]),
   .sel(reg_dst),
   .y(write_reg_addr));
*/

/*
register_file reg_file (
   .clk(clk),
   .reset(reset),
   .reg_write_en(reg_write),
   .reg_write_dest(write_reg_addr),
   .reg_write_data(write_back_data),
   .reg_read_addr_1(instr[25:21]),
   .reg_read_addr_2(instr[20:16]),
   .reg_read_data_1(reg1),
   .reg_read_data_2(reg2));
*/

/*
sign_extend sign_ex_inst (
   .sign_ex_in(instr[15:0]),
   .sign_ex_out(imm_value));
*/

/*
mux #(.mux_width(32)) alu_mux
( .a(reg2),
   .b(imm_value),
   .sel(alu_src),
   .y(alu_in2));
*/

/*
ALU alu_inst (
   .a(reg1),
   .b(alu_in2),
   .alu_control(ALU_Control),
   .zero(zero),
   .alu_result(alu_result));
*/

/*
data_memory data_mem (
   .clk(clk),
   .mem_access_addr(alu_result),
   .mem_write_data(reg2),
   .mem_write_en(mem_write),
   .mem_read_en(mem_read),
   .mem_read_data(mem_read_data));
*/

/*
mux #(.mux_width(32)) writeback_mux
( .a(alu_result),
   .b(mem_read_data),
   .sel(mem_to_reg),
   .y(write_back_data));

assign datapath_result = write_back_data;
*/

////////////////////////////////////////////////////////////////

reg [9:0] pc;
wire [9:0] jump_mux_out;// = 6'b000000;
wire [31:0] instr;
wire [4:0] write_reg_addr;
wire [31:0] write_back_data;
wire [31:0] reg1, reg2;
wire [31:0] imm_value;
wire [31:0] imm_value_shifted;
wire [31:0] alu_in2;

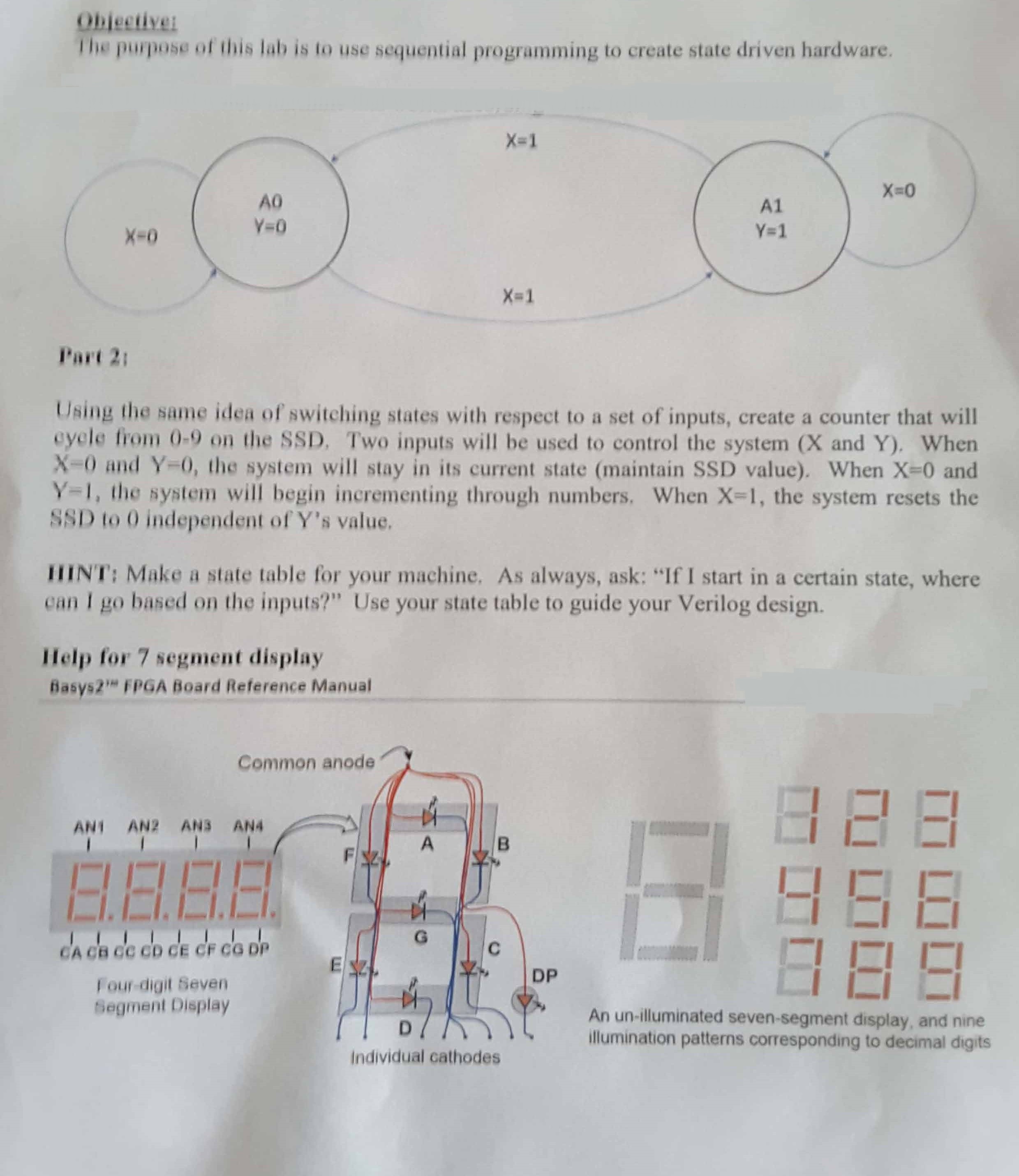

Objective: The purpose of this lab is to use sequential programmin...
