QuestionQuestion

You are designing the entrance for a Vehicle Storage system. There is a sensor that will be on high if a vehicle is in front of the gate. Once the sensor is activated, a password is required to open the gate. If the password is correct, the gate will be open. Otherwise, the gate will still be closed. And there is an exit-sensor that detects the car exiting from this gate, however, if there is a car in front of the gate at the same time, the gate will be closed immediately to process the next car.

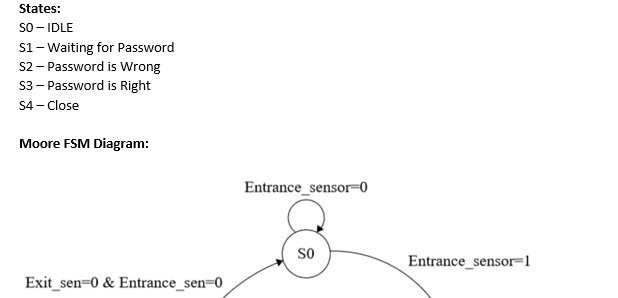

There shall be 5 states: IDLE, waiting for the password, the password is right, the password is wrong, and CLOSE.
