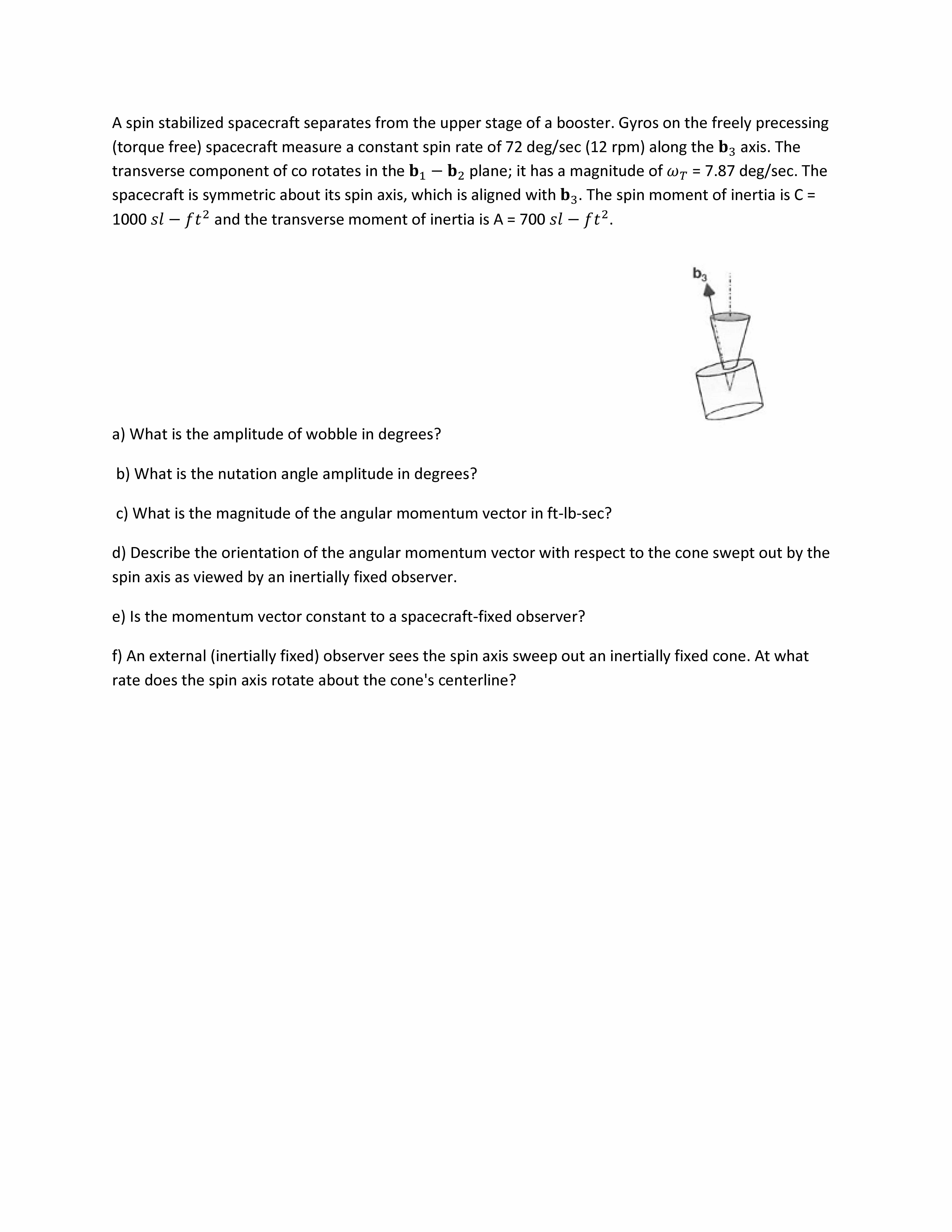

A spin stabilized spacecraft separates from the upper stage of a booster. Gyros on the freely precessing (torque free) spacecraft measure a constant spin rate of 72 deg/sec (12 rpm) along the 𝐛3 axis. The transverse component of co rotates in the 𝐛1 − 𝐛2 plane; it has a magnitude of 𝜔𝑇 = 7.87 deg/sec. The spacecraft is symmetric about its spin axis, which is aligned with 𝐛3. The spin moment of inertia is C = 1000 𝑠𝑠 − 𝑓𝑡2 and the transverse moment of inertia is A = 700 𝑠𝑠 − 𝑓𝑡2. a) What is the amplitude of wobble in degrees? b) What is the nutation angle amplitude in degrees? c) What is the magnitude of the angular momentum vector in ft-lb-sec? d) Describe the orientation of the angular momentum vector with respect to the cone swept out by the spin axis as viewed by an inertially fixed observer. e) Is the momentum vector constant to a spacecraft-fixed observer? f) An external (inertially fixed) observer sees the spin axis sweep out an inertially fixed cone. At what rate does the spin axis rotate about the cone's centerline?

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.
