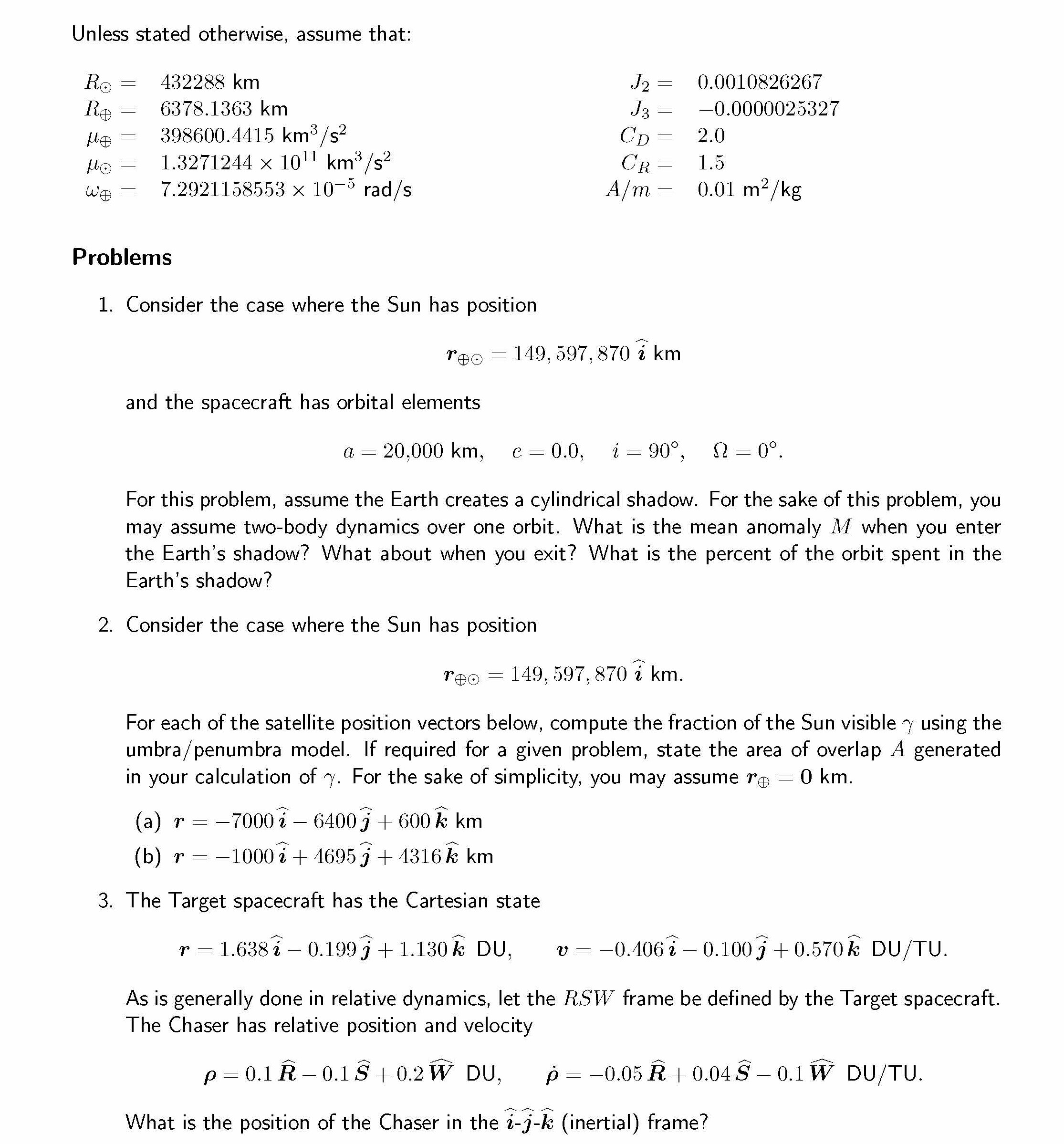

Unless stated otherwise, assume that: RG 432288 km J2 0.0010826267 Rg = 6378.1363 km Ja -0.0000025327 "@ - 398600.4415 km³/s² Cp 2.0 Po = 1.3271244 x 1011 km3/s² CR 1.5 we = 7.2921158553 x 10-5 rad/s A/m 0.01 m2/kg Problems 1. Consider the case where the Sun has position T@G = 149,597,870 i km and the spacecraft has orbital elements a 20,000 km, e 0.0, i 90°, n = 0°. For this problem, assume the Earth creates a cylindrical shadow. For the sake of this problem, you may assume two-body dynamics over one orbit. What is the mean anomaly M when you enter the Earth's shadow? What about when you exit? What is the percent of the orbit spent in the Earth's shadow? 2. Consider the case where the Sun has position Too = 149,597,870 i km. For each of the satellite position vectors below. compute the fraction of the Sun visible 7 using the umbra/penumbra model. If required for a given problem, state the area of overlap A generated in your calculation of 7. For the sake of simplicity. you may assume T@ = o km. (a) T = 7000î 61003 km (b) r = 1000î + 4695 i + 4316 k km 3. The Target spacecraft has the Cartesian state T = 1.638 - 0.199 + 1.130 k v = + 0.570k DU/TU. As is generally done in relative dynamics, let the RSW frame be defined by the Target spacecraft. The Chaser has relative position and velocity p=0.1R-0.1S+0.2W DU, p = -0,05 R + 0.04 s - 0.1 w DU/TU. What is the position of the Chaser in the i-j-k (inertial) frame? 1 4. [Software Problem] Write a function that computes aser when given the appropriate inputs. including the location of the Sun. For this implementation ignore the Earth's shadow. (Not realistic, but let's keep it simple!) Compute aser (in km/s²) for a spacecraft at T - 2781.000i+5318.000-5629.000k km - with a Sun position T@@ = 2379260,000 + 148079334.000 - 1009936.000 km/s. Provide the answer in your write-up. 5. [Software Problem] To this point. you have propagated an orbit using the following forces: The two-body equation J2 and Ja Atmospheric drag Third-body perturbations due to the Sun Now. we will combine them and add SRP. Hence, the acceleration model in your propagator is: a a, + aja + @TB from Sun + @Drag + @SRP Use your Sun algorithm to also get the location of the Sun over time for the SRP model. Still ignore the Earth's shadow for the sake of this problem. Note that the Sun algorithm must be evaluated inside of your propagation function! Also, we highly recommend that your propagator use time in seconds, and you convert that to fractions of a day since the start epoch inside of your propagation function For 24 hours, propagate the satellite with initial state a 6800 km, e 0.05, i = 71%, n = 300%, w 78°, V = 0°. The epoch (start) time is JD - 2458200.5 UTC. (a) What are the position and velocity vectors at the final time? Provide them in your write-up in km and km/s. (b) Using your method of choice, propagate the trajectory over 24 hours using only the relative two-body equation Plot the differences in T¿. Tj. and "k over time (three subplots on the same figure) when using the two different dynamics models (c) What is the magnitude of the position error (in km) after 24 hours if you assumed the Earth is a perfect sphere and no other perturbations? 2

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

clear;clc;
% Initialisation
h = 1;
i=1;
sma=6800; ecc=0.05; inc=71;omega=300;w=78;ta=0;
[x, y, z,xdot,ydot,zdot]=kep2cart(sma, ecc, inc,omega, w,ta);
X=[x, y, z,xdot,ydot,zdot];
for t = 1:1:86400

    k1 = Twobody(t,X);
    k2 = Twobody(t+(h/2),X+(k1*h)/2);
    k3 =Twobody(t+(h/2),X+(k2*h)/2);
    k4 = Twobody(t+h,X+k3*h);

    X = X + (h/6)*(k1+2*k2+2*k3+k4);
% Storage
    Two_body_sv(i,:) = X';
    Two_body_t(i,:) = t;
    i=i+1;
end
sma=6800; ecc=0.05; inc=71;omega=300;w=78;ta=0;
[x, y, z,xdot,ydot,zdot]=kep2cart(sma, ecc, inc,omega, w,ta);
X=[x, y, z,xdot,ydot,zdot];
j=1;
for t1 = 1:1:86400

    k1 = ceqm1(t1,X);
    k2 = ceqm1(t1+(h/2),X+(k1*h)/2);
    k3 = ceqm1(t1+(h/2),X+(k2*h)/2);
    k4 = ceqm1(t1+h,X+k3*h);

    X = X + (h/6)*(k1+2*k2+2*k3+k4);
% Storage
    Storage_X(j,:) = X';
    Storage_t(j,:) = t1;
    j=j+1;
end
[Row Col]=size(Storage_X);...
