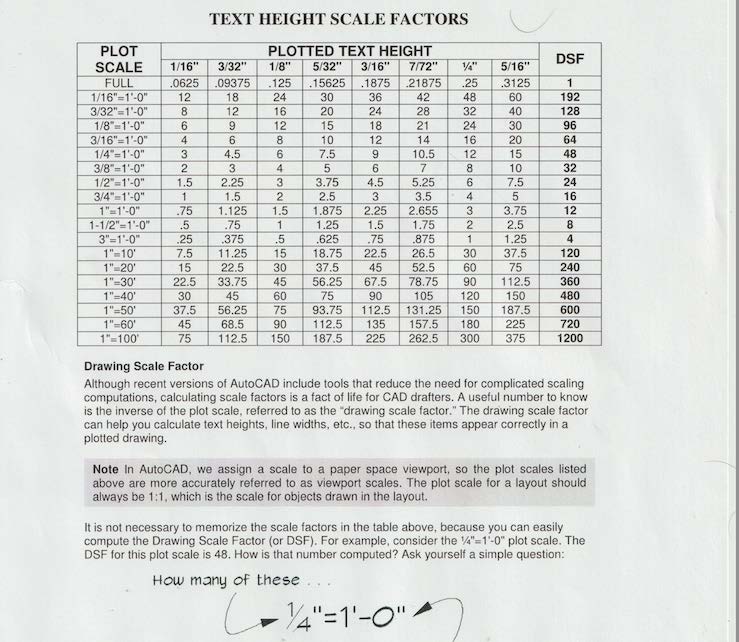

TEXT HEIGHT SCALE FACTORS PLOT PLOTTED TEXT HEIGHT DSF SCALE 1/16" 3/32" 1/8" 5/32" 3/16" 7/72" 1/4" 5/16" FULL .0625 .09375 .125 .15625 .1875 21875 .25 .3125 1 1/16"=1'-0" 12 18 24 30 36 42 48 60 192 3/32"=1'-0" 8 12 16 20 24 28 32 40 128 1/8" - 1'-0" 6 9 12 15 18 21 24 30 96 3/16"=1'-0" 4 6 8 10 12 14 16 20 64 1/4"=1'-0" 3 4.5 6 7.5 9 10.5 12 15 48 3/8"=1'-0" 2 3 4 5 6 7 8 10 32 1/2"=1'-0" 1.5 2.25 3 3.75 4.5 5.25 6 7.5 24 3/4"-1'-0" 1 1.5 2 2.5 3 3.5 4 5 16 1"=1'-0" .75 1,125 1.5 1,875 2.25 2,655 3 3.75 12 1-1/2"=1'-0" .5 .75 1 1.25 1.5 1.75 2 2.5 8 3"-1'-0" .25 .375 .5 .625 .75 .875 1 1.25 4 1"=10" 7.5 11.25 15 18.75 22.5 26.5 30 37.5 120 1"-20" 15 22.5 30 37.5 45 52.5 60 75 240 1"=30" 22.5 33.75 45 56.25 67.5 78.75 90 112.5 360 1"=40' 30 45 60 75 90 105 120 150 480 1"=50" 37.5 56.25 75 93.75 112.5 131.25 150 187.5 600 1"=60" 45 68.5 90 112.5 135 157.5 180 225 720 1"-100" 75 112.5 150 187.5 225 262.5 300 375 1200 Drawing Scale Factor Although recent versions of AutoCAD include tools that reduce the need for complicated scaling computations, calculating scale factors is a fact of life for CAD drafters. A useful number to know is the inverse of the plot scale. referred to as the "drawing scale factor." The drawing scale factor can help you calculate text heights, line widths, etc., so that these items appear correctly in a plotted drawing. Note In AutoCAD, we assign a scale to a paper space viewport, so the plot scales listed above are more accurately referred to as viewport scales. The plot scale for a layout should always be 1:1. which is the scale for objects drawn in the layout. It is not necessary to memorize the scale factors in the table above, because you can easily compute the Drawing Scale Factor (or DSF). For example, consider the 1/4"=1'-0" plot scale. The DSF for this plot scale is 48. How is that number computed? Ask yourself a simple question: How many of these MOTOR FRAME C DATES - - HIMORR + + 213TCZ/215TCZ 18 1/4 I 12 #3/4 254TCZ/256TCZ 21 10 4 HOLES 284TCZ/286TCZ 24 1/4 MOTOR 6 HP RPM + PH HZ VOLTS 5 ENCL 10 FRAME 6 12 PUMP SIZE SUCT. DISCH A , 1/2X3X8 J , 1/2 a 1/2 2X3XB J 2 9 1/2 3X4XB 4 3 " 1X2X10 2 , 8 1/2 MOUNTING SUPPORT , 1/2X3X10 3 1 1/2 R 1/2 BY OTHERS TEX KUT , OF FLANGE O.D. SZ. OF 8 THICK B.C. HOLES HOLES , 1/4 , 3 1/8 4 5/8 DISCHARGE , 1/2 5 , 1/8 J 7/8 1 5/8 FLANGE 15 2 6 , 1/8 3/4 4 3/4 on Im ID an " J SUBMERGENCE 7 1/2 , 3/16 6 4 3/4 4 9 , 1/4 7 1/2 8 3/4 CUSTOMER 8 1/4 A CUST P.O.F SUCTION @ TAG: FLANGE a ® FYBROC S/N a 14 1/4 6 @ NOTES: + (1) ALL DIMENSIONS IN INCHES a @ FLANGES ARE ASME/ANSI 816.5 CLASS 150lb FLAT FACE Fybroc Division TELFORD, PA 18989 @ (2) ROTATION IS CLOCKWISE FACING 2014 $ ® DRIVER 623 MOTOR FAN GUARD 7530 SERIES or APPREVED or WARNING: DO NOT OPERATE my @ BITHOUT LIQUID IN PUMP. OUTLINE DRAWING DO NOT OPERATE IN REVERSE ROTATION BATE - 08/23/01 C40213
