EV Modeling and Simulation Exercise Advisor 2002 is a GUI software program that utilizes Matlab/Simulink to model and simulate vehicle (ICE vehicle, HEV, EV, and FCV) fuel economy, emission, and performance under various conditions including acceleration tests and various driving cycles.This exercise is to perform some introductory studies on electric vehicles. Please utilize this program to better understand EV system components and their interactions and effects on performance. Report on your results.A suggested approach follows:
Three ready-made files for EV models are already available in Advisor 2002:
cus_in
EV_defaults_in
gm_ev1_in
Start with the “gm_ev1_in” file that represents the GM EV1.
Answer questions 1 to 3 for all three vehicles (Focus, EV_defaults, and GM-EV1).

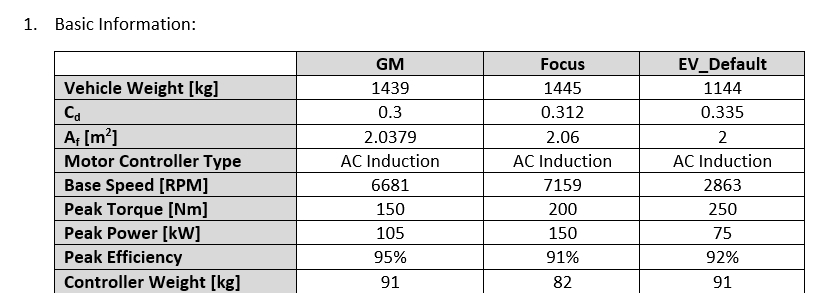

1. Obtain and/or derive key input information in this file (available from main screen)    including:
Vehicle weight
Vehicle Cd and
AfMotor-Controller type, base speed, peak torque, peak power, peak efficiency, mass Battery pack voltage and weight
Battery module type and number of modules
Battery OCV and resistance at 50% SOC.
2. Determine base vehicle performance by simulation (push “continue” on main screen to get to simulations page):
0 to 60 mph acceleration time by simulation
Wh/mile energy consumption and range UDDS, HWFET, and US06 schedules
(Hint: energy consumption is negative “energy stored” under “energy use figure”)
(Issue: depending on computer operation system, you might not be able to see this screen. If this problem occurs, try Advisor 2003).
3. Determine effect of overall vehicle parameters such as weight and aerodynamic drag on acceleration, energy consumption performance, and range. You may input different values or do a parametric study using that option.
4. Determine effect of changing battery and motor components. For examples, utilize large and small NiMH and PbA batteries.
5. Use replay to observe operation of the motor controller during a driving cycle by observing how its operational point changes on the torque-speed plot. When is it operating at low and high efficiency?
6. What else can you do with this simulation program to understand electric vehicles? What issues and/or inconsistencies do you have with the software?
