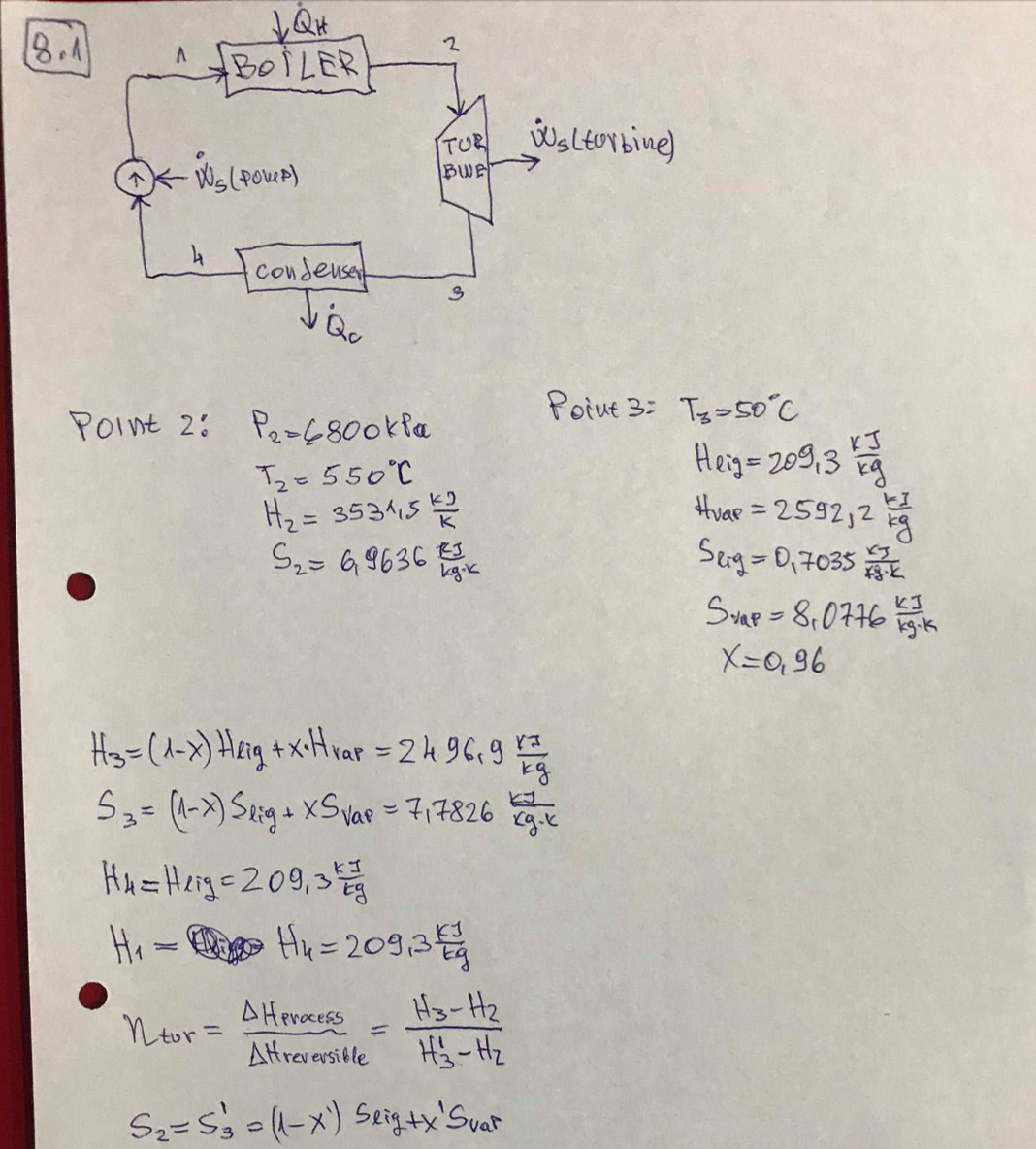

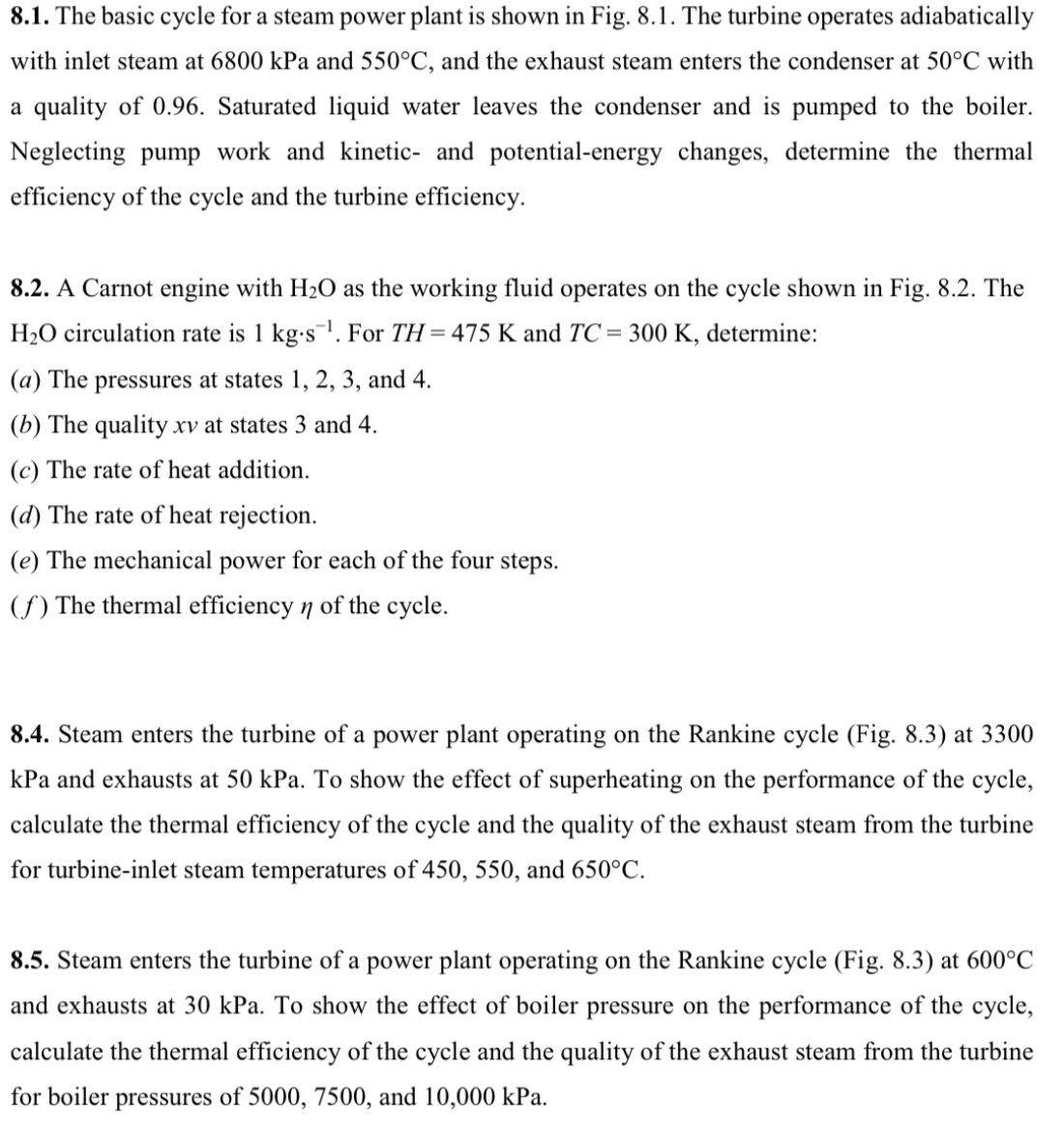

8.1. The basic cycle for a steam power plant is shown in Fig. 8.1. The turbine operates adiabatically with inlet steam at 6800 kPa and 550°C, and the exhaust steam enters the condenser at 50°C with a quality of 0.96. Saturated liquid water leaves the condenser and is pumped to the boiler. Neglecting pump work and kinetic- and potential-energy changes, determine the thermal efficiency of the cycle and the turbine efficiency. 8.2. A Carnot engine with H2O as the working fluid operates on the cycle shown in Fig. 8.2. The H2O circulation rate is 1 For TH = 475 K and TC = 300 K, determine: (a) The pressures at states 1, 2, 3, and 4. (b) The quality XV at states 3 and 4. (c) The rate of heat addition. (d) The rate of heat rejection. (e) The mechanical power for each of the four steps. (f) The thermal efficiency n of the cycle. 8.4. Steam enters the turbine of a power plant operating on the Rankine cycle (Fig. 8.3) at 3300 kPa and exhausts at 50 kPa. To show the effect of superheating on the performance of the cycle, calculate the thermal efficiency of the cycle and the quality of the exhaust steam from the turbine for turbine-inlet steam temperatures of 450, 550, and 650°C. 8.5. Steam enters the turbine of a power plant operating on the Rankine cycle (Fig. 8.3) at 600°C and exhausts at 30 kPa. To show the effect of boiler pressure on the performance of the cycle, calculate the thermal efficiency of the cycle and the quality of the exhaust steam from the turbine for boiler pressures of 5000, 7500, and 10,000 kPa.
