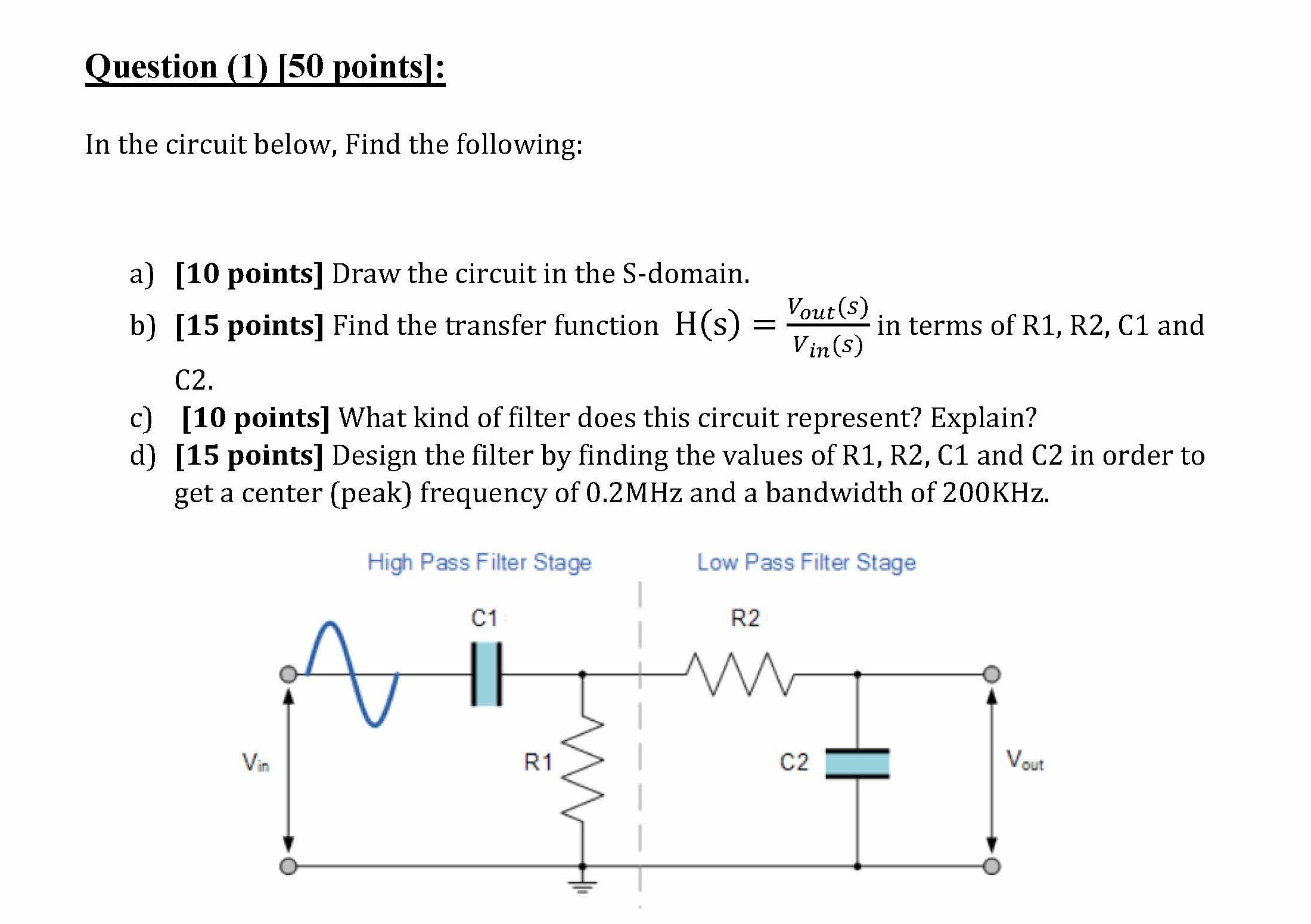

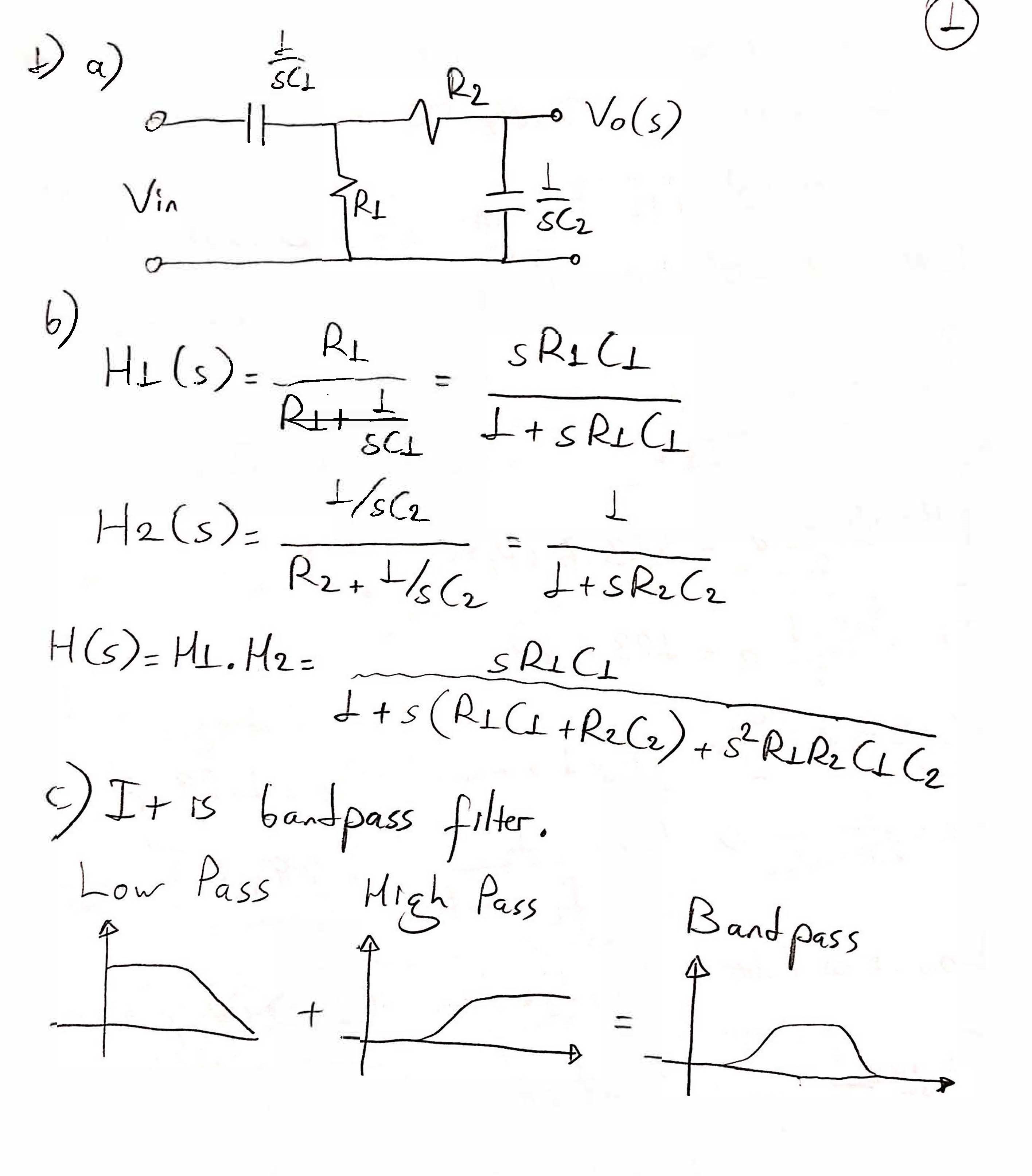

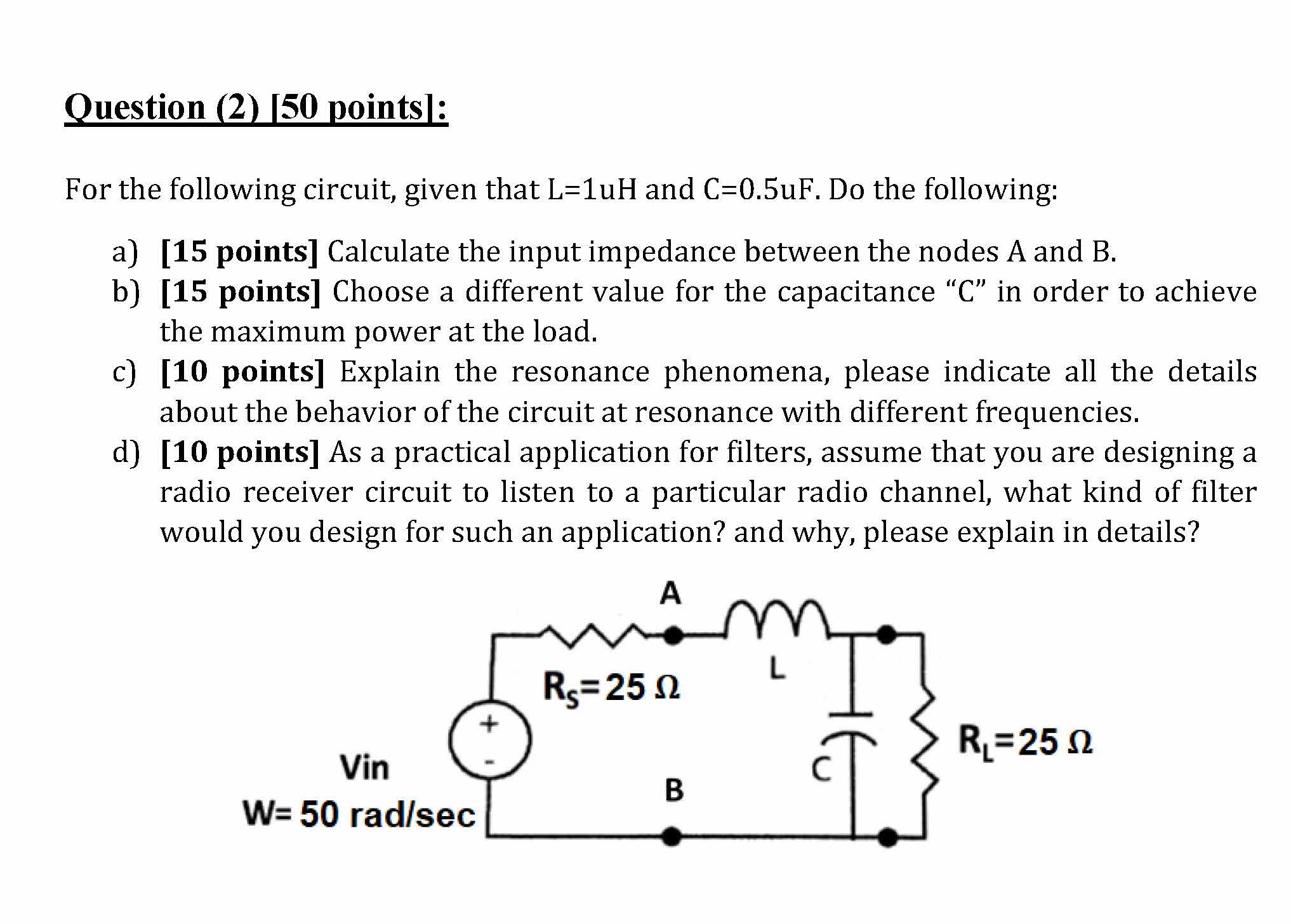

Question (1) [50 points]: In the circuit below, Find the following: a)[10 points] Draw the circuit in the S-domain. b)[15 points] Find the transfer function H(s)=š‘‰š‘œš‘¢š‘”(š‘ )š‘‰š‘–š‘›(š‘ ) in terms of R1, R2, C1 and C2. c)[10 points] What kind of filter does this circuit represent? Explain? d)[15 points] Design the filter by finding the values of R1, R2, C1 and C2 in order toget a center (peak) frequency of 0.2MHz and a bandwidth of 200KHz. Question (2) [50 points]: For the following circuit, given that L=1uH and C=0.5uF. Do the following: a)[15 points] Calculate the input impedance between the nodes A and B. b)[15 points] Choose a different value for the capacitance ā€œCā€ in order to achievethe maximum power at the load. c)[10 points] Explain the resonance phenomena, please indicate all the detailsabout the behavior of the circuit at resonance with different frequencies. d)[10 points] As a practical application for filters, assume that you are designing aradio receiver circuit to listen to a particular radio channel, what kind of filterwould you design for such an application? and why, please explain in details?
