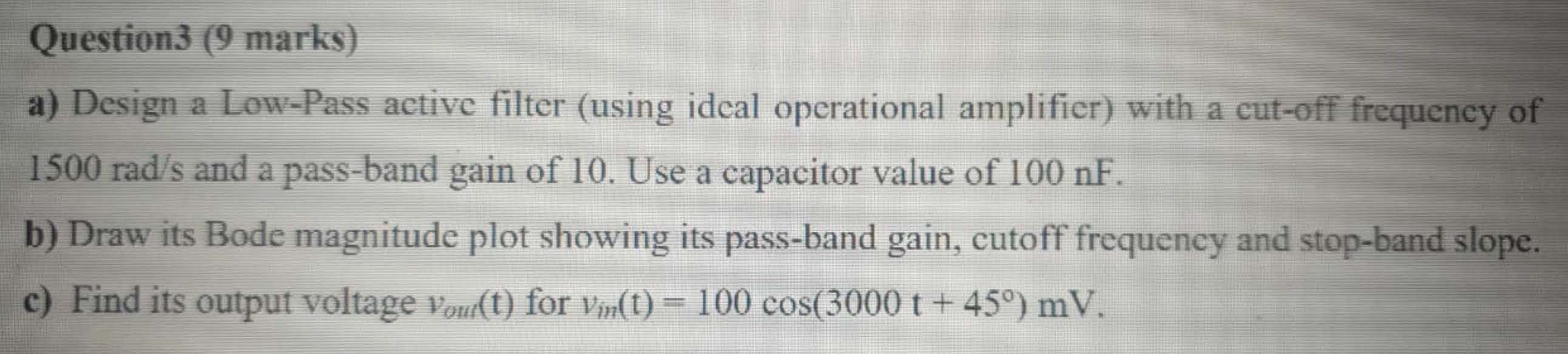

Question3 (9 marks) a) Design a Low-Pass active filter (using idcal operational amplifier) with a cut-off frequency of 1500 rad/s and a pass-band gain of 10. Use a capacitor value of 100 nF. b) Draw its Bode magnitude plot showing its pass-band gain, cutoff frequency and stop-band slope. c) Find its output voltage Vour(t) for Vm(t) = 100 cos(3000 t + 45°) mV.

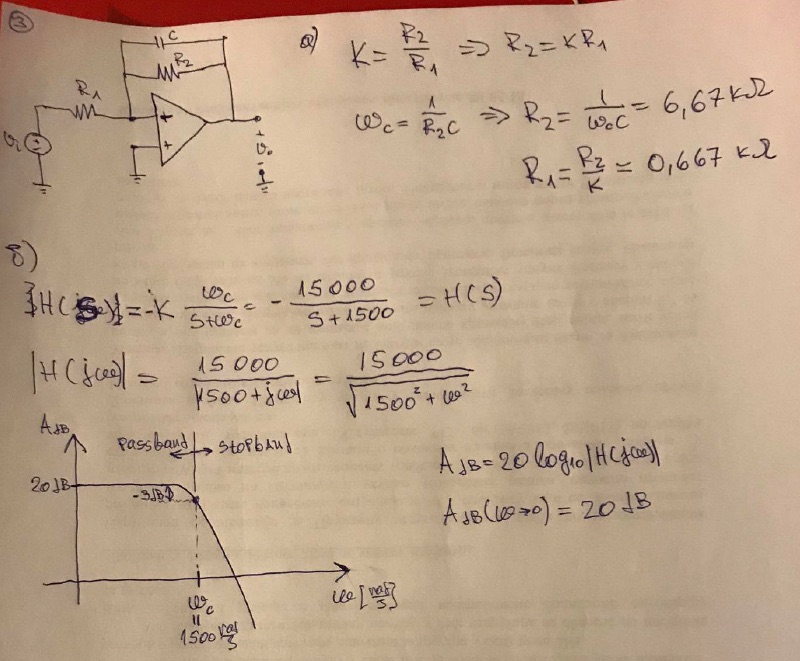

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.
