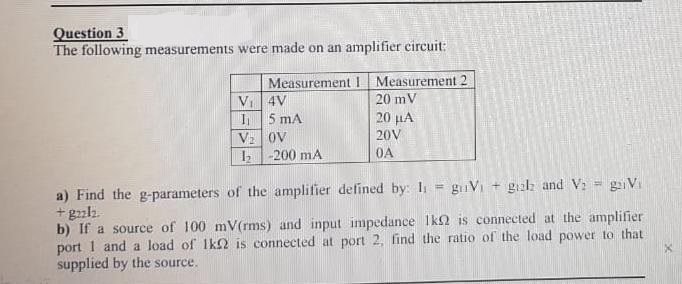

Question 3 The following measurements were made on an amplifier circuit: Measurement 1 Measurement 2 V1 4V 20 mV I1 5 mA 20 MA V2 OV 20V I2 -200 mA 0A a) Find the g-parameters of the amplifier defined by: I1 = guVi + gi2h and V2 = + g22l2. b) If a source of 100 mV(rms) and input impedance 1kQ is connected at the amplifier port 1 and a load of 1kQ2 is connected at port 2. find the ratio of the load power to that x supplied by the source.

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.
