QuestionQuestion

Transcribed TextTranscribed Text

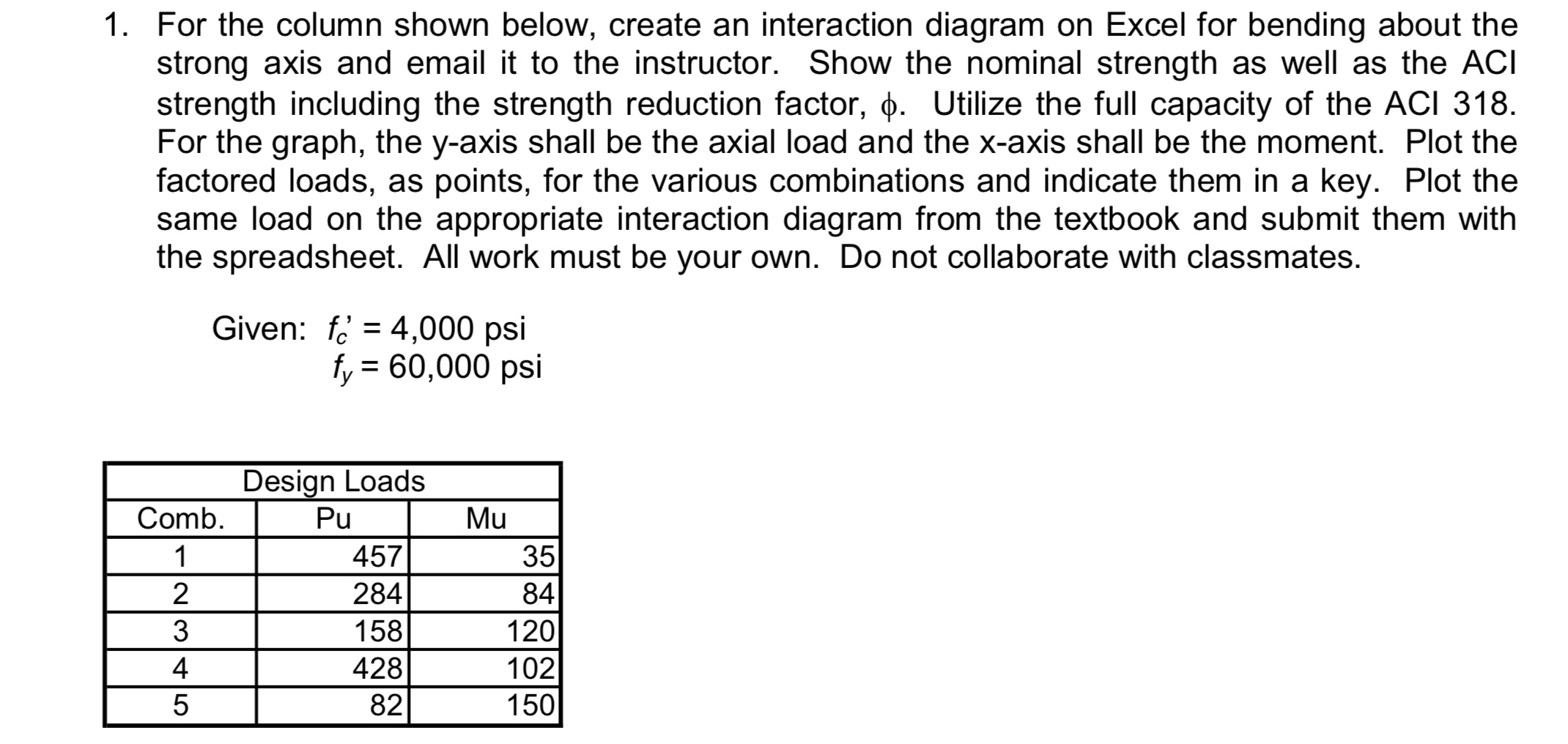

1. For the column shown below, create an interaction diagram on Excel for bending about the strong axis and email it to the instructor. Show the nominal strength as well as the ACI strength including the strength reduction factor, d. Utilize the full capacity of the ACI 318. For the graph, the y-axis shall be the axial load and the x-axis shall be the moment. Plot the factored loads, as points, for the various combinations and indicate them in a key. Plot the same load on the appropriate interaction diagram from the textbook and submit them with the spreadsheet. All work must be your own. Do not collaborate with classmates. Given: fc = 4,000 psi fy = 60,000 psi Design Loads Comb. Pu Mu 1 457 35 2 284 84 3 158 120 4 428 102 5 82 150

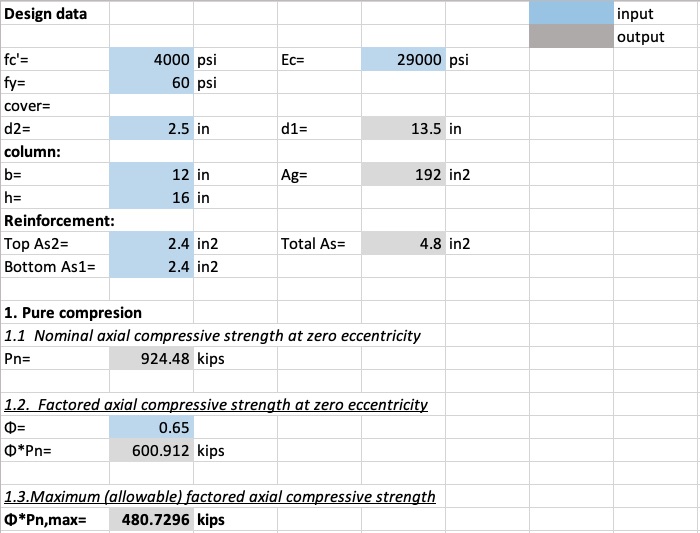

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf and Solution.xlsx.

    $110.00
    for this solution

    PayPal, G Pay, ApplePay, Amazon Pay, and all major credit cards accepted.
