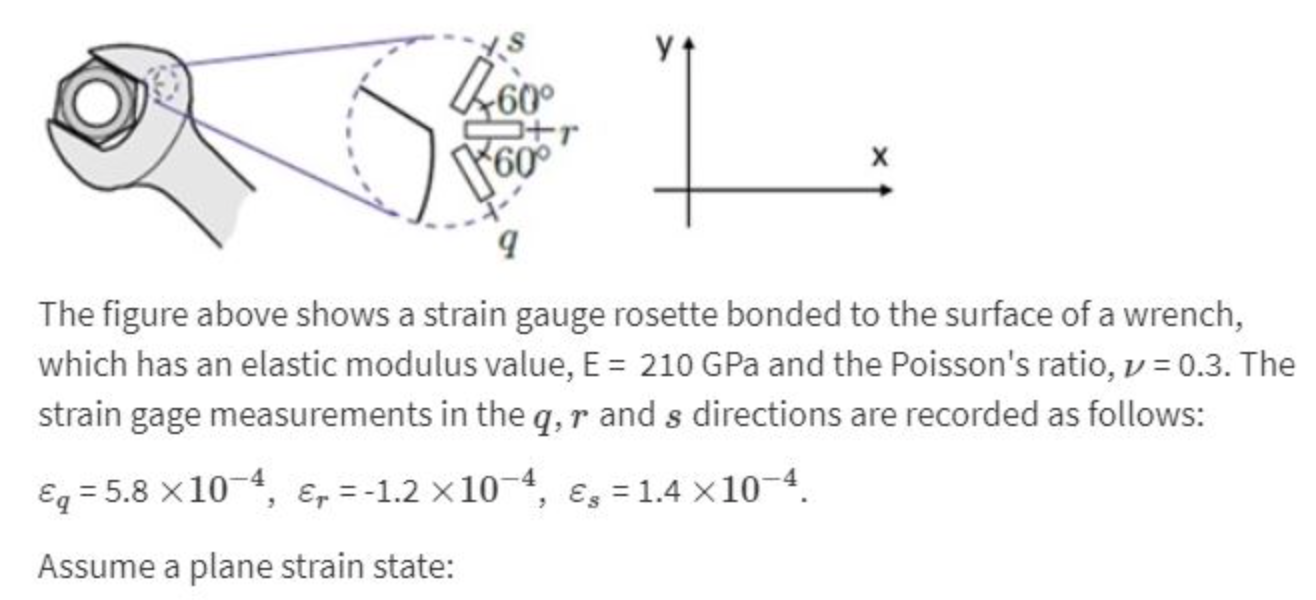

S y T 60 X q The figure above shows a strain gauge rosette bonded to the surface of a wrench, which has an elastic modulus value, E = 210 GPa and the Poisson's ratio, 1/ = 0.3. The strain gage measurements in the q, r and S directions are recorded as follows: Eq =5.8 x10-4, = €x = 1.2 x10-4, Es = 1.4 X 10-4. - Assume a plane strain state:
