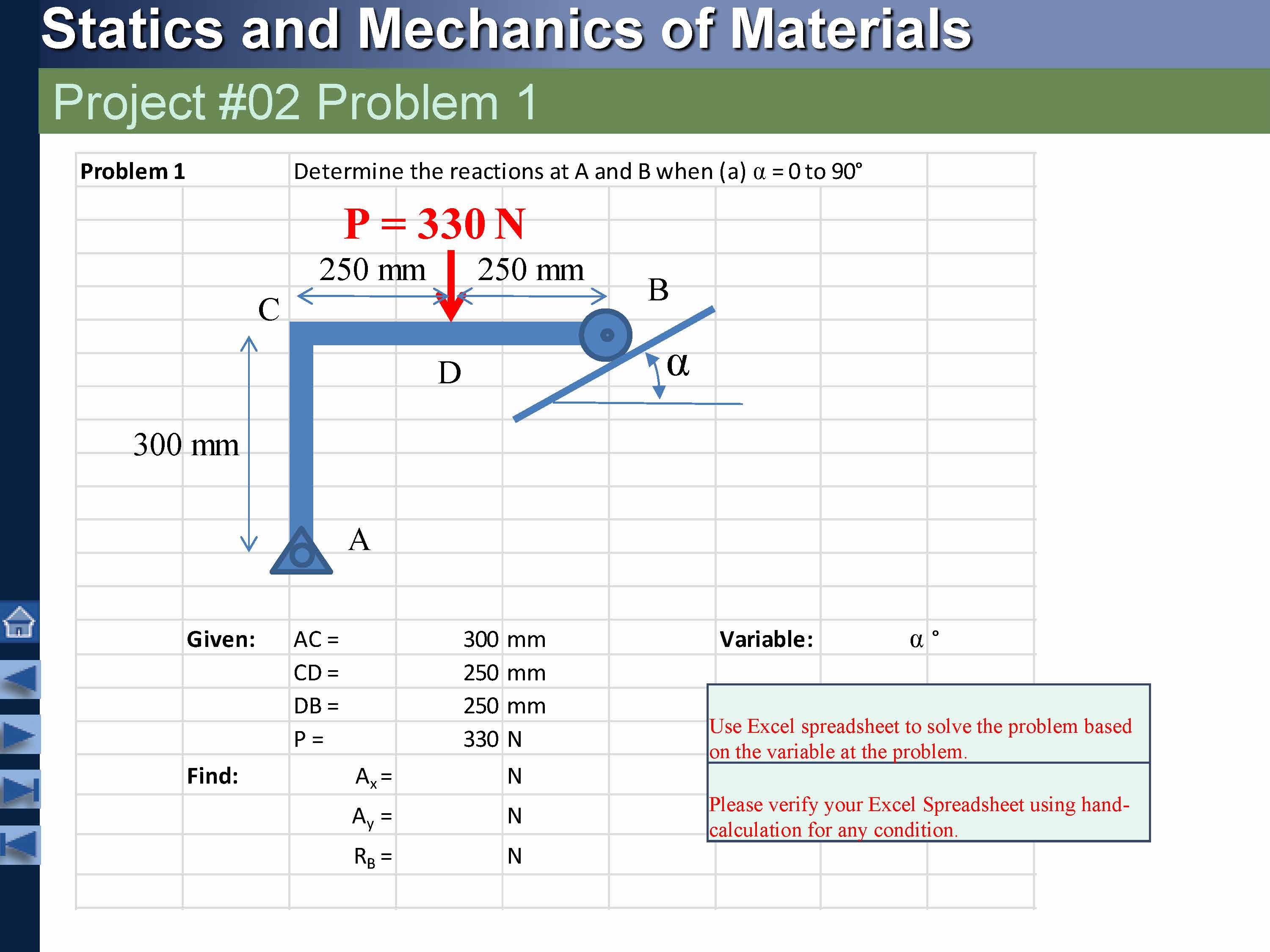

Statics and Mechanics of Materials Project #02 Problem 1 Problem 1 Determine the reactions at A and B when (a) a=0to 90° P = 330 N 250 mm 250 mm B C o D qa 300 mm A Given: AC= 300mm Variable: o a CD 250mm DB = 250mm P= 330 N Use Excel spreadsheet to solve the problem based on the variable at the problem. Find: Ax= N Ay = N Please verify your Excel Spreadsheet using hand- K calculation for any condition. RB N Statics and Mechanics of Materials Project #02 Problem 2 Problem 2 Determine the reactions at A and Bwhen (a) CD = Oto 500 mm P = 330 N CD mm 500 CD B C o D a=30° = 300 mm A Given: AC= 300 mm Variable: CD mm a = 30 ° DB 500-CD mm P= 330 N Use Excel spreadsheet to solve the problem based on the variable at the problem. Find: A.= N Ay N Please verify your Excel Spreadsheet using hand- calculation for any condition. RB= N

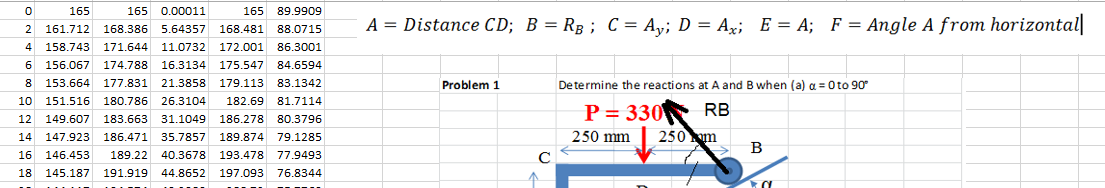

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

Engineering Problem - Statics And Mechanics Of Materials
