Exercises 5-1. Plot the following cathodic polarization data for c...

  1. Home
  2. Homework Library
  3. Engineering
  4. Corrosion
  5. Exercises 5-1. Plot the following cathodic polarization data for c...

QuestionQuestion

Transcribed TextTranscribed Text

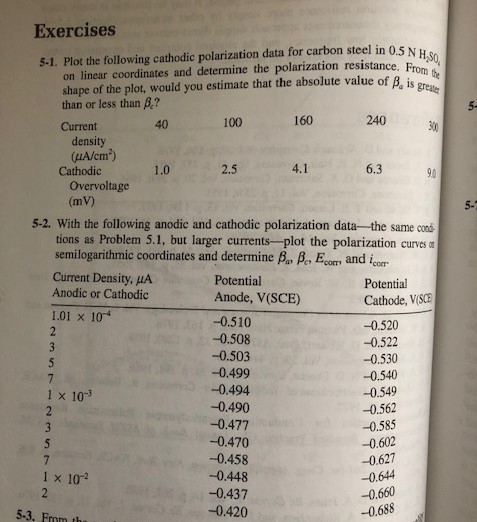

Exercises 5-1. Plot the following cathodic polarization data for carbon steel in 0.5 N H,S0, on linear coordinates and determine the polarization resistance. From Se shape of the plot, would you estimate that the absolute value of Ba is greater than or less than Be? Current 40 100 160 240 300 density (A/cm²) Cathodic 1.0 2.5 4.1 6.3 90 Overvoltage (mV) 5-2. With the following anodic and cathodic polarization data-the same cond- tions as Problem 5.1, but larger currents-plot the polarization curves on semilogarithmic coordinates and determine Ba, Be, Ecorrs and ¹corr Current Density, MA Potential Potential Anodic or Cathodic Anode, V(SCE) Cathode, V(SCE 1.01 x 10-4 -0.510 2 -0.520 -0.508 3 -0.522 5 -0.503 -0.530 7 -0.499 -0.540 1 x 10-3 -0.494 -0.549 2 -0.490 -0.562 3 -0.477 -0.585 5 -0.470 -0.602 7 -0.458 -0.627 1 x 10-2 -0.448 -0.644 2 -0.437 -0.660 5-3. From th -0.420 -0.688

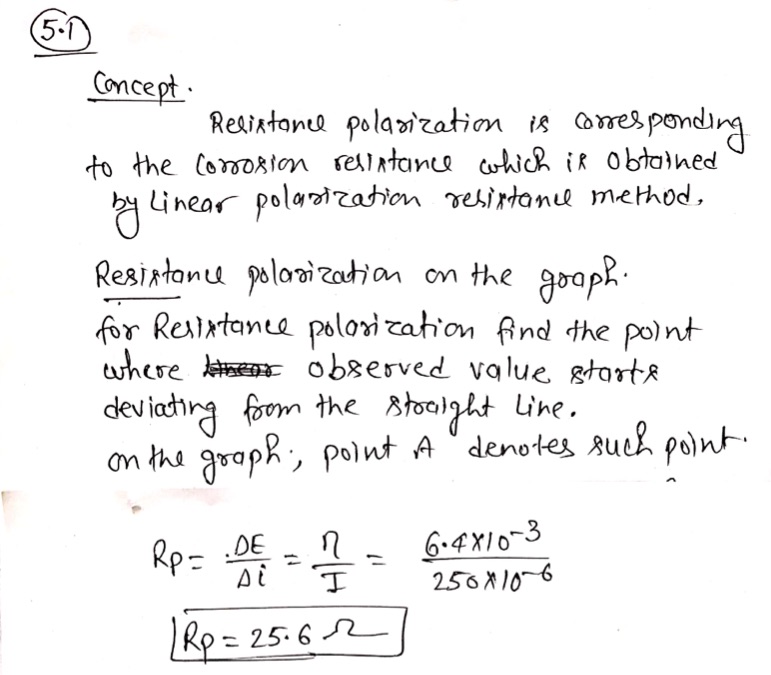

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.

    $45.00
    for this solution
