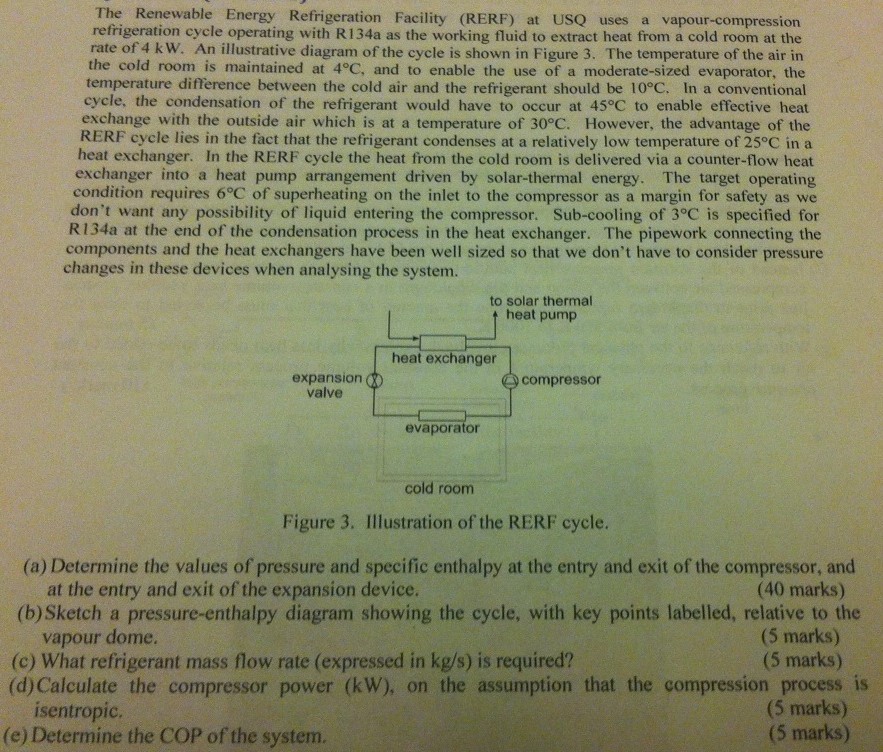

The Renewable Energy Refrigeration Facility (RERF) at USQ uses a vapour-compression refrigeration cycle operating with R134a as the working fluid to extract heat from a cold room at the 7. rate of 4 kW. An illustrative diagram of the cycle is shown in Figure 3. The temperature of the air in 6 the cold room is maintained at 4°C, and to enable the use of a moderate-sized evaporator, the temperature difference between the cold air and the refrigerant should be 10°C. In a conventional cycle, the condensation of the refrigerant would have to occur at 45°C to enable effective heat exchange with the outside air which is at a temperature of 30°C. However, the advantage of the RERF cycle lies in the fact that the refrigerant condenses at a relatively low temperature of 25°C in a heat exchanger. In the RERF cycle the heat from the cold room is delivered via a counter-flow heat exchanger into a heat pump arrangement driven by solar-thermal energy. The target operating condition requires 6°C of superheating on the inlet to the compressor as a margin for safety as we don't want any possibility of liquid entering the compressor. Sub-cooling of 3°C is specified for R134a at the end of the condensation process in the heat exchanger. The pipework connecting the components and the heat exchangers have been well sized so that we don't have to consider pressure changes in these devices when analysing the system. to solar thermal heat pump heat exchanger expansion compressor valve evaporator cold room Figure 3. Illustration of the RERF cycle. (a) Determine the values of pressure and specific enthalpy at the entry and exit of the compressor, and at the entry and exit of the expansion device. (40 marks) (b) Sketch a pressure-enthalpy diagram showing the cycle, with key points labelled, relative to the vapour dome. (5 marks) (c) What refrigerant mass flow rate (expressed in kg/s) is required? (5 marks) (d) Calculate the compressor power (kW), on the assumption that the compression process is isentropic. (5 marks) (e) Determine the COP of the system. (5 marks)

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

Given Data:
Renewable energy Refrigeration Facility (RERF) at USQ using Vapor compression refrigeration cycle.
The working fluid in the refrigerator is R134a
The rate of heat extraction from the cold rook (cooling load) = 4KW
The temperature of the air (evaporator) in the cold room = 4 degree Celsius.
The temperature difference between the cold air and the refrigerant should be 10 degree Celsius.
The temperature of the refrigerant = - 6 degree Celsius.
Condenser fluid temperature =45 degree Celsius.
Environmental temperature (Surroundings to condenser) = 30 degree Celsius.
Superheating before entry to compressor is 6 degree Celsius...
