QUESTION 15

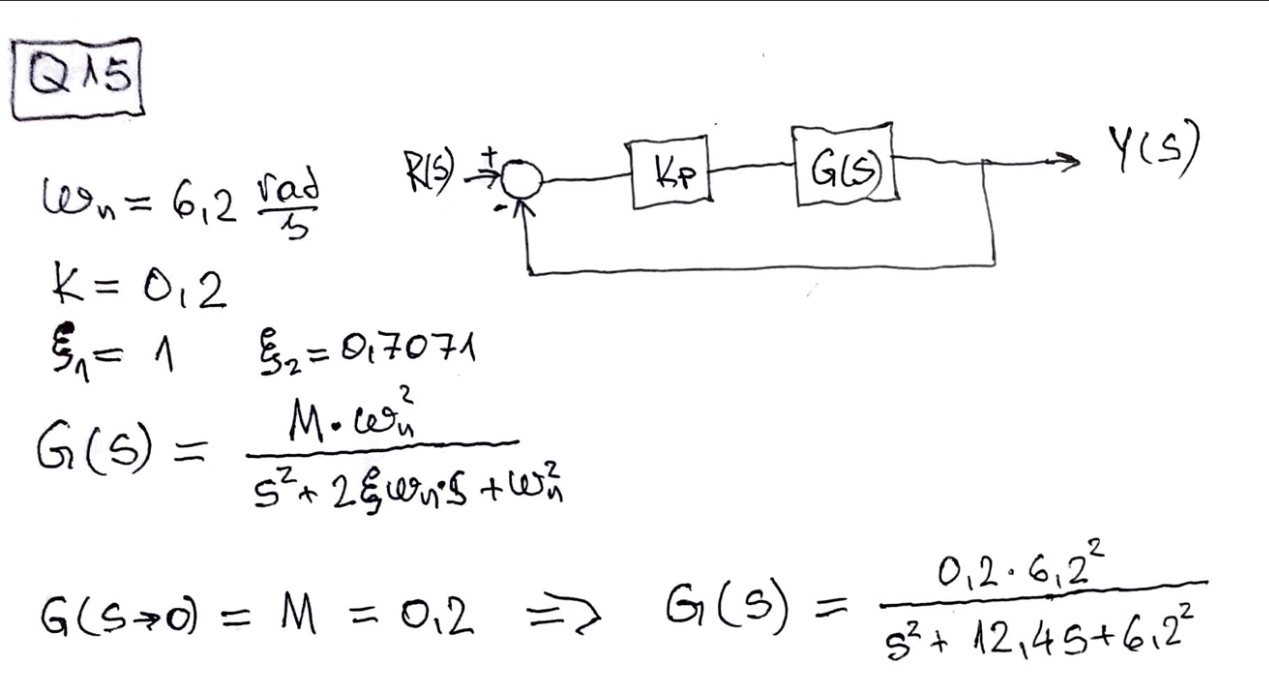

Consider a critically damped second order system with no zeros. Its natural frequency is 6.2 rad/s and its low frequency gain is 0.2.
If using a proportional controller, calculate the value of the controller gain kp such that the damping ratio of the closed loop system is equal to 0.7071. Give the numerical answer to 2 decimal places.

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.
