QuestionQuestion

Transcribed TextTranscribed Text

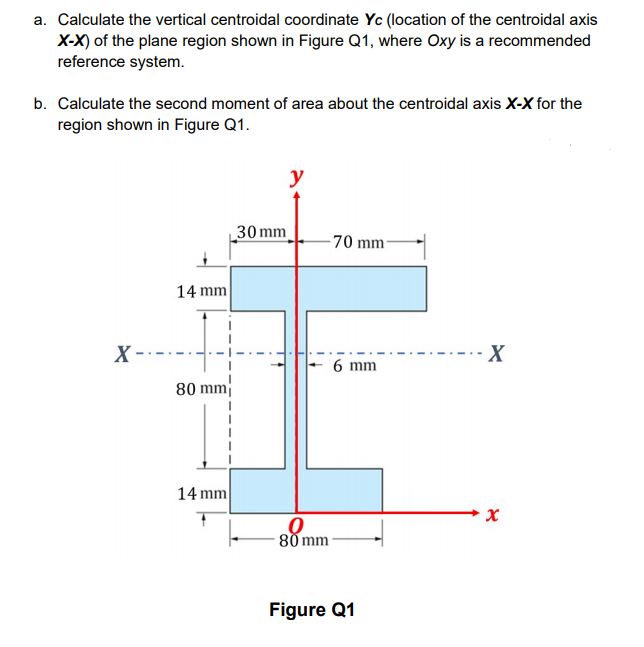

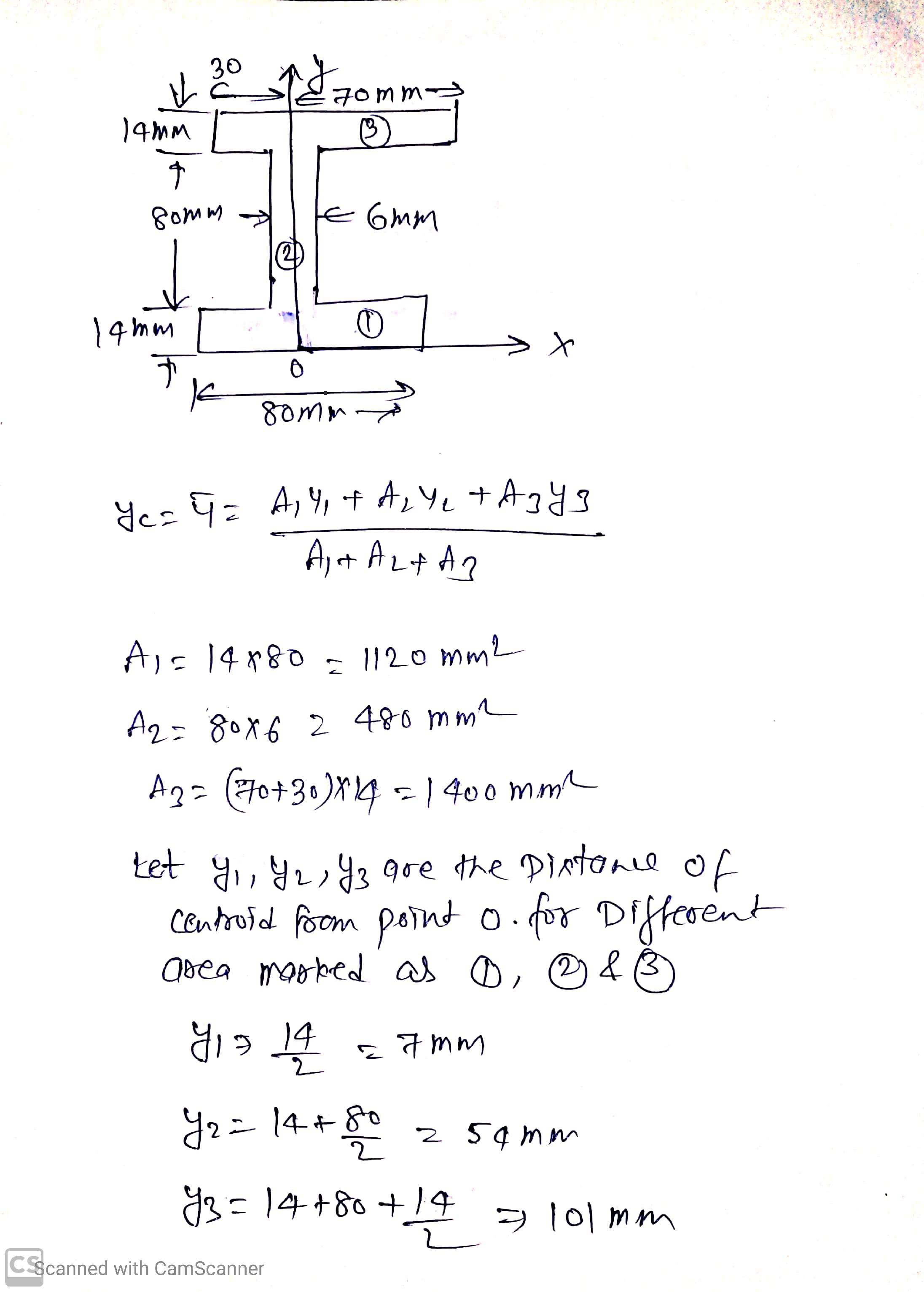

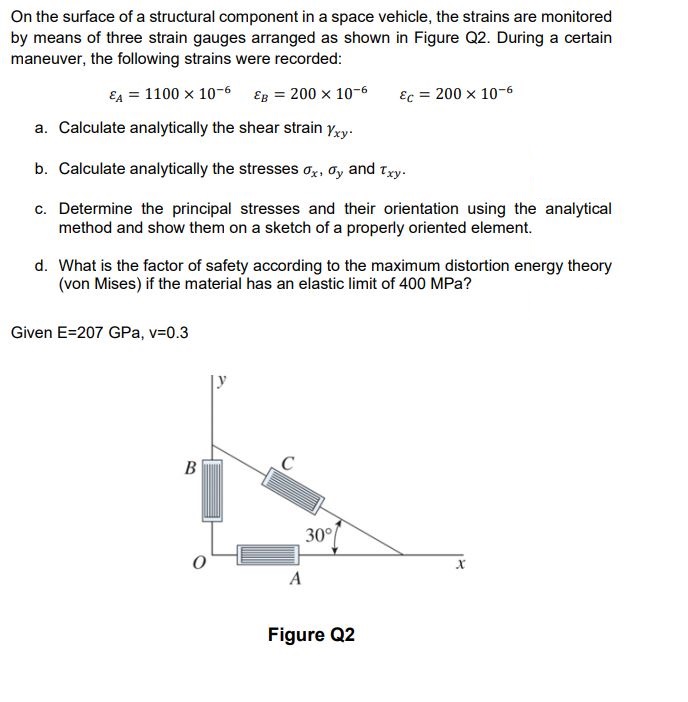

a. Calculate the vertical centroidal coordinate Yc (location of the centroidal axis X-X) of the plane region shown in Figure Q1, where Oxy is a recommended reference system. b. Calculate the second moment of area about the centroidal axis X-X for the region shown in Figure Q1. y 30 mm 70 mm 14 mm X X 6 mm 80 mm 14 mm x 80 mm Figure Q1 On the surface of a structural component in a space vehicle, the strains are monitored by means of three strain gauges arranged as shown in Figure Q2. During a certain maneuver, the following strains were recorded: €B = 200 X 10-6 EC = 200 x 10-e - a. Calculate analytically the shear strain Yxy+
