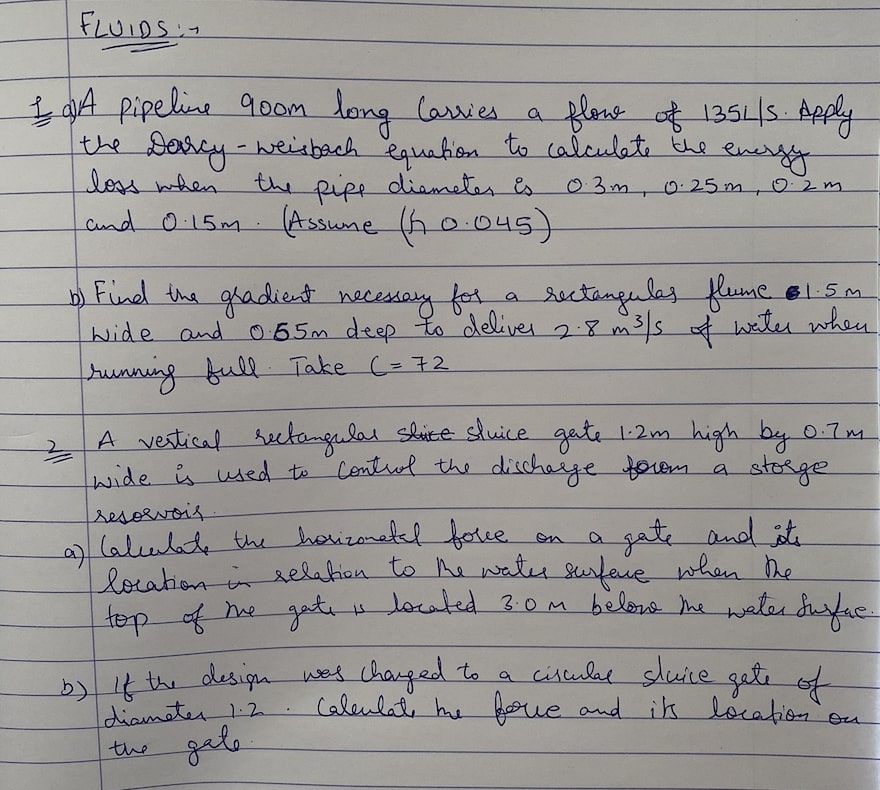

FLUIDS:- I WA pipeline 900m long Carries a flow of 1351/5. Apply the Darcy - weisbach equation to calculate the energy loss when the pipe diameter is 0.3. 0.25m 0.2m and 0.15m (Assume (ho.o45) b) Find the gradient necessary for a rectangulas flume 01.5 M wide and 0.55m deep to delives 2.8 m3/s of writer when running full Take C 72 A vertical rectangular slice sluice gate 1.2m high by 0.7m wide is used to control the discharge from a storge resorvoir a) Calculate the horizonatal force on a gate and its location in relation to Be water surface when the top of me gate is located 3.0 M below me water surface b) if the design was changed to a ciscular sluice gate of diameter 1.2 Calenlate me frue and its location on the gate

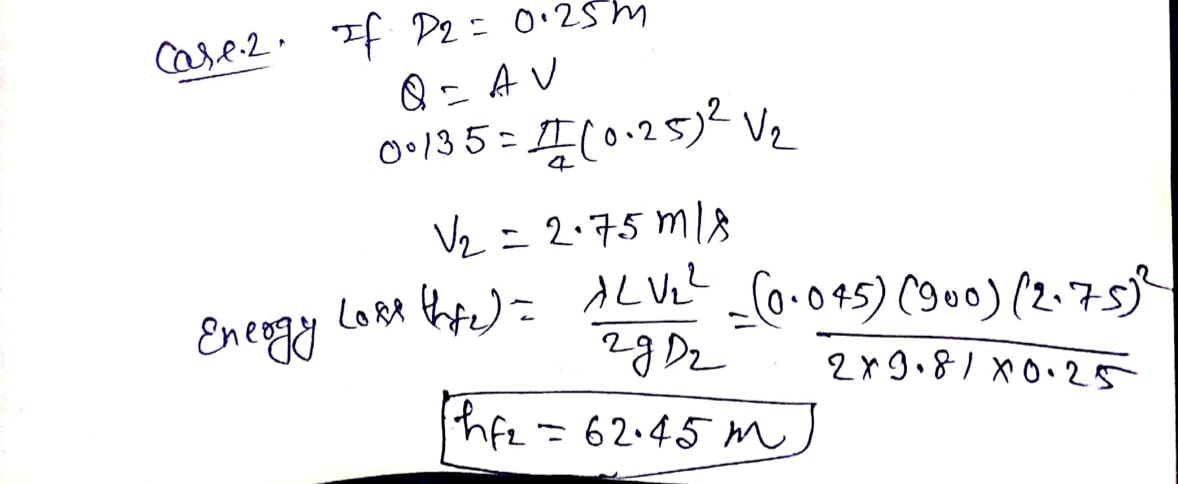

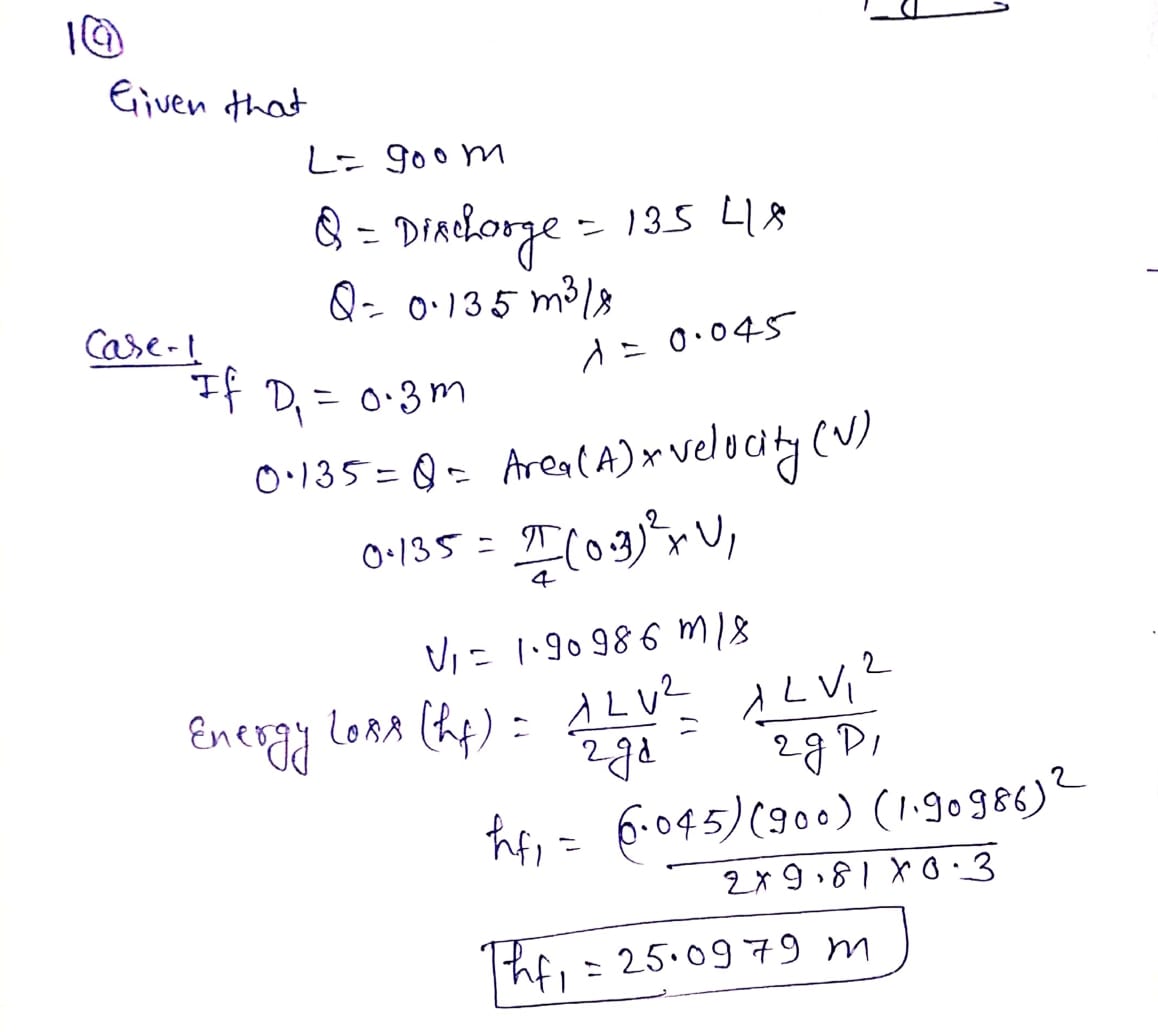

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.
