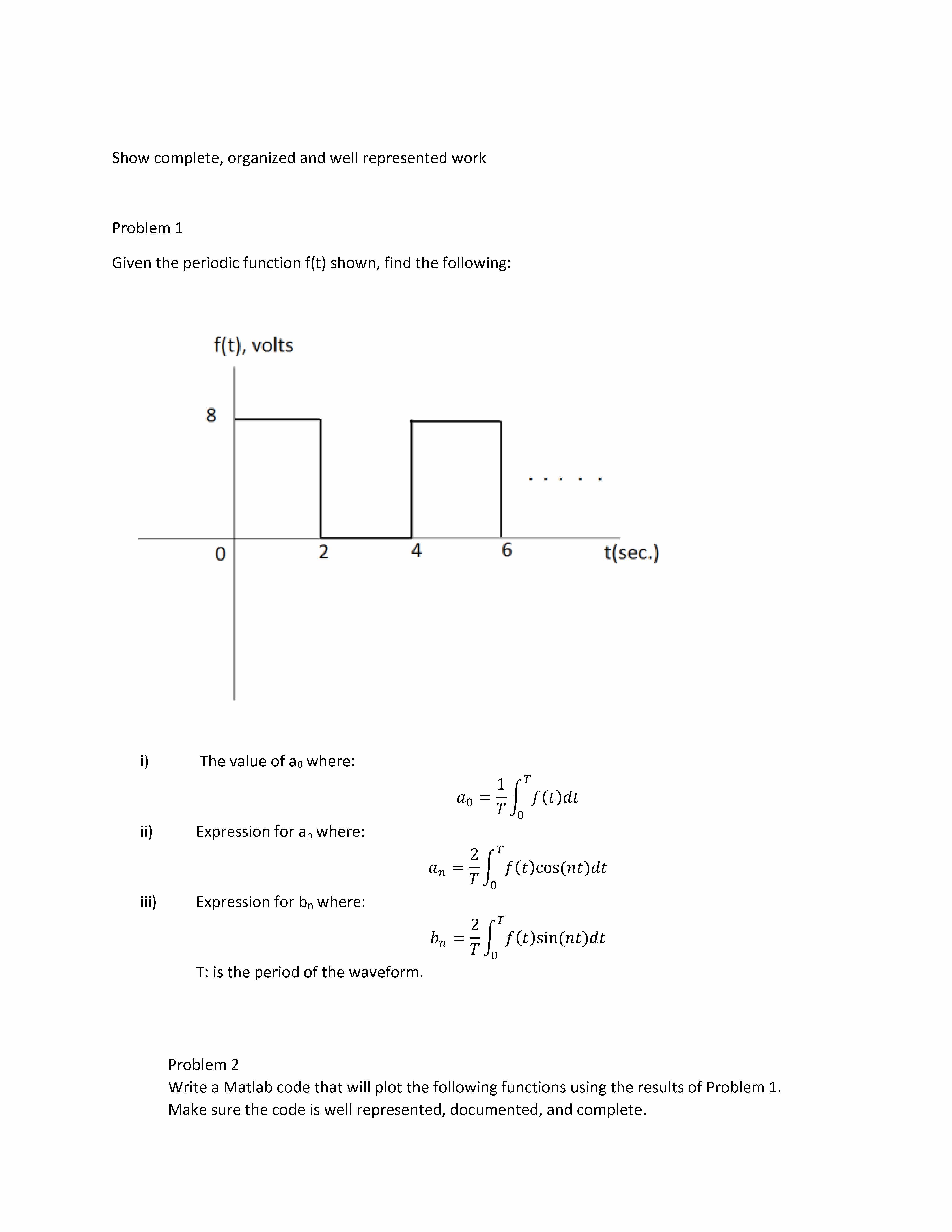

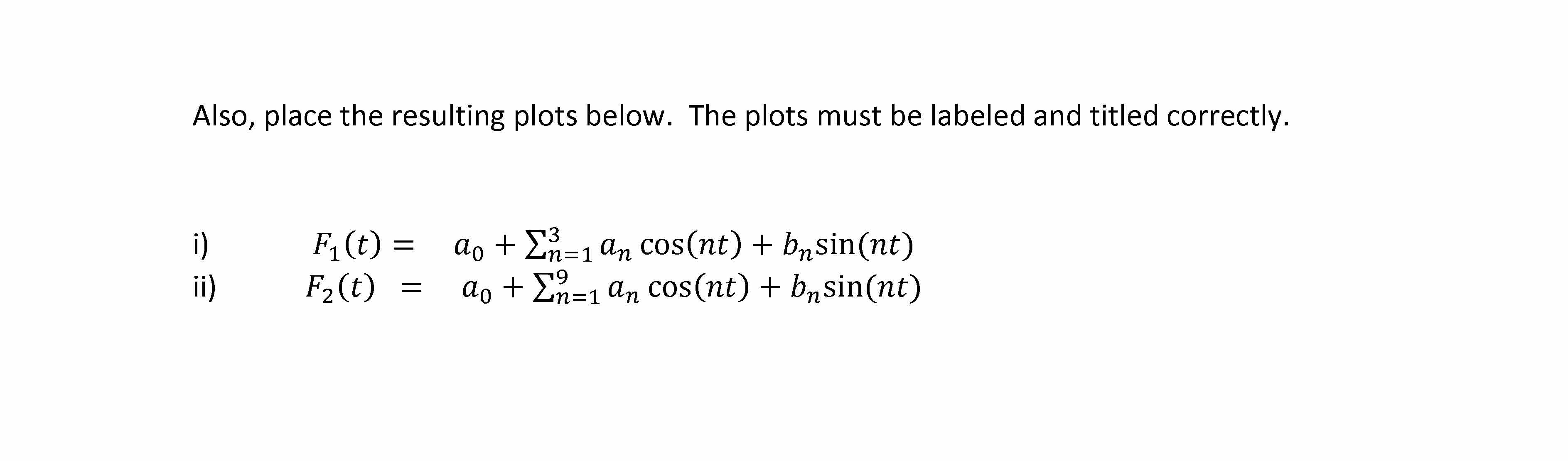

Show complete, organized and well represented work Problem 1 Given the periodic function f(t) shown, find the following: i) The value of a0 where: π‘Ž0 = 1 𝑇 ∫ 𝑓(𝑑)𝑑𝑑 𝑇 0 ii) Expression for an where: π‘Žπ‘› = 2 𝑇 ∫ 𝑓(𝑑)cos(𝑛𝑑)𝑑𝑑 𝑇 0 iii) Expression for bn where: 𝑏𝑛 = 2 𝑇 ∫ 𝑓(𝑑)sin(𝑛𝑑)𝑑𝑑 𝑇 0 T: is the period of the waveform. Problem 2 Write a Matlab code that will plot the following functions using the results of Problem 1. Make sure the code is well represented, documented, and complete. Also, place the resulting plots below. The plots must be labeled and titled correctly. i) 𝐹1 (𝑑) = π‘Ž0 + βˆ‘ π‘Žπ‘› cos(𝑛𝑑) + 𝑏𝑛sin(𝑛𝑑) 3 𝑛=1 ii) 𝐹2 (𝑑) = π‘Ž0 + βˆ‘ π‘Žπ‘› cos(𝑛𝑑) + 𝑏𝑛sin(𝑛𝑑)

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

%%%
%%% Code to plot F1(t)
%%%
t = [0:0.01:20];
a0 = 4;
F1 = a0;
for n=1:3
    F1 = F1 + (4*sin(2*n)/n) * cos(n*t);
    F1 = F1 + (4*(1-cos(2*n))/n) * sin(n*t);
end
figure(1);
plot(t,F1);
xlabel('t (seconds)');
ylabel('F1');
title('F1(t)');

%%%
%%% Code to plot F2(t)
%%%
t = [0:0.01:20];
a0...
