Transcribed Text
(c)

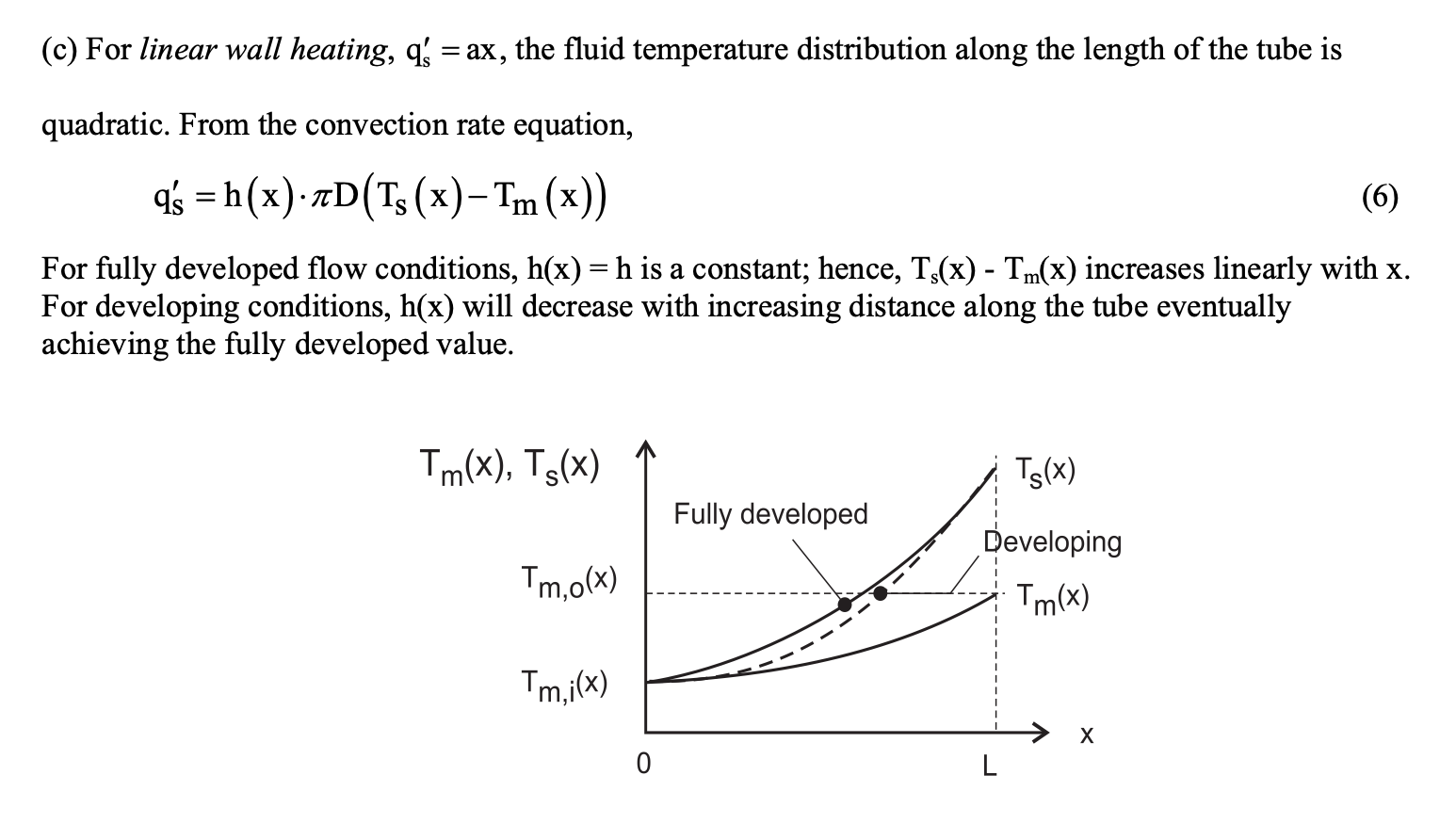

For linear wall heating, q: = ax, the fluid temperature distribution along the length of the tube is
quadratic. From the convection rate equation,
(6)
For fully developed flow conditions, h(x) - h is a constant; hence, T1(x) Tn(x) increases linearly with x.
For developing conditions, h(x) will decrease with increasing distance along the tube eventually
achieving the fully developed value.
Tm(x), Tg(x)
Ts(x)
Fully developed
Developing
Tm,olx)
Tm(x)
Tm,(xx
x
L
Solution Preview
This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.
T_mi=27;mdot=450;
a=20;
L=30;
x=0:L;
cp=4179;
T_m=@(x) T_mi+3600*a*x.^2/(2*mdot*cp);
T_mean=mean(T_m(x));...
