Subject
Engineering Mechanical Engineering
Question

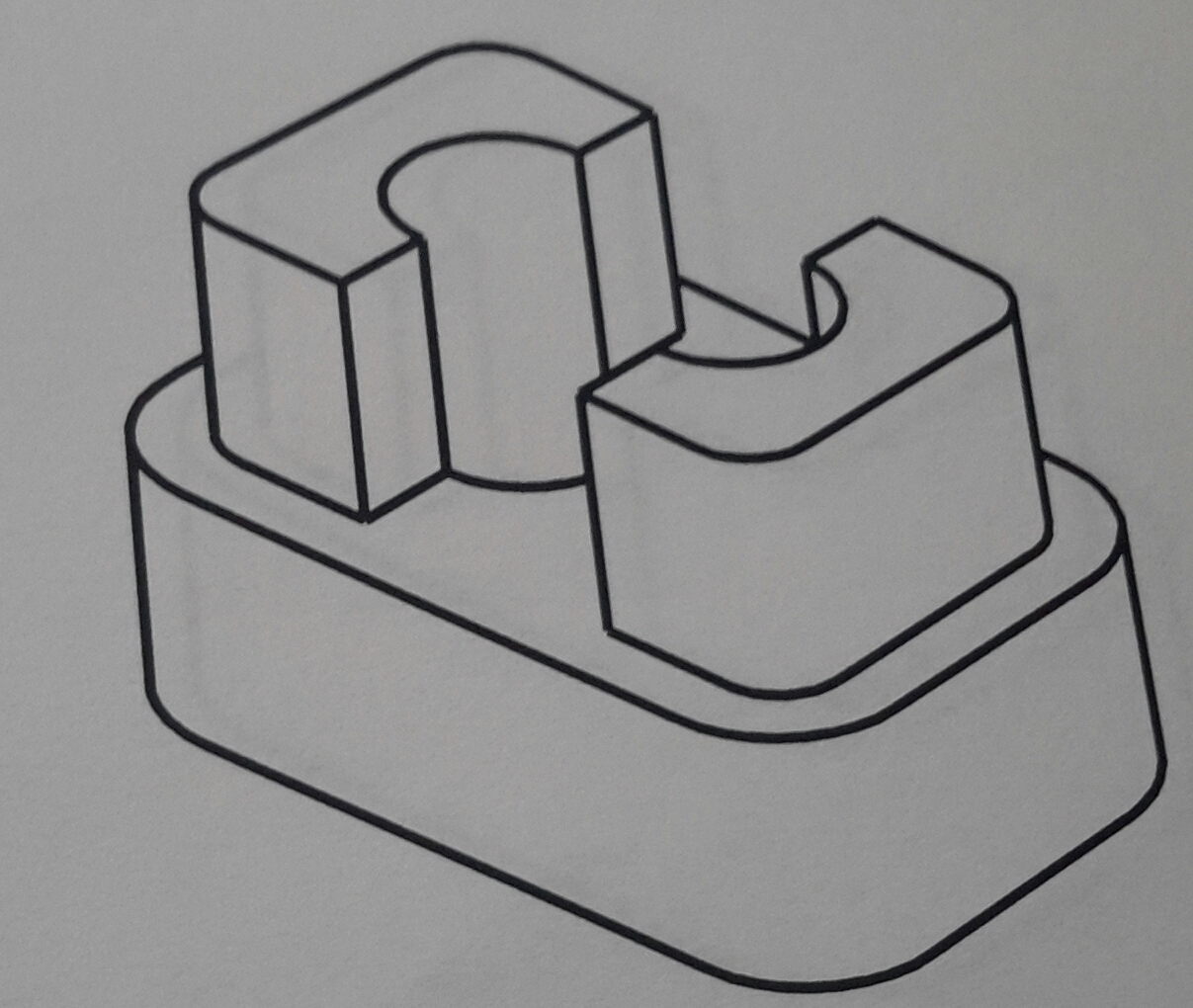

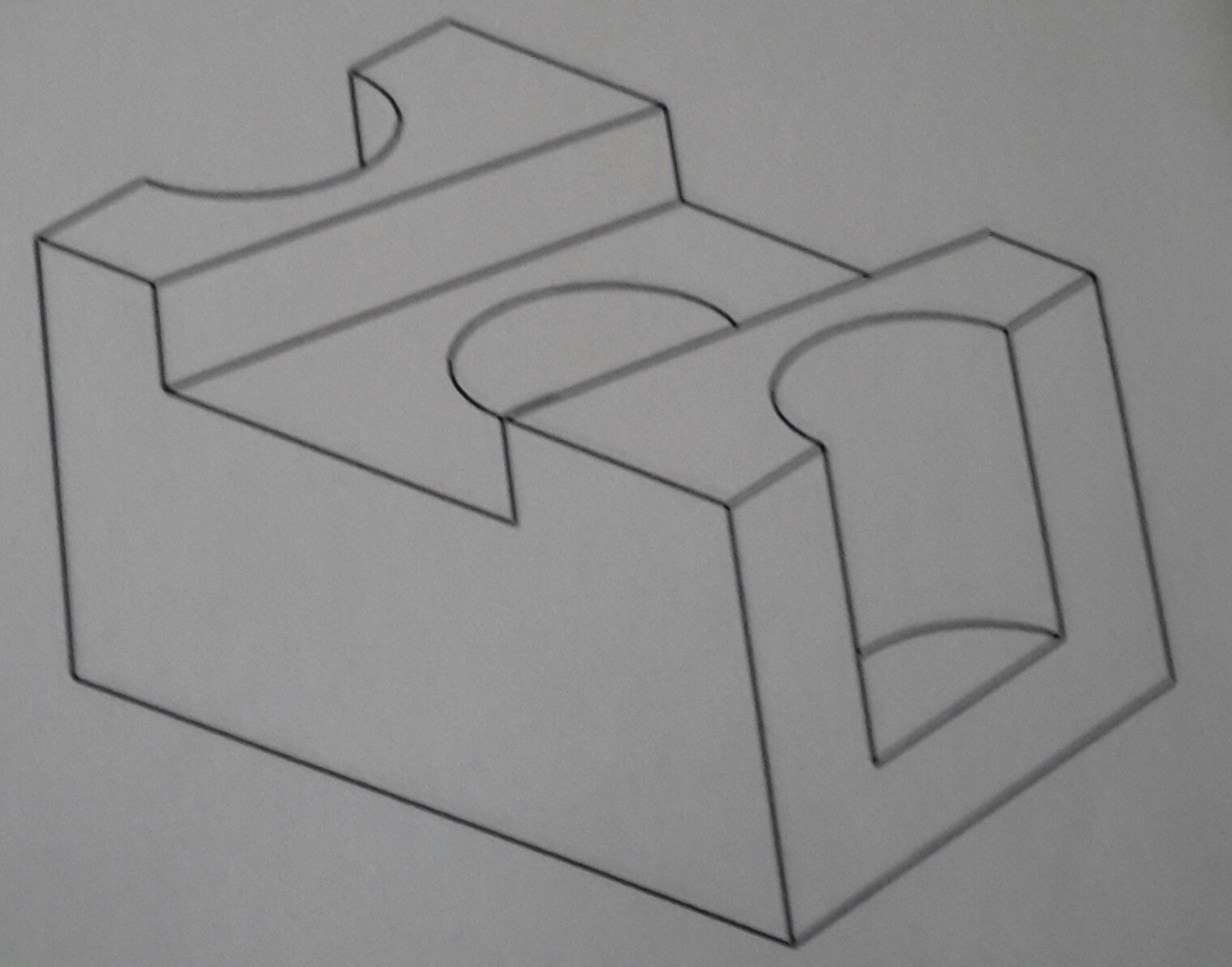

Find and explain how to find the front orthogonal projection as a sectional view for each of the images below.
Solution Preview
This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

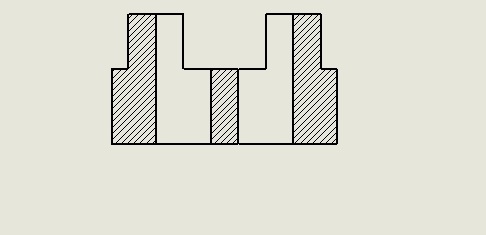

A section view is a view used on a drawing to show an area or hidden part of an object by cutting away or removing some of that object.
1- After drawing the front view
2- Choosing the type of section and location of the cutting plane
3- Making the cut and drawing the view in the proper location...
1- After drawing the front view
2- Choosing the type of section and location of the cutting plane
3- Making the cut and drawing the view in the proper location...
