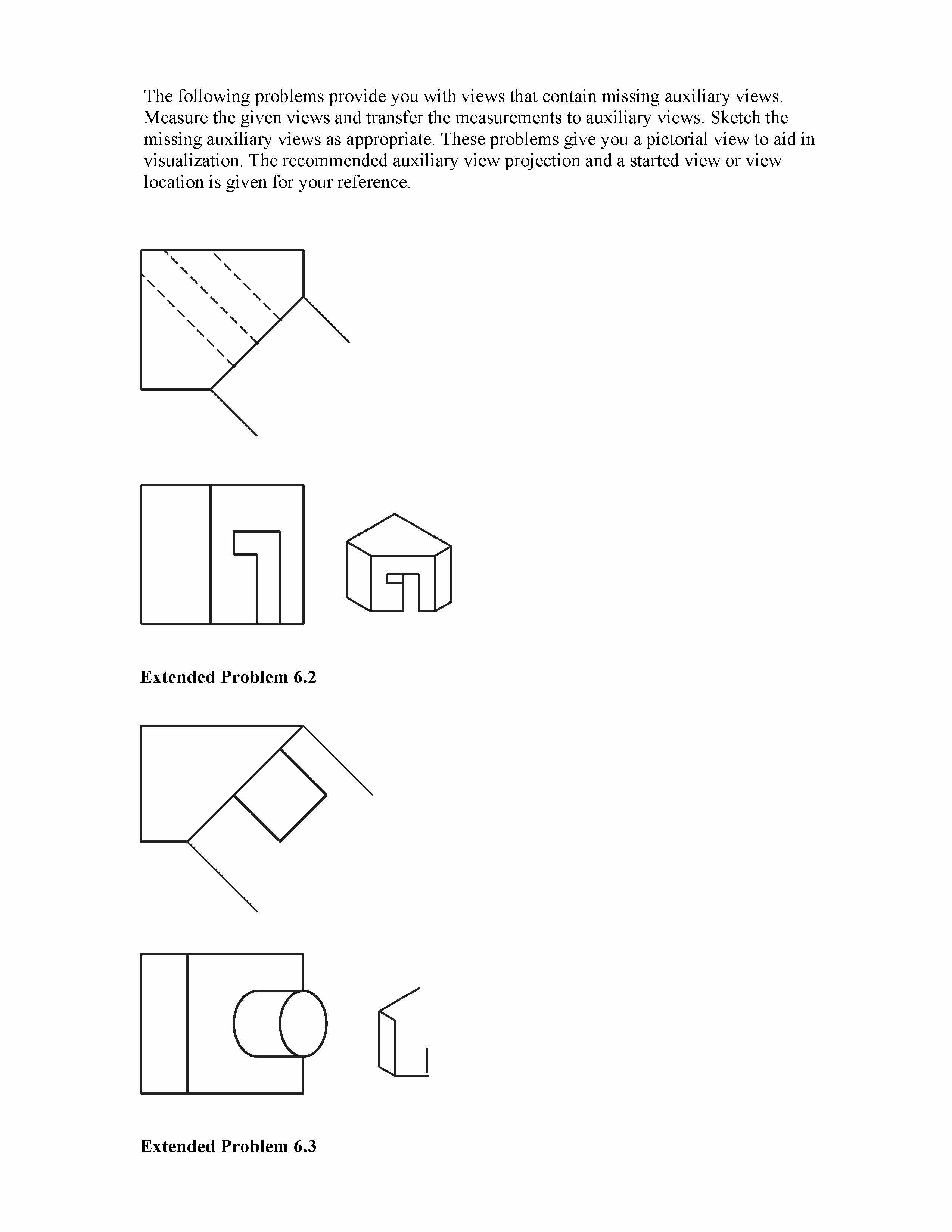

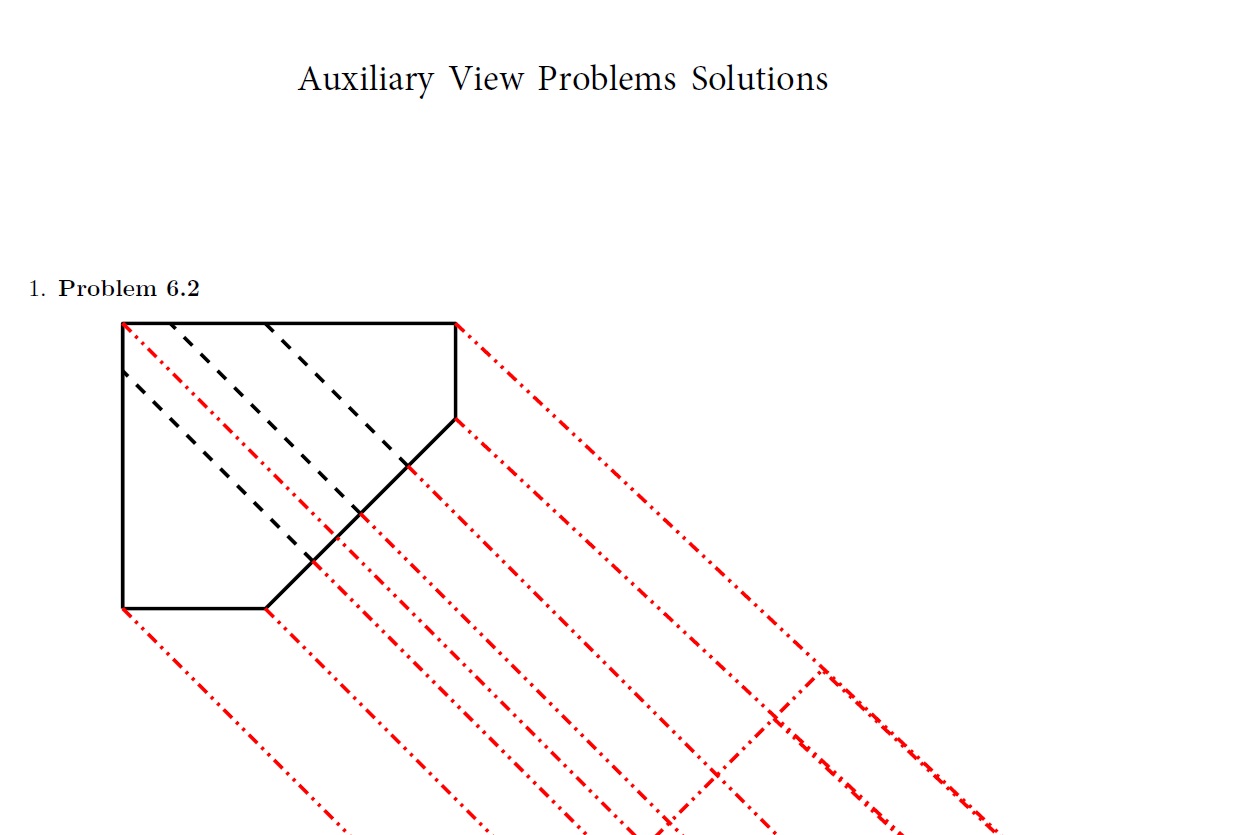

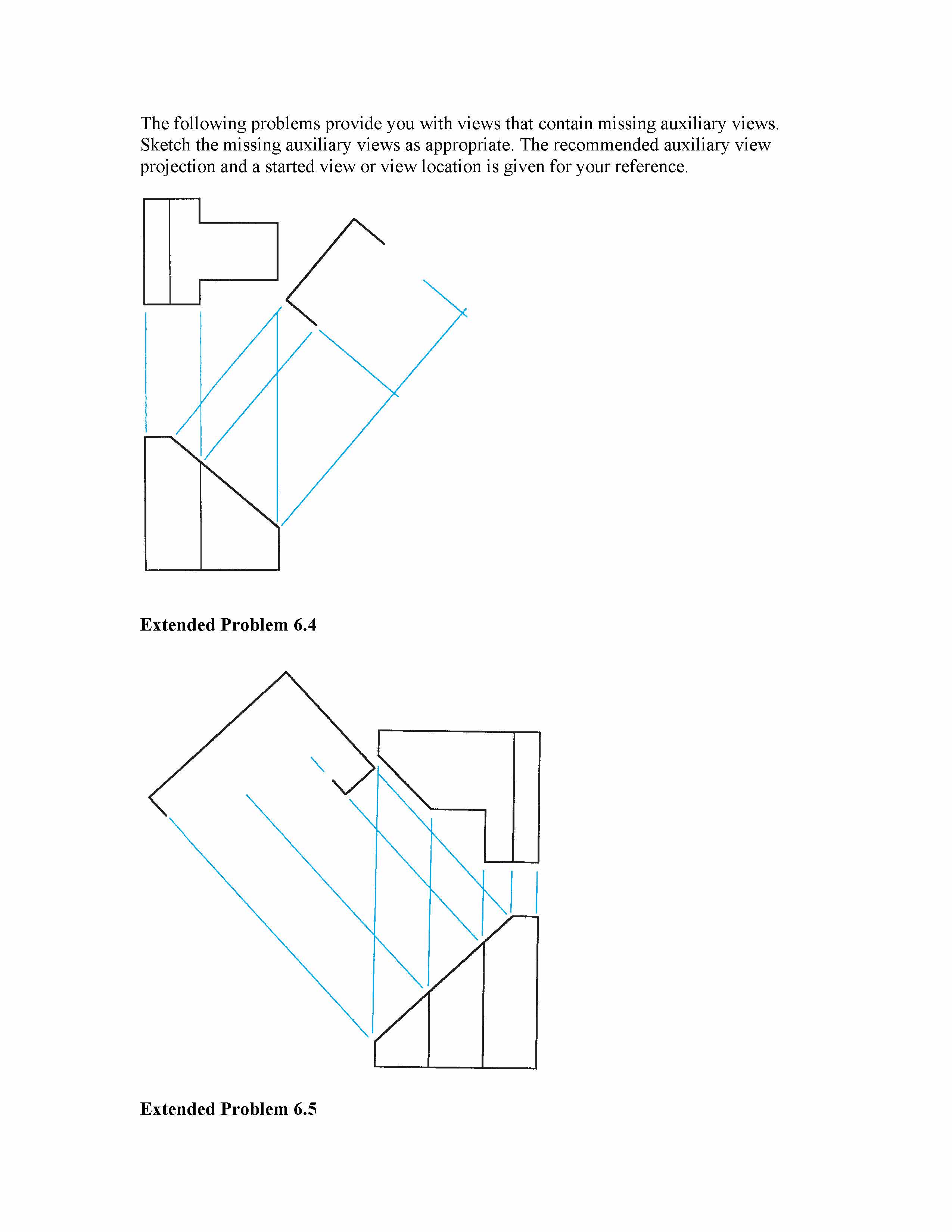

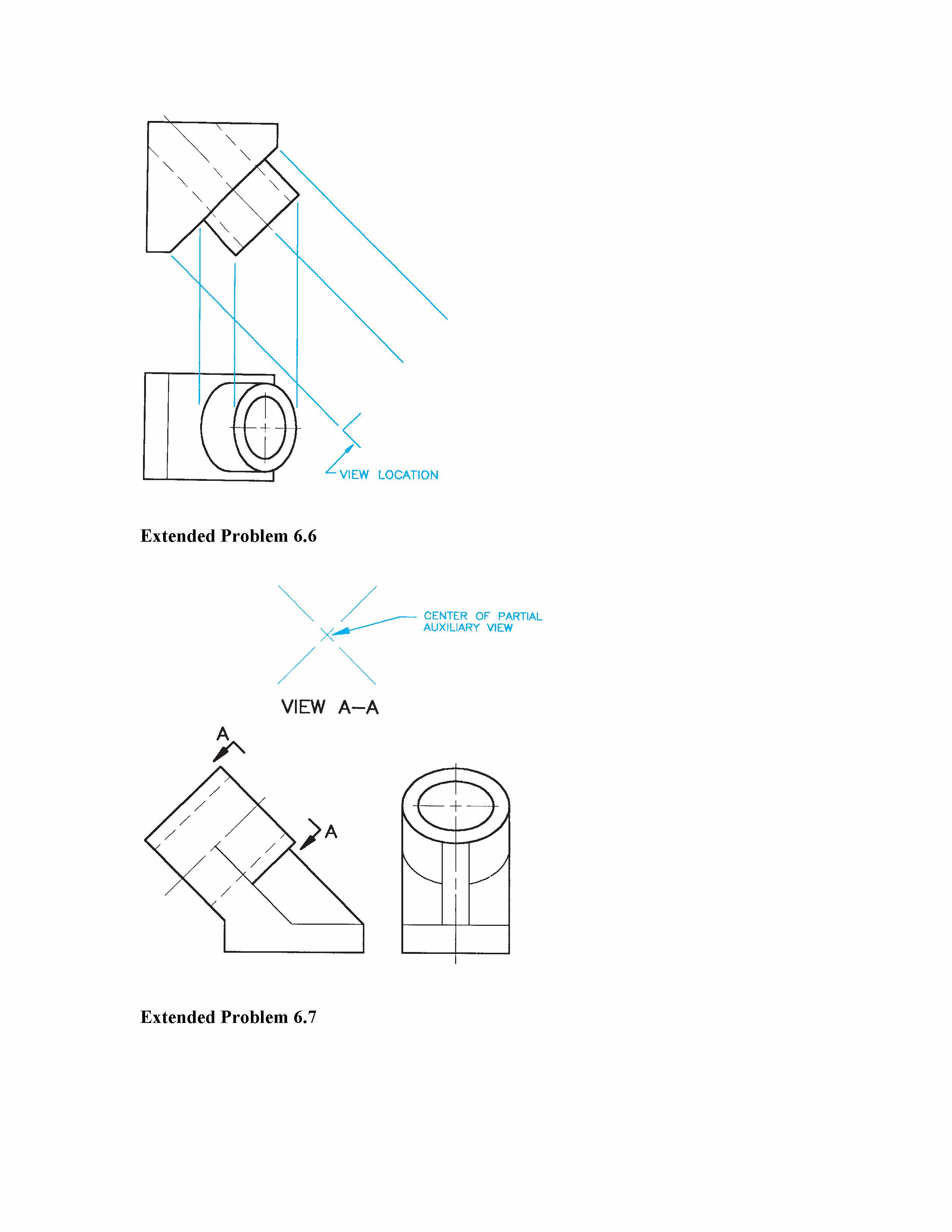

Extended Problem 6.2 Extended Problem 6.3 The following problems provide you with views that contain missing auxiliary views. Measure the given views and transfer the measurements to auxiliary views. Sketch the missing auxiliary views as appropriate. These problems give you a pictorial view to aid in visualization. The recommended auxiliary view projection and a started view or view location is given for your reference. The following problems provide you with views that contain missing auxiliary views. Sketch the missing auxiliary views as appropriate. The recommended auxiliary view projection and a started view or view location is given for your reference. Extended Problem 6.4 Extended Problem 6.5 Extended Problem 6.6 Extended Problem 6.7
