QuestionQuestion

Transcribed TextTranscribed Text

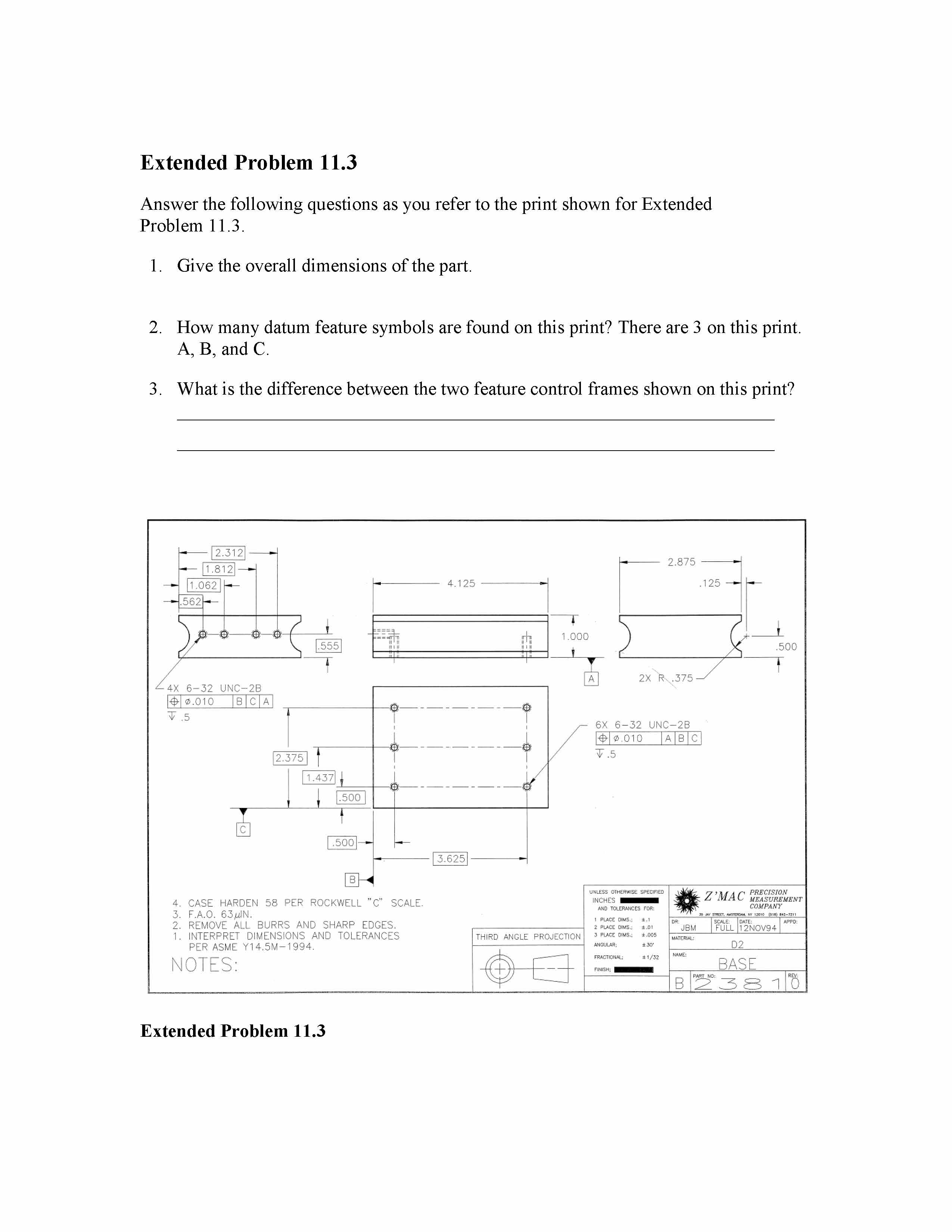

Extended Problem 11.3 Answer the following questions as you refer to the print shown for Extended Problem 11.3. 1. Give the overall dimensions of the part. 2. How many datum feature symbols are found on this print? There are 3 on this print. A, B, and C. 3. What is the difference between the two feature control frames shown on this print? ________________________________________________________________ ________________________________________________________________ Extended Problem 11.3 Extended Problem 11.5 Answer the following questions as you refer to the print shown for Extended Problem 11.5. 1. Give the overall dimensions of the part. ________________________________________________________________ 2. Explain the meaning of datum feature symbol B. ________________________________________________________________ ________________________________________________________________ 3. Interpret the combination feature control frame. ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ 4. What does the note 2 SURFACES mean when placed under the feature control frames described in question 3? ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ 5. Give the limits of the .900 .000 .002 dimension. ________________________________________________________________ ________________________________________________________________ 6. What is the tolerance of the .900 .000 .002 dimension? ________________________________________________________________ ________________________________________________________________ 7. What is the maximum material condition of the .900 .000 .002 dimension? ________________________________________________________________ ________________________________________________________________ 8. Given the following list of actual produced sizes for the .900 + .000/– .002 dimension, determine the geometric tolerance at each produced size. ACTUAL SIZE GEOMETRIC TOLERANCE .898 ________________________ .899 ________________________ .900 ________________________ Extended Problem 11.5

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.
