QuestionQuestion

Transcribed TextTranscribed Text

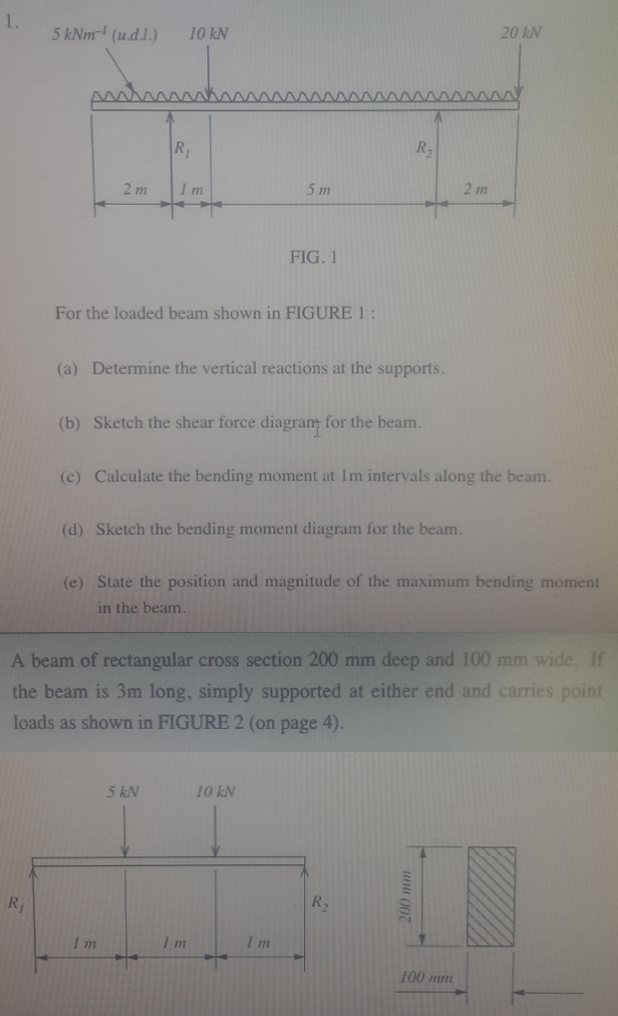

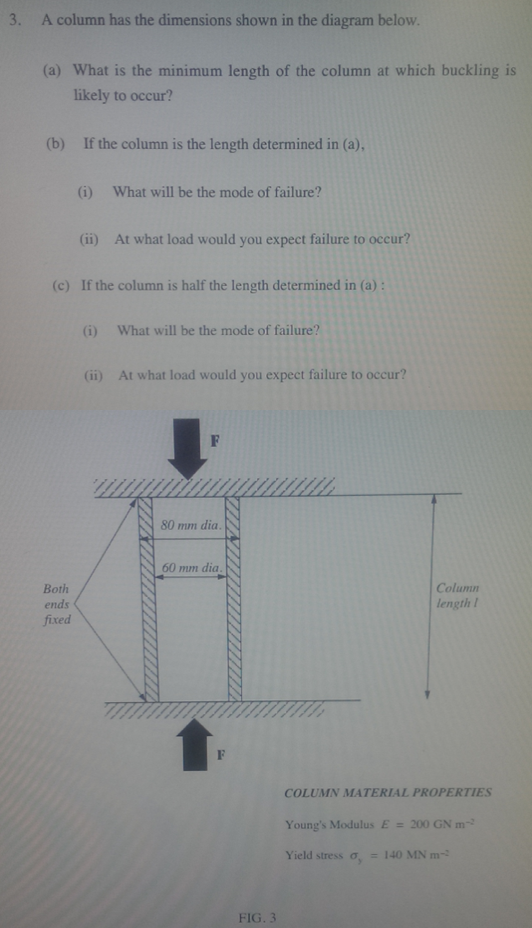

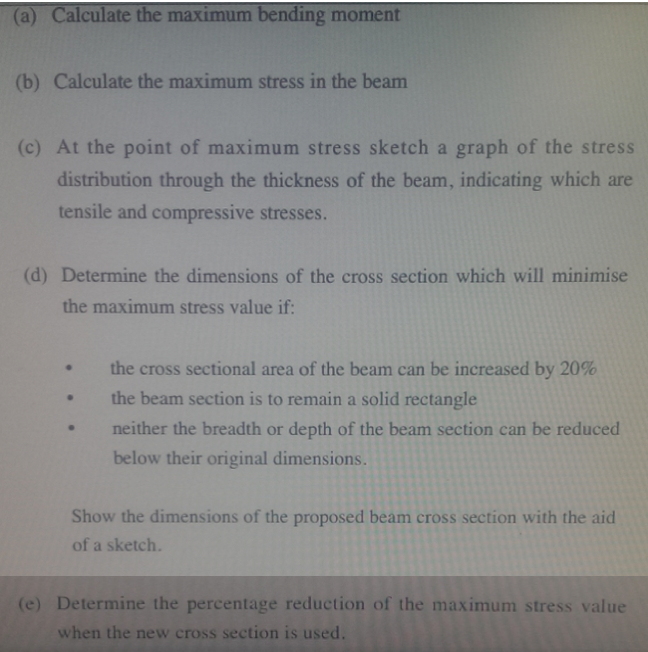

1. 5 kNm~1 (u.d.l. 10kN 20kN R1 R2 2m Im 5m 2m . FIG. 1 For the loaded beam shown in FIGURE 1 : (a) Determine the vertical reactions at the supports. (b) Sketch the shear force diagram for the beam. (c) Calculate the bending moment at Im intervals along the beam. (d) Sketch the bending moment diagram for the beam. (e) State the position and magnitude of the maximum bending moment in the beam. A beam of rectangular cross section 200 mm deep and 100 mm wide. If the beam is 3m long, simply supported at either end and carries point loads as shown in FIGURE 2 (on page 4). 5 kN 10 kN R1 R2 Im Im Im 100 num (a) Calculate the maximum bending moment (b) Calculate the maximum stress in the beam (c) At the point of maximum stress sketch a graph of the stress distribution through the thickness of the beam, indicating which are tensile and compressive stresses. (d) Determine the dimensions of the cross section which will minimise the maximum stress value if: the cross sectional area of the beam can be increased by 20% the beam section is to remain a solid rectangle neither the breadth or depth of the beam section can be reduced below their original dimensions. Show the dimensions of the proposed beam cross section with the aid of a sketch. (e) Determine the percentage reduction of the maximum stress value when the new cross section is used. 3. A column has the dimensions shown in the diagram below. (a) What is the minimum length of the column at which buckling is likely to occur? (b) If the column is the length determined in (a), (i) What will be the mode of failure? (ii) At what load would you expect failure to occur? (c) If the column is half the length determined in (a) : (i) What will be the mode of failure? (ii) At what load would you expect failure to occur? 80 mm dia. 60 mm dia. Both Column ends length 1 fixed F COLUMN MATERIAL PROPERTIES Young's Modulus E = 200 GN m² Yield stress o, = 140 MN m-2 FIG. 3

Solution PreviewSolution Preview

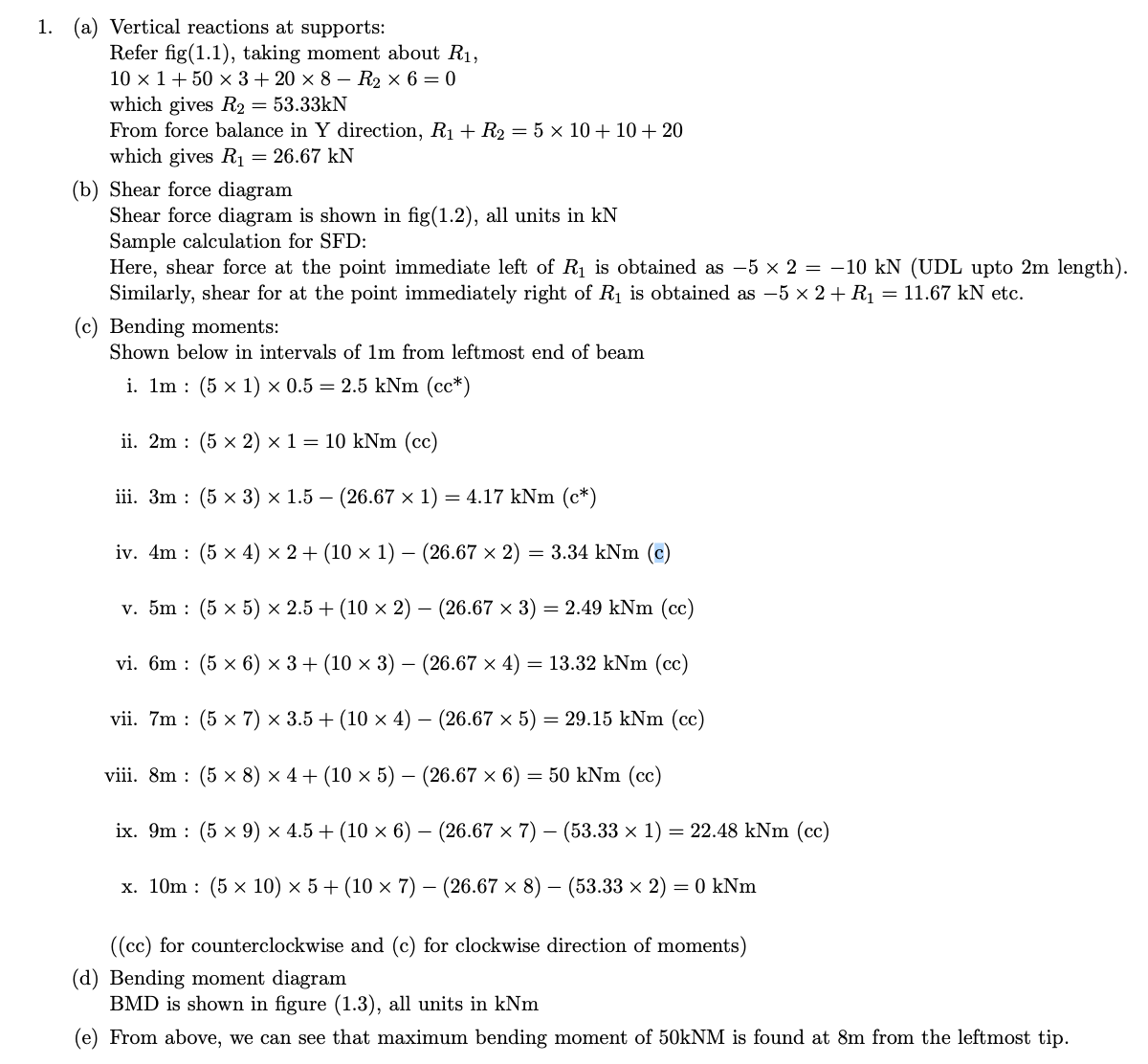

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.
