 # Problem 1: A quarter-bridge resistance strain gauge circuit is goi...

## Question

Show transcribed text

## Transcribed Text

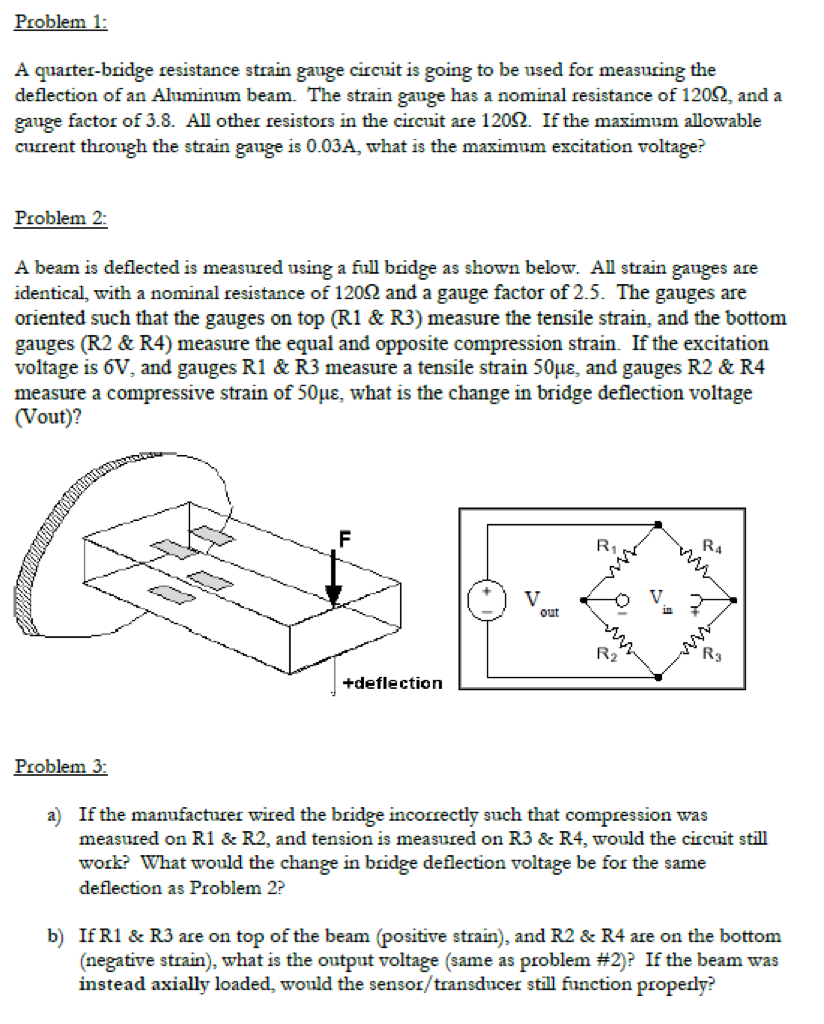

Problem 1: A quarter-bridge resistance strain gauge circuit is going to be used for measuring the deflection of an Aluminum beam. The strain gauge has a nominal resistance of 12092, and a gauge factor of 3.8. All other resistors in the circuit are 12092. If the maximum allowable current through the strain gauge is 0.03A, what is the maximum excitation voltage? Problem 2: A beam is deflected is measured using a full bridge as shown below. All strain gauges are identical, with a nominal resistance of 12092 and a gauge factor of 2.5. The gauges are oriented such that the gauges on top (R1 & R3) measure the tensile strain, and the bottom gauges (R2 & R4) measure the equal and opposite compression strain. If the excitation voltage is 6V, and gauges R1 & R3 measure a tensile strain 50s, and gauges R2 & R4 measure a compressive strain of 50e, what is the change in bridge deflection voltage (Vout)? F R1 R4 + V O V - out - in ? R2 +deflection Problem 3: a) If the manufacturer wired the bridge incorrectly such that compression was measured on R1 & R2, and tension is measured on R3 & R4, would the circuit still work? What would the change in bridge deflection voltage be for the same deflection as Problem 2? b) If R1 & R3 are on top of the beam (positive strain), and R2 & R4 are on the bottom (negative strain), what is the output voltage (same as problem #2)? If the beam was instead axially loaded, would the sensor/transducer still function properly? Problem #4 Given the following information, estimate the modulus of elasticity of the beam material and the uncertainty in your estimate. You must use propagation of uncertainty (partials or relative uncertainty equation) to estimate the uncertainty. Note: the beam is fixed on the left hand side. Load - Distance from load to center of strain gauge: 9.6 + 0.2 cm - Applied load: 16.2 0.25 N - Nominal resistance of gauge and resistors: 350 Ohms R4 - Input Voltage: 5V 0.0 - Beam width: 2.5 +1 0.05 cm - Beam thickness: 0.5 0.05 cm - Amplification gain (from AD623): 834 0.0 - Measured Voltage (assume no bias): 0.481V + 0.05V - Gage factor: 2.1 0.0

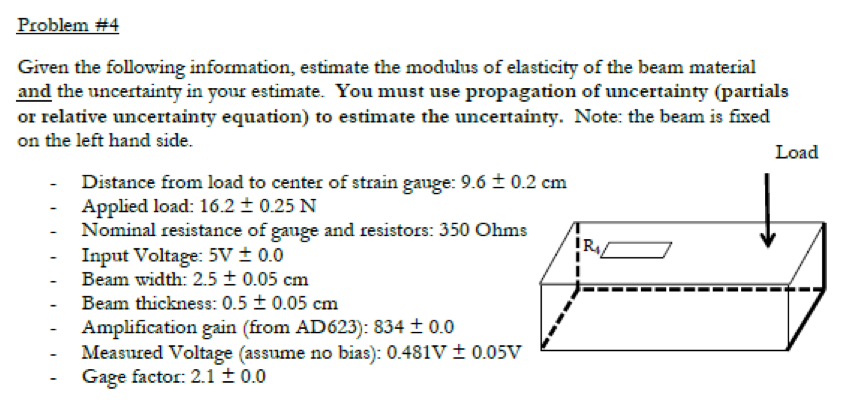

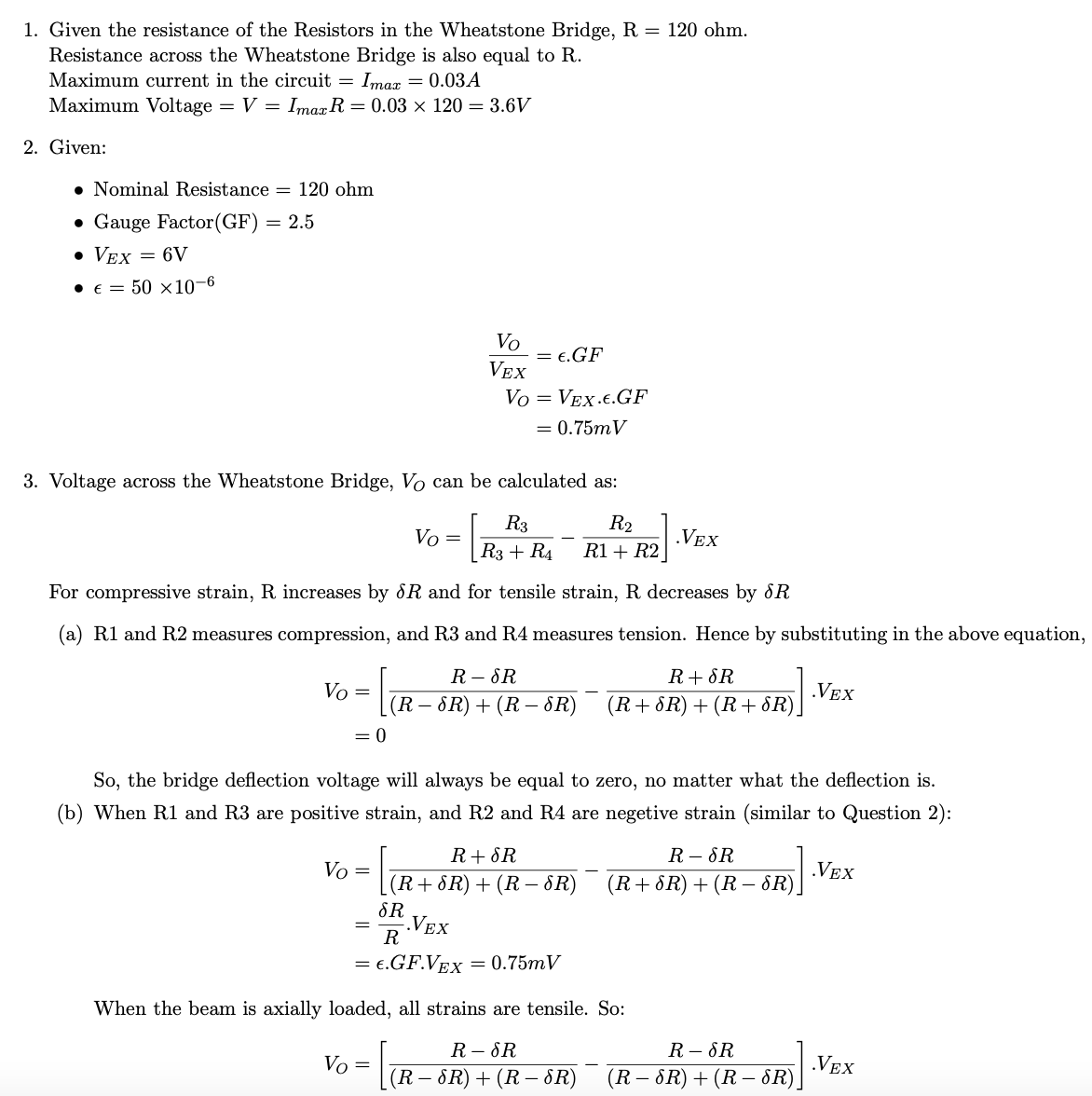

## Solution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

By purchasing this solution you'll be able to access the following files:
Solution.pdf.
