QuestionQuestion

Transcribed TextTranscribed Text

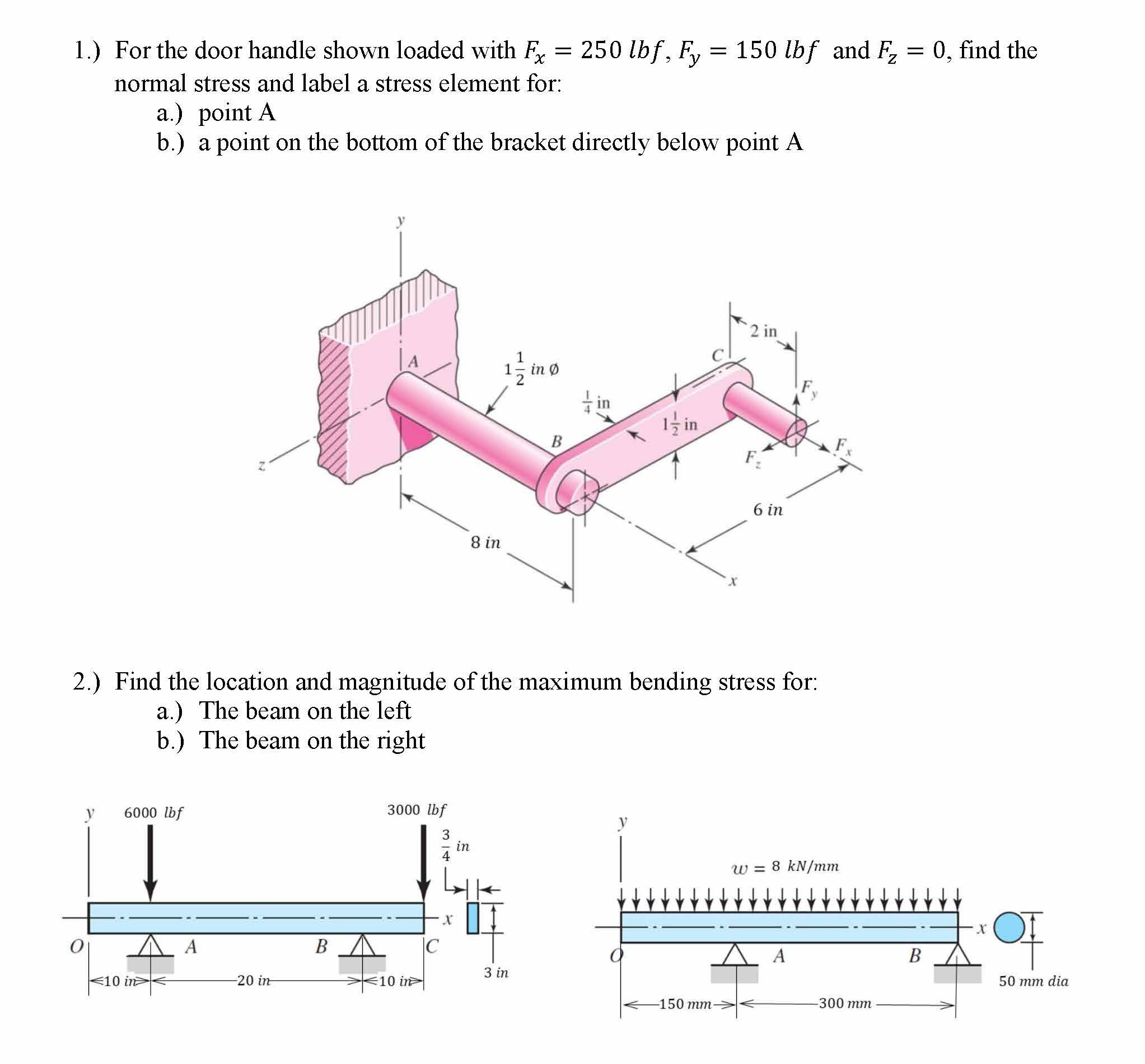

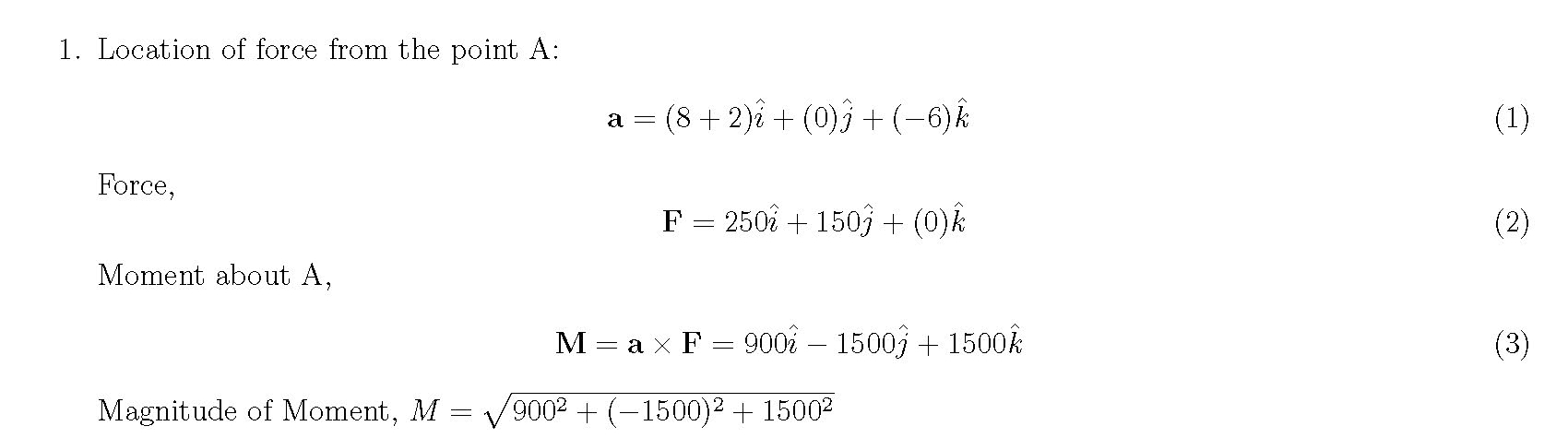

1.) For the door handle shown loaded with Fx - 250lbf, R, - and F2 - 0, find the normal stress and label a stress element for: a.) point A b.) a point on the bottom of the bracket directly below point A 2 in in F, 6in 8in 2.) Find the location and magnitude of the maximum bending stress for: a.) The beam on the left b.) The beam on the right y 6000 lof 3000 abf is W = - - x I A B C A B -10 in 20 in 3 is 10 ap 50 rese dia - 150xue 300 mm
