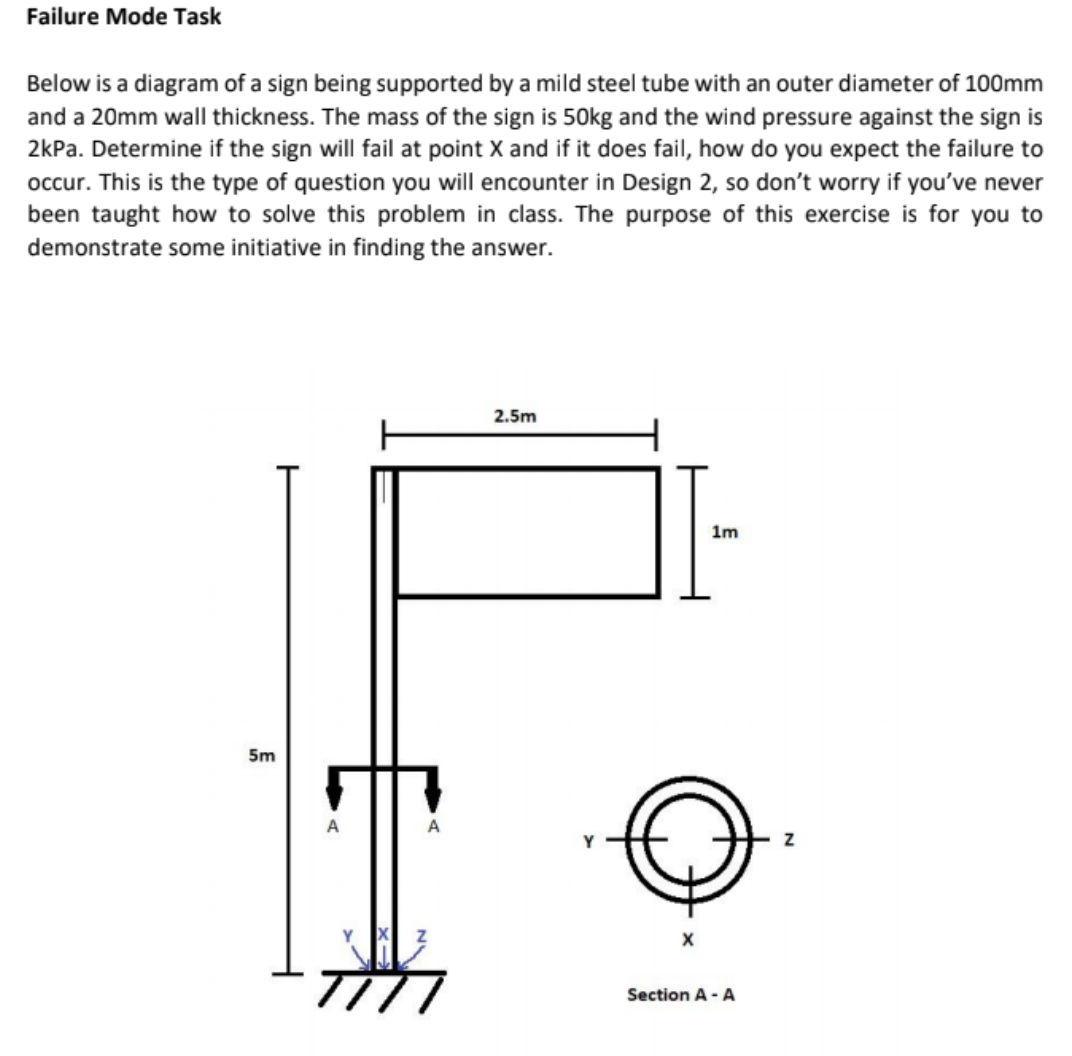

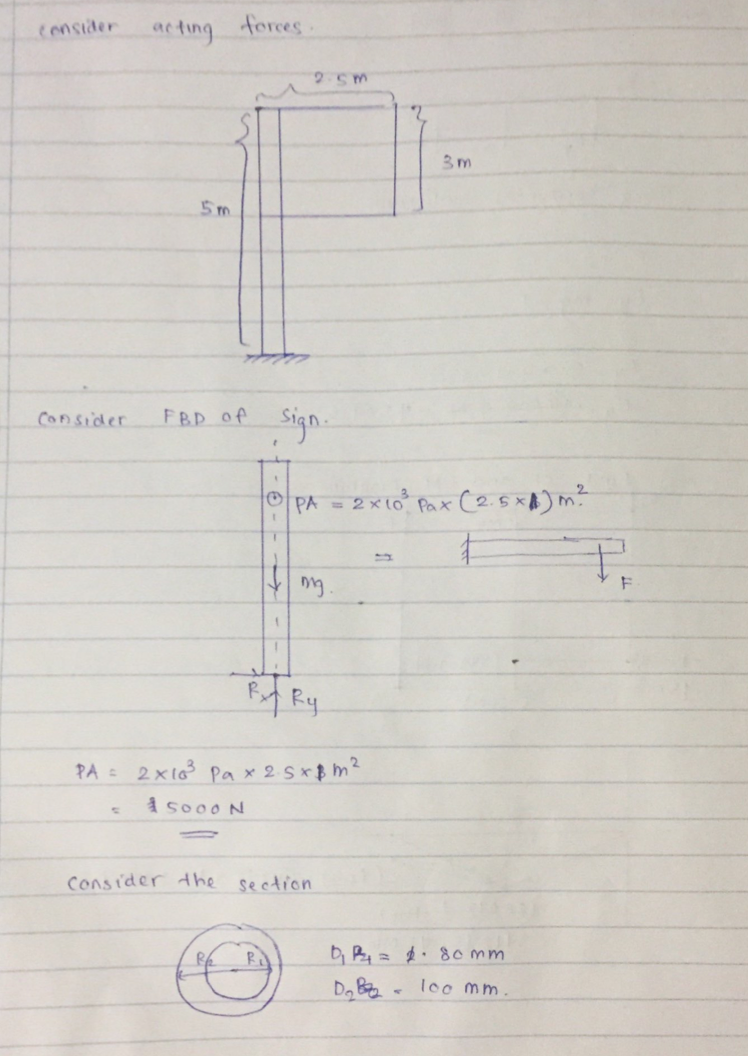

Failure Mode Task Below is a diagram of a sign being supported by a mild steel tube with an outer diameter of 100mm and a 20mm wall thickness. The mass of the sign is 50kg and the wind pressure against the sign is 2kPa. Determine if the sign will fail at point X and if it does fail, how do you expect the failure to occur. This is the type of question you will encounter in Design 2, so don't worry if you've never been taught how to solve this problem in class. The purpose of this exercise is for you to demonstrate some initiative in finding the answer. 2.5m 1m 5m A A Y Z Y X Z X Section A - A
