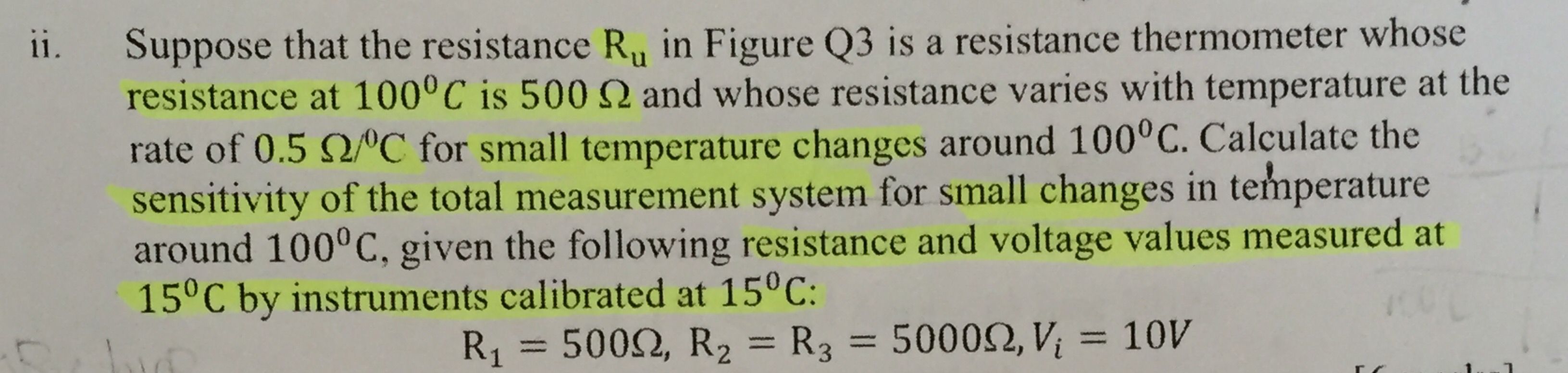

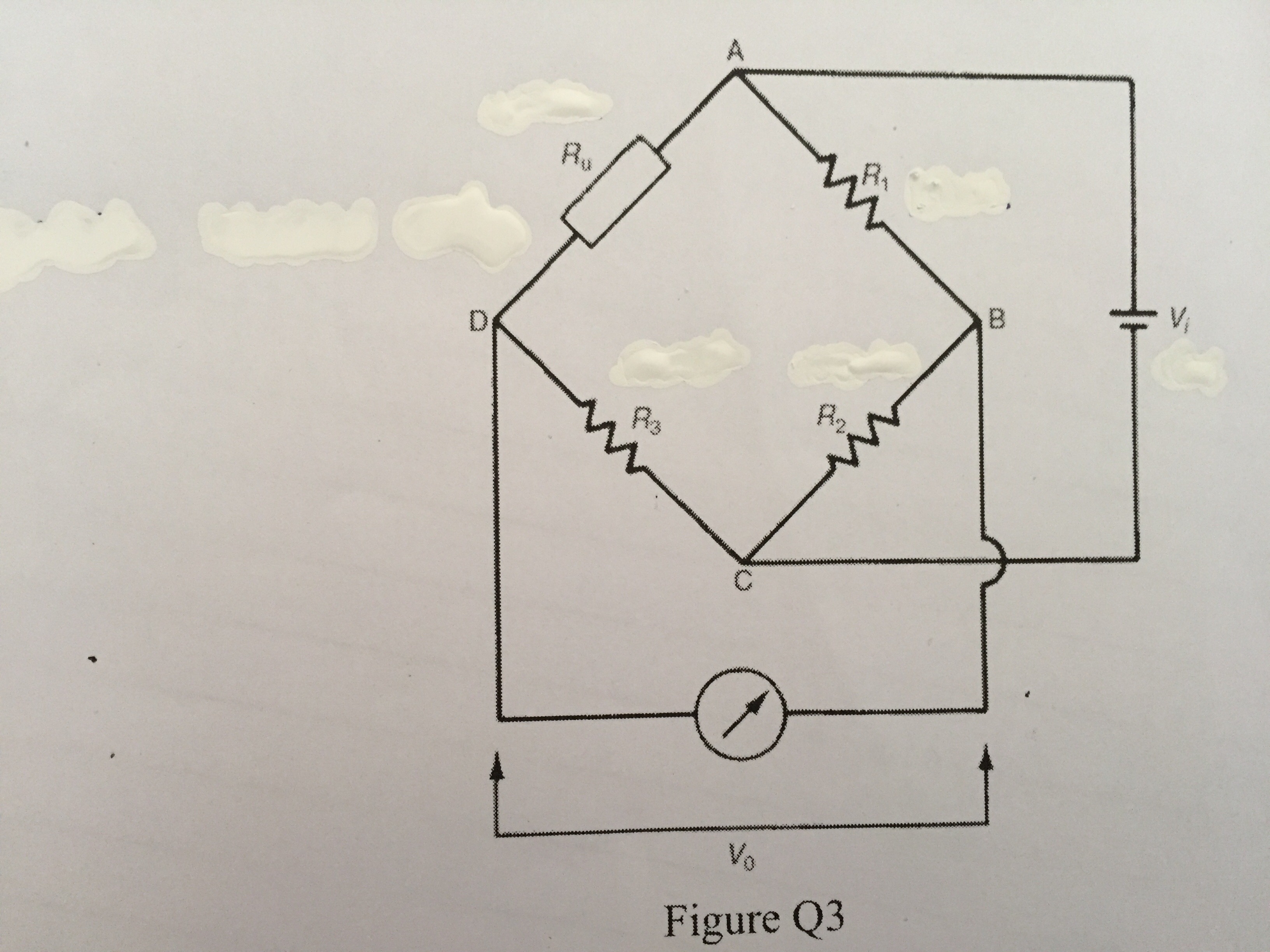

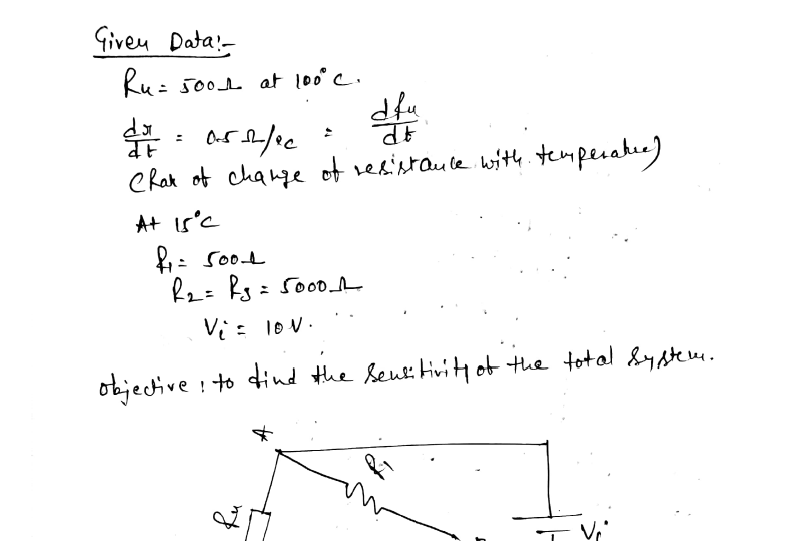

11. Suppose that the resistance Ru in Figure Q3 is a resistance thermometer whose resistance at 100° C is 500 Q and whose resistance varies with temperature at the rate of 0.5 2/°C for small temperature changes around 100°C. Calculate the sensitivity of the total measurement system for small changes in temperature around 100° C, given the following resistance and voltage values measured at 15°C by instruments calibrated at 15° C: Lick R1 = 5002, R2 = R3 = 500002, Vi = 10V
