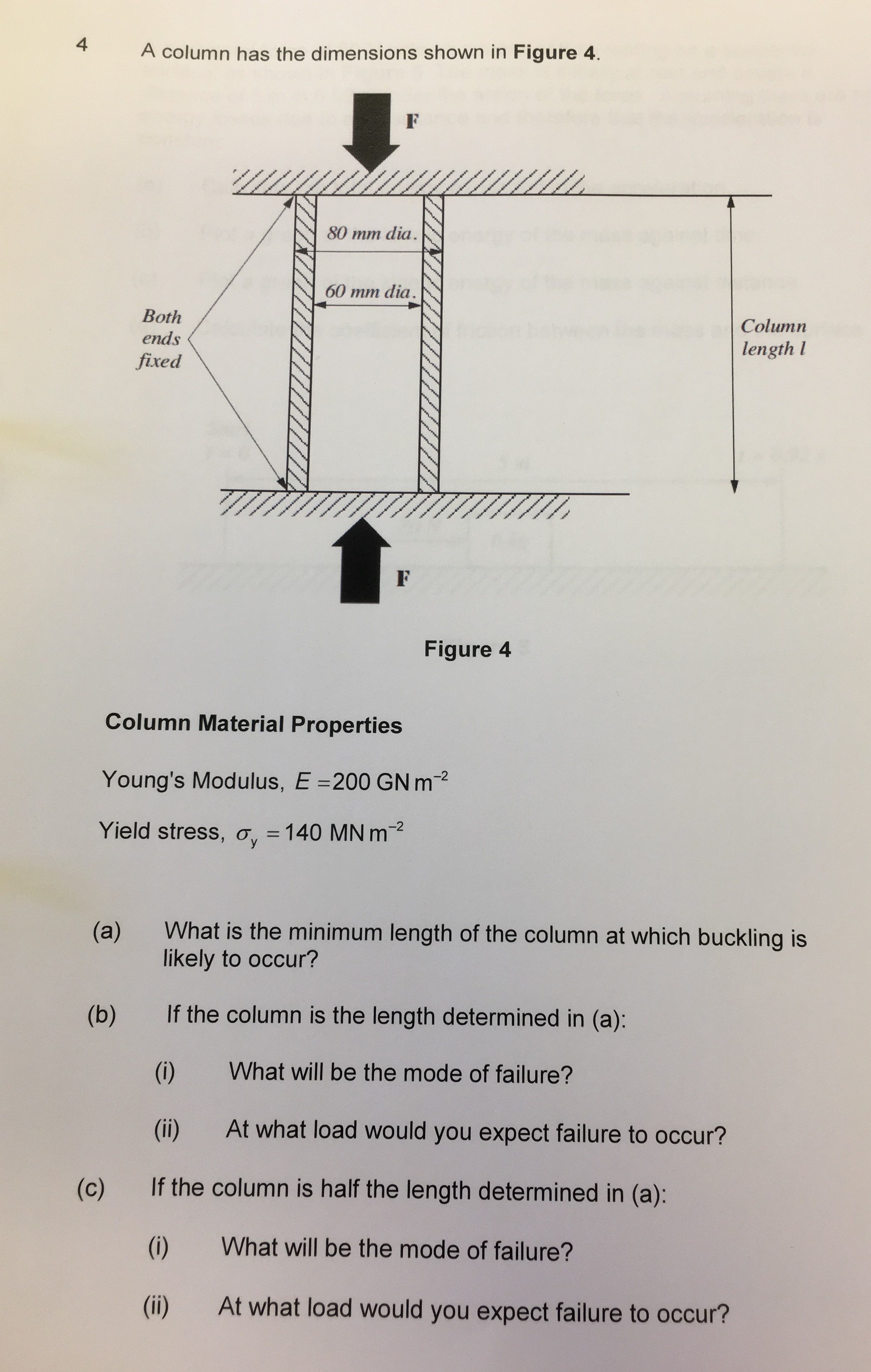

4 A column has the dimensions shown in Figure 4. 80 mm dia. 60 mm dia. Both Column ends fixed length l F Figure 4 Column Material Properties Young's Modulus, Yield stress, Fy = 140 MN m=² (a) What is the minimum length of the column at which buckling is likely to occur? (b) If the column is the length determined in (a): (i) What will be the mode of failure? (ii) At what load would you expect failure to occur? (c) If the column is half the length determined in (a): (i) What will be the mode of failure? (ii) At what load would you expect failure to occur?

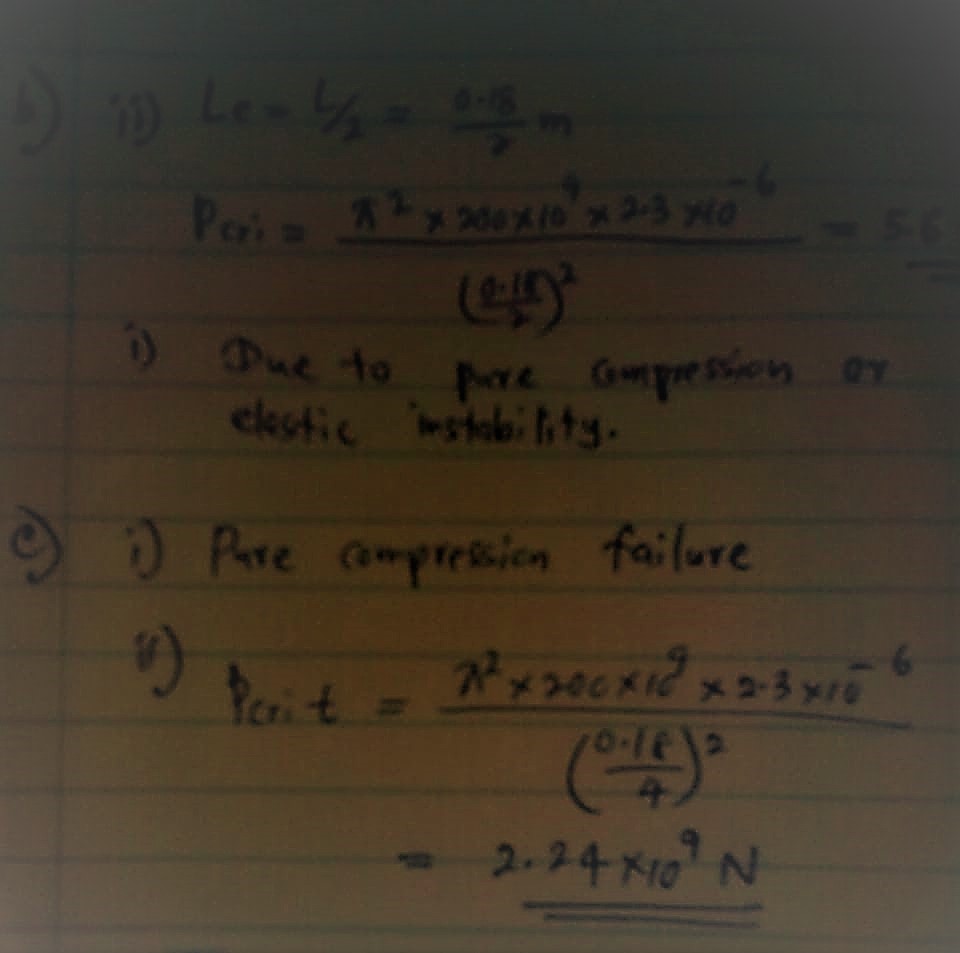

Solution PreviewSolution Preview

This material may consist of step-by-step explanations on how to solve a problem or examples of proper writing, including the use of citations, references, bibliographies, and formatting. This material is made available for the sole purpose of studying and learning - misuse is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.
