QuestionQuestion

Transcribed TextTranscribed Text

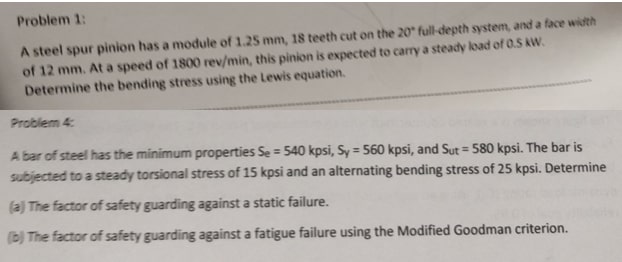

Problem 1: has a module of 1.25 mm, 18 teeth cut on the 20° full-depth load system, of 0.5 and kW. a face width A of steel 12 mm. spur At pinion a speed of 1800 rev/min, this pinion is expected to carry a steady Determine the bending stress using the Lewis equation. Problem 4: A bar of steel has the minimum properties Se = 540 kpsi, Sy = 560 kpsi, and Sut = 580 kpsi. The bar is subjected to a steady torsional stress of 15 kpsi and an alternating bending stress of 25 kpsi. Determine (a) The factor of safety guarding against a static failure. (b) The factor of safety guarding against a fatigue failure using the Modified Goodman criterion.

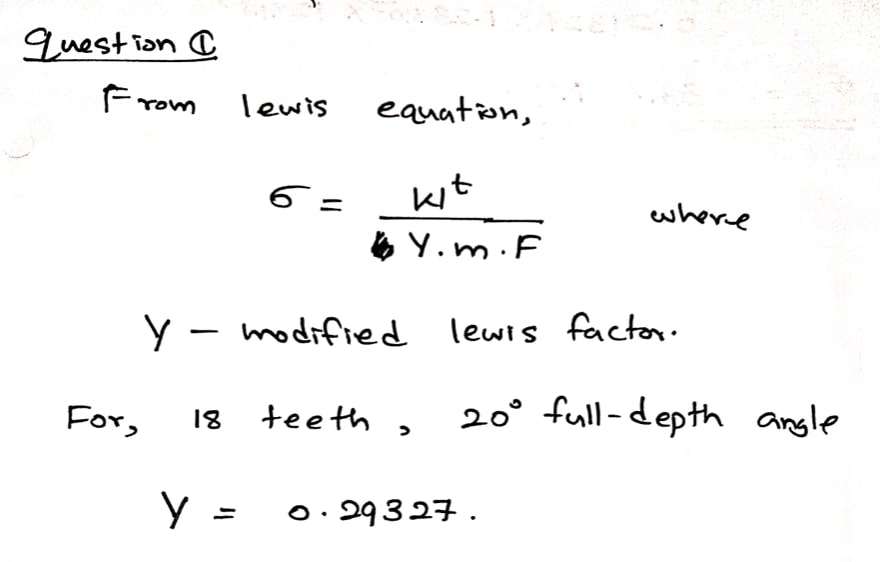

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.pdf.

    $60.00
    for this solution

    PayPal, G Pay, ApplePay, Amazon Pay, and all major credit cards accepted.
