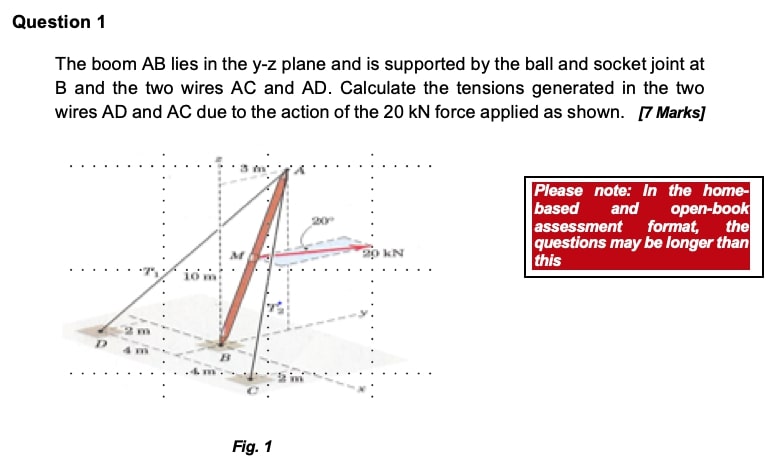

Question 1 The boom AB lies in the y-z plane and is supported by the ball and socket joint at B and the two wires AC and AD. Calculate the tensions generated in the two wires AD and AC due to the action of the 20 kN force applied as shown. [7 Marks] a m A Please note: In the home- based and open-book 20° assessment format, the questions may be longer than M 20kN this iom TS 2 ma D 4 m B 4. m a in o Fig. 1

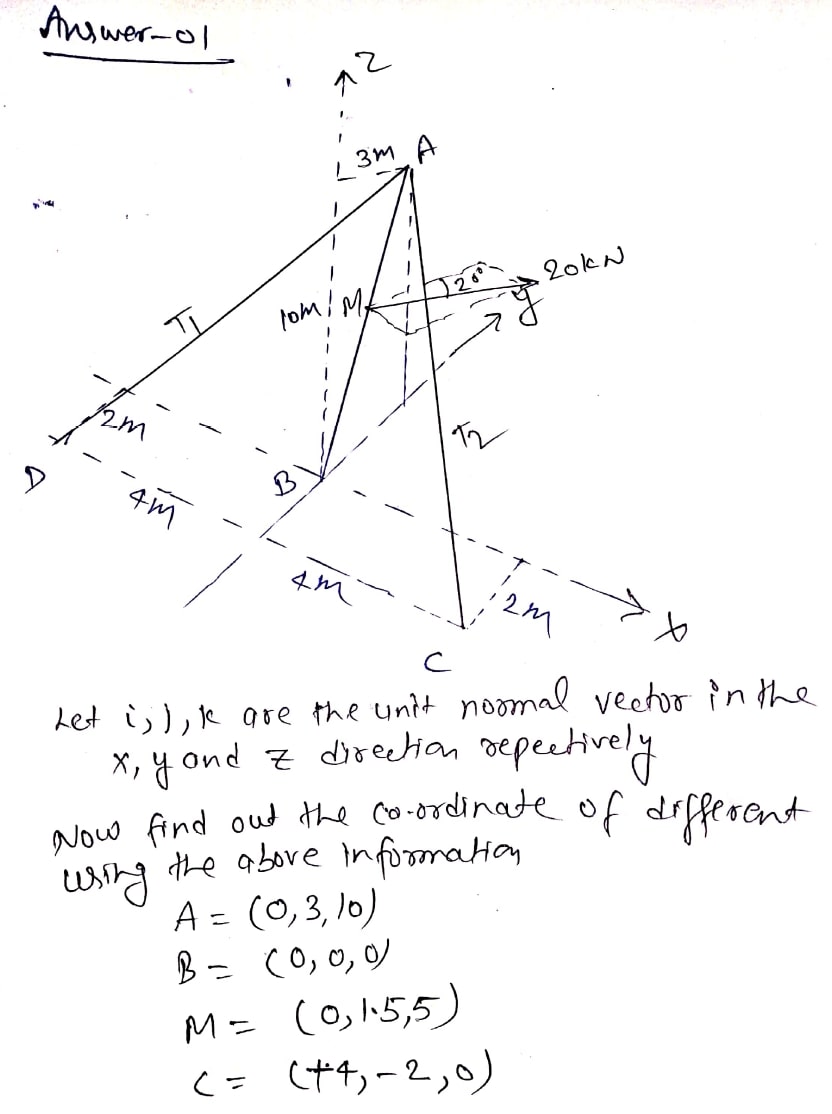

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.
