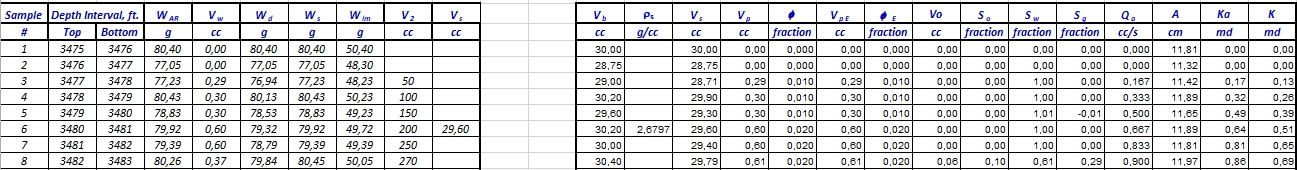

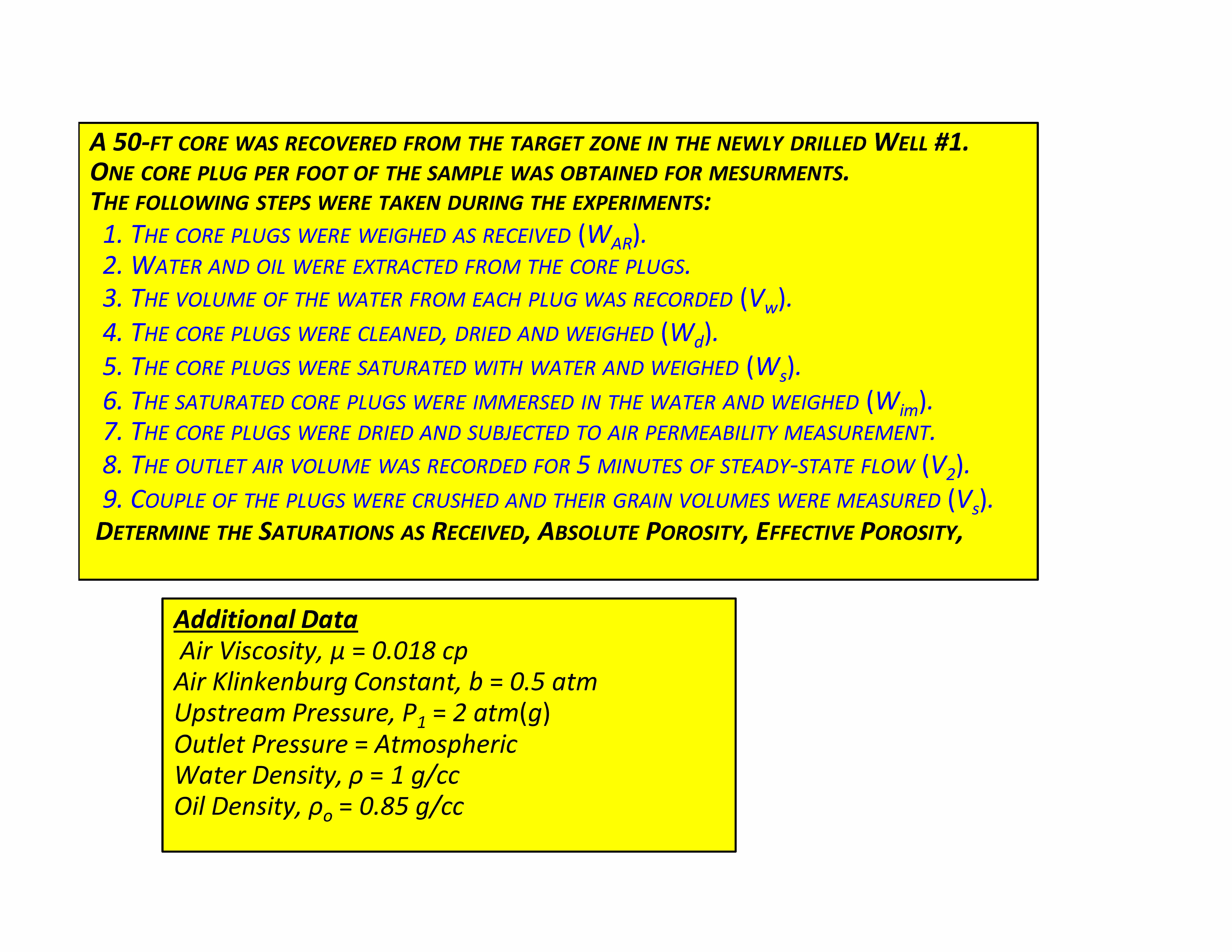

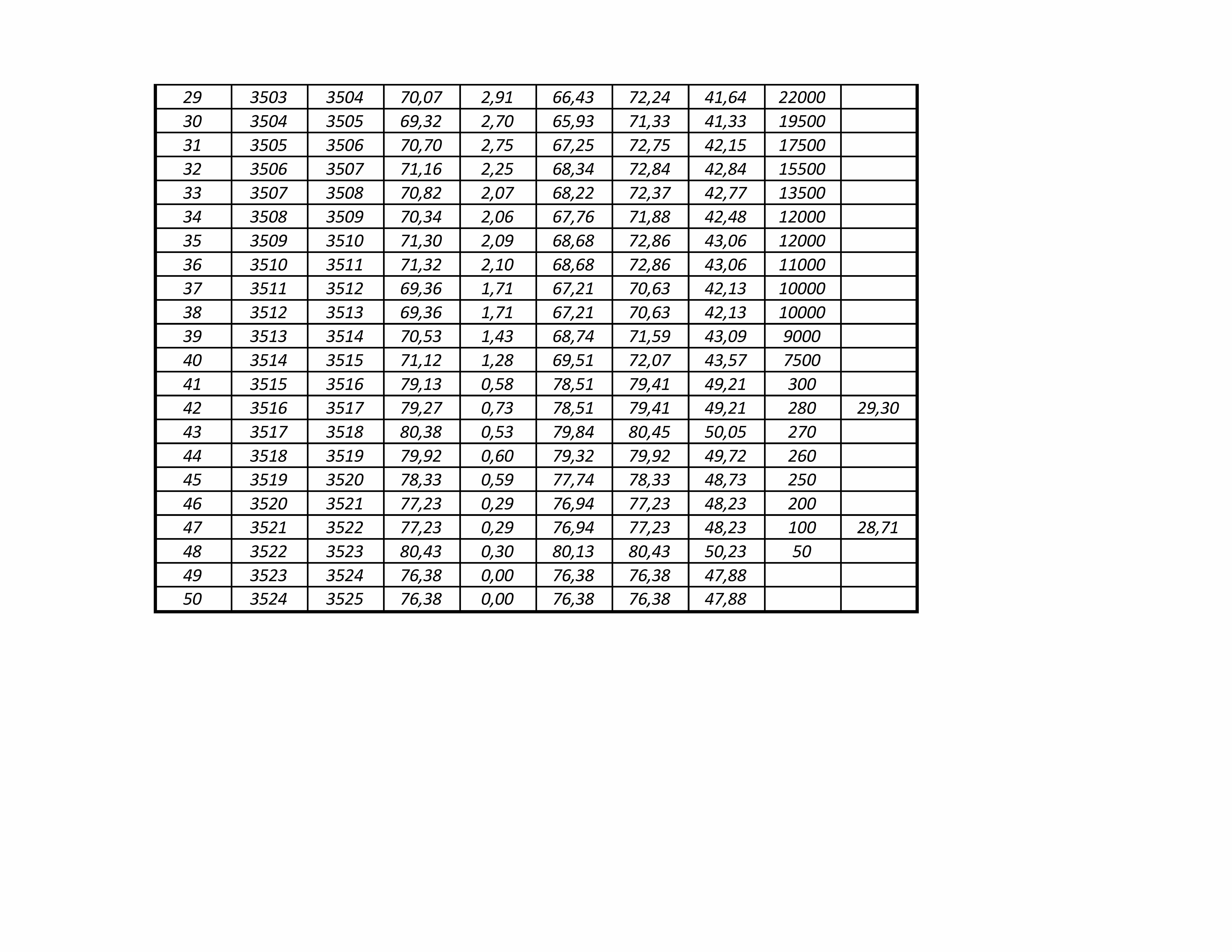

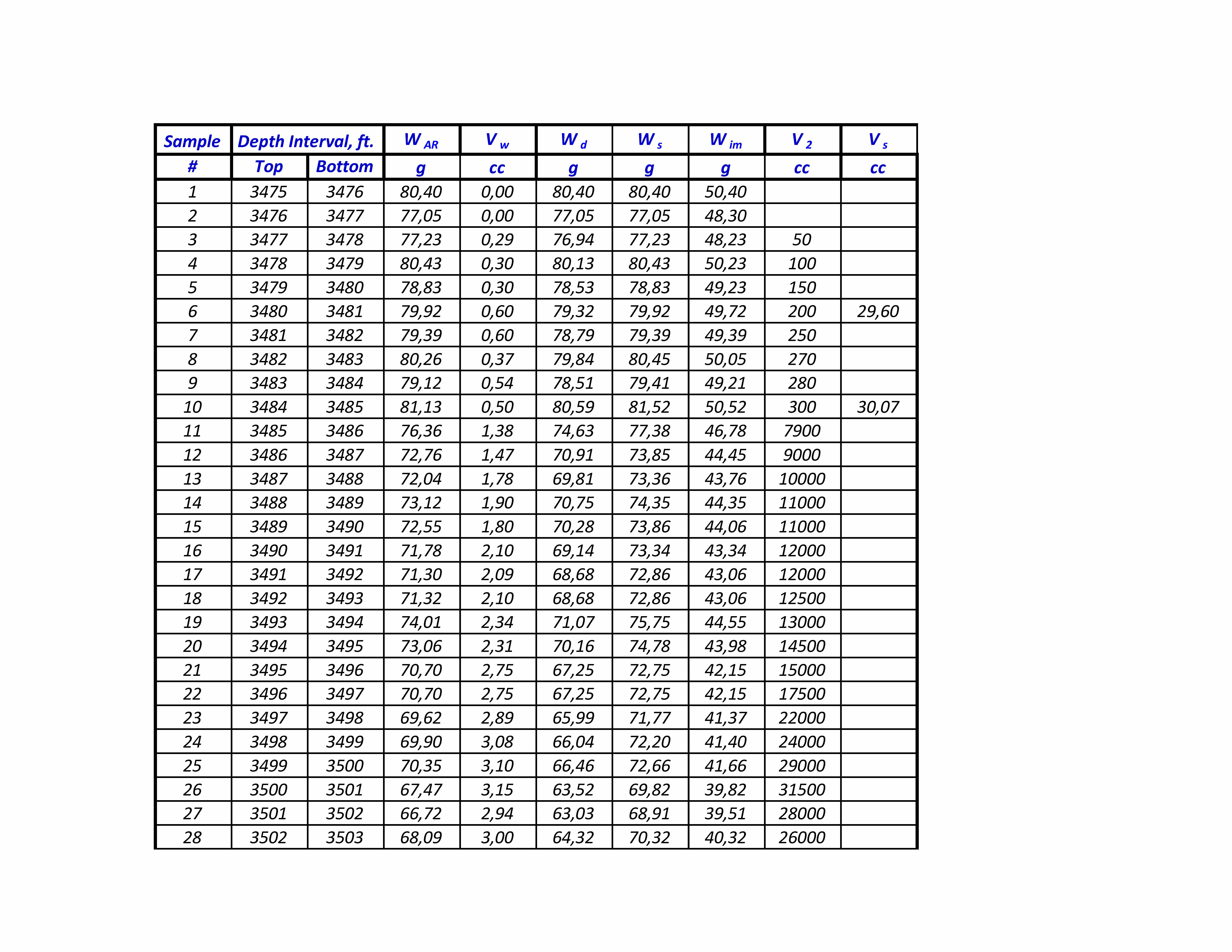

A 50-FT CORE WAS RECOVERED FROM THE TARGET ZONE IN THE NEWLY DRILLED WELL #1. One CORE PLUG PER FOOT OF THE SAMPLE WAS OBTAINED FOR MESURMENTS. THE FOLLOWING STEPS WERE TAKEN DURING THE EXPERIMENTS: 1. THE CORE PLUGS WERE WEIGHED AS RECEIVED (WAR). 2. WATER AND OIL WERE EXTRACTED FROM THE CORE PLUGS. 3. THE VOLUME OF THE WATER FROM EACH PLUG WAS RECORDED (Vw). 4. THE CORE PLUGS WERE CLEANED, DRIED AND WEIGHED (Wd). 5. THE CORE PLUGS WERE SATURATED WITH WATER AND WEIGHED (Ws). 6. THE SATURATED CORE PLUGS WERE IMMERSED IN THE WATER AND WEIGHED (Wim). 7. THE CORE PLUGS WERE DRIED AND SUBJECTED TO AIR PERMEABILITY MEASUREMENT. 8. THE OUTLET AIR VOLUME WAS RECORDED FOR 5 MINUTES OF STEADY-STATE FLOW (V2. 9. COUPLE OF THE PLUGS WERE CRUSHED AND THEIR GRAIN VOLUMES WERE MEASURED (Vs). DETERMINE THE SATURATIONS AS RECEIVED, ABSOLUTE POROSITY, EFFECTIVE POROSITY, Additional Data Air Viscosity, = 0.018 c, Air Klinkenburg Constant, b = 0.5atm Upstream Pressure, P1 = 2 atm(g) Outlet Pressure = Atmospheric Water Density, p = 1 g/cc Oil Density, Po = 0.85 g/cc Sample Depth Interval, ft. WAR Vw W. W, Won V2 V, # Top Bottom g cc g g g cc cc 1 3475 3476 80,40 0,00 80,40 80,40 50,40 2 3476 3477 77,05 0,00 77,05 77,05 48,30 3 3477 3478 77,23 0,29 76,94 77,23 48,23 50 4 3478 3479 80,43 0,30 80,13 80,43 50,23 100 5 3479 3480 78,83 0,30 78,53 78,83 49,23 150 6 3480 3481 79,92 0,60 79,32 79,92 49,72 200 29,60 7 3481 3482 79,39 0,60 78,79 79,39 49,39 250 8 3482 3483 80,26 0,37 79,84 80,45 50,05 270 9 3483 3484 79,12 0,54 78,51 79,41 49,21 280 10 3484 3485 81,13 0,50 80,59 81,52 50,52 300 30,07 11 3485 3486 76,36 1,38 74,63 77,38 46,78 7900 12 3486 3487 72,76 1,47 70,91 73,85 44,45 9000 13 3487 3488 72,04 1,78 69,81 73,36 43,76 10000 14 3488 3489 73,12 1,90 70,75 74,35 44,35 11000 15 3489 3490 72,55 1,80 70,28 73,86 44,06 11000 16 3490 3491 71,78 2,10 69,14 73,34 43,34 12000 17 3491 3492 71,30 2,09 68,68 72,86 43,06 12000 18 3492 3493 71,32 2,10 68,68 72,86 43,06 12500 19 3493 3494 74,01 2,34 71,07 75,75 44,55 13000 20 3494 3495 73,06 2,31 70,16 74,78 43,98 14500 21 3495 3496 70,70 2,75 67,25 72,75 42,15 15000 22 3496 3497 70,70 2,75 67,25 72,75 42,15 17500 23 3497 3498 69,62 2,89 65,99 71,77 41,37 22000 24 3498 3499 69,90 3,08 66,04 72,20 41,40 24000 25 3499 3500 70,35 3,10 66,46 72,66 41,66 29000 26 3500 3501 67,47 3,15 63,52 69,82 39,82 31500 27 3501 3502 66,72 2,94 63,03 68,91 39,51 28000 28 3502 3503 68,09 3,00 64,32 70,32 40,32 26000 29 3503 3504 70,07 2,91 66,43 72,24 41,64 22000 30 3504 3505 69,32 2,70 65,93 71,33 41,33 19500 31 3505 3506 70,70 2,75 67,25 72,75 42,15 17500 32 3506 3507 71,16 2,25 68,34 72,84 42,84 15500 33 3507 3508 70,82 2,07 68,22 72,37 42,77 13500 34 3508 3509 70,34 2,06 67,76 71,88 42,48 12000 35 3509 3510 71,30 2,09 68,68 72,86 43,06 12000 36 3510 3511 71,32 2,10 68,68 72,86 43,06 11000 37 3511 3512 69,36 1,71 67,21 70,63 42,13 10000 38 3512 3513 69,36 1,71 67,21 70,63 42,13 10000 39 3513 3514 70,53 1,43 68,74 71,59 43,09 9000 40 3514 3515 71,12 1,28 69,51 72,07 43,57 7500 41 3515 3516 79,13 0,58 78,51 79,41 49,21 300 42 3516 3517 79,27 0,73 78,51 79,41 49,21 280 29,30 43 3517 3518 80,38 0,53 79,84 80,45 50,05 270 44 3518 3519 79,92 0,60 79,32 79,92 49,72 260 45 3519 3520 78,33 0,59 77,74 78,33 48,73 250 46 3520 3521 77,23 0,29 76,94 77,23 48,23 200 47 3521 3522 77,23 0,29 76,94 77,23 48,23 100 28,71 48 3522 3523 80,43 0,30 80,13 80,43 50,23 50 49 3523 3524 76,38 0,00 76,38 76,38 47,88 50 3524 3525 76,38 0,00 76,38 76,38 47,88
