QuestionQuestion

Transcribed TextTranscribed Text

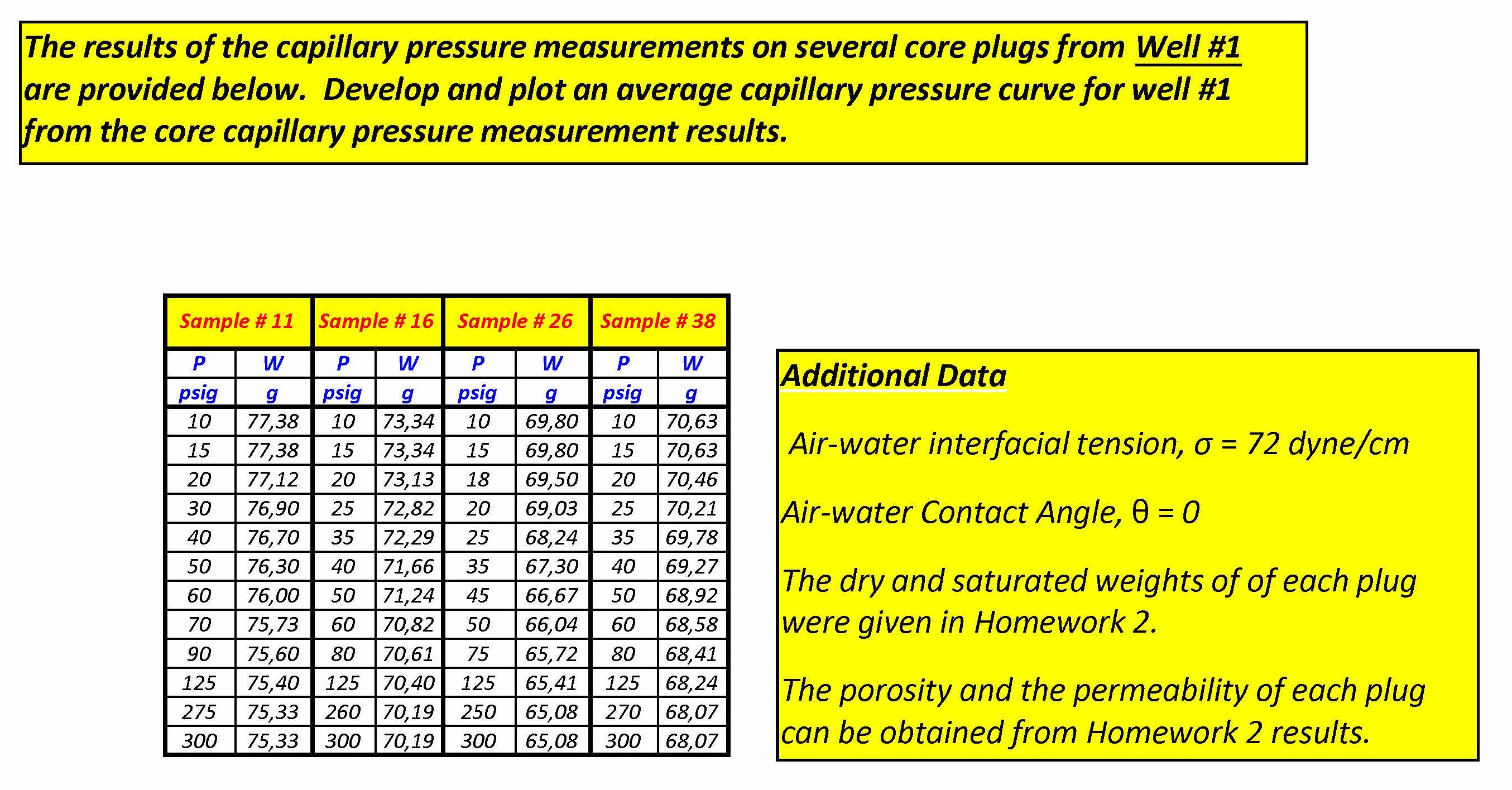

The results of the capillary pressure measurements on several core plugs from Well #1 are provided below. Develop and plot an average capillary pressure curve for well #1 from the core capillary pressure measurement results. Sample # 11 Sample # 16 Sample #26 Sample # 38 P w P W P w P W Additional Data psig 9 psig g psig g psig g 10 77,38 10 73,34 10 69,80 10 70,63 15 77,38 15 73,34 15 69,80 15 70,63 Air-water interfacial tension, O = 72 dyne/cm 20 77,12 20 73,13 18 69,50 20 70,46 30 76,90 25 72,82 20 69,03 25 70,21 Air-water Contact Angle, 0 = 0 40 76,70 35 72,29 25 68,24 35 69,78 50 76,30 40 71,66 35 67,30 40 69,27 60 76,00 50 71,24 45 66,67 50 68,92 The dry and saturated weights of of each plug 70 75,73 60 70,82 50 66,04 60 68,58 were given in Homework 2. 90 75,60 80 70,61 75 65,72 80 68,41 125 75,40 125 70,40 125 65,41 125 68,24 The porosity and the permeability of each plug 275 75,33 260 70,19 250 65,08 270 68,07 300 75,33 300 70,19 300 65,08 300 68,07 can be obtained from Homework 2 results.

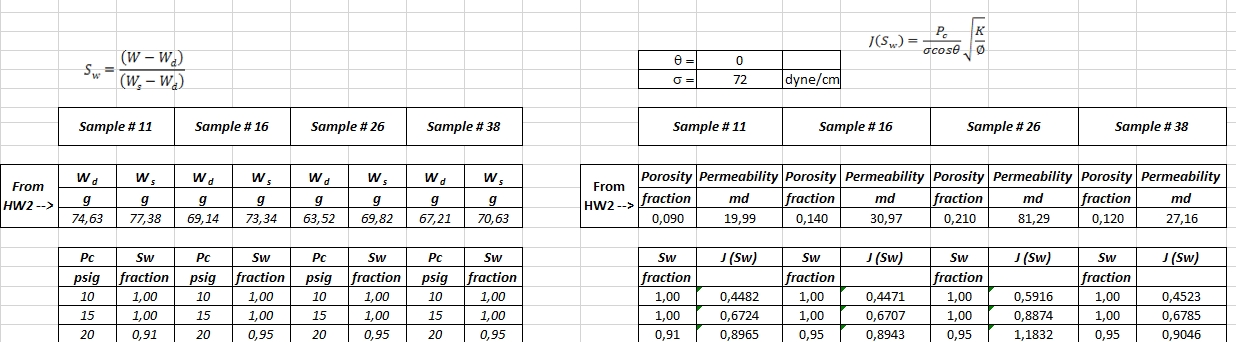

Solution PreviewSolution Preview

These solutions may offer step-by-step problem-solving explanations or good writing examples that include modern styles of formatting and construction of bibliographies out of text citations and references. Students may use these solutions for personal skill-building and practice. Unethical use is strictly forbidden.

    By purchasing this solution you'll be able to access the following files:
    Solution.docx and Solution.xlsx.
